| Oracle E-Business Suite Integrated SOA Gateway Developer's Guide Release 12.1 Part Number E12065-06 | Contents | Previous | Next |
Similar to regular users or system integration analysts, system integration developers can view integration interfaces and their details from Oracle Integration Repository, as well as review generated or deployed Web service WSDL files in the appropriate Web Service region. The developers cannot perform administrative tasks, such as generating or deploying Web services, which are done by the integration repository administrators.
However, the developers have more privileges than the analysts in viewing all types of integration interfaces including public, private, and internal interface types from Oracle Integration Repository. These privileges allow developers to have sufficient integration interface information which could be useful to better understand each integration interface from different perspectives.
Note: System integration analysts can view Public integration interfaces only, and they do not have the access privileges to view Private to Application and Internal to Oracle interfaces from the Oracle Integration Repository.
This section covers the following topics:
To better understand each integration interface and the integration between different applications, Oracle E-Business Suite Integrated SOA Gateway allows system integration developers and integration repository administrators to have more interface access privileges in viewing all integration interface types regardless of public, private, or internal interface types.
Browsing the Integration Interfaces
When viewing integration interfaces, you can browse by product family, by interface type, or by standard based on your selection in the View By drop-down list. Expand the navigation tree in one of these views to see a list of the available interfaces.
For more information on how to browse the interfaces, see Browsing the Integration Interfaces, Oracle E-Business Suite Integrated SOA Gateway User's Guide.
Searching the Integration Interfaces
To search for an integration interface, click Search to access the main Search page. After clicking the Show More Search Options link in the Search page, you can find Private to Application and Internal to Oracle interface types along with Public and All displayed from the Scope drop-down menu. If 'All' is selected from the Scope field, then all integration interfaces including public, private to application, and internal to Oracle interfaces can be listed in the results region.
Note: System integration analysts can view Public integration interfaces only, and they do not have the access privileges to view Private to Application and Internal to Oracle interfaces from the Oracle Integration Repository.
In addition, they can only find 'All' (default) and 'Public' list of values available from the Scope drop-down list. And only Public integration interfaces will be retrieved and listed in the search result even if they do not change the default value 'All' in the Scope field.
For detailed information on Public, Private to Application, and Internal to Oracle, see Scope, Oracle E-Business Suite Integrated SOA Gateway User's Guide.
By using the search feature, you can easily locate a deployed Web service for a particular product or product family if you want to use the deployed service for a partner link creation while orchestrating the BPEL process.
For example, to locate all deployed Web services for concurrent program, first select 'Concurrent Program' from the Interface drop-down list and then click Show More Search Options to select 'Deployed' for the Web Service Status field. After executing the search, you should find all deployed Web services for the concurrent program interface type.
Searching for Deployed Web Services
Searching for Java APIs for Forms Interfaces
Java APIs for Forms interfaces are XML document-based integration points wrapped in Java classes for executing business logic in Oracle Forms. These specialized Java classes are categorized with subtype 'Java APIs for Forms' and displayed in the Integration Repository under the Java interface type.
To locate a Java APIs for Forms interface, you must perform a search by clicking Show More Search Options to display more search fields. Enter the following key search values along with any product family or scope if needed as the search criteria:
Category: Interface Subtype
Category Value: Java APIs for Forms
Searching for Java APIs for Forms Interfaces
To view an interface details, click the interface name link that you would like to view from the search result region to view the information details. See Reviewing Interface Details.

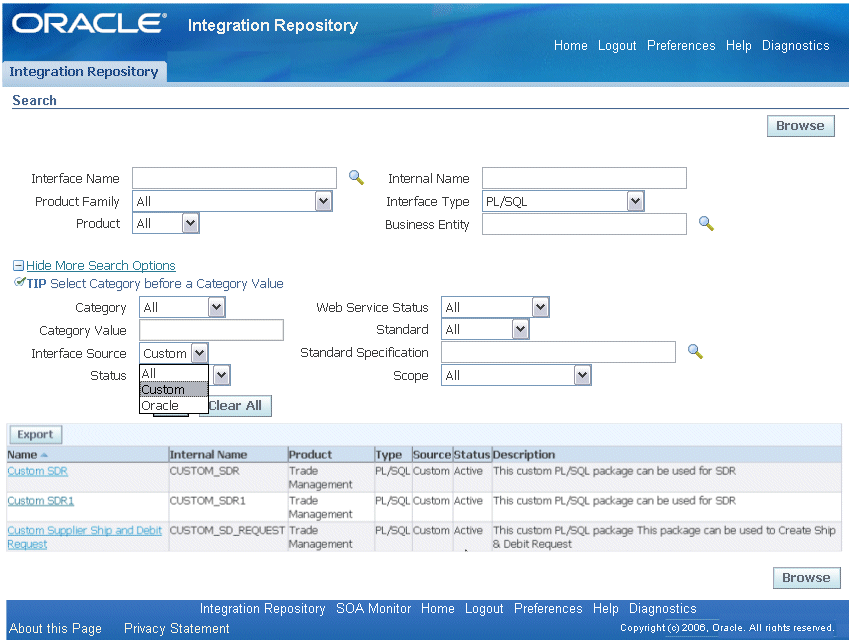

Searching for Custom Integration Interfaces
Annotated custom interface definitions, once they are uploaded successfully, are merged into the interface types they belong to and displayed together with Oracle interfaces from the Integration Repository browser window. To easily distinguish annotated custom interface definitions from Oracle interfaces, the Interface Source "Custom" is used to categorize those custom integration interfaces in contrast to Interface Source "Oracle" for Oracle interfaces.
Therefore, you can search for custom integration interfaces by clicking Show More Search Options to display more search fields.
Searching for Custom Integration Interfaces
Enter the following information along with any interface type, product family, or scope if needed as the search criteria:
Interface Source: Custom
For information on how to view custom integration interfaces, see Viewing Custom Integration Interfaces, Oracle E-Business Suite Integrated SOA Gateway User's Guide.
For more information on each search field in the Search page, see Searching for an Integration Interface, Oracle E-Business Suite Integrated SOA Gateway User's Guide.
To search for all integration interface types:
Log on Oracle Integration Repository with the username granted with the system integration developer role. Select the Integrated SOA Gateway responsibility from the navigation menu. Select the Integration Repository link to open the repository browser.
Click Search to open the main Search page.
Enter appropriate search information such as product family, product, interface type, or business entity.
Click Show More Search Options to open more search options.
To search custom integration interfaces, select 'Custom' in the Interface Source field.
To search Java APIs for Forms interfaces, select 'Interface Subtype' in the Category field and 'Java API for Forms' in the Category Value field.
To view deployed integration interfaces, select 'Deployed' from the Web Service Status field drop-down list.
To view all integration interfaces, select All from the Scope field. This allows all integration interfaces including Public, Internal to Oracle, and Private to Application displayed in the results region.
To view integration interfaces of Public, Internal to Oracle, or Private to Application type, select 'Public', 'Internal to Oracle', or 'Private to Application' from the Scope drop-down list respectively.
Click Go to execute the search. All interfaces that match your search criteria are displayed.
Select an interface type from the search result to view the interface details.
After searching for an integration interface, integration developers can review a selected interface details by clicking on an interface name from the search result page. This opens the interface details page where you can view the interface general information, a description region, a source region, and an interface methods or procedure and functions region.
If the selected interface has a Web service generated successfully, then the Web Service - SOA Provider region is displayed in the interface details page.

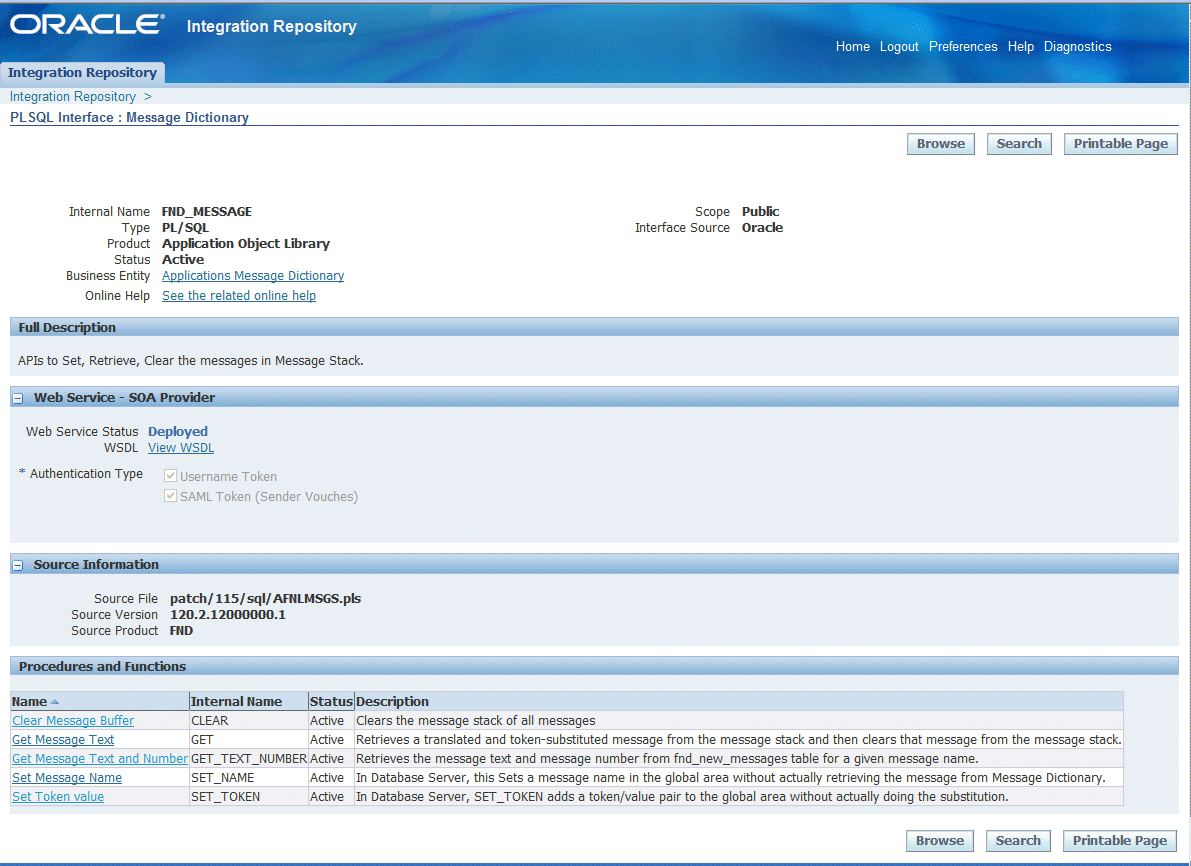

Viewing Interface Details Page
Note: For Business Service Object interface type, since it is service enabled by Web Service Provider, you will find the Web Service - Web Service Provider region instead in the interface details if the services are available.
If it is for XML Gateway Map interface type, you may also find the Web Service - Web Service Provider region available. This is because XML Gateway Map interfaces can be service enabled by Web Service Provider in Oracle E-Business Suite Release 12.0. Hence, if your system is upgraded from the Release 12.0, and your system has already have service enabled through Web Service Provider in the Release 12.0, you can find the Web Service - Web Service Provider region displayed along with the Web Service - SOA Provider region if you also have service available in this release.
In the Web Service - SOA Provider region (or Web Service - Web Service Provider region), you can notice the following fields:
Web Service Status: This field indicates whether the service is deployed or not. It can have either one of the following possible values:
Generated: It indicates that the selected interface has WSDL description available.
Deployed: It indicates that the selected interface has been successfully deployed to the application server.
View WSDL link: Click this link allowing you to view the generated or deployed WSDL code.
For more information on how to view WSDL file, see Reviewing WSDL Element Details.
Authentication Type: This field contains the following read-only check boxes:
Username Token
This authentication type provides username and password information in the security header for a Web service provider to use in authenticating the SOAP request. It is the concept of Oracle E-Business Suite username/password (or the username/password created through the Users window in defining an application user).
SAML Token (Sender Vouches)
This authentication type is used for Web services relying on sending a username only through SAML Assertion.
These authentication types are used by SOA Provider to secure Web service content and authenticate Web service operation. Prior to deploying or redeploying a Web service generated by SOA Provider, an integration repository administrator must first select at least one authentication type. Once the service has been successfully deployed, the Web Service Status field is changed from 'Generated' to 'Deployed' along with the selected authentication type(s).
For more information on how to deploy a service, see Deploying and Undeploying Web Services, Oracle E-Business Suite Integrated SOA Gateway Implementation Guide.
Note: Please note that not all integration interface definitions can be service enabled. Oracle Integration Repository supports service enablement only for the following interface types:
PL/SQL
XML Gateway Map (inbound)
Concurrent Program
Business Service Object (Service Beans)
Java APIs for Forms
Java APIs for Forms are XML document-based integration points wrapped in Java classes for executing business logic in Oracle Forms. These specialized Java classes are categorized as a subtype of Java interface.
The Business Event and XML Gateway Map (outbound) interface types are supported through subscription model. Non-service enabled public interfaces are Open Interface Tables, Open Interface Views, and EDI interface. For the Composite Services - BPEL interface type, since it uses native integration services as building blocks to orchestrate a business process with service endpoints through BPEL language, this type of interface itself is already service enabled.
Based on the interface type support model described above, for those interface types that can be service enabled, an integration repository administrator can perform additional tasks to generate, deploy, or redeploy a Web services for a selected interface type. Additionally, the administrator can perform other administrative tasks including subscribing to a selected business event, creating security grants, and viewing available log messages written during service generation and deployment. For detailed information on these administrative tasks, see:
Generating Web Services, Oracle E-Business Suite Integrated SOA Gateway Implementation Guide
Deploying and Undeploying Web Services, Oracle E-Business Suite Integrated SOA Gateway Implementation Guide
Subscribing to Business Events, Oracle E-Business Suite Integrated SOA Gateway Implementation Guide
Creating Grants, Oracle E-Business Suite Integrated SOA Gateway Implementation Guide
Viewing Generate and Deploy Time Logs, Oracle E-Business Suite Integrated SOA Gateway Implementation Guide
Once the Web services representing in WSDL are generated, integration developers can then use them in creating a composite service - BPEL process to insert or update Oracle E-Business Suite.
How to use WSDL definitions in creating composite service - BPEL processes, see each individual chapter described in this book for details.
If an interface can be exposed as a Web service, the corresponding WSDL file is created and can be accessed through the interface details page.

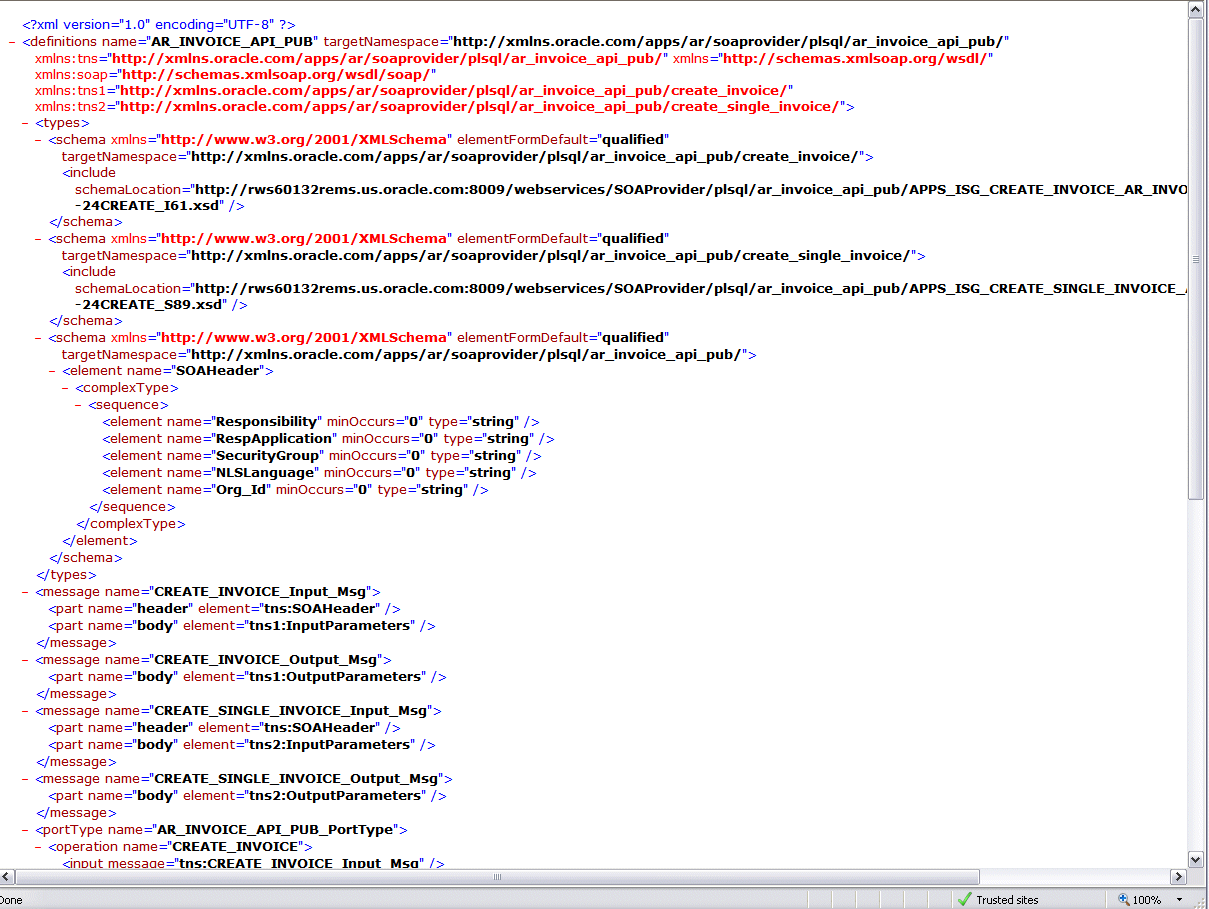

By clicking the View WSDL link, a new window containing the WSDL document appears. This XML-based document describes a selected Web service as a set of endpoints operating on messages containing document-oriented information.
Locating the Interface Exposed as a Web Service
For example, click the deployed View WSDL link for the PL/SQL: Invoice Creation from the interface details page, the WSDL document appears.
Note: The http:// address in the new window has the exact WSDL URL information that appeared in the interface details page. This address can be copied and used directly in any of the Web service clients for invoking Web services.
For example, it can be used while creating a partner link for the invocation of the interface that is exposed as Web service in a BPEL process.
A WSDL document is simply a set of definitions. There is a definitions element at the root, and definitions inside. The definitions element defines the set of services that the Web service offers.
It often contains an optional TargetNamespace property, a convention of XML schema that enables the WSDL document to refer to itself.
The structure of this definitions element can be like:
<definitions name="nmtoken"
<targetNamespace="uri">
<import namespace="uri" location="uri"/> *
</definitions>
For example, a corresponding WSDL document for the Invoice Creation API (AR_INVOICE_API_PUB) that is exposed as a Web service appears in a new window.
<definitions name="AR_INVOICE_API_PUB"
targetNamespace="http://xmlns.oracle.com/apps/ar/soaprovider/plsql/ar_invoice_api_pub/"
xmlns:tns="http://xmlns.oracle.com/apps/ar/soaprovider/plsql/ar_invoice_api_pub/
xmlns="http://schemas.xmlsoap.org/wsdl/"
xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/"
xmlns:tns1="http://xmlns.oracle.com/apps/ar/soaprovider/plsql/ar_invoice_api_pub/create_invoice/"
xmlns:tns2="http://xmlns.oracle.com/apps/ar/soaprovider/plsql/ar_invoice_api_pub/create_single_invoice/>
For example, the definitions element specifies that this WSDL document is the called 'AR_INVOICE_API_PUB'. It also specifies numerous namespaces that will be used throughout the remainder of the document. It also specifies a default namespace: xmlns=http://schemas.xmlsoap.org/wsdl/.
In addition to the definitions element, Web services are defined using the following six major elements:
Types: It provides data type definitions used to describe the messages exchanged.
Message: It represents an abstract definition of the data being transmitted.
A message consists of logical parts, each of which is associated with a definition within some type system.
PortType: It is a set of abstract operations. Each operation refers to an input message and output messages.
Binding: It specifies concrete protocol and data format specifications for the operations and messages defined by a particular portType.
Port: It specifies an address for a binding, thus defining a single communication endpoint.
Service: It is used to aggregate a set of related ports.
The following diagram shows the relationship of the basic parts of WSDL:
The types element contains all data types used in all method calls described in the WSDL. It can be used to specify the XML Schema (xsd:schema) that is used to describe the structure of a WSDL Part.
The structure of this Types element can be like:
<definitions...>
<types>
<xsd:schema.../>*
</types>
</definitions>For example, the Invoice Creation Web service contains the following two functions:
CREATE_INVOICE
CREATE_SINGLE_INVOICE
Each function is described in the data type definition. WSDL prefers the use of XSD as the type of system mechanism to define the types in a message schema. As a result, the message schema location of the CREATE_INVOICE function is defined in the APPS_XX_BPEL_CREATE_INVOICE_AR_INVOICE_API_PUB-24CREATE_INV.xsd. The message schema location of the CREATE_SINGLE_INVOICE function is defined in the APPS_XX_BPEL_CREATE_SINGLE_INVOICE_AR_INVOICE_API_PUB-24CREATE_SIN.xsd.
<types>
<schema xmlns="http://www.w3.org/2001/XMLSchema"
elementFormDefault="qualified"
targetNamespace="http://xmlns.oracle.com/apps/ar/soaprovider/plsql/ar_invoice_api_pub/create_invoice/">
<include
schemaLocation="https://host.us.oracle.com:1234/webservices/SOAProvider/plsql/ar_invoice_api_pub/APPS_XX_BPEL_CREATE_INVOICE_AR_INVOICE_API_PUB-24CREATE_INV.xsd"/>
</schema>
<schema xmlns="http://www.w3.org/2001/XMLSchema"
elementFormDefault="qualified"
targetNamespace="http://xmlns.oracle.com/apps/ar/soaprovider/plsql/ar_invoice_api_pub/create_single_invoice/">
<include
schemaLocation="https://host.us.oracle.com:1234/webservices/SOAProvider/plsql/ar_invoice_api_pub/APPS_XX_BPEL_CREATE_SINGLE_INVOICE_AR_INVOICE_API_PUB-24CREATE_SIN.xsd"/>
</schema>
... In addition to message schema locations and schema elements that help to define Web messages, the Types element can also take a complex data type as input.
For example, the Responsibility, Responsibility Application, Security Group, NLS Language, and Organization ID complex types listed under the "SOAHeader" as shown below are used in passing values that would be used to set applications context during service execution.
...
<schema xmlns="http://www.w3.org/2001/XMLSchema"
elementFormDefault="qualified"
targetNamespace="http://xmlns.oracle.com/apps/ar/soaprovider/plsql/ar_invoice_api_pub/">
<element name="SOAHeader">
<complexType>
<sequence>
<element name="Responsibility" minOccurs="0" type="string"/>
<element name="RespApplication" minOccurs="0" type="string"/>
<element name="SecurityGroup" minOccurs="0" type="string"/>
<element name="NLSLanguage" minOccurs="0" type="string"/>
<element name="Org_Id" minOccurs="0" type="string" />
</sequence>
</complexType>
</element>
</schema>
</types>The Message element defines the name of the message. It consists of one or more Part elements, which describe the content of a message using Element or Type attributes.
Parts are a flexible mechanism for describing the logical abstract content of a message. A binding may reference the name of a part in order to specify binding-specific information about the part.
The structure of this element can be like:
<definitions...>
<message name="nmtoken"> *
<part name="nmtoken" element="qname"? type="qname"? />
</message>
</definitions>A typical document-style Web service could have a header and body part in the input message and output message as well. For example, the Message element for the Invoice Creation Web service appears:
<message name="CREATE_INVOICE_Input_Msg">
<part name="header" element="tns:SOAHeader"/>
<part name="body" element="tns1:InputParameters"/>
</message>
<message name="CREATE_INVOICE_Output_Msg">
<part name="body" element="tns1:OutputParameters"/>
</message>
<message name="CREATE_SINGLE_INVOICE_Input_Msg">
<part name="header" element="tns:SOAHeader"/>
<part name="body" element="tns2:InputParameters"/>
</message>
<message name="CREATE_SINGLE_INVOICE_Output_Msg">
<part name="body" element="tns2:InputParameters"/>
</message>
Each message defined by the associated schema includes input message and output message parts. For example, the Invoice Creation Web service has two functions:
CREATE_INVOICE
The input message of this function which has all its parameter is defined by CREATE_INVOICE_Input_Msg.
The output message of this function which gives its result is defined by CREATE_INVOICE_Output_Msg.
The schema of input and output messages is defined in the APPS_XX_BPEL_CREATE_INVOICE_AR_INVOICE_API_PUB-24CREATE_INV.xsd.
CREATE_SINGLE_INVOICE
The input message of this function which has all its parameter is defined by CREATE_SINGLE_INVOICE_Input_Msg.
The output message of this function which gives its result is defined by CREATE_SINGLE_INVOICE_Output_Msg.
The schema of input and output messages is defined in the APPS_XX_BPEL_CREATE_SINGLE_INVOICE_AR_INVOICE_API_PUB-24CREATE_INV.xsd

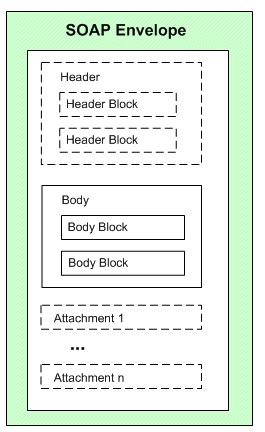

The value of body part of each message will be set as SOAP body; the value of header part will be set in the SOAP header which is required for Web service authorization.
For more information, see Understanding Web Service Input Message Parts.
The portType element combines multiple message elements to form a complete one-way or round-trip operation supported by a Web service.
For example, a portType can combine one request (input message element) and one response (output message element) message into a single request/ response operation for the synchronous request - response operation, most commonly used in SOAP services.
If it is for one-way operation, then the operation would contain an Input element only.
The structure of this element can be like:
<wsdl:definitions...>
<wsdl:portType name="nmtoken">*
<operation name="nmtoken"/>
<wsdl:input name="nmtoken"? message="qname">?
</wsdl:input>
<wsdl:output name="nmtoken"? message="qname">?
</wsdl:output>
<wsdl:fault name="nmtoken"? message="qname">?
</wsdl:fault>
</wsdl:operation>
</wsdl:portype>
</wsdl:definitions>Note: An optional Fault element can be used for error handling in both request-response and solicit response Operation models. This feature is not supported in this release.
In this Invoice Creation Web service example, corresponding to above two functions, AR_INVOICE_API_PUB_PortType has the following two operations:
CREATE_INVOICE
Input: CREATE_INVOICE_Input_Msg
Output: CREATE_INVOICE_Output_Msg
CREATE_SINGLE_INVOICE
Input: CREATE_SINGLE_INVOICE_Input_Msg
Output: CREATE_SINGLE_INVOICE_Output_Msg
<portType name="AR_INVOICE_API_PUB_PortType">
<operation name="CREATE_INVOICE">
<input name="tns:CREATE_INVOICE_Input_Msg" />
<output name="tns:CREATE_INVOICE_Output_Msg" />
</operation>
<operation name="CREATE_SINGLE_INVOICE">
<input name="tns:CREATE_SINGLE_INVOICE_Input_Msg" />
<output name="tns:CREATE_SINGLE_INVOICE_Output_Msg" />
</operation>
</portype>
A binding defines message format and protocol details for operations and messages defined by a particular portType. It provides specific details on how a portType operation will actually be transmitted over the Web. Bindings can be made available through multiple transports, including HTTP GET, HTTP POST, or SOAP.
A port defines an individual endpoint by specifying a single address for a binding.
The structure of this element can be like:
<wsdl:definitions...>
<wsdl:binding name="nmtoken" type="qname">*
<wsdl:operation name="nmtoken"/>
<wsdl:input> ?
</wsdl:input>
<wsdl:output>?
</wsdl:output>
<wsdl:fault name="nmtoken"? message="qname">?
</wsdl:fault>
</wsdl:operation>
</wsdl:binding>
</wsdl:definitions>In the same example, the binding element as shown below describes the SOAP binding for PortType AR_INVOICE_API_PUB_PortType.
<binding name="AR_INVOICE_API_PUB_Binding" type="tns:AR_INVOICE_API_PUB_PortType">
<soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/>
<operation name="CREATE_INVOICE">
<soap:operation
soapAction="https://host.us.oracle.com:1234/webservices/SOAProvider/plsql/ar_invoice_api_pub/"/>
<input>
<soap:header message="tns:CREATE_INVOICE_Input_Msg" part="header" use="literal" />
<soap:body parts="body" use="literal" />
</input>
<output>
<soap:body use="literal" />
</output>
</operation>
<operation name="CREATE_SINGLE_INVOICE">
<soap:operation
soapAction="https://host.us.oracle.com:1234/webservices/SOAProvider/plsql/ar_invoice_api_pub/"/>
<input>
<soap:header message="tns:CREATE_SINGLE_INVOICE_Input_Msg" part="header" use="literal" />
<soap:body parts="body" use="literal" />
</input>
<output>
<soap:body use="literal" />
</output>
</operation>
</bindingThe binding used is always document style, SOAP over http binding. It also defines the content of SOAP header and SOAP body.
Note: Because it is a document-style service (style="document"), the request and response messages will consist of simply XML documents, instead of using the wrapper elements required for the remote procedure call (RPC-style) Web service. The transport attribute indicates the transport of the SOAP messages is through SOAP HTTP.
Within each operation, the soap:operation element indicates the binding of a specific operation (such as CREATE_INVOICE) to a specific SOAP implementation. The soapAction attribute specifies that the SOAPAction HTTP header be used for identifying the service.
The soap:header element allows header to be defined that is transmitted inside the Header element of the SOAP Envelope. The SOAHeader comprises of Responsibility, RespApplication, SecurityGroup, NLSLanguage, and Org_Id complex types within the Types element.
The soap:body element enables you to specify the details of the input and output messages for a specific operation.
The service element defines the Web service, and typically consists of one or more Port elements. A port defines an individual endpoint by specifying a single address for a binding.
The service binding is commonly created using SOAP.
The structure of this element can be like:
<wsdl:definitions...>
<wsdl:service name="nmtoken">*
<wsdl:port name="nmtoken" binding="qname"> *
</wsdl:port>
</wsdl:service>
</wsdl:definitions>
In this example, the Service element AR_INVOICE_API_PUB_Service defines physical location of service endpoint where the service is hosted for the portType AR_INVOICE_API_PUB_PortType.
<service name="AR_INVOICE_API_PUB_Service">
<port name="AR_INVOICE_API_PUB_Port" binding="tns:AR_INVOICE_API_PUB_Binding">
<soap:address
location="https://host.us.oracle.com:1234/webservices/SOAProvider/plsql/ar_invoice_api_pub/"/>
</port>
</service>SOAP (Simple Object Access Protocol) is a lightweight, XML-based protocol specification for exchanging structured information in the implementation of Web services in computer networks. For example, Web service provider receives SOAP requests from Web service clients to invoke Web services and also sends the corresponding SOAP responses out to the clients.
To support all integration interface types and services in Oracle E-Business Suite Integrated SOA Gateway, all SOAP messages are authenticated, authorized, and service enabled through SOA Provider except for Business Service Object services and generic XML Gateway messages that are enabled through Web Service Provider.
SOAP Message Structure
SOAP is an XML-based protocol and acts as a building block for Web service communication. SOAP messages are contained in one of the SOAP components called Envelope. The SOAP envelop defines an overall framework for describing what is in a message; who should deal with it, and whether it is optional or mandatory. It consists of the following elements:
Header (Optional)
An envelope element can optionally have a Header element. If an envelope contains a Header element, it must contain no more than one, and it must appear as the first child of the envelope. The first level child elements of the Header element are called Header Blocks.
Header blocks can be used in the following mechanisms:
It provides a mechanism for attaching security related information targeted at a specific recipient.
For more information, see SOAP Security Header.
It can be used to set applications context values required for services.
For more information, see SOAP Header for Applications Context.
It can be used to populate mandatory header variables for XML Gateway inbound transactions to be completed successfully.
For more information, see SOAP Header for XML Gateway Messages
Body
Every envelope element must contain exactly one Body element that holds the message. Immediate child elements of the Body element are called Body Blocks or Parts.
Attachment (Optional)
A SOAP message can carry multiple attachments and these attachments can be of any type including text, binary, image, and so on.
The following diagram depicts the structure of a SOAP message.
SOAP Message Structure
A skeleton of a SOAP message can be like:
<xml version="1.0">
<soap:Envelope
xmlns:soap="http://www.w3.org/2001/12/soap-envelope"
soap:encodingStyle="http://www.w3.org/2001/12/soap-encoding">
<soap:Header>
...
</soap:Header>
<soap:Body>
...
<soap:Fault>
...
</soap:Fault>
</soap:Body>
</soap:Envelope>When a SOAP request message is received through SOA Provider, the SOAP message is passed on to OC4J Web Service Framework for authentication. The framework authenticates the SOAP message based on the specified authentication type(s) during the service deployment. The identified authentication information is embedded in the wsse:security Web Security headers.
A UsernameToken-based SOAP header should include the following wsse:security section:
<soapenv:Header>
<http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd"
soapenv:mustUnderstand="1">
<wsse:UsernameToken>
<wsse:Username>Username</wsse:Username>
<wsse:Password>Password</<wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
</soapenv:Header>Note: When a <wsse:security> header includes a mustUnderstand="1" attribute, then the receiver must generate a fault if it is unable to interpret or process security tokens contained the <wsse:security> header block according to the corresponding WS SOAP message security token profiles.
See A Sample Fault SOAP Response for Business Service Object.
A typical WS-Security header in a SOAP Request can be like:
<soapenv:Header>
<http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd"
soapenv:mustUnderstand="1">
<wsse:UsernameToken>
<wsse:Username>myUser</wsse:Username>
<wsse:Password
Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">myPasswd</wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
</soapenv:Header>The UsernameToken based security mechanism includes UsernameToken profile which provides username and password information in the Web service security header. Username is a clear text; password is the most sensitive part of the UsernameToken profile. In this security model, the supported password type is plain text password (or PasswordText).
The username/password in SOAP Header of a SOAP message will be passed for Web service authentication. The username/password discussed here in wsse:security is the Oracle E-Business Suite username/password (or the username/password created through the Users window in defining an application user).
Passing security header elements along with the SOAP request is essential to the success of invoking Oracle E-Business Suite Web services through SOA Provider or Web Service Provider.
If these security header values are not passed, the Web service will not be authenticated and the execution of the service will be failed.
Detailed instructions on how to pass the security header along with the SOAP request when invoking an Oracle E-Business Suite Web service from a BPEL process, see Passing Values to Security Headers.
Security Assertion Markup Language (SAML) is an XML-based standard for exchanging authentication and authorization data between security domains, that is, between an identity provider and a service provider.
When a Web application invokes a service that uses SAML as its authentication mechanism, this SOAP request message containing or referencing SAML assertions is received through SOA Provider and passed on to OC4J Web Service Framework for authentication. The framework authenticates the SOAP message based on the wsse:security Web Security headers. As part of the validation and processing of the assertions, the receiver or authentication framework must establish the relationship between the subject, claims of the referenced SAML assertions, and the entity providing the evidence to satisfy the confirmation method defined for the statements.
A trusted entity uses the sender-vouches confirmation method to ensure that it is acting on behalf of the subject of SAML statements attributed with a sender-vouches SubjectConfirmation element.
The following SOAP example describes a trusted entity uses the sender-vouches subject confirmation method with an associated <ds:Signature> element to establish its identity and to assert that it has sent the message body on behalf of the subject(s):
<soapenv:Envelope
xmlns:fnd="http://xmlns.oracle.com/apps/fnd/soaprovider/plsql/fnd_user_pkg/" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
<soapenv:Header>
<wsse:Security xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd">
<ds:Signature Id="Signature-26598842" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
<ds:SignedInfo>
<ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
<ds:SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1"/>
<ds:Reference URI="#id-31755621">
<ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
</ds:Transforms>
<ds:DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/>
<ds:DigestValue>hbb/y+b3whhaFakWGO+bnkNm5/Q=</ds:DigestValue>
</ds:Reference>
</ds:SignedInfo>
<ds:SignatureValue>
jiXB+bsTfqd0uYxnaPAJcooCGb9UrKfzqSlGu/lE0nbL+sPkQQzmaB+ZKMFxUAc5pJStyeBu3DIg
6bEXSknB3JeJaHy6UFeGKZz3ROf4WKqRvDLXsa10Ei6Id66go3goqYzYtoUA4J43MjLJbKUw5KG/
LGBImRKABFPRP4qlAlQ=
</ds:SignatureValue>
<ds:KeyInfo Id="KeyId-1042529">
<wsse:SecurityTokenReference wsu:Id="STRId-6382436" xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd"><wsse:KeyIdentifier
EncodingType="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-soap-message-security-1.0#Base64Binary"
ValueType="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-x509-token-profile-1.0#X509SubjectKeyIdentifier">ADoNKKuduSTKTwi7jqEzCxwD7JU=</wsse:KeyIdentifier></wsse:SecurityTokenReference>
</ds:KeyInfo></ds:Signature>
<Assertion AssertionID="be7d9814c36381c27fefa89d8f27e126" IssueInstant="2010-02-27T17:26:21.241Z" Issuer="www.oracle.com" MajorVersion="1" MinorVersion="1" xmlns="urn:oasis:names:tc:SAML:1.0:assertion" xmlns:saml="urn:oasis:names:tc:SAML:1.0:assertion" xmlns:samlp="urn:oasis:names:tc:SAML:1.0:protocol" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"><Conditions NotBefore="2010-02-27T17:26:21.241Z" NotOnOrAfter="2011-02-27T17:26:21.241Z"/>
<AuthenticationStatement AuthenticationInstant="2010-02-27T17:26:21.241Z" AuthenticationMethod="urn:oasis:names:tc:SAML:1.0:am:password">
<Subject>
<NameIdentifier Format="urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified"
NameQualifier="notRelevant">SYSADMIN</NameQualifier>
<SubjectConfirmation>
<ConfirmationMethod>urn:oasis:names:tc:SAML:1.0:cm:sender-vouches</ConfirmationMethod>
</SubjectConfirmation>
</Subject>
</AuthenticationStatement>
</Assertion>
</wsse:Security>
<fnd:SOAHeader>
<!--Optional:-->
<fnd:Responsibility>UMX</fnd:Responsibility>
<!--Optional:-->
<fnd:RespApplication>FND</fnd:RespApplication>
</fnd:SOAHeader>
</soapenv:Header>
<soapenv:Body wsu:Id="id-31755621" xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd">
<tes:InputParameters xmlns:tes="http://xmlns.oracle.com/apps/fnd/soaprovider/plsql/fnd_user_pkg/testusername/">
<!--Optional:-->
<tes:X_USER_NAME>AMILLER</tes:X_USER_NAME>
</tes:InputParameters>
</soapenv:Body>
</soapenv:Envelope>Note: SAML Token based security can be used to authenticate users in both Single Sign-On (SSO) and non-SSO enabled environments. The format of the NameIdentifier in the SAML assertion indicates if the user has been authenticated against LDAP (SSO user) or Oracle E-Business Suite FND_USER table (for non-SSO user).
The SAML assertion in the above SOAP message is for non-SSO enabled environment. If the username in the NameIdentifier tag is of the form of LDAP DN as shown below, then the username is verified in the registered OID for SSO user.
<NameIdentifier Format="urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified"
NameQualifier="notRelevant">orclApplicationCommonName=PROD1,cn=EBusiness,cn=Products,cn=OracleContext,dc=us,dc=oracle,dc=com</NameIdentifier>For more information about SAML Token sender-vouches based security, see SAML Sender-Vouches Token Based Security, Oracle E-Business Suite Integrated SOA Gateway Implementation Guide.
Applications context contains many crucial elements that are used in passing values that may be required in proper functioning of Oracle E-Business Suite Web services. For example, the context header information is required for an API transaction or a concurrent program in order for an Oracle E-Business Suite user that has sufficient privileges to run the program.
Applications Context in SOAHeader Part of a SOAP Request
These context header elements defined in SOAHeader part of SOAP request for PL/SQL, Concurrent Program, and Java APIs for Forms services are:
Responsibility
It is the Oracle E-Business Suite application responsibility information. It accepts responsibility_key (such as SYSTEM_ADMINISTRATOR) as its value.
RespApplication
It is the responsibility application short name information. It accepts Application Short Name (such as FND) as its value.
SecurityGroup
It accepts Security Group Key (such as STANDARD) as its value.
NLSLanguage (optional)
It is an optional parameter to be passed in SOAHeader part of a SOAP request for PL/SQL and Concurrent Program services.
If the NLS Language element is specified, SOAP requests can be consumed in the language passed. All corresponding SOAP responses and error messages can also be returned in the same language. If no language is identified, then the default language of the user will be used.
Org_Id (optional for PL/SQL and Concurrent Program services)
It is an optional parameter to be passed in SOAHeader part of a SOAP request for PL/SQL and Concurrent Program services. If a service execution is dependent on any particular organization, then you must pass the Org_Id element of that SOAP request.
Org_Id is a mandatory value that must be passed for the Java APIs for Forms services.
The following SOAP message shows the SOAHeader part highlighted in bold text:
<soapenv:Header>
<http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd"
soapenv:mustUnderstand="1">
<wsse:UsernameToken>
<wsse:Username>myUser</wsse:Username>
<wsse:Password
Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">myPasswd</wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
<ozf:SOAHeader>
<ozf:Responsibility>OZF_USER</ozf:Responsibility>
<ozf:RespApplication>OZF</ozf:RespApplication>
<ozf:SecurityGroup>STANDARD</ozf:SecurityGroup>
<ozf:NLSLanguage>AMERICAN</ozf:NLSLanguage>
<ozf:Org_Id>204</ozf:Org_Id>
</ozf:SOAHeader>
</soapenv:Header>Applications Context in ServiceBean_Header Part of a SOAP Request
These context header elements defined in ServiceBean_Header part of SOAP requests for Business Service Object services are:
RESPONSIBILITY_NAME
It is the Oracle E-Business Suite application responsibility information. It can accept both the name (Responsibility_Name, such as System Administrator) and the key (in the format of {key}responsibility_key, such as {key}SYSTEM_ADMINISTRATOR) as its values.
RESPONSIBILITY_APPL_NAME
It is the responsibility application short name information. It accepts Application Short Name (such as FND) as its value.
SECURITY_GROUP_NAME
It accepts Security Group Key (such as STANDARD) as its value.
NLSLanguage (optional)
It is an optional parameter to be passed in ServiceBean_Header part of a SOAP request for Business Service Object service.
If the NLS Language element is specified (such as AMERICAN), SOAP requests can be consumed in the language passed. All corresponding SOAP responses and error messages can also be returned in the same language. If no language is identified, then the default language of the user will be used.
Org_Id (optional)
It is an optional parameter to be passed in ServiceBean_Header part of a SOAP request for Business Service Object service.
If a service execution is dependent on any particular organization, then you must pass the Org_Id element of that SOAP request.
The following SOAP request example includes the ServiceBean_Header part highlighted in bold text for business service object:
<soapenv:Envelope xmlns:ser="http://xmlns.oracle.com/apps/fnd/ServiceBean"
xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ws="http://xmlns.oracle.com/apps/fnd/rep/ws">
<soapenv:Header>
<wsse:Security soapenv:mustUnderstand="1" xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd">
<wsse:UsernameToken wsu:Id="UsernameToken-22948433" xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd">
<wsse:Username>sysadmin</wsse:Username>
<wsse:Password Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">sysadmin</wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
<ser:ServiceBean_Header>
<ser:RESPONSIBILITY_NAME>System Administrator</ser:RESPONSIBILITY_NAME>
<ser:RESPONSIBILITY_APPL_NAME>sysadmin</ser:RESPONSIBILITY_APPL_NAME>
<ser:SECURITY_GROUP_NAME>standard</ser:SECURITY_GROUP_NAME>
<ser:NLS_LANGUAGE>american</ser:NLS_LANGUAGE>
<ser:ORG_ID>202</ser:ORG_ID>
</ser:ServiceBean_Header>
</soapenv:Header>
<soapenv:Body>
<ws:IntegrationRepositoryService_GetInterfaceByType>
<interfaceType>XMLGATEWAY</interfaceType>
</ws:IntegrationRepositoryService_GetInterfaceByType>
</soapenv:Body>
</soapenv:Envelope>The SOAP header part can also be used to populate header variables for XML Gateway inbound transactions to be completed successfully. These XML Gateway header parameters defined in the SOAHeader (through SOA Provider) or XMLGateway_Header (through Web Service Provider) part of a SOAP Request are described in the following table:
The following code snippet shows the SOAHeader part of a SOAP request for an XML Gateway inbound message through SOA Provider:
<soapenv: Envelope xmlns:ecx="http://xmlns.oracle.com/apps/ecx/soaprovider/xmlgateway/ecx__cbodi/"
xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:sys="http://xmlns.oracle.com/xdb/SYSTEM">
<soapenv:Header>
<wsse:Security soapenv:mustUnderstand="1"
xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd">
<wsse:UsernameToken wsu:Id="UsernameToken-10586449"
xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd">
<wsse:Username>SYSADMIN</wsse:Username>
<wsse:Password Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">SYSADMIN</wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
<ecx:SOAHeader>
<sys:ECXMSG>
<MESSAGE_TYPE></MESSAGE_TYPE>
<MESSAGE_STANDARD></MESSAGE_STANDARD>
<TRANSACTION_TYPE></TRANSACTION_TYPE>
<TRANSACTION_SUBTYPE></TRANSACTION_SUBTYPE>
<DOCUMENT_NUMBER></DOCUMENT_NUMBER>
<PARTYID></PARTYID>
<PARTY_SITE_ID></PARTY_SITE_ID>
<PARTY_TYPE></PARTY_TYPE>
<PROTOCOL_TYPE></PROTOCOL_TYPE>
<PROTOCOL_ADDRESS></PROTOCOL_ADDRESS>
<USERNAME></USERNAME>
<PASSWORD></PASSWORD>
<ATTRIBUTE1></ATTRIBUTE1>
<ATTRIBUTE2></ATTRIBUTE2>
<ATTRIBUTE3></ATTRIBUTE3>
<ATTRIBUTE4></ATTRIBUTE4>
<ATTRIBUTE5></ATTRIBUTE5>
</sys:ECXMSG>
</ecx:SOAHeader>
</soapenv:Header>
The following table describes the XML Gateway header information in SOAHeader part of a SOAP request:
| Attribute | Description |
|---|---|
| MESSAGE_TYPE | Payload message format. This defaults to XML. Oracle XML Gateway currently supports only XML. |
| MESSAGE_STANDARD | Message format standard as displayed in the Define Transactions form and entered in the Define XML Standards form. This defaults to OAG. The message standard entered for an inbound XML document must be the same as the message standard in the trading partner setup. |
| TRANSACTION_TYPE | External Transaction Type for the business document from the Trading Partner table. The transaction type for an inbound XML document must be the same as the transaction type defined in the Trading Partner form. |
| TRANSACTION_SUBTYPE | External Transaction Subtype for the business document from the Trading Partner table. The transaction subtype for an inbound XML document must be the same as the transaction subtype defined in the Trading Partner form. |
| DOCUMENT_NUMBER | The document identifier used to identify the transaction, such as a purchase order or invoice number. This field is not used by the XML Gateway, but it may be passed on inbound messages. |
| PROTOCOL_TYPE | Transmission Protocol is defined in the Trading Partner table. |
| PROTOCOL_ADDRESS | Transmission address is defined in the Trading Partner table. |
| USERNAME | USERNAME is defined in the Trading Partner table. |
| PASSWORD | The password associated with the USERNAME is defined in the Trading Partner table. |
| PARTY_SITE_ID | The party site identifier for an inbound XML document must be the same as the Source Trading Partner location defined in the Trading Partner form. |
| ATTRIBUTE1 | This parameter may be defined by the base application. |
| ATTRIBUTE2 | This parameter may be defined by the base application. |
| ATTRIBUTE3 | For outbound messages, this field has the value from the Destination Trading Partner Location Code in the Trading Partner table. For inbound messages, the presence of this value generates another XML message that is sent to the trading partner identified in the Destination Trading Partner Location Code in the Trading Partner table. This value must be recognized by the hub to forward the XML message to the final recipient of the XML Message.
Note: For more information, see Destination Trading Partner Location Code in the Oracle XML Gateway User's Guide. |
| ATTRIBUTE4 | This parameter may be defined by the base application. |
| ATTRIBUTE5 | This parameter may be defined by the base application. |
The Username and Password in SOAHeader here is the username and password associated with trading partner setup.
The Username and Password in <wsse:Security> discussed earlier is the Oracle E-Business Suite username/password (or the username/password created through the Users window in defining an application user).
The PARTYID and PARTY_TYPE parameters are note used.
The following code snippet shows the XMLGateway_Header part of a SOAP request through Web Service Provider:
<soap:Envelope>
<soap:Header>
...
<ns1:XMLGateway_Header
xmlns:ns1="http://xmlns.oracle.com/apps/fnd/XMLGateway
soapenv:mustUnderstand="0">
<ns1:MESSAGE_TYPE>XML</ns1:MESSAGE_TYPE>
<ns1:MESSAGE_STANDARD>OAG</ns1:MESSAGE_STANDARD>
<ns1:TRANSACTION_TYPE>PO</ns1:TRANSACTION_TYPE>
<ns1:TRANSACTION_SUBTYPE>PROCESS</ns1:TRANSACTION_SUBTYPE>
<ns1:DOCUMENT_NUMBER>123</ns1:DOCUMENT_NUMBER>
<ns1:PARTY_SITE_ID>4444</ns1:PARTY_SITE_ID>
</ns1:XMLGateway_Header>
</soap:Header>
...
</soap:Envelope>The following table describes the XML Gateway header information in XMLGateway_Header part of a SOAP request:
| Parameter Name | Description |
|---|---|
| MESSAGE_TYPE | Payload message format. This defaults to XML. Oracle XML Gateway currently supports only XML. |
| MESSAGE_STANDARD | Message format standard as displayed in the Define Transactions form and entered in the Define XML Standards form. This defaults to OAG. The message standard entered for an inbound XML document must be the same as the message standard in the trading partner setup. |
| TRANSACTION_TYPE | External Transaction Type for the business document from the Trading Partner table. The transaction type for an inbound XML document must be the same as the transaction type defined in the Trading Partner form. |
| TRANSACTION_SUBTYPE | External Transaction Subtype for the business document from the Trading Partner table. The transaction subtype for an inbound XML document must be the same as the transaction subtype defined in the Trading Partner form. |
| DOCUMENT_NUMBER | The document identifier used to identify the transaction, such as a purchase order or invoice number. This parameter is not used by the XML Gateway, but it may be passed on inbound messages. |
| PARTY_SITE_ID | The party site identifier for an inbound XML document must be the same as the Source Trading Partner location defined in the Trading Partner form. |
To better understand SOAP request and response messages received through SOA Provider, the following sample SOAP messages are described in this section:
The following example shows a SOAP request for a PL/SQL service:
<soapenv:Envelope xmlns:ser="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd"
xmlns:ozf="http://xmlns.oracle.com/apps/ozf/soaprovider/plsql/ozf_sd_request_pub/"
xmlns:cre="http://xmlns.oracle.com/apps/ozf/soaprovider/plsql/ozf_sd_request_pub/create_sd_request/">
<soapenv:Header>
<wsse:Security soapenv:mustUnderstand="1">
<wsse:UsernameToken>
<wsse:Username>trademgr</wsse:Username>
<wsse:Password Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">welcome</wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
<ozf:SOAHeader>
<ozf:Responsibility>OZF_USER</ozf:Responsibility>
<ozf:RespApplication>OZF</ozf:RespApplication>
<ozf:SecurityGroupE>STANDARD</ozf:SecurityGroup>
<ozf:NLSLanguage>AMERICAN</ozf:NLSLanguage>
<ozf:Org_Id>204</ozf:Org_Id>
</ozf:SOAHeader>
</soapenv:Header>
<soapenv:Body>
<cre:InputParameters>
<cre:P_API_VERSION_NUMBER>1.0</cre:P_API_VERSION_NUMBER>
<cre:P_INIT_MSG_LIST>T</cre:P_INIT_MSG_LIST>
<cre:P_COMMIT>F</cre:P_COMMIT>
<cre:P_VALIDATION_LEVEL>100</cre:P_VALIDATION_LEVEL>
<cre:P_SDR_HDR_REC>
<cre:REQUEST_NUMBER>SDR-CREATE-A1</cre:REQUEST_NUMBER>
<cre:REQUEST_START_DATE>2008-08-18T12:00:00</cre:REQUEST_START_DATE>
<cre:REQUEST_END_DATE>2008-10-18T12:00:00</cre:REQUEST_END_DATE>>
<cre:USER_STATUS_ID>1701</cre:USER_STATUS_ID>
<cre:REQUEST_OUTCOME>IN_PROGRESS</cre:REQUEST_OUTCOME>
<cre:REQUEST_CURRENCY_CODE>USD</cre:REQUEST_CURRENCY_CODE>
<cre:SUPPLIER_ID>601</cre:SUPPLIER_ID>
<cre:SUPPLIER_SITE_ID>1415</cre:SUPPLIER_SITE_ID>
<cre:REQUESTOR_ID>100001499</cre:REQUESTOR_ID>
<cre:ASSIGNEE_RESOURCE_ID>100001499</cre:ASSIGNEE_RESOURCE_ID>
<cre:ORG_ID>204</cre:ORG_ID>
<cre:ACCRUAL_TYPE>SUPPLIER</cre:ACCRUAL_TYPE>
<cre:REQUEST_DESCRIPTION>Create</cre:REQUEST_DESCRIPTION>
<cre:SUPPLIER_CONTACT_EMAIL_ADDRESS>sdr.supplier@testing.com</cre:SUPPLIER_CONTACT_EMAIL_ADDRESS>
<cre:SUPPLIER_CONTACT_PHONE_NUMBER>2255</cre:SUPPLIER_CONTACT_PHONE_NUMBER>
<cre:REQUEST_TYPE_SETUP_ID>400</cre:REQUEST_TYPE_SETUP_ID>
<cre:REQUEST_BASIS>Y</cre:REQUEST_BASIS>
<cre:USER_ID>1002795</cre:USER_ID>
</cre:P_SDR_HDR_REC>
<cre:P_SDR_LINES_TBL>
<cre:P_SDR_LINES_TBL_ITEM>
<cre:PRODUCT_CONTEXT>PRODUCT</cre:PRODUCT_CONTEXT>
...
</cre:P_SDR_LINES_TBL_ITEM>
</cre:P_SDR_LINES_TBL>
<cre:P_SDR_CUST_TBL>
...
</cre:P_SDR_CUST_TBL>
</cre:InputParameters>>
</soapenv:Body>
</soapenv:Envelope>The following example shows a SOAP response for a PL/SQL service:
<env:Envelope xmlns:env=""http://schemas.xmlsoap.org/soap/envelope/">
<env:Header/>
<env:Body>
<OutputParameters xmlns="http://xmlns.oracle.com/apps/ozf/soaprovider/plsql/ozf_sd_request_pub/create_sd_request/">
<X_RETURN_STATUS>S</X_RETURN_STATUS>
<X_MSG_COUNT>23</X_MSG_COUNT>
<X_MSG_DATA xsi:nil="true" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"/>
<X_REQUEST_HEADER_ID>162</X_REQUEST_HEADER_ID>
</OutputParameters>
</env:Body>
</env:Envelope>The SOAP Fault element is used to carry error and status information within a SOAP message.
For example, the following fault response message indicates that the service is not deployed:
<env:Envelope xmlns:env="http://schemas.xmlsoap.org/soap/envelope/">
<env:Header/>
<env:Body>
<Fault xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">
<faultcode xmlns="">SOAP-ENV:Server</faultcode>
<faultstring xmlns="">Service is not deployed.</faultstring>
</env:Fault>
</env:Body>
</env:Envelope>To better understand SOAP request and response messages for business service object exposed to Web services through Web Service Provider, the following sample SOAP messages are described in this section:
The following example shows a valid SOAP request for business service object:
<soapenv:Envelope xmlns:ser="http://xmlns.oracle.com/apps/fnd/ServiceBean"
xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ws="http://xmlns.oracle.com/apps/fnd/rep/ws">
<soapenv:Header>
<wsse:Security soapenv:mustUnderstand="1" xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd">
<wsse:UsernameToken wsu:Id="UsernameToken-22948433" xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd">
<wsse:Username>sysadmin</wsse:Username>
<wsse:Password Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">sysadmin</wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
<ser:ServiceBean_Header>
<ser:RESPONSIBILITY_NAME>System Administrator</ser:RESPONSIBILITY_NAME>
<ser:RESPONSIBILITY_APPL_NAME>sysadmin</ser:RESPONSIBILITY_APPL_NAME>
<ser:SECURITY_GROUP_NAME>standard</ser:SECURITY_GROUP_NAME>
<ser:NLS_LANGUAGE>american</ser:NLS_LANGUAGE>
<ser:ORG_ID>202</ser:ORG_ID>
</ser:ServiceBean_Header>
</soapenv:Header>
<soapenv:Body>
<ws:IntegrationRepositoryService_GetInterfaceByType>
<interfaceType>XMLGATEWAY</interfaceType>
</ws:IntegrationRepositoryService_GetInterfaceByType>
</soapenv:Body>
</soapenv:Envelope>The following example shows a valid SOAP response for business service object:
<soapenv:Envelope xmlns:env=http://schemas.xmlsoap.org/soap/envelope/">
<env:Header/>
<env:Body>
<oans:IntegrationRepositoryService_GetInterfaceByType_Response
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:oans="http://xmlns.oracle.com/apps/fnd/rep/ws">
<interfaceClass>
<ClassId>906</ClassId>
<ClassName>XMLGATEWAY:CLN:SHIP_ORDER_CONFIRM_OUT</ClassName>
<IrepName>CLN:SHIP_ORDER_CONFIRM_OUT</IrepName>
<SecurityGroupId xsi:nil="true"/>
<ClassType>XMLGATEWAY</ClassType>
<ProductCode>cln</ProductCode>
<ImplementationName xsi:nil="true"/>
<DeployedFlag>N</DeployedFlag>
<GeneratedFlag>N</GeneratedFlag>
<CompatibilityFlag>N</CompatibilityFlag>
<AssocClassId xsi:nil="true"/>
<ScopeType>PUBLIC</ScopeType>
<LifecycleMode>ACTIVE</LifecycleMode>
<SourceFileProduct>CLN</SourceFileProduct>
...
<InterfaceFunction>
...
</InterfaceFunction>
</InterfaceClass>
</oans:IntegrationRepositoryService_GetInterfaceByType_Response>
</env:Body>
</env:Envelope>The SOAP Fault element is used to carry error and status information within a SOAP message.
For example, if a SOAP request message contains invalid header information or the header is missing from the request, then Fault element appears as a body entry in the response message as shown below for business service object:
<env:Envelope xmlns:env=http://schemas.xmlsoap.org/soap/envelope/">
<env:Header/>
<env:Body>
<Fault xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">
<faultcode>SOAP-ENV:Client</faultcode>
<faultstring>InvalidHeader: Invalid or missing header in request.</faultstring>
</env:Fault>
</env:Body>
</env:Envelope>
Copyright © 2008, 2010, Oracle and/or its affiliates. All rights reserved.
