Network Map

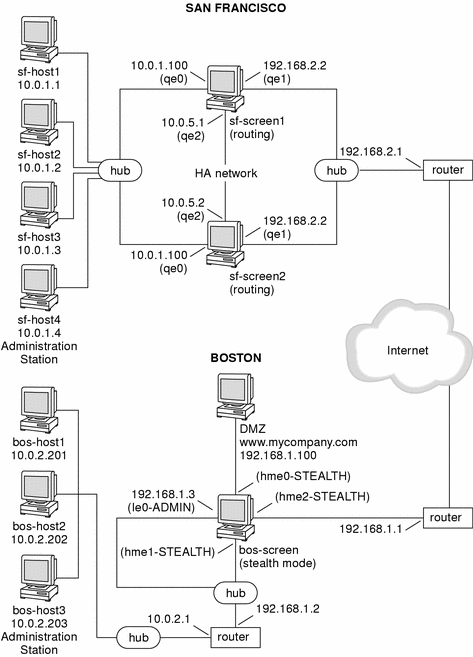

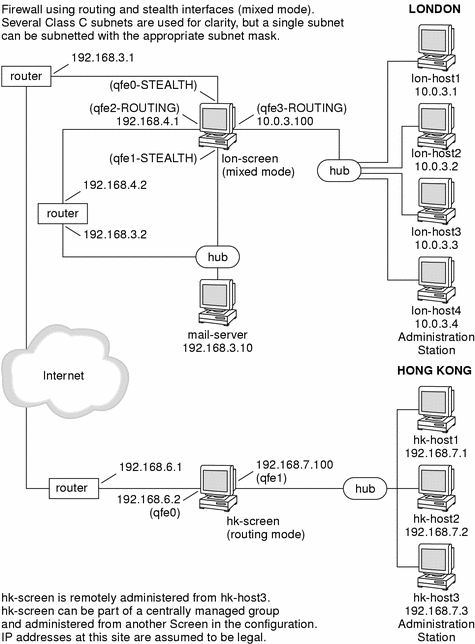

Segments of the sample company network shown in the following figures are used in the configuration examples described in this document.

The machines used in the examples are assumed to include any required patches or plug-in software. In your own configurations, you should be familiar with the following topics and which prerequisite you need to satisfy. See the SunScreen manuals for specific information on:

• Using the Netscape Navigator^TM browser for administration

• Preparing for installation

• Choosing a certificate

• Dedicating interfaces.

For the purpose of these configuration examples, addresses starting with 192.168 are considered legal, routable, IP addresses, while addresses starting with 10.0 are considered illegal IP addresses. All networks shown assume a class C (255.255.255.0) subnet mask. In a real-life configuration, you would replace these IP addresses with your own addresses.
