Network Example

Figure 6-1 shows the Boston segment of the network. In this diagram, two stealth-mode Screens, bos-screen1 and bos-screen2, use HA. Figure 6-2 shows a network with two routing-mode Screens in an HA cluster.

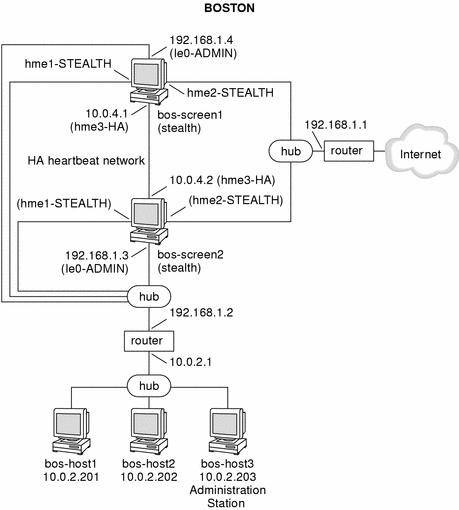

Figure 6-1 Stealth Mode HA Cluster

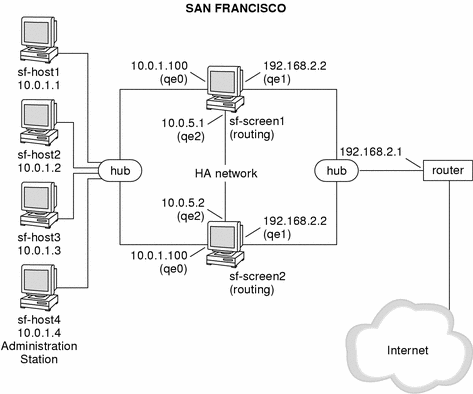

Figure 6-2 Routing Mode HA Cluster
