Specification and Connectors
|
This appendix provides the specifications and connector pin-outs for the
Netra CP2500 RTMs.
This appendix contains the following sections:
Specifications
This section provides mechanical, electrical, environmental, and other relevant specifications for the Netra CP2500 RTM cards.
Physical Dimensions
TABLE A-1 shows the physical dimensions for the Netra CP2500 RTM card.
TABLE A-1 Physical Dimensions
|
Board Specifications
|
Dimensions
|
|
Form Factor
|
6U
|
|
Height
|
233.35 mm (9.19 inches)
|
|
Depth
|
80 mm (3.15 inches)
|
Power Requirements
The Netra CP2500 RTM card has both active and passive components. However, some power from the backplane is provided to the I2C EEPROM.
Electrical Requirements
The Netra CP2500 RTM card is powered through the Netra CP2500 board. The Netra CP2500 board provides the following voltages: 3.3V/5V/12V/-12V. For more information, see the Netra CP2500 Board Installation and Technical Reference Manual (819-1747).
Environmental Specifications and Compliance
For details on the environmental specifications and compliance, please refer to the Important Safety Information for Sun Hardware Systems (816-7190-10) and the Netra CP2500 Board Installation and Technical Reference Manual (819-1747) documents.
You can download and view these documents from the following web site:
http://www.sun.com/documentation
ConnectorsTransition Module I/O Face Plate Connectors
This section lists the pins and signal names of the I/O faceplate connectors on the transition module.
Serial Ports
Two serial ports from the Netra CP2500 transition module are available through the rear panel with single-stacked, 9-pin connectors. One connector is assigned to Port A and the other connector to Port B (FIGURE A-1).
FIGURE A-1 Serial Port Connector Pins
The signal interface of the connectors are described in the following two tables.
TABLE A-2 Serial Port A
|
Pin
|
Signal
|
|
1
|
SER_A_DCD
|
|
2
|
SER_A_RXD
|
|
3
|
SER_A_TXD
|
|
4
|
SER_A_DTR
|
|
5
|
GND_A
|
|
6
|
SER_A_DSR
|
|
7
|
SER_A_RTS
|
|
8
|
SER_A_CTS
|
|
9
|
SER_A_RI
|
TABLE A-3 Serial Port B
|
Pin
|
Signal
|
|
1
|
SER_B_DCD
|
|
2
|
SER_B_RXD
|
|
3
|
SER_B_TXD
|
|
4
|
SER_B_DTR
|
|
5
|
GND_B
|
|
6
|
SER_B_DSR
|
|
7
|
SER_B_RTS
|
|
8
|
SER_B_CTS
|
|
9
|
SER_B_RI
|
Ethernet Connectors
Two single-jack RJ45 XFMRS XFGIB look-CLYGI-4MS Ethernet connectors and two single-jack RJ45 Amphenol RJH55381 Ethernet conectors located on the transition module's back panel, provide two 10/100/1000 Mbps Ethernet ports.

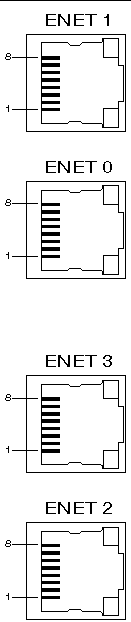

FIGURE A-2 Ethernet Port Connector Pins
Ethernet ports, ENET0 and ENET1 are not available if the Netra CP2500 board is set to use the chassis's packet-switched backplane (PSB) Ethernet network. In order to use the transition module's Ethernet connectors, you must set the S1301 and S1302 switches to the On position (see FIGURE A-4), which is their default position.
TABLE A-4 lists the pin assignments for the two RJ45 XFMRS XFGIB look-CLYGI-4MS Ethernet connectors.
TABLE A-4 ENET0 and ENET1
|
ENET0
|
ENET1
|
|
Pin
|
Signal
|
Pin
|
Signal
|
|
1
|
TRDP0
|
1
|
TRDP0
|
|
2
|
TRDN0
|
2
|
TRDN0
|
|
3
|
TRDP1
|
3
|
TRDP1
|
|
4
|
TRDP2
|
4
|
TRDP2
|
|
5
|
TRDN2
|
5
|
TRDN2
|
|
6
|
TRDN1
|
6
|
TRDN1
|
|
7
|
TRDP3
|
7
|
TRDP3
|
|
8
|
TRDN3
|
8
|
TRDN3
|
TABLE A-5 lists the pin assignments for the two single-jack RJ45 Amphenol RJH55381 Ethernet conectors.
TABLE A-5 ENET2 and ENET3
|
ENET3
|
ENET4
|
|
Pin
|
Signal
|
Pin
|
Signal
|
|
1
|
TRDP0
|
1
|
TRDP0
|
|
2
|
TRDN0
|
2
|
TRDN0
|
|
3
|
TRDP1
|
3
|
TRDP1
|
|
4
|
TRDP2
|
4
|
TRDP2
|
|
5
|
TRDN2
|
5
|
TRDN2
|
|
6
|
TRDN1
|
6
|
TRDN1
|
|
7
|
TRDP3
|
7
|
TRDP3
|
|
8
|
TRDN3
|
8
|
TRDN3
|
On-Board Interfaces and Connectors on the Netra CP2500 Transition Module

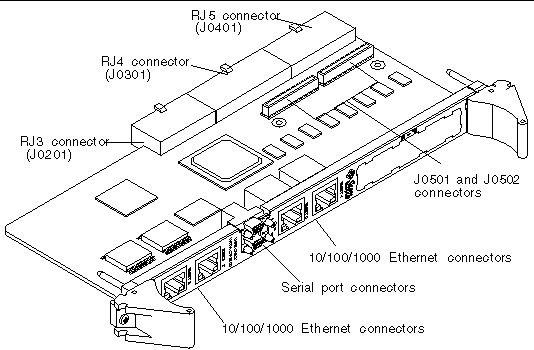

FIGURE A-3 shows the on-board interfaces and connectors on the RTM-H. FIGURE A-4 shows the on-board interfaces and connectors on the RTM-S. The numbers in parentheses display how the interfaces are labeled on the transition module.
FIGURE A-3 On-Board Connectors and Interfaces for the Netra CP2500 RTM-H

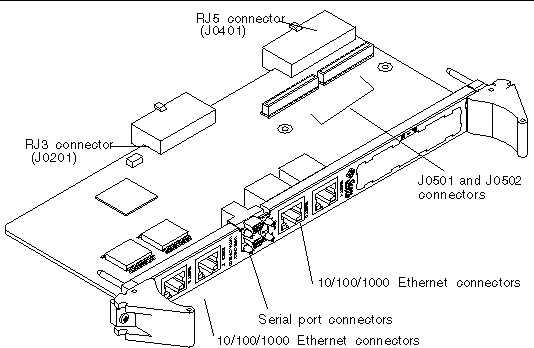

FIGURE A-4 On-Board Connectors and Interfaces for the Netra CP2500 RTM-S
I2C Serial Bus Access Header
The I2C serial bus is routed onto the Netra CP2500 RTM through the RJ5 backplane connector (which is labeled as J0401 on the transition module). The Netra CP2500 transition module I2C bus supports one I2C function-providing information about itself through nonvolatile memory. FIGURE A-5 shows the I2C serial bus access header J1502and TABLE A-6 lists the pin assignments.
FIGURE A-5 I 2 C Serial Bus Access Header Pins
TABLE A-6 I 2 C Serial Bus Access Header Pin Assignments
|
Pin
|
Signal
|
|
1
|
12C_PWR (SMC 3.3V)
|
|
2
|
RTM_SDA (Data/Address)
|
|
3
|
RTM_SCL (Clock)
|
|
4
|
GND
|
Table lists pin signals for I2C serial bus access header pins.J0501 and J0502 Connectors
The PIM slot has two 64-pin connectors, J0501 and J0502. See FIGURE A-3 and FIGURE A-4 for the location of these connectors on the RTMs. See FIGURE A-6 for the connector pin numbering.
|
Note - PIM cards are not currently supported.
|
FIGURE A-6 J0501 and J0502 Connector Pins
J0501 and J0502 Connector Pin Assignments
TABLE A-7 lists the pin assignments for the J0501 connector, and TABLE A-8 lists the pin assignments for the J0502 connector.
TABLE A-7 J0501 Pin Assignments
|
Signal Name
|
Pin
|
Pin
|
Signal Name
|
|
None
|
1
|
2
|
None
|
|
None
|
3
|
4
|
None
|
|
None
|
5
|
6
|
None
|
|
None
|
7
|
8
|
None
|
|
None
|
9
|
10
|
None
|
|
None
|
11
|
12
|
None
|
|
None
|
13
|
14
|
None
|
|
None
|
15
|
16
|
None
|
|
None
|
17
|
18
|
None
|
|
None
|
19
|
20
|
None
|
|
None
|
21
|
22
|
None
|
|
None
|
23
|
24
|
None
|
|
None
|
25
|
26
|
None
|
|
None
|
27
|
28
|
None
|
|
None
|
29
|
30
|
None
|
|
None
|
31
|
32
|
None
|
|
PMCIO<33>
|
33
|
34
|
PMCIO<34>
|
|
PMCIO<35>
|
35
|
36
|
PMCIO<36>
|
|
PMCIO<37>
|
37
|
38
|
PMCIO<38>
|
|
PMCIO<39>
|
39
|
40
|
PMCIO<40>
|
|
PMCIO<41>
|
41
|
42
|
PMCIO<42>
|
|
PMCIO<43>
|
43
|
44
|
PMCIO<44>
|
|
PMCIO<45>
|
45
|
46
|
PMCIO<46>
|
|
PMCIO<47>
|
47
|
48
|
PMCIO<48>
|
|
None
|
49
|
50
|
None
|
|
None
|
51
|
52
|
None
|
|
None
|
53
|
54
|
None
|
|
None
|
55
|
56
|
None
|
|
None
|
57
|
58
|
None
|
|
None
|
59
|
60
|
None
|
|
None
|
61
|
62
|
None
|
|
None
|
63
|
64
|
None
|
TABLE A-8 J0502 Pin Assignments
|
Signal Name
|
Pin
|
Pin
|
Signal Name
|
|
None
|
1
|
2
|
+12V
|
|
None
|
3
|
4
|
None
|
|
+5V
|
5
|
6
|
None
|
|
None
|
7
|
8
|
None
|
|
None
|
9
|
10
|
+3.3V
|
|
None
|
11
|
12
|
None
|
|
GND
|
13
|
14
|
None
|
|
None
|
15
|
16
|
None
|
|
None
|
17
|
18
|
GND
|
|
None
|
19
|
20
|
None
|
|
+5V
|
21
|
22
|
None
|
|
None
|
23
|
24
|
None
|
|
None
|
25
|
26
|
+3.3V
|
|
None
|
27
|
28
|
None
|
|
GND
|
29
|
30
|
None
|
|
None
|
31
|
32
|
None
|
|
None
|
33
|
34
|
GND
|
|
None
|
35
|
36
|
None
|
|
+5V
|
37
|
38
|
None
|
|
None
|
39
|
40
|
None
|
|
None
|
41
|
42
|
+3.3V
|
|
None
|
43
|
44
|
None
|
|
GND
|
45
|
46
|
None
|
|
None
|
47
|
48
|
None
|
|
None
|
49
|
50
|
GND
|
|
None
|
51
|
52
|
None
|
|
+5V
|
53
|
54
|
None
|
|
None
|
55
|
56
|
None
|
|
None
|
57
|
58
|
+3.3V
|
|
None
|
59
|
60
|
None
|
|
+12V
|
61
|
62
|
None
|
|
None
|
63
|
64
|
None
|
Backplane Interfaces
The Netra CP2500 RTM-H interfaces to the bus through the CompactPCI RJ3 (labeled as J0201 on the transition module), RJ4 (J0301), and RJ5 (J0401) backplane connectors. The Netra CP2500 RTM-S interfaces to the bus through the Compact PCI RJ3 (labeled as J0201 on the transition module) and RJ5 (J0401) connectors. The pin assignments for these three sets of connectors are provided in this section.
CompactPCI RJ3 Connector (J0201)
TABLE A-9 shows the pin assignments for the CompactPCI RJ3 connector. This connector is labeled J0201 on the RTM. (See FIGURE A-4 for the location).
FIGURE A-7 CompactPCI RJ3 Connector (J0201) Pins
TABLE A-9 CompactPCI RJ3 Connector (J0201) Pin Assignments
|
Pin #
|
Row A
|
Row B
|
Row C
|
Row D
|
Row E
|
|
19
|
GND
|
GND
|
GND
|
GND
|
GND
|
|
18
|
A_TRD_0P
|
A_TRD_0N
|
GND
|
A_TRD_2P
|
A_TRD_2N
|
|
17
|
A_TRD_1P
|
A_TRD_1N
|
GND
|
A_TRD_3P
|
A_TRD_3N
|
|
16
|
B_TRD_0P
|
B_TRD_0N
|
GND
|
B_TRD_2P
|
B_TRD_2N
|
|
15
|
B_TRD_1P
|
B_TRD_1N
|
GND
|
B_TRD_3P
|
B_TRD_3N
|
|
14
|
+3.3V
|
+3.3V
|
+3.3V
|
+5V
|
+5V
|
|
13
|
PCI_AD<31>
|
PCI_AD<30>
|
PCI_AD<29>
|
PCI_AD<28>
|
PCI_AD<27>
|
|
12
|
PCI_AD<26>
|
PCI_AD<25>
|
PCI_AD<24>
|
PCI_AD<23>
|
PCI_AD<22>
|
|
11
|
PCI_AD<21>
|
PCI_AD<20>
|
PCI_AD<19>
|
PCI_AD<18>
|
PCI_AD<17>
|
|
10
|
PCI_AD<16>
|
PCI_AD<15>
|
PCI_AD<14>
|
PCI_AD<13>
|
PCI_AD<12>
|
|
9
|
PCI_AD<11>
|
PCI_AD<10>
|
PCI_AD<9>
|
PCI_AD<8>
|
PCI_AD<7>
|
|
8
|
PCI_AD<6>
|
PCI_AD<5>
|
PCI_AD<4>
|
PCI_AD<3>
|
PCI_AD<2>
|
|
7
|
PCI_AD<1>
|
PCI_AD<0>
|
PCI_FRAME_N
|
PCI_DEVSEL_N
|
PCI_IRDY_N
|
|
6
|
PCI_CBE<0>
|
RSV_HLTH<5>
|
PCI_CBE<1>
|
PCI_TRDY_N
|
PCI_STOP_N
|
|
5
|
PCI_SC_INTA_N
|
RSV_HLTH<4>
|
PCI_NT_INTB_N
|
PCI_PAR
|
PCI_CBE<3>
|
|
4
|
PCI_SC_INTB_N
|
RSV_HLTH<3>
|
PCI_NT_INTA_N
|
PCI_CBE<2>
|
PCI_RTM_CLKB
|
|
3
|
PCI_GNT__N<1>
|
RSV_HLTH<2>
|
PCI_REQ_N<1>
|
PCI_RST_N
|
PCI_SERR<N>
|
|
2
|
PCI_GNT__N<2>
|
RSV_HLTH<1>
|
PCI_REQ_N<2>
|
SMC_3.3V
|
RSV_HLYH<6>
|
|
1
|
+2.5V
|
RSV_HLTH<0>
|
PCI_M66EN
|
PCI_RTM_CLKA
|
PCI_PERR_N
|
|
Note - The pin assignments for every pin in rows F and Z are ground.
|
CompactPCI RJ4 Connector (J0301)
TABLE A-10 shows the pin assignments for the CompactPCI RJ4 connector. This connector is labeled J0301 on the RTM. (See FIGURE A-4 for the location).
FIGURE A-8 CompactPCI RJ4 Connector (J0301) Pins
TABLE A-10 CompactPCI RJ4 Connector (J0301) Pin Assignments
|
Pin #
|
Row A
|
Row B
|
Row C
|
Row D
|
Row E
|
|
25
|
MII_A_CRS
|
MII_A_COL
|
EXT_MII_A_MDIO
|
MII_A_TX_ER
|
N/C
|
|
24
|
MII_A_RX_DV
|
MII_A_RX_ER
|
MII_A_TX_CLKI
|
GND
|
MCA_INT_L
|
|
23
|
MII_A_RXD1
|
MII_A_RXD2
|
GND
|
MII_A_RXD3
|
MII_A_RX_CLK
|
|
22
|
GND
|
MII_A_TXD0
|
MII_A_TX_EN
|
MII_A_MGT_CLK
|
MII_A__RXD0
|
|
21
|
MII_A_TXD3
|
GND
|
MII_A_TXD2
|
GND
|
MII_A_TXD1
|
|
20
|
N/C
|
N/C
|
LOCAL_12C_INT_L
|
GND
|
RIO_A_PHY_EN
|
|
19
|
MII_B_COL
|
EXT_MII_B_MDIO
|
MII_B-TX_ER
|
N/C
|
N/C
|
|
18
|
MII_B_RX_CLK
|
MII_B_RX_DV
|
MII_B_RX_ER
|
MII_B_TX_CLKI
|
MII_B_CRS
|
|
17
|
MII_B_RXD0
|
GND
|
MII_B_RXD1
|
MII_B_RXD2
|
MII_B_RXD3
|
|
16
|
MII_B_TXD1
|
MII_B_TXD0
|
MII_B_TX_EN
|
MII_B_MGT_CLK
|
GND
|
|
15
|
GND
|
N/C
|
N/C
|
MII_B_TXD3
|
MII_B_TXD2
|
|
11
|
TYPE0
|
TYPE1
|
J4_12C_SDA
|
GND
|
GND
|
|
10
|
SMC_TX
|
SMC_RX
|
PWROFF
|
N/C
|
N/C
|
|
9
|
GND
|
GND
|
J4_12C_SCL
|
TERMPWR_A
|
TERMPWR_B
|
|
8
|
A_SCSI_DP<1>
|
A_SCSI_D<15>
|
A_SCSI_D<14>
|
A_SCSI_D<13>
|
A_SCSI_D<12>
|
|
7
|
A_SCSI_D<4>
|
A_SCSI_D<3>
|
A_SCSI_D<2>
|
A_SCSI_D<1>
|
A_SCSI_D<0>
|
|
6
|
GND
|
A_SCSI_DP<0>
|
A_SCSI_D<7>
|
A_SCSI_D<6>
|
A_SCSI_D<5>
|
|
5
|
GND
|
CRTM_PRES_L
|
N/C
|
N/C
|
N/C
|
|
4
|
A_SCSI_RST_L
|
A_SCSI_ACK_L
|
A_SCSI_BSY_L
|
GND
|
A_SCSI_ATN_L
|
|
3
|
A_SCSI_IO_L
|
A_SCSI_REQ_L
|
A_SCSI_CD_L
|
A_SCSI_SEL_L
|
A_SCSI_MSG_L
|
|
2
|
TERMA_DIS_L
|
A_SCSI_D<11>
|
A_SCSI_D<10>
|
A_SCSI_D<9>
|
A_SCSI_D<8>
|
|
1
|
N/C
|
N/C
|
N/C
|
N/C
|
GPIO_J431
|
CompactPCI RJ5 Connector (J0401)
TABLE A-11 shows the pin assignments for the CompactPCI RJ5 connector. This connector is labeled J0401 on the transition module. (See FIGURE A-4 for the location).
FIGURE A-9 CompactPCI RJ5 Connector (J0401) Pins
TABLE A-11 CompactPCI RJ5 Connector (J0401) Pin Assignments
|
Pin #
|
Row A
|
Row B
|
Row C
|
Row D
|
Row E
|
|
22
|
XBACK_RST_IN_N
|
GND
|
DIAG_N_OC
|
+5V
|
BP_XIR_N
|
|
21
|
CPSB_A_LNK_N
|
CPSB_A_ACT_N
|
CPSB_B_LNK_N
|
RTM_SCL
|
CPSB_B_ACT_N
|
|
20
|
+5V
|
|
|
RTM_SDA
|
+12V
|
|
19
|
RSV_PAR_DS_N
|
GND
|
+5V
|
N/C
|
-12V
|
|
18
|
RSV_PAR_AUTO_FD_N
|
|
|
GND
|
+5V
|
|
17
|
RSV_PAR_DATA<2>
|
RSV_PAR_INIT_N
|
RSV_PAR_DATA<1>
|
RSV_PAR_ERROR_N
|
RSV_PAR_DATA<0>
|
|
16
|
RSV_PAR_DATA<6>
|
RSV_PAR_DATA<5>
|
RSV_PAR_DATA<4>
|
RSV_PAR_DATA<3>
|
RSV_PAR_SLIN_N
|
|
15
|
RSV_PAR_SEL_N
|
RSV_PAR_PE
|
RSV_PAR_BUSY
|
RSV_PAR_ACK_N
|
RSV_PAR_DATA<7>
|
|
14
|
A_RTS
|
A_CTS
|
A_RI
|
GND
|
A_DTR
|
|
13
|
A_DCD
|
+5V
|
A_RXD
|
A_DSR
|
A_TXD
|
|
12
|
B_RTS
|
B_CTS
|
B_RI
|
+5V
|
B_DTR
|
|
11
|
B_DCD
|
GND
|
B_RXD
|
B_DSR
|
B_TXD
|
|
10
|
PMCIO<36>
|
PMCIO<45>
|
PMCIO<47>
|
PMCIO<46>
|
PMCIO<48>
|
|
9
|
PMCIO<34>
|
PMCIO<41>
|
PMCIO<43>
|
PMCIO<42>
|
PMCIO<44>
|
|
8
|
PMCIO<35>
|
PMCIO<37>
|
PMCIO<39>
|
PMCIO<38>
|
PMCIO<40>
|
|
7
|
PMCIO<33>
|
B_SCSI_D<2>
|
B_SCSI_D<1>
|
B_SCSI_D<0>
|
PMCIOC
|
|
6
|
B_SCSI_D<6>
|
GND
|
B_SCSI_D<5>
|
B_SCSI_D<4>
|
B_SCSI_D<3>
|
|
5
|
B_SCSI_D<10>
|
B_SCSI_D<9>
|
B_SCSI_D<8>
|
B_SCSI_DP<0>
|
B_SCSI_D<7>
|
|
4
|
B_SCSI_D<13>
|
B_SCSI_D<12>
|
GND
|
PMCIOB
|
B_SCSI_D<11>
|
|
3
|
TERMB_DIS_L
|
B_SCSI_DP<1>
|
B_SCSI_D<15>
|
PMCIOA
|
B_SCSI_D<14>
|
|
2
|
B_SCSI_IO_L
|
B_SCSI_REQ_L
|
B_SCSI_CD_L
|
B_SCSI_SEL_L
|
B_SCSI_MSG_L
|
|
1
|
XBACK_RST_OUT_N
|
B_SCSI_RST_L
|
B_SCSI_ACK_L
|
B_SCSI_BSY_L
|
B_SCSI_ATN_L
|
