Separate Management, Provisioning, and Data Networks

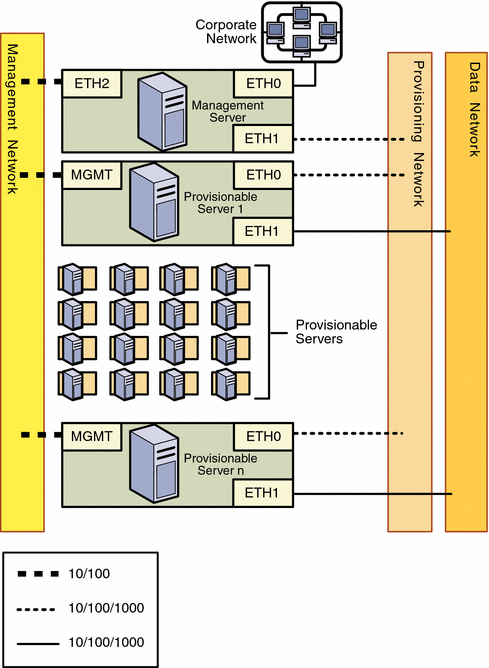

Figure 2–1 Separate Management, Provisioning, and Data Networks

Notes:

• Configuring separate management, provisioning, and data networks is the best practice

• Separate networks provide the highest security and the lowest number of points of failure

• The corporate DHCP service can be used to assign IP addresses to provisioned servers

• You might need to install additional NICs in the management server and some provisionable servers to support this configuration
