Network Topology

The Netra j software supports two network scenarios, as illustrated in Figure 1-1 and Figure 1-2.

Figure 1-1 shows a configuration that includes a single Sun server and several network computers. The Sun server provides all the network services for the NCs in this network.

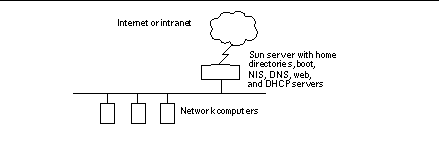

Figure 1-1 Sample Configuration of a JavaStation Network Environment

Figure 1-2 shows a configuration in which the Sun server is integrated into an existing enterprise network that already incorporates a number of servers.

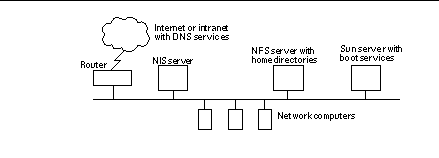

Figure 1-2 Integrating a Sun Server Into an Existing Enterprise Network
