To Create a Composite Application for a POJO Service Provider (Without Binding)

1. Right-click in the NetBeans Projects window, and then select New Project.

   The New Project Wizard appears.

2. Under Categories, select SOA; under Projects, select Composite Application.



3. Click Next.

   The Name and Location window appears.

4. Enter a unique name for the project. You can also modify the location of the project files.



5. Click Finish.

   The new project appears in the projects list and the Composite Application appears in the CASA Editor.

6. Drag the POJO Service Engine project to the JBI Module section of the CASA Editor.

7. Click Build.

8. From the CASA Editor Palette, drag the appropriate WSDL Binding to the WSDL Ports section of the CASA Editor.

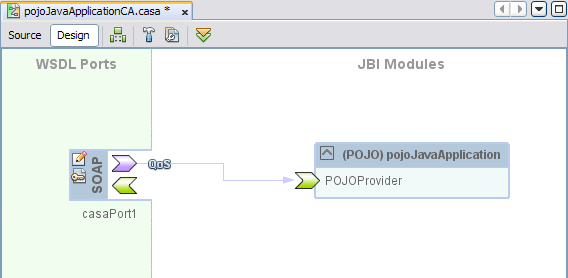

9. Drag a connection from the WSDL port endpoint to the POJO service endpoint.



10. Save the changes to the Composite Application.

11. To deploy the application, do the following:

    1. Make sure the GlassFish server is running.

    2. In the Projects window, right-click the Composite Application project and then select Deploy.

       ---

       Note –

       If the POJO Service Engine is not started, deploying the Composite Application will automatically start it for you.

       ---
