A P P E N D I X D |
ALOM CMT Reference Information |
This appendix shows some ALOM CMT compatibility shell commands and related information.
If you require additional information, refer to the following documents:
1. Type the following commands from the ALOM CMT shell:
2. Log in to the ILOM shell.The default user name is root and the default password is changeme.
TABLE D-1 describes the typical ALOM CMT commands for servicing a Sun Netra T6340 Server Module. For descriptions of all ALOM CMT commands, type the help command or refer to the Sun Integrated Lights Out Manager 3.0 User’s Guide.
Displays a list of all ALOM CMT commands with syntax and descriptions. Specifying a command name as an option displays help for that command. |
|
Takes the host server from the OS to either kmdb or OpenBoot PROM (equivalent to a Stop-A command), depending on the Solaris mode that was booted. The -y option skips the confirmation question. The -c option executes a console command after completion of the break command. |
|
Manually clears host-detected faults. The UUID is the unique fault ID of the fault to be cleared. |
|
Connects you to the host system. The -f option forces the console to have read and write capabilities. |
|
Displays the contents of the system’s console buffer. The following options enable you to specify how the output is displayed:
|
|
Enables control of the firmware during system initialization with the following options: |
|
Performs a poweroff followed by poweron. The -f option forces an immediate poweroff, otherwise the command attempts a graceful shutdown. |
|
Powers off the host server. The -y option enables you to skip the confirmation question. The -f option forces an immediate shutdown. |
|
Powers on the host server. Using the -c option executes a console command after completion of the poweron command. |
|
Pauses the service processor tasks and illuminates the white locator LED indicating that it is safe to remove the blade. |
|
Turns off the locator LED and restores the service processor state. |
|
Generates a hardware reset on the host server. The -y option enables you to skip the confirmation question. The -c option executes a console command after completion of the reset command. |
|
Reboots the service processor. The -y option enables you to skip the confirmation question. |
|
Sets the virtual keyswitch. The -y option enables you to skip the confirmation question when setting the keyswitch to stby. |
|
Displays the environmental status of the host server. This information includes system temperatures, power supply, front panel LED, hard drive, fan, voltage, and current sensor status. See Displaying the Environmental Status with the ILOM CLI. |
|
Displays information about the FRUs in the server.
|
|
Displays the current state of the Locator LED as either on or off. |
|
showlogs [-b lines | -e lines |-v] [-g lines] [-p logtype[r|p]]] |
Displays the history of all events logged in the ALOM CMT event buffers (in RAM or the persistent buffers). |
Displays information about the host system’s slot location, hardware configuration, the system serial number, and whether the hardware is providing service. |
|
TABLE D-2 lists the ALOM CMT variables used to configure POST.
setkeyswitch[1] |
The system can power on and run POST (based on the other parameter settings). This parameter overrides all other commands. |
|
The system can power on and run POST, but no flash updates can be made. |
||
Runs POST with preset values for diag_level and diag_verbosity. |
||
If diag_mode = normal, runs all the minimum tests plus extensive CPU and memory tests. |
||
POST output displays functional tests with a banner and pinwheel. |
||
POST displays all test, informational, and some debugging messages. |

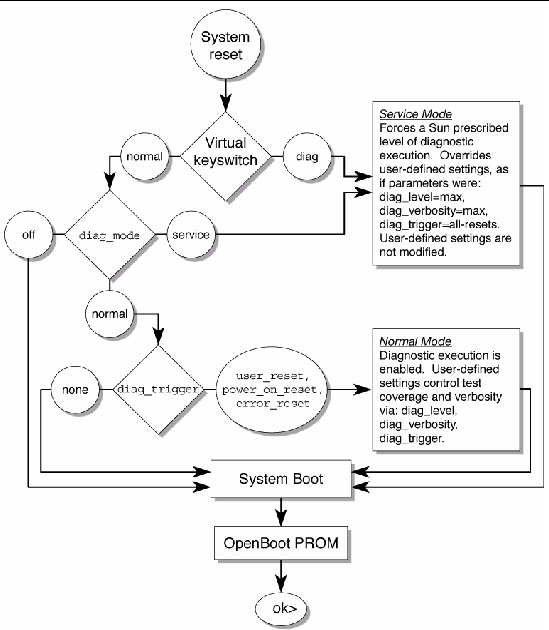

FIGURE D-1 Flowchart of ALOM CMT Variables for POST Configuration
