C H A P T E R 3 - Connecting the Sun StorageTek 5220 NAS Appliance

C H A P T E R 3

Connecting the Sun StorageTek 5220 NAS Appliance

This chapter provides instructions for connecting the Sun StorageTek 5220 NAS Appliance, the Sun StorageTek 5220 RAID Controller unit, and the optional Sun StorageTek 5220 expansion units. It also provides initial configuration instructions for the system. This chapter contains the following sections:

Connecting the Appliance to Back-End Storage

Connecting to the Network

Powering On the System

Configuring the Appliance

Connecting the Appliance to Back-End Storage

This section describes how to cable the Sun StorageTek 5220 NAS Appliance to back-end storage, for several different configurations. This section includes the following tasks:

Connecting the Appliance to the Controller Unit

Connecting a Controller Unit to Expansion Units

Connecting the Appliance to the Controller Unit

The connection from the appliance to the controller unit is made from Port 1 of the HBA card in PC slot 1 of the appliance to the controller unit's Ch1 port. The other HBA port can be used for tape backup. The Ch 2 port is not used.

FIGURE 3-1 shows the port locations on the HBA card and on the controller unit.

FIGURE 3-1 Port s for HBA Cards and Controller Unit

Figure showing Sun StorageTek 5220 NAS Appliance HBA ports and controller unit host channel ports

To Connect a Controller Unit

Use the LC-to-LC fiber optic cables from the appliance's ship kit to connect the appliance to the controller unit, as shown in FIGURE 3-2.

Connect the HBA port 1 on the appliance to the controller unit's Ch 1 port.

FIGURE 3-2 Connecting the Appliance to the Controller Unit

Figure showing Sun StorageTek 5220 NAS Appliance HBA card connections to controller unit

Connecting a Controller Unit to Expansion Units

The connection between the controller unit and an expansion unit is made from the controller unit's ports (P1 and P2) to the expansion unit's 1B port. FIGURE 3-3 shows the locations for the ports.

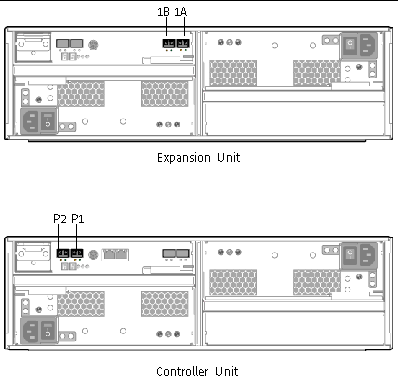

FIGURE 3-3 Port s on the Controller Unit and Expansion Unit

Figure showing ports located at the back of a controller unit and an expansion unit. The controller unit has two expansion ports, labeled P2 and P1.. The expansion unit has two enabled ports, numbered 1A and 1B.

You can cable one expansion unit or two expansion units to a controller unit:

For one expansion unit, see To Cable a Controller Unit to One Expansion Unit.

For two expansion units, see To Cable a Controller Unit to Two Expansion Units.

To Cable a Controller Unit to One Expansion Unit

Use the 2-meter LC-to-LC fibre optic cable to connect a controller unit to an expansion unit, as shown in FIGURE 3-4.

Connect one cable between the P1 port of the controller unit and the 1B port of the expansion unit.

The other ports in the units remain empty.

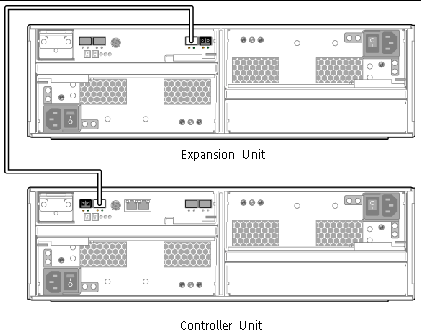

FIGURE 3-4 Connecting the Controller Unit and One Expansion Unit

Figure showing interconnection cables between a controller and expansion unit.

To Cable a Controller Unit to Two Expansion Units

Use two 2-meter LC-to-LC fibre optic cables to connect a controller unit and two expansion units, as shown in FIGURE 3-5.

1. Connect one cable between the P1 port of the controller unit and the 1B port of an expansion unit.

2. Connect one cable between the P2 port of the controller unit and 1B port of the second expansion unit.

The other ports in the units remain empty.

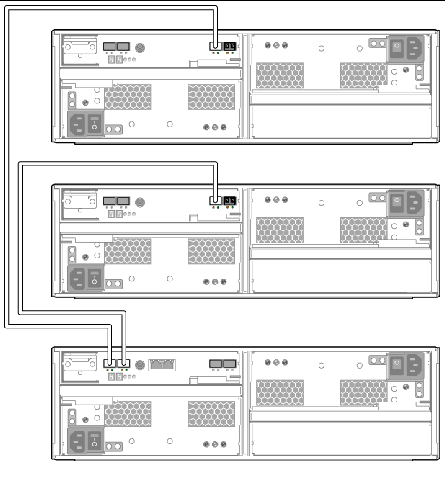

FIGURE 3-5 Connecting a Controller Unit to Two Expansion Units

Figure showing interconnection cables between one controller unit and two expansion units.

Connecting to the Network

Use the following procedures to connect the Sun StorageTek 5220 NAS Appliance to your network, either Fast Ethernet or optical Gigabit Ethernet, depending on your site's configuration. The cables are provided in the ship kit. Each configuration is described in the following sections.

To Connect to Copper Fast Ethernet or Gigabit Ethernet Networks

FIGURE 3-6 shows the locations of the network ports for connecting the appliance to a 100BASE-T Fast Ethernet network or to a 1000BASE-T Gigabit Ethernet network.

1. Connect an RJ-45 CAT5E shielded Ethernet cable from your local area network to port NET0 on the back of the appliance.

2. For additional network connections, use the ports in this order: NET1, NET2, and NET3. If PCI slot 0 contains a copper 10/100/1000 Gigabit Ethernet card, you can make additional network connections, using the cables shipped with the card.

FIGURE 3-6 Connecting to a Fast Ethernet or Gigabit Ethernet Network

Figure showing Sun StorageTek 5220 NAS Appliance Network Interface Ports

To Connect to Optical Gigabit Ethernet Networks

To connect the appliance to an optical Gigabit Ethernet network, the appliance must have the optional optical Gigabit Ethernet card installed in PCI0.

FIGURE 3-7 shows the locations of the ports and the optical Gigabit Ethernet connectors.

1. Connect a fiber optic cable from the network to the A connector on the card.

2. Connect a second fiber optic cable from the network to the B connector on the card.

FIGURE 3-7 Connecting to an Optical Gigabit Network

Figure showing Sun StorageTek 5220 NAS Appliance Optical Gigabit and Network Interface Ports

Network ports have different identifiers in hardware and software. When you configure the system (see Configuring the Appliance), the ports are identified as described in the following table:

TABLE 3-1 Identifiers for Network Ports
	Hardware Identifier	Software Identifier
Appliance	NET0	emc1
	NET1	emc2
	NET2	emc3
	NET3	emc4
optical Gigabit Ethernet card	A	emf5
	B	emf6

Powering On the System

This section describes how to power on the appliance, controller units, and expansion units for the first time and how to power on the devices after the first time.

Caution - Use the correct initial power-on sequence for your configuration. Failure to follow the correct procedure will result in an inoperative system.

If you have an appliance and a controller unit only, see To Power On the Appliance and Controller Unit Initially.

If you have an appliance, a controller unit, and one or more expansion units, see To Power On the Appliance, Controller Unit, and Expansion Units Initially.

If you are powering on a system again after initially powering it on, see To Power On the System After a Shutdown.

Note - If you are using a UPS, connect all units to the UPS.

Note - To achieve fault tolerance, units with two power supplies must receive power from two different AC circuits.

To Power On the Appliance and Controller Unit Initially

Note - If you also have one or more expansion units, you must use the procedure described in To Power On the Appliance, Controller Unit, and Expansion Units Initially.

1. Verify that all cables between the Sun StorageTek 5220 NAS Appliance and the controller unit are secured according to the instructions in Connecting the Appliance to the Controller Unit.

2. Power on the controller unit by toggling the two power supply switches to the On position.

3. Wait for all LEDs on the controller unit's front panel to turn solid green, indicating good operation. This takes about four minutes.

4. Verify that the Sun StorageTek 5220 NAS Appliance is connected to the network by checking that the green LED on the appliance's network connection is lit.

5. Using a pen tip or similar implement, press the recessed Power button on the appliance's front panel, as shown in FIGURE 3-8.

FIGURE 3-8 Detail of Power Button and Front Panel

Power Button and Front Panel Detail

To Power On the Appliance, Controller Unit, and Expansion Units Initially

Note - If you have one or more expansion units, you must use this initial power-on sequence. If you do not have any expansion units, you must use the procedure described in To Power On the Appliance and Controller Unit Initially.

1. Verify that all cables between the Sun StorageTek 5220 NAS Appliance, controller unit, and expansion units are secured according to the instructions in Connecting the Appliance to the Controller Unit and Connecting a Controller Unit to Expansion Units.

2. Power on the controller unit by toggling the two power supply switches to the On position.

3. Wait for all LEDs on the controller unit's front panel to turn solid green, indicating good operation. This takes about three minutes.

4. Power on the first expansion unit by toggling the two power supply switches to the On position.

5. Wait for all LEDs on the expansion unit's front panel to turn solid green, indicating good operation.

6. If you have a second expansion unit, set both of its power supply switches to the On position. Wait for all LEDs on the front panel to turn solid green.

7. After you have powered on the expansion units, wait 5 minutes for all units to be identified and mounted and then proceed.

8. Verify that the appliance is connected to the network by checking that the green LED on the appliance's network connection is lit.

9. Power on the appliance by pressing the recessed Power button located on the front panel. Using a pen tip or similar implement, press the recessed Power button on the appliance's front panel, as shown in FIGURE 3-8.

To Power On the System After a Shutdown

Use this procedure to power the system on again after it has been running and then powered off. If the system has never been powered on before, use the procedure described in To Power On the Appliance and Controller Unit Initially or To Power On the Appliance, Controller Unit, and Expansion Units Initially.

Note - When you power off the controller units and expansion units, wait five seconds before you power them back on. If you power the units off and on too quickly, unexpected results can occur.

1. Verify that all cables between the Sun StorageTek 5220 NAS Appliance, controller units, and expansion units are secured according to the instructions in Connecting the Appliance to the Controller Unit and Connecting a Controller Unit to Expansion Units.

2. Power on each expansion unit by setting the two power supply switches to the On position. Wait at least 30 seconds after powering on the second expansion unit, if your system has one.

3. Power on the controller unit by setting the two power supply switches to the On position.

4. Check that all LEDs on the controller unit's front panels have turn solid green, indicating good operation.

5. Check that all LEDs on the expansion unit's front panels have turn solid green, indicating good operation.

6. Verify that the appliance is connected to the network by checking that the green LED on the appliance's network connection is lit.

7. Power on the appliance by pressing the recessed Power button located on the front panel. Using a pen tip or similar implement, press the recessed Power button on the appliance's front panel, as shown in FIGURE 3-8.

Configuring the Appliance

The Sun StorageTek 5220 NAS Appliance ships with the operating system installed. To configure the appliance for the first time, complete the following tasks:

Provide an IP address

Use the Web Administrator's Configuration Wizard.

Assigning the IP Address

You can assign an IP address in either of the following ways:

Using a Dynamic Host Configuration Protocol (DHCP) server to assign the IP address automatically. Your network must have either a DHCP server or a DHCP relay agent, which has access to a DHCP server on another network. The DHCP server or agent assigns an IP address to the Sun StorageTek 5220 NAS Appliance whenever it is powered on while connected to the network. If a DHCP server is not available, you must assign the IP address manually.

Using the controls and liquid crystal display (LCD) panel on the Sun StorageTek 5220 NAS Appliance to enter the IP address manually.

To Prevent an Address Assignment

If a DHCP server is available on your network but you prefer to assign the IP address manually, you must prevent the appliance from acquiring an IP address automatically by using the following procedure:

1. During the power-on sequence, wait for the following message to display in the LDC panel: "DHCP Discovery NIC X"

2. Press any key on the LCD panel.

3. When the panel displays the message, "Abort DHCP?" press the ENTER button on the panel to confirm.

4. Follow the instructions in To Assign the IP Address Manually.

To Assign the IP Address Manually

If a DHCP server is not available or if you prefer to assign a permanent IP address to the appliance, configure the IP address using the LCD panel.

1. Turn on the Sun StorageTek 5220 NAS Appliance and wait for the power-on sequence to complete.

Note - If you have a DHCP server, skip the discovery step. When the LCD panel displays "DHCP Discovery NIC X" status message, press any key on the LCD panel to display the "Abort DHCP?" message. Press the ENTER button.

The LCD panel displays the following:

A: Set IP Number

B: Retry DHCP

2. Press the ENTER button to select A.

3. Enter the values for the IP address.

To enter data, use the up and down arrow buttons to change the value of the digits and press the ENTER button to confirm the value you want. The cursor moves to the next digit. After you set the last digit, press the ENTER button again to proceed to the next setting.

You can enter values for the following settings or you can accept the default:

IP address

Subnet mask

Broadcast address

4. At the prompt about having a gateway, press Enter to accept the default of Yes.

The gateway indicates the network gateway.

After the gateway address is set, press the ENTER button to return to the Network Config menu.

To Display the IP Address

At the main menu of the LCD panel, press the ENTER button. At the prompt for Network Config settings, press the up arrow to A. Press the up or down arrow keys to select the network port and press the ENTER button to see the IP address.

Accessing the Web Administrator

Note - To use the Web Administrator, the appliance must be connected to your network, you must know its current IP address, and you must be logged into a client on the same network as the appliance.

When you connect to the Web Administrator for the first time, the Configuration Wizard launches automatically.

To Connect to the Web Administrator

1. From a client system on the same network as the appliance, open a web browser and type the IP address of the Sun StorageTek 5220 NAS Appliance in the address or location field, for example:

http://123.111.78.99

Press Enter.

Note - If the client system uses a proxy server and does not locate the appliance, change the browser's option to bypass the proxy server for local addresses. See your browser's online help or documentation for more information.

Your browser displays the Web Administrator's login screen. For your convenience, bookmark this location or add it to your Favorites list so that you do not have to enter the IP address in future sessions.

2. At the login screen, click Apply.

You can set the password at a later time, using the procedure in the Sun StorageTek NAS OS Administration Guide.

The Systems Operations, Set Time and Date panel is displayed.

3. Select the date, the time, and the time zone, and then click Apply.

This is the only time when the Web Administrator prompts for the date and time. If these values must be changed, use the Administrator Console.

4. Click Yes to confirm the date and time you set.

The Web Administrator displays the license agreement. Read the license agreement before you accept it. If you decline, Web Administrator displays the login screen.

5. Accept the license agreement.

The Web Administrator's Configuration Wizard starts. The wizard guides you through the process of configuring the Sun StorageTek 5220 NAS Appliance.

6. At each panel of the wizard, enter the information it requests. For descriptions of the panels, see the Sun StorageTek NAS OS Administration Guide.

If your system uses DHCP to assign DNS, WINS, or IP and gateway addresses, the fields for these values for port-emc1 (NET0) are configured automatically and you do not need to enter information. Verify the information or add information for other network ports and continue with the wizard.

Note - At the panel that requests the information for your DNS server, be sure to click the Add button on the panel before you continue with the wizard.

7. On the Confirmation screen, review the configuration you have set up. To change information, use the back arrow to return to a panel.

8. Click Finish on the Confirmation screen.

The system configures the settings and displays the Save Configuration screen.

9. Click Close on the Save Configuration screen.

The wizard checks that all mandatory information is complete and then reboots the appliance.

Next Steps

At this point, the storage system is running on your network but before it can store data, you need to set up your file system and to configure your users' access. Setting up a file system includes defining any logical unit numbers (LUNs), partitions, file volumes, or segments. When your file system is complete, set up user access rights and any other system management features such as setting up a local log file. For information on all these tasks and their concepts, see the Sun StorageTek NAS OS Administration Guide.

Note - The boot sequence log file is located in the bootlog, under /cvol/log. The file that the Web Administrator displays is a running log that can overflow. To save the entire log, set up a local log according to the instructions in the Sun StorageTek NAS OS Administration Guide.
