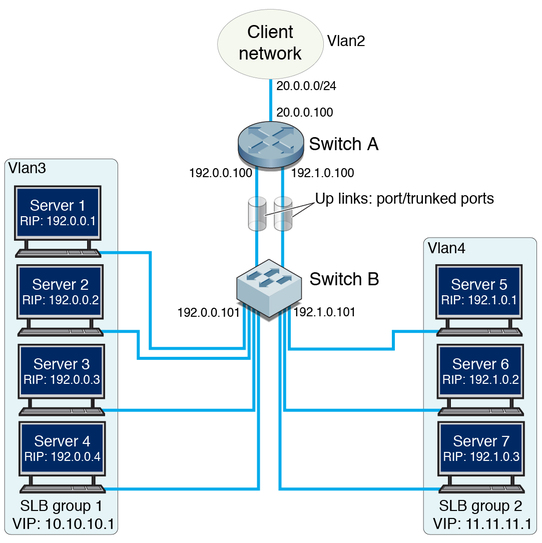

This example shows the SLB configuration with servers configured as multiple SLB groups. Servers and clients are at multiple VLANs, and the servers are indirectly attached to the switch.
|
In this sample configuration, the switches perform as follows:
Switch A:
Runs SLB.
Attached to the client network using switch ports extreme-ethernet 0/1-4.
Connected to switch B through two uplink ports extreme-ethernet 0/9-10. Port extreme-ethernet 0/9 carries VLAN 3 traffic, port extreme-ethernet 0/10 carries VLAN 4 traffic.
Switch B:
Directly connects to the servers.
Connects to switch A through two uplink ports extreme-ethernet 0/11-12. Port extreme-ethernet 0/11 carries VLAN 3 traffic, port extreme-ethernet 0/12 carries VLAN 4 traffic.
Servers in SLB group1 are connected to switch ports extreme-ethernet 0/15-18.
Servers in SLB group 2 are connected to switch ports extreme-ethernet 0/19-21.
