Updating the bp271 Business Process

You must make sure the Berlin system is using the data file path listed under Editing the Sample Data .xml Files by checking the bp271 BP in 271_FromInt_270. To do this action, open eXchange ⇒ Samples ⇒ HIPAA ⇒ 271_FromInt_270 ⇒ BPs ⇒ bp271 in Project Explorer.

The BP structure appears in Business Process Editor, in Enterprise Designer’s right pane. See Figure 6–9.

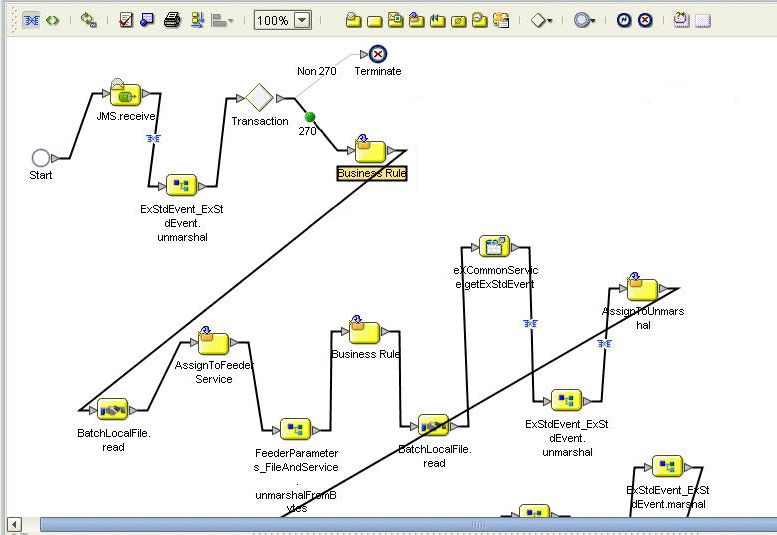

Figure 6–9 Business Process Editor: bp271

Make sure that the path given in the indicated component, in the previous figure, reflects your Berlin data path, for example:

C:\temp\eXchange\Sample\HIPAA\Data\Berlin

This is also the path location of the HIPAA_dlg_270_In_Atlanta_270_In.xml and HIPAA_4010A1_271_template.st files.

This setup has been created for the purpose of the sample scenario only. It is recommended that, when creating your own inbound BPs, you configure the BP to read this type of path information from the inbound eWay.
