C H A P T E R 1 |
Overview |
This chapter provides an overview of managing the Sun Storage J4200, J4400, and J4500 arrays using the Sun StorageTek Common Array Manager (CAM) software. It contains the following sections:
The Sun StorageTek Common Array Manager software consists of a software suite that provides management, monitoring, and servicing capabilities.
The Local Command Line Interface (CLI) performs the same control and monitoring functions as the full CAM installation with the browser interface. The Remote Command Line Interface provides a small client CLI which depends on a full or Command Line only instance of CAM to be installed on the same host or a remote host. When the Remote Command Line Interface is used with a remote host, communication is accomplished via HTPPS.
For most new users, managing the J4000 Array Family with the browser interface is recommended.
This chapter will focus on the recommended management solution using the browser interface.
For experienced users, use of the CLIs are discussed in Appendix B.
For the simplest management solution for new users, install the full CAM software on a host attached via SAS to the array, as seen in FIGURE 1-1. The host can act as both a management and a data host. You can then use a browser to access the software and manage the array.

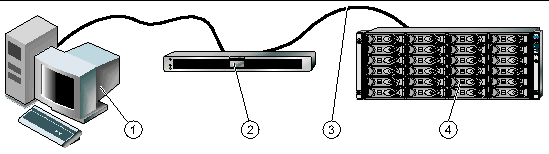

FIGURE 1-1 Recommended Configuration for New Users
Experienced users may want to have a central management server or host to manage multiple arrays.
Since the Sun Storage J4000 Array Family can communicate only over the in-band SAS data path, CAM software on a central host can not use the Ethernet network to communicate directly with the array. Instead, CAM communicates with a CAM proxy agent you install on a data host attached to the array.
FIGURE 1-2 illustrates this configuration.

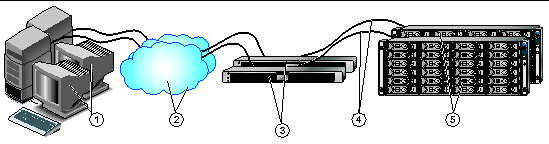

FIGURE 1-2 Using a Central Management Server to Manage an Array
There are two types of management paths:
In-band communicates the management and control commands on the same path as the data being processed.
Out-of-band uses a management path such as Ethernet that is separate from the data path.
Since the J4000 Array Family can only be managed from the host directly attached to the storage array, management would be limited to a single host unless a method is used. In this case, each host directly connected to the storage is used as a relay (proxy) to a centralized instanced of CAM which can aggregate and delegate as needed in order to provide a single point of monitoring and control for all the storage arrays.
The software and the arrays can communicate by converting out-of band communication to in-band and vice-vera. This is accomplished by installing a proxy agent on a data host attached to the array. The proxy agent receives communication from the management software over Ethernet and delivers the information over an in-band SAS connection between the data host and the array. Likewise, the proxy agent receives in-band communications from the array and sends it to the software over the Ethernet network.
The Sun StorageTek Common Array Manager software is delivered by download or CD.
Before you install the Common Array Manager software, do the following:
To install CAM using the recommended management solution for new users, you will have to run the installation tool (Chapter 2) once on the host attached to the array using the typical (full) Installation.
TABLE 1-1 provides a checklist for this option.
To install CAM on a central management server for use with Sun Storage J4000 Array Family, you will have to run the installation tool (Chapter 2) once on the management server and once on the data host:
1. A typical (full) installation on the management server.
2. An installation of CAM CLI (with proxy mode) on all data hosts attached to J4000 storage.
TABLE 1-2 provides a checklist for this option.
The following checklists (TABLE 1-1 and TABLE 1-2) outline the tasks required for installing the Sun StorageTek Common Array Manager software locally or centrally and tells you where you can find detailed procedures.
Chapter 2 Make sure the following user names are defined on your systems: |
||
Chapter 2 To Install CAM on a Local Data Host: |
||
Chapter 3 Starting the Management Software |
||
Chapter 3 Providing Site Information |
||
Chapter 3 Subscribing to Auto Service Request |
||
Chapter 3 Registering the Array |
||
Chapter 3 Installing New Firmware |
||
Chapter 3 Adding Users And Assigning Roles |
||
Chapter 2 Make sure the following user names are defined on your systems: |
||
Chapter 2 To Install CAM on a Central Management Server and a Proxy Agent on the Data Host |
||
Install the proxy agent on a data host attached to the array. |
Chapter 2 To Install CAM on a Central Management Server and a Proxy Agent on the Data Host |
|
Chapter 3 Starting the Management Software |
||
Chapter 3 Providing Site Information |
||
Chapter 3 Subscribing to Auto Service Request |
||
Chapter 3 Registering the Array |
||
Chapter 3 Installing New Firmware |
||
Chapter 3 Adding Users And Assigning Roles |
||
You are now ready to install the Common Array Manager software.
