This procedure describes how to use the Sun Fire X2200 M2 Tools and Drivers DVD to install platform-specific device drivers.
The application's main menu screen appears.
Note - The DVD is autorun enabled and should automatically launch the application. If the application does not automatically launch, see How to Manually Launch the Tools and Drivers Application Using a DVD.
The Install Drivers and Supplemental Software screen appears.
The Install Pack screen appears.
The screen default is that both platform-specific drivers and supplemental software are selected for update. Updating both the platform-specific drivers and the supplemental software is highly recommended. If you choose to update both, the platform-specific driver update occurs first.
The Welcome wizard screen appears.
The End User License Agreement screen appears.

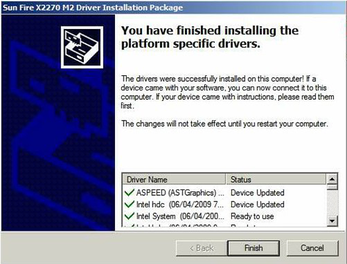

A screen appears and displays the platform-specific drivers installation status. A green check mark verifies that each driver was installed successfully.

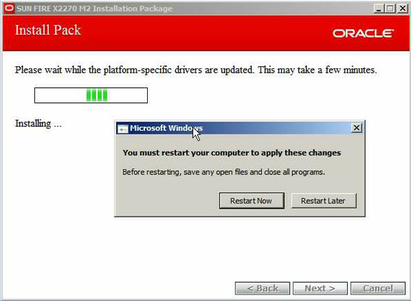

The System Settings Change screen appears with a Restart dialog popup.
Note - Do not click the option to restart the server until after the next step.
The server restarts with the updated drivers.
|
