The illustrations and tables on the following pages are intended to supplement
the remove and replace procedures discussed in Chapters 2 through 4.
Table 6-1
Field-Replaceable Units for the 1.3 GB IPI Tray
Part Number Description Figure
370-1385 Tray Slides
(Both sides, both halves) N/A
540-2127 Disk Drive Assembly
(With mtg bracket) N/A
300-1085 268 Watt Power Supply Figure 6-1
540-2125 Fan Tray Assembly
(Front fan Assembly) Figure 6-1
540-2126 Fan (Center) Figure 6-1
501-1827 LED Board Figure 6-1
150-1557 Device Select Switch Figure 6-1
130-1080 Jack Socket Kit N/A
240-1872 Jack Screw, Fixed N/A
530-1753 IPI Data Cable Assembly
(Internal) Figure 6-1
(Continued on next page)
(Table 6-1 continued)
Part Number Description Figure
530-1764 IPI DC Power Cable
Assembly (Internal) Figure 6-1
530-1768 IPI Address/LED Cable
Assembly (Internal) Figure 6-1
530-1536 IPI Data Cable Assembly
(External, .45m) Figure 6-3
530-1788 IPI Data Cable Assembly
(External, 2m) Figure 6-3
530-1789 IPI Data Cable Assembly
(External, 8m) N/A
530-1343 AC Line Cord, International Figure 6-2
530-1351 AC Line Cord, Domestic Figure 6-2
Figure 6-1
1.3 GB IPI Disk Drive Tray Assembly
Table 6-2
Field-Replaceable Units (1.3 GB IPI Tray)
Key Description Part Number
1 3 Fan Tray Assembly (Front Fan) 540-2125
2 Power Supply, 268 Watt 300-1085
3 IPI Data Cable Assembly 530-1735
4 Single Fan Assembly (Center Fan 540-2126
5 IPI DC Power Cable Assembly) 530-1764
(Continued on next page)
(Table 6-2 continued)
Key Description Part Number
6 Device Select Switch (0-7) 150-1557
7 LED Board 501-1827
8 Address/LED Cable Assembly 530-1768
Figure 6-2
1.3 GB IPI Tray AC Line Cord
Table 6-3
Field-Replaceable Units (AC Cords)
Key Description Part Number
1 AC Line Cord, International 530-1343 or
AC Line Cord, Domestic 530-1351

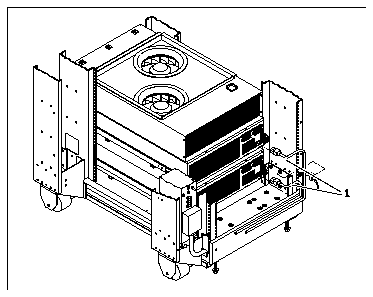

Figure 6-3
1.3 GB IPI Tray Data Cables
Table 6-4

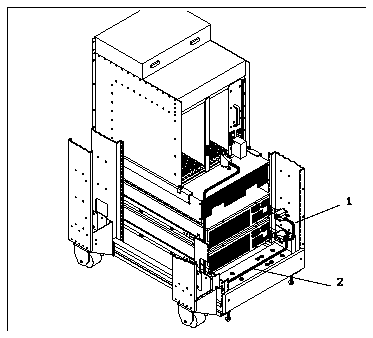

Field-Replaceable Units (IPI Data Cables)
Key Description Part Number
1 IPI Data Cable Assembly (.45m) 530-1536
2 IPI Data Cable Assembly (2m) 530-1788
