The procedures for editing the configuration file vary depending on the SCSI
bus your Multi-Tape Backup Tray is connected to. Refer to the section that
gives the instructions that pertain to your system:

Figure A-1
Location of SBus Slots in the SPARCserver 690MP System Board
Follow the instructions in this section to edit the configuration file only if the
following conditions are true:
-
your system is running on Solaris 1.x (SunOS 4.1.x), and
-
the Multi-Tape Backup Tray is connected to the on-board SCSI port in the
SPARCserver 690MP's system board.
1. Become superuser:
2. Change directories to the directory with the configuration file:
Note -
The following command will make a copy of the configuration file
called GENERIC. If you are using a different configuration file for your system,
substitute GENERIC with the name of your configuration file.
3. Make a copy of the configuration file:
This will allow you to keep a copy of the original configuration file, since
you will be making several changes to the new configuration file.
4. Edit the GENERIC_NEW file.
Use vi or any other text editor to edit the file.
5. Find the section of the configuration file that gives the information on the
SCSI device unit assignments.
In Solaris 1.x, this section is at the very end of the configuration file. It will
give the SCSI addresses (target numbers) for every drive available for each
SCSI bus on the system.
6. Find the section that gives information on SCSI bus 1.
In Solaris 1.x, that section will look like this:

7. Determine if you will be installing the tape drive(s) in drive bay III or II.
-
If the tape drive you are installing is going to be the third tape drive in the
Multi-Tape Backup Tray, you will install it in drive bay III in the tray (see
Figure A-2 for the location of drive bay III).
-
If the tape drive you are installing is going to be the fourth tape drive in
the Multi-Tape Backup Tray, you will install it in drive bay II in the tray
(see Figure A-2 for the location of drive bay II).

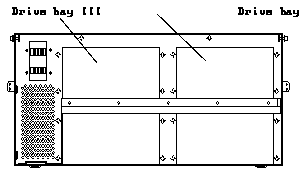

Figure A-2
Drive Bays in the Multi-Tape Backup Tray
8. Cut the appropriate line from the SCSI bus 1 section for the tape drive
you will be installing.
-
If you are installing a tape drive in drive bay III, cut the line for the fifth
tape drive from the SCSI bus 1 section (the line will be pasted into the
appropriate area in the SCSI bus 0 section in the next step).
-
If you are installing a tape drive in drive bay II, cut the line for the sixth
tape drive from the SCSI bus 1 section (the line will be pasted into the
appropriate area in the SCSI bus 0 section in the next step).

9. Paste the line(s) from the SCSI bus 1 section into the SCSI bus 0 section.
The following screen shows how the file would look if you had cut and
pasted both lines into the SCSI bus 0 section beneath the other tape drive
entries:

Note - If you upgrade your system from Solaris 1.x to the Solaris 2.x version of
the operating system, keep in mind that the "st" numbers for the tape drives
may change. For more information, refer to the manual you received with the
Solaris 2.x operating system.
10. For each line you pasted into the SCSI bus 0 section, change the SCSI bus
number to 0.
Using the same screen as an example, you would make the changes shown
in bold italics to the line:

11. For each line you pasted into the SCSI bus 0 section, change the number
in the "target #" column to the correct SCSI address for the tape drive that
will be installed in the drive bay.
-
If you are installing a tape drive in drive bay III, change the target number
for the fifth tape drive to 2.
-
If you are installing a tape drive in drive bay II, change the target number
for the sixth tape drive to 3.
Using the same screen as an example, you would make the changes shown
in bold italics to the line:

12. Save and quit your new configuration file.
13. Enter the following commands to complete the reconfiguration process:
14. Go to Section 7.1, "Preparing the System."
Follow the instructions in this section to edit the configuration file only if the
following conditions are true:
-
your system is running on Solaris 1.x (SunOS 4.1.x), and
-
the Multi-Tape Backup Tray is connected to the first SCSI host adaptor card
installed in the SPARCserver 690MP's system board.
1. Become superuser:
2. Change directories to the directory with the configuration file:
Note -
The following command will make a copy of the configuration file
called GENERIC. If you are using a different configuration file for your system,
substitute GENERIC with the name of your configuration file.
3. Make a copy of the configuration file:
This will allow you to keep a copy of the original configuration file, since
you will be making several changes to the new configuration file.
4. Edit the GENERIC_NEW file.
Use vi or any other text editor to edit the file.
5. Find the section of the configuration file that gives the information on the
SCSI device unit assignments.
In Solaris 1.x, this section is at the very end of the configuration file. It will
give the SCSI addresses (target numbers) for every drive available for each
SCSI bus on the system.
6. Find the section that gives information on SCSI bus 3.
In Solaris 1.x, that section will look like this:

7. Determine if you will be installing the tape drive(s) in drive bay III or II.
-
If the tape drive you are installing is going to be the third tape drive in the
Multi-Tape Backup Tray, you will install it in drive bay III in the tray (see
Figure A-3 for the location of drive bay III).
-
If the tape drive you are installing is going to be the fourth tape drive in
the Multi-Tape Backup Tray, you will install it in drive bay II in the tray
(see Figure A-3 for the location of drive bay II).

Figure A-3
Drive Bays in the Multi-Tape Backup Tray
8. Cut the appropriate line from the SCSI bus 3 section for the tape drive
you will be installing.
-
If you are installing a tape drive in drive bay III, cut the line for the seventh
tape drive from the SCSI bus 3 section (the line will be pasted into the
appropriate area in the SCSI bus 1 section in the next step).
-
If you are installing a tape drive in drive bay II, cut the line for the eighth
tape drive from the SCSI bus 3 section (the line will be pasted into the
appropriate area in the SCSI bus 1 section in the next step).

9. Paste the line(s) from the SCSI bus 3 section into the SCSI bus 1 section.
The following screen shows how the file would look if you had cut and
pasted both lines into the SCSI bus 1 section below the other tape drive
entries:

Note - If you upgrade your system from Solaris 1.x to the Solaris 2.x version of
the operating system, keep in mind that the "st" numbers for the tape drives
may change. For more information, refer to the manual you received with the
Solaris 2.x operating system.
10. For each line you pasted into the SCSI bus 1 section, change the SCSI bus
number to 1.
Using the same screen as an example, you would make the changes shown
in bold italics to the line:

11. For each line you pasted into the SCSI bus 1 section, change the number
in the "target #" column to the correct SCSI address for the tape drive that
will be installed in the drive bay.
-
If you are installing a tape drive in drive bay III, change the target number
for the seventh tape drive to 2.
-
If you are installing a tape drive in drive bay II, change the target number
for the eighth tape drive to 3.
Using the same screen as an example, you would make the changes shown
in italics to the line:

12. Save and quit your new configuration file.
13. Enter the following commands to complete the reconfiguration process:
14. Go to Section 7.1, "Preparing the System."
Follow the instructions in this section to edit the configuration file only if the
following conditions are true:
-
your system is running on Solaris 1.x (SunOS 4.1.x), and
-
the Multi-Tape Backup Tray is not connected to the on-board SCSI port or
the first SCSI host adaptor card in the SPARCserver 690MP.
1. Become superuser:
2. Change directories to the directory with the configuration file:
Note -
The following command will make a copy of the configuration file
called GENERIC. If you are using a different configuration file for your system,
substitute GENERIC with the name of your configuration file.
3. Make a copy of the configuration file:
This will allow you to keep a copy of the original configuration file, since
you will be making several changes to the new configuration file.
4. Edit the GENERIC_NEW file.
Use vi or any other text editor to edit the file.
5. Find the section of the configuration file that gives the information on the
SCSI device unit assignments.
This section will give the SCSI addresses (target numbers) for every drive
available for each SCSI bus on the system.
6. Determine which SCSI bus section in the configuration file you will be
altering for the Multi-Tape Backup Tray.
-
If the Multi-Tape Backup Tray is connected to the second SCSI host adaptor
card in the system board, you will alter the section for SCSI bus 2 in the
configuration file.
-
If the Multi-Tape Backup Tray is connected to the third SCSI host adaptor
card in the system board, you will alter the section for SCSI bus 3 in the
configuration file.
-
If the Multi-Tape Backup Tray is connected to the fourth SCSI host adaptor
card in the system board, you will alter the section for SCSI bus 4 in the
configuration file.
7. Choose a different SCSI bus section in the configuration file from the one
that you will be altering for the Multi-Tape Backup Tray that also has
entries for tape drives in it.
For example, if your Multi-Tape Backup Tray is connected to the second
SCSI host adaptor card in the system board, you would find that the
sections in the configuration file on SCSI bus 1 and SCSI bus 3 both have
entries for tape drives in them, so either of those SCSI bus sections would be
acceptable.
8. Choose an entry for tape drives from that SCSI bus section.
9. Determine if this entry is being used by another tape drive off that SCSI
bus.
If you have a tape drive connected to that SCSI bus, compare the SCSI
address assigned to the tape drive with the target number given in the entry
for that SCSI bus. If the addresses are the same, then that entry is being used
by the tape drive and is not available for you to use for this exercise.
Continue to choose other entries until you find an entry that is not being
used by a tape drive off that SCSI bus.
10. Move the entry from the other SCSI bus section to the SCSI bus section
that the Multi-Tape Backup Tray is connected to.
For example, if your configuration file had these entries for SCSI bus 2 and
3:

and you have the Multi-Tape Backup Tray connected to the second SCSI host
adaptor card in the system board and you know that there are no tape drives
connected to a third SCSI host adaptor card, then you would move the line for
the seventh tape drive in the SCSI bus 3 section up to the section for SCSI bus
2, and the configuration file would look like this:

Note - If you upgrade your system from Solaris 1.x to the Solaris 2.x version of
the operating system, keep in mind that the "st" numbers for the tape drives
may change. For more information, refer to the manual you received with the
Solaris 2.x operating system.
11. Change the SCSI bus number on the line to the SCSI bus number of the
SCSI bus the Multi-Tape Backup Tray is connected to and the target
address to a SCSI address not being used by any other device on that
SCSI bus.
Using the same screen as an example, if you know that the other devices on
the SCSI bus were assigned SCSI addresses of 3, 1, and 2, then you would
make the changes shown in bold italics to the line:

12. Repeat Step 7 through Step 11 for each tape drive you will install in the
Multi-Tape Backup Tray.
13. Save and quit your new configuration file.
