The illustrations and tables on the following pages are intended to supplement the removal/replacement procedures discussed in Chapters 1 and 2.
Table 3-1 Field Replaceable Units
-------------------------------------------------------------------
Part Number Description Figure -------------------------------------------------------------------
330-1192 Blank Bezel Figure 3-1
330-1284 Tape Bezel Figure 3-1
540-1939 Front Panel Assembly Figure 3-1
540-1847 Rear Bezel Figure 3-1
540-1749 Rear Bumper Figure 3-1
540-1846 Side Panel Figure 3-1
340-1898 Top Cover Figure 3-1
300-1091 Power Supply, 800W Figure 3-14
300-1106 IEC Power Supply, 800W Figure 3-14
540-2157 Fan Tray Assembly Figure 3-6
340-2292 EMI Cover Assembly Figure 3-2
340-2535 Rear EMI Cover Assembly Figure 3-5
540-2136 EMI Door Cover Assembly Figure 3-3
530-1676 Cable, SCSI Embedded Drive Tray Figure 3-9
530-1811 DC Harness to Drive Tray Figure 3-13
530-1841 Power Harness Assembly Cable Figure 3-13
530-1675 Power Harness Assembly Figure 3-11
501-1873 LED/Switch PCB Assembly Figure 3-4
540-2136 Remote Switch Assembly Figure 3-4
370-1347 SunCD Drive Figure 3-7
370-1377 1.3 Gbyte 5.25" SCSI Drive Figure 3-7
370-1405 2.3 Gbyte 8mm Tape Drive N/A
370-1415 5.0 Gbyte 8mm Tape Drive N/A
370-1412 2.1 Gbyte 5.25" Differential SCSI Drive Figure 3-8
240-1926 Screwlock N/A
340-2828 Bracket for Differential SCSI Drive Figure 3-8
340-2884 Differential SCSI Drive Tray Figure 3-8
530-1903 Differential SCSI Cable Figure 3-10
530-2034 Power Harness for the Differential Figure 3-12
SCSI Drive Tray
-------------------------------------------------------------------

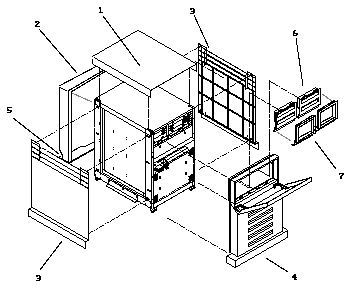

Figure 3-1 Cabinet Trim
----------------------------------
Key Description Part Number ----------------------------------
1 Top Cover 340-1898
2 Rear Bezel 540-1847
3 Side Panel 540-1846
4 Front Panel Assy 540-1939
5 Rear Bumper 540-1749
6 Blank Bezel 330-1192
7 Tape Bezel 330-1284
----------------------------------
Figure 3-2 EMI Cover Assembly
------------------------------------
Key Description Part Number ------------------------------------
1 EMI Cover Assembly 340-2292
------------------------------------
Figure 3-3 EMI Door Covers
-----------------------------------------
Key Description Part Number -----------------------------------------
1 EMI Door Cover Assembly 540-2136
-----------------------------------------
Figure 3-4 LED/Switch and PCB/Remote Switch Assemblies
-----------------------------------------
Key Description Part Number -----------------------------------------
1 LED/Switch PCB Assembly 501-1873
2 Remote Switch Assembly 540-2136
-----------------------------------------
Figure 3-5 Rear EMI Cover Assembly
------------------------------------------
Key Description Part Number ------------------------------------------
1 Rear EMI Cover Assembly 340-2535
------------------------------------------
Figure 3-6 Fan Tray Assembly
------------------------------------
Key Description Part Number ------------------------------------
1 Fan Tray Assembly 540-2157
------------------------------------

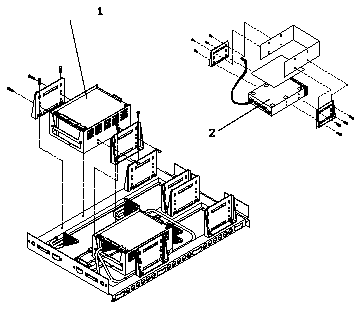

Figure 3-7 SCSI Disk Tray Assembly
--------------------------------------------
Key Description Part Number --------------------------------------------
1 1.3 Gbyte 5.25" SCSI Drive 370-1377
2 SunCD Drive 370-1347
--------------------------------------------

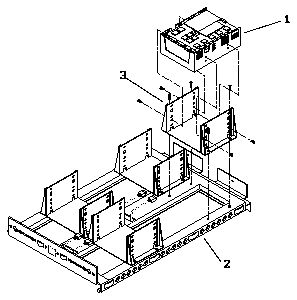

Figure 3-8 Differential SCSI Disk Tray Assembly
---------------------------------------------------------
Key Description Part Number ---------------------------------------------------------
1 2.1 Gbyte 5.25" Differential SCSI Drive 370-1412
2 Differential SCSI Drive Tray 340-2884
3 Differential SCSI Drive Bracket 340-2828
---------------------------------------------------------
Figure 3-9 Cable, SCSI Embedded Drive Tray
--------------------------------------------------
Key Description Part Number --------------------------------------------------
1 Cable, SCSI Embedded Drive Tray 530-1676
--------------------------------------------------
Figure 3-10 Cable, Differential SCSI Embedded Drive Tray
---------------------------------------------------------------
Key Description Part Number ---------------------------------------------------------------
1 Cable, Differential SCSI Embedded Drive Tray 530-1903
---------------------------------------------------------------
Figure 3-11 Power Harness Assembly
-----------------------------------------
Key Description Part Number -----------------------------------------
1 Power Harness Assembly 530-1675
-----------------------------------------
---------------------------------------------------------------------
Key Description Part Number ---------------------------------------------------------------------
1 Power Harness for the Differential SCSI Drive Tray 530-2034
---------------------------------------------------------------------
Figure 3-13 DC Power Harnesses
--------------------------------------------
Key Description Part Number --------------------------------------------
1 DC Harness to Drive Tray 530-1811
2 Assy, Cable, Power Harness 530-1841
--------------------------------------------
Figure 3-14 Power Supply, 800W
----------------------------------------
Key Description Part Number ----------------------------------------
1 Power Supply, 800W 300-1091
2 IEC Power Supply, 800W 300-1106
----------------------------------------
