This chapter describes:
------------------------------------------
SPARCstation 10 Service Codes page 1-1 Standard Features page 1-2 Internal Options page 1-6 External Options page 1-7 ------------------------------------------
There are two major classifications of the SPARCstation 10 family based upon different fabrications of the system board. Each major class is noted by a service code located on a rear panel label or the underside of the system:
This system has ISDN ports on the back panel. It uses a speaker box.
It accommodates up to 512 Mbytes of memory (Dynamic Single Inline Memory Modules). You can install Nonvolatile Single Inline Memory Modules (NVSIMMs) with a battery backup.
This SPARCstation 10 system has four audio ports on the back panel. There are no ISDN ports. This system also comes with an audio module and an internal speaker installed on the system board. It does not use a speaker box. A variety of disk drive capacities are available.
It accommodates up to 448 Mbytes of memory (Dynamic Single Inline Memory Modules) and one Video Single Inline Memory Module (VSIMM). A second VSIMM can also be installed in this system. To install a second VSIMM in the system, you must install an auxiliary video board into the auxiliary video board connector on the system board, used for video output from the VSIMM.
The SPARCstation 10 system contains the following subassemblies, boards, and components:
Figure 1-1 and Figure 1-2 show the major subassemblies and the system board for service codes S10 and S10BSX.
Figure 1-1 Interior View - S10 Service Code

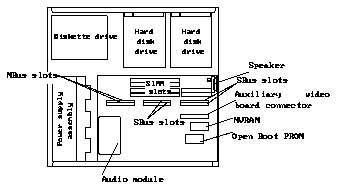

Figure 1-2 Interior View - S10BSX Service Code
Figure 1-3 and Figure 1-4 show the rear view of the system for service codes S10 and S10BSX.
Figure 1-3 Rear View - S10 Service Code
Figure 1-4 Rear View - S10BSX Service Code
Table 1-1 lists the available internal options.
Table 1-1 Internal Options
----------------------------------------------------------------------------------
Option Quantity Comments Service Service Code Code S10 S10BSX ----------------------------------------------------------------------------------
SBus cards Up to 4 System board provides up to four 3 3
SBus slots for additional system
functionality
MBus modules Up to 2 Provides additional microprocessors 3 3
Hard disk drives 1-2 Supports up to two disk drives of 3 3
varying capacities. See Chapter 9,
"Storage Devices and Internal
Cables" for more information.
DSIMMs Up to 8 Supports up to 512 Mbytes of 3
Dynamic Single Inline Memory
slots Modules (DSIMMs)
Supports up to 448 Mbytes of
Dynamic Single Inline Memory
Up to 7 Modules (DSIMMs) 3
slots
VSIMMs 2 slots Supports two Video Single Inline 3
Memory Modules (VSIMMs)
Auxiliary video 1 Works in conjunction with the second 3
board (AVB) VSIMM
NVSIMMs Up to 2 Nonvolatile SIMMs providing a 3
slots battery backup
NVSIMM 1 slot Nonvolatile SIMM providing a 3
battery backup
----------------------------------------------------------------------------------
Table 1-2 lists selected external SCSI peripheral options.
---------------------------------------------------------------
Unit Description ---------------------------------------------------------------
Desktop Backup Pack 150 Mbyte tape drive or DAT tape drive
Desktop Disk Pack Disk expansion unit with a variety of
SCSI disk drive capacities
Desktop SunCD Pack Compact CD-ROM disc drive
Desktop Storage 1.3 Gbyte disk drive or 5.0 Gbyte tape
Module drive
SCSI Expansion Up to seven SCSI disks, compact CD-
Pedestal ROM disc drive, tape drive, other non-
disk units
Multi-Disk Pack Desktop enclosure containing a disk
array of SCSI disk drives
20 Gbyte 4mm Desktop enclosure containing a tape
Desktop Tape Auto- drive with multiple magazine cartridges
Loader and provides up to 20 Gbytes of tape
backup storage
SCSI Expansion Holds up to eight disk drives and two or
Pedestal three removable media devices in the
upper tray. Requires a minimum of two
SCSI controllers if all three trays are
used. You cannot have more than seven
SCSI devices on each SCSI bus.
---------------------------------------------------------------
