Devices Can Only be Connected to Serial Port A on the Netra 150 Server

You can only connect devices to serial port A on the Netra 150 server; do not connect any devices to serial port B on the server. Refer to Figure 1-2 for the location of serial ports A and B on the Netra 150 server.

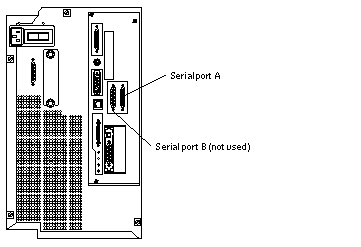

Figure 1-2 Location of the Serial Ports on the Netra 150 Server
