Chapter 3 Installing the Mainframe Component
After you install the iPlanet Application Server Enterprise Connector for CICS you need to install the mainframe component.This chapter describes the following topics:
Overview
You can connect the CICS Connector to the IBM mainframe in one of the following ways:
via TCP/IP
- This method is used when the iPlanet Application Server installed on Windows NT or Solaris is connected via TCP/IP to a Relay component on OS/390 (MVS). The Relay communicates over the APPC with CICS. See Figure 3-1.
Figure 3-1    Installing the Connector via TCP/IP
via Direct APPC/SNA
- This method is used when the iPlanet Application Server installed on Windows NT is connected via direct APPC connection to CICS on OS/390 (MVS). See Figure 3-2.
Figure 3-2    Installing the Connector via Direct APPC Using SNA
When you complete the installation either via TCP/IP or via direct APPC using SNA installation, the PhoneBook sample application is available for end-to-end installation verification of the iPlanet Application Server Enterprise Connector for CICS. See Appendix A "Operating the TELCO Sample".
Installing and Configuring CICS
The CICS components are supplied as downloaded PC files on the iPlanet Application Server Enterprise Connector for CICS installation media. You must upload the required Partitioned Data Sets (PDS) to MVS as part of the mainframe installation using either FTPor a 3270 emulator file transfer utility.
To Upload the Library Files on Windows NT
Run the mfinst.bat installation utility from the following directory:\iPlanet\iAS6\ias\APPS\adapters\cics\backend
To Upload the Library Files on Solaris
Run the file mfinst.sh installation utility from the following directory:<instdir>/iAS6/ias/APPS/adapters/cics/backend
The Installer Dialog Box appears. See Figure 3-3.

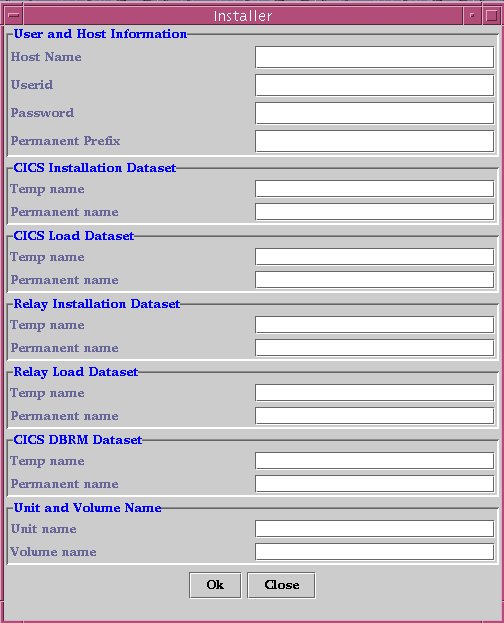

Figure 3-3    Installer Dialog Box
The Installer Dialog Box contains information about the following fields:
User and Host Information, see Table 3-1
CICS Installation Dataset, see Table 3-2
CICS Load Dataset, see Table 3-3
Relay Installation Dataset, see Table 3-4
User and Host Information
Table 3-1 lists names and IDs used to connect to the CICS system.
CICS Installation Dataset
The CICS Installation Dataset contains jobs for the CICS installation. Table 3-2 lists variables and definitions for the CICS Installation Dataset.
CICS Load Dataset
The CICS Load Dataset contains modules for the CICS connector. Table 3-3 lists variables and definitions for the CICS Load Dataset parameters.
Table 3-3    CICS Load Dataset
Variable
Definition
The temporary name assigned to the CICS Load dataset during upload.
Relay Installation Dataset
The Relay Installation Dataset contains jobs for the Relay installation. Table 3-4 lists and defines parameters for the Relay Installation Dataset.
Relay Load Dataset
The Relay Load Dataset contains modules for the component. Table 3-5 lists and defines parameters for the Relay Load Dataset.
Table 3-5    Relay Load Datase
Variable
Definition
The temporary name assigned to the Relay Load dataset during upload
CICS DBRM
The CICS DBRM is the Data Base Request Module library. Table 3-6 lists and defines parameters for the CICS DBRM.
Table 3-6    CICS DBRM
Variable
Definition
The temporary name assigned to the CICS DBRM dataset during upload.
Unit and Volume Name
The Unit and Volume Name lists the assigned names for the Unit and Volume used.
Table 3-7    Unit and Volume Name
Variable
Definition

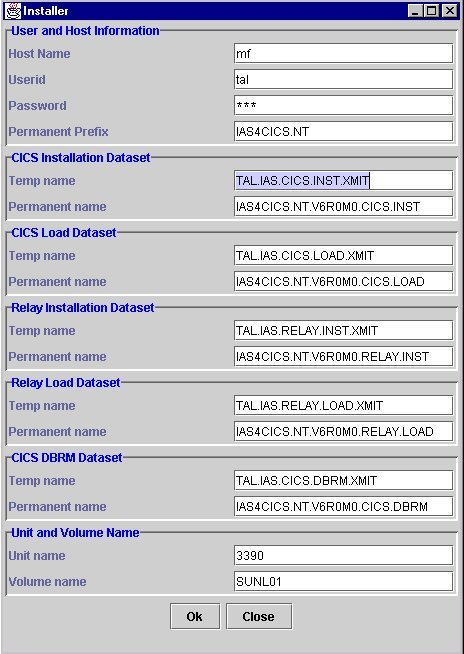

Figure 3-4 shows an example of a completed installer dialog box.
Figure 3-4    Completed Installer Dialog Box.
Press OK to continue. Figure 3-5 displays the generated JCL file.

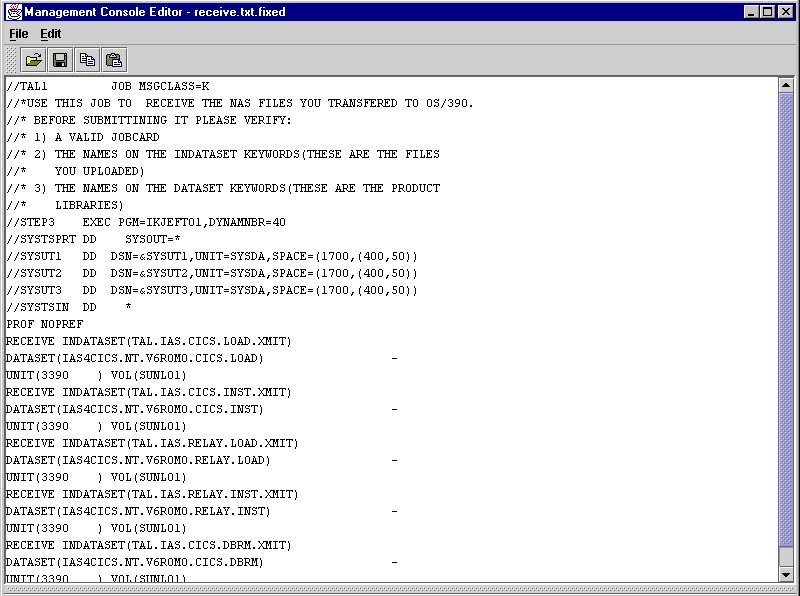

Figure 3-5    Management Console Editor - Generated JCL
The JCL editor modifies the JCL to fit your mainframe environment according to the instructions as viewed in the screen capture above. All of the JCL file can be changed, except for the job name. To apply the changes, choose File and then Save before submitting the job.
Choose File>Exit from the menu bar.

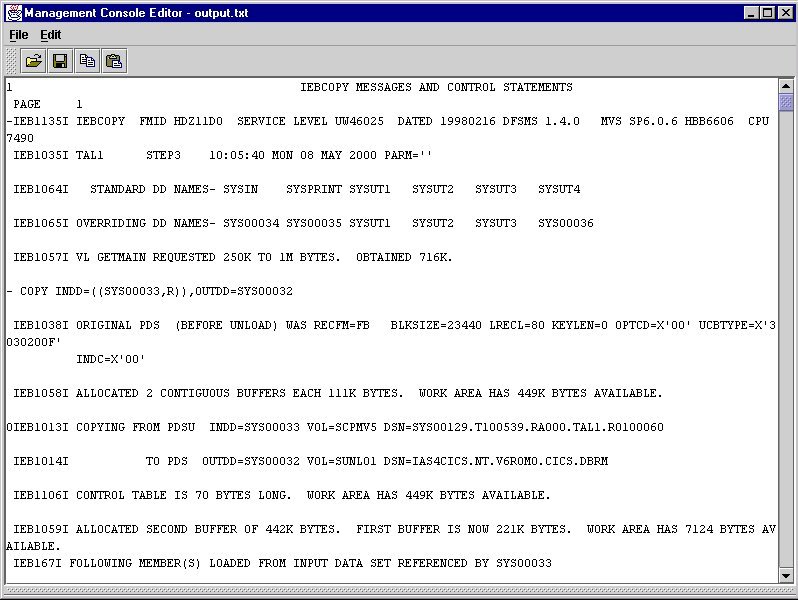

Once a job (JCL) finishes, outputs from the job are displayed as shown in Figure 3-6.
- The utility will begin to FTP the files to the mainframe, and submit the JCL file to extract the files into permanent libraries.
Figure 3-6    Management Console Editor: Outputs from job (JCL)
Uploading MVS Library Files via TCP/IP
If you have TCP/IP configured on your mainframe, you can use the supplied installation program from within the installer to tailor and upload the libraries. If TCP/IP is not installed, follow the instructions given as described in Uploading MVS Library Files Using 3270 File Transfer.
Uploading MVS Library Files Using 3270 File Transfer
The following procedure applies to users that use a 3270 emulation software and its file transfer capability.
Allocate four data sets on MVS with 1recl=80, blksize=3120, recfm=fb.
Use the 3270 emulation program to transfer the following files to the respective MVS data sets. Use the MVS/TSO binary transfer type and fixed-file option.
Issue the following TSO command:
At the prompt, enter the following:
Issue the following TSO command:
- DATASET(IAS4CICS.V6R0M0.CICS.LOAD)
- where IAS4CICS.V6R0M0.CICS.LOAD is the name of the product load library.
At the prompt, enter the following:
Issue the following TSO command:
- DATASET(IAS4CICS.V6R0M0.CICS.INST)
- where IAS4CICS.V6R0M0.CICS.INST is the name of the installation library.
At the prompt, enter the following:
Issue the following TSO command:
- DATASET(IAS4CICS.V6R0M0.RELAY.INST)
- where IAS4CICS.V6R0M0.RELAY.INST is the name of the installation library for the RELAY component.
At the prompt, enter the following:
Configuring CICS on the Mainframe
You need to configure the components to install the connection to the mainframe computer. The following steps provide information on how to perform this task.
To Configure the CICS Components
Ensure APPC Logmode Entry is Present.
Define the Sample CICS Application in VTAM.
Define a Remote PU for each NT Server Platform Connected Directly to CICS via APPC
Create the VSAM Datasets Using DEFFILES Member.
Update the CICS Resource Definitions by Running the Supplied CICSDEF.
Install a Resource Group for the APPC Connection.
Add the Product Load Library to CICS DFHRPL List.
Define the Necessary Entries in the Application Table VSAM File.
Ensure APPC Logmode Entry is Present
Code Example 3-1 demonstrates definitions of APPC Logmode entry in the MODE TABLE associated with the CICS VTAM definition.A MODE entry with the same name must be defined in the MODE TABLE associated with APPC/MVS LU (logical unit).
Define the Sample CICS Application in VTAM
Code Example 3-2 is a sample VTAM definition for CICS. In most cases, CICS is already defined and running.
Note
Define a Remote PU for each NT Server Platform Connected Directly to CICS via APPC
If your application server is connected directly to CICS (using APPC connections), define the remote PU (the application server machine) to VTAM and CICS.Refer to Code Example 3-3.
Code Example 3-3    Sample PU and LU6.2 Definition for Windows NT */* SWSHMUEL VBUILD TYPE=SWNET PUSHMUEL PU PUTYPE=2,ADDR=C1,MAXDATA=1456, * CPNAME=SHMUELNT SHMUELNT LU LOCADDR=0
Create the VSAM Datasets Using DEFFILES Member
Create the VSAM datasets using DEFFILES member in CICS installation library. See Code Example 3-4.
Update the CICS Resource Definitions by Running the Supplied CICSDEF
Update the CICS resource definitions by running the supplied CICSDEF from the installation library.Refer to Code Example 3-5.
When using direct APPC connection from Windows NT, refer to Code Example 3-6 as a definition for CICS connection and sessions.
Install a Resource Group for the APPC Connection">
Install a Resource Group for the APPC Connection
Code 3-6 can be used for a direct APPC connection from Windows NT, and demonstrates definitions for CONNECTION and SESSIONS parameters in CICS.
Add the Product Load Library to CICS DFHRPL List
Add the product load library to the CICS DFHRPL list in the CICS startup JCL.
Code Example 3-7    Sample VTAM Major Node for CICS Startup/JCL //DFHRPL DD DSN= DD DSN=' ...... ...... DD DSN='IAS4CICS.V6R0M0.CICS.LOAD'.DISP=SHR*
Define the Necessary Entries in the Application Table VSAM File
Use the supplied CICS transaction SRVU created in Step 3 to make the necessary application table definitions in the CICS application table file as shown in Figure 3-7. Use the PF5 command to add the entries to the file.

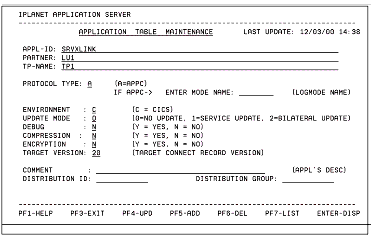

Figure 3-7    Application Table Maintenance
Installing and Configuring the Relay
Installing and configuring the Relay is only necessary when you use TCP/IP to connect to the mainframe.When using the Relay, configure the environment for the following:
Proceed in the following order:
Create an Application Table Dataset for the Relay Component
Create a TCP/IP Listener Started Task
Create an Application Table Dataset for the Relay Component
You must create an application dataset for the Relay component.
To Create an Application Table Dataset for the Relay Component
Run the DEFFILES REXX located in the Relay installation library.
Enter the application table name without quotes.
Enter the VOLSER (Volume Serial Name).
Enter unit type, or press Enter for 3390.
Enter MVS/APPC logmode.
Configure APPC/MVS
This procedure is required only if APPC/MVS is not already configured on your system. If it is configured on the system, it is recommended that you read through these instructions and compare them to the existing configuration on your system. You can use wither one of the samples provide with the CICS Enterprise Connector to configure APPC/MVS.
If APPC/MVS is not installed on your system, you can adapt and use the sample code given in Code Example 3-8 or the sample definition for APPC/MVS base LU given in Code Example 3-9.
Activate the APPC/MVS major node by using the following command:
- The member APPC/MVS in the Relay Installation library contains VTAM definitions for the base APPC/MVS LU.
Note The iPlanet Application Server Enterprise Connector for CICS does not require ASCH.
Code Example 3-9    APPCPM00 Member /* LIB: SYS1.PARMLIB(APPCPM00) */ LUADD ACBNAME(MVSLU01) BASE NOSCHED
Using the MVS commands, start APPC/MVS by using the following command:
Create a TCP/IP Listener Started Task
The Listener listens to a TCP/IP port. The following sections describe both the prerequisites and the procedure for configuring and operating the Listener.
Note Because the Listener and the Relay reside in the same address space, when referring to the Listener and Relay, the reference is to the same component.
To Create a TCP/IP Listener Started Task
The TCP/IP Listener can be executed as an MVS Started Task, or as a batch job. It is recommended to run it as an MVS Started Task.
Prerequisites
The following components must be installed before you can use the Listener:
To Create and Configure the Listener
Copy the member LISTEN, (the sample procedure in Relay installation library), into a system procedure library, for example,
Ensure that the STEPLIB points to the load library, and that the SRVAPLF DD card points to the application table.
Verify the SYSOUT class on the CPEOUT, CPEOUTRS, CPEOUTRO DD cards.
Place an entry for the load library in SYS1.PARMLIB member IEAAPFxx or PROGxx, depending on your site's standards.
Update the following PROC statement parameters:
Table 3-8    PROC Statement Parameters
Maximum number of concurrent tasks. 20 tasks is the default.
Name of the program to activate for incoming requests, must be `SRVRLNS'.
- Refer to Code Example 3-10.
Verify the Security Server Definition
Verify that the user ID assigned to the Listener has an OMVS segment.
Start the Listener
The following description of how to start the Listener assumes that LISTEN is the name of the started task.Use the following procedures to start, stop, and restart the Listener, and to determine and free the connection port.
Issue the MVS command: S LISTEN
Note LISTEN can be included in the TCP/IP automatic startup list (AUTOLOG).
To Stop the Listener After a Fixed Amount of Time
Stop the Listener
In early releases of TCP/IP, it may occur that even though the Listener was stopped, its port is not freed. In such cases, determine the connection identification and free the port.
To Determine the Connection Identification
Issue the following command which requires the issuing user to have the proper security authorization:
Installing the PhoneBook Application
The PhoneBook Sample installation is intended to verify that the iPlanet Application Server Enterprise Connector for CICS has been properly installed.
Note The TELCO sample application including its installation is described in the appendix. The TELCO sample requires DB2 for OS/390 and is not part of installation verification.
To Install the Sample PhoneBook Application on CICS
Submit the PBINIT member located in the CICS installation library.
- Refer to Code Example 3-11.
