iPlanet Application Server Enterprise Connector for CICS Administrator's Guide



Chapter 2   Installation


This chapter describes how to install, start, and uninstall the iPlanet Application Server Enterprise Connector for CICS.

This chapter contains information about the following topics:



Software Prerequisites

The following software prerequisites are necessary to install the iPlanet Application Server Enterprise Connector for CICS:

  • the iPlanet Application Server version 6.0 SP2 must be installed

  • the iPlanet Application Server Unified Integration (UIF) version 6.0 SP2 must be installed

  • CICS software on the mainframe must be installed

  • One of the following web browsers should be installed:

    • Netscape Communicator 4.5

    • Microsoft Internet Explorer 4.0 (NT only)

  • A web server, such as iPlanet Web Server (iWS) and iPlanet Application Server 6.0 SP2, must reside on the same system on which you are installing the connector.

    Caution

    The CICS connector operates with the iPlanet Application Server, therefore it must be installed in the same directory in which the iPlanet Application Server is installed.



Supported Versions of CICS

The iPlanet Application Server Enterprise Connector for CICS supports IBM CICS running on OS/390. The required releases are MVS 5.2.2 and CICS ESA 4.1 and above with current APARS.

iPlanet Application Server Enterprise Connector for CICS includes installation and configuration for both TCP/IP and SNA (APPC) protocols.



Hardware Requirements


The following hardware requirements are necessary for installing the connectors.


Computers and Operating Systems

  • One of the following operating systems:

    • Microsoft Windows NT version 4.0 with Service Pack 5

    • Sun SPARC running Solaris 2.6 or Solaris 8

  • The MVS Operating System version 4.3 or later, or any version of OS390 must be installed before you can use the Listener:

  • Communication protocol must be one of the following:

    • not running on TCP/IP. (use APPC)

    • IBM TCP/IP running on OS/390

    • CA TCPaccess running on OS/390
      Note TCP/IP is supported only by versions that are maintained by IBM or CA.


  • Memory Per CPU: 256 MB minimum; 512 MB recommended

  • Available disk space: 200 MB for NT, 400 MB for Solaris



Preparing to Install the iAS Enterprise Connector for CICS

Before installing the iAS Enterprise connector for CICS complete the following steps:

  • Verify the CICS Server connectivity.

  • Stop the iPlanet Application Server if it is running.Without stopping the application server, the installation program may not be able to overwrite files currently in use.

  • Read the iAS Enterprise Connector for CICS Release Notes for any last minute updates.



Installing the iAS Enterprise Connector for CICS on Windows NT

The following describes the procedures for installing and uninstalling iPlanet Application Server for CICS on Windows NT.

You must be logged in to Windows NT as the administrator to install the iAS Enterprise Connector for CICS.


To Install the CICS Connector on Windows NT

  1. Read the README.txt file on the CD-ROM.

  2. Copy NT/inscics.zip from the CD-ROM into a temporary local directory.

  3. Unzip inscics.zip, then run setup.exe.

  4. Read the Welcome message and click on the Next button. See Figure 2-1.

  5. Follow the instructions on the screen to progress through the introduction.

Figure 2-1    Welcome Message

  1. Thoroughly read and understand the licensing information before installing, and accept the license agreement. See Figure 2-2.

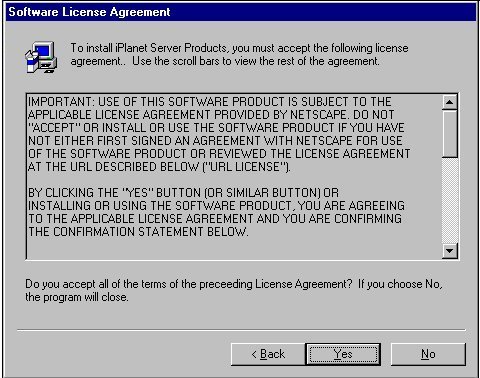

Figure 2-2    Software License Agreement

  1. Choose your installation directory, then click Next. See Figure 2-3.

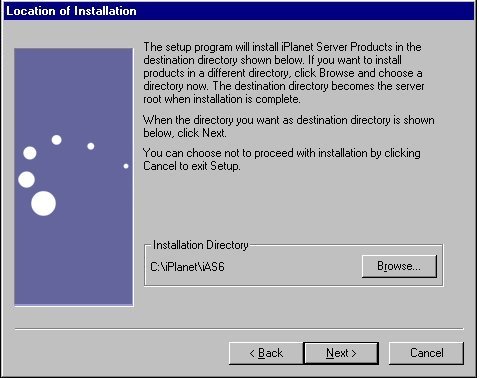

Figure 2-3    Location of Installation


Note

You must install the iPlanet Application Server Enterprise Connector for CICS in the same directory as where you installed iPlanet Application Server and UIF.



  1. Click Next to continue.

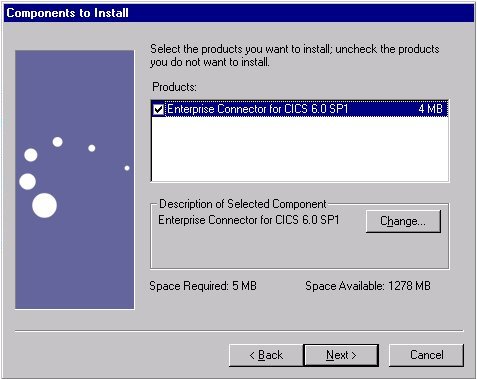

    Select the Enterprise Connector for CICS 6.0 check box. See Figure 2-4.

Figure 2-4    Components to Install

  1. Choose the protocol you prefer, either TCP/IP or SNA protocol, by selecting the appropriate button, and then click Next. See Figure 2-5.
    Note

    See Chapter 3 "Installing the Mainframe Component" for a description of alternatives to connect the CICS connector to the mainframe.

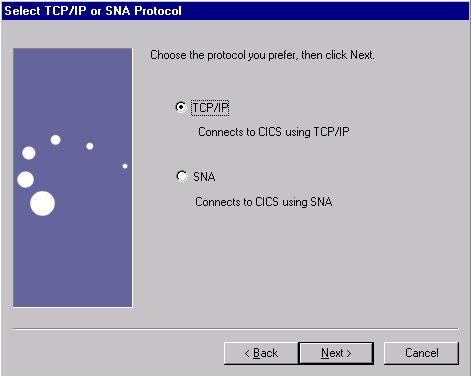

Figure 2-5    Select TCP/IP or SNA Protocol

Continue with Step 10 if you selected TCP/IP protocol or continue with Step 11 if you selected the SNA protocol.

  1. Type in your CICS Backend System definition for TCP/IP and click Next.

    The Configuration Summary shown in Figure 2-8 is displayed.

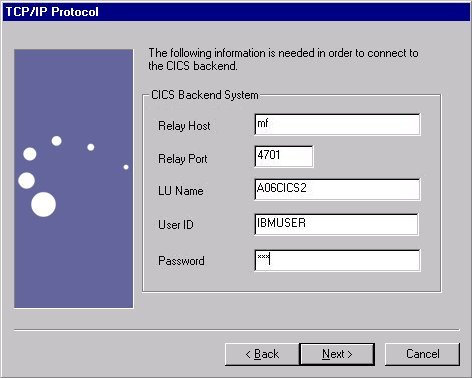

Figure 2-6    TCP/IP Protocol

  1. Enter the CICS Backend System information for APPC and click Next.

    Table 2-1 describes the TCP/IP information

    Table 2-1    TCP/IP Protocol CICS Backend System Information

    Field

    Definition

    Relay Host

    The address of the relay host that provides the service

    Relay Port

    The port number through which the relay intends to communicate.

    LU Name

    Name of LU of CICS (logon Applid)

    User ID

    User ID of the host.

    Password

    User password

    The Configuration Summary shown in Figure 2-8 is displayed.

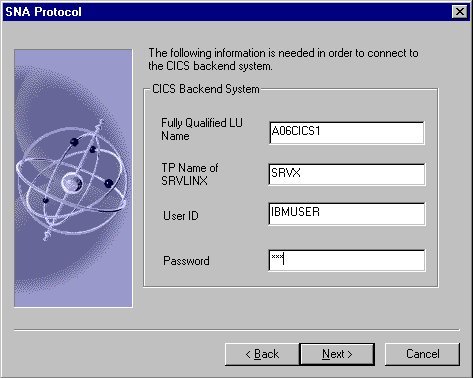

Figure 2-7    SNA Protocol



Table 2-2    SNA Protocol CICS Backend System Information

Field

Definition

LU Name

Name of LU of CICS (Logon Applid)

TP name of SRVLINK

Name of transaction of SRVLINK

User ID

User ID of the host

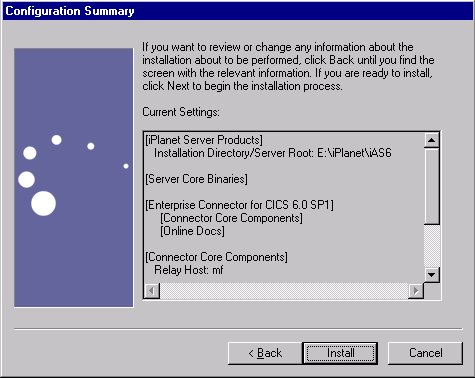

  1. Review the configuration summary and click install if the information is correct.

Figure 2-8    Configuration Summary

  1. Click Install if the information is correct.

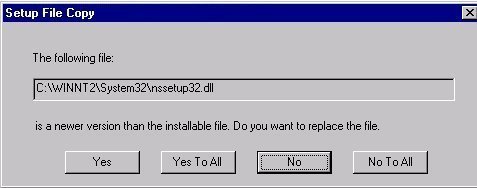

  2. (Optional) Figure 2-9 displays the possible warning window(s) that can appear if the installer detects that the iAS Enterprise Connector for CICS is already installed. Choose Yes to overwrite the existing adapter type and all sample data source definitions shipped with the CICS connector. User defined data sources are not overwritten. Select No if you are simply adding another iPlanet Application Server instance to an existing cluster.

    Confirm your decision.

Figure 2-9    Setup File Copy


Caution

To complete the setup for the iPlanet Application Server Enterprise Connector for CICS, you must install the ICU libraries. Before proceeding to copy the ICU libraries, you must read and accept the ICU license agreement present in the ibm_icu_license.html file on the ICU CD.


"> ICU libraries

Caution

To complete the setup for the iPlanet Application Server Enterprise Connector for CICS, you must install the ICU libraries. Before proceeding to copy the ICU libraries, you must read and accept the ICU license agreement present in the ibm_icu_license.html file on the ICU CD.





To install ICU:

  • Uncompress the icu-NT.zip under the <iAS InstallDir>\ias\APPS\bin directory.

    This places the following directories under the <iAS InstallDir>\ias\APPS\bin directory:

    • icuuc.dll

    • icui18n.dll

    • icu (directory)


Post-installation


Caution

You must restart your computer after you complete the installation.


After installing the Enterprise Connector for CICS on Windows NT, proceed with the Mainframe component installation as described in Chapter 3.

If you selected a direct APPC connection from NT, SNA/APPC on NT must be configured as explained in the following section.



SNA/APPC Configuration for Windows NT


A sample configuration file for IBM Personal Communications (PCOMM) product for NT is enlisted, and supplied in:

<instdir>\APPS\adapters\CICS\backend\appconfig.ACG

Load this file into your PCOMM SNA Node Configuration as a basis for changes and adaptations to your SNA/APPC setup. Code Example 2-1    PCOMM LU6.2 Configuration Definitions on a PC

*TSTue Mar 7 10:57:58 2000

NODE=(

ANYNET_SUPPORT=NONE

CP_ALIAS=SHMUELNT

DEFAULT_PREFERENCE=NATIVE

DISCOVERY_SUPPORT=NO

FQ_CP_NAME=P390.SHMUELNT

NODE_ID=05D00000

NODE_TYPE=END_NODE

REGISTER_WITH_CDS=1

REGISTER_WITH_NN=1

)

PORT=(

PORT_NAME=LANX_04

ACTIVATION_DELAY_TIMER=30

DELAY_APPLICATION_RETRIES=1

DLC_DATA=00000000000004

DLC_NAME=LAN

IMPLICIT_CP_CP_SESS_SUPPORT=1

IMPLICIT_DEACT_TIMER=0

IMPLICIT_DSPU_SERVICES=NONE

IMPLICIT_HPR_SUPPORT=1

IMPLICIT_LIMITED_RESOURCE=NO

IMPLICIT_LINK_LVL_ERROR=0

LINK_STATION_ROLE=NEGOTIABLE

MAX_ACTIVATION_ATTEMPTS=10

MAX_IFRM_RCVD=8

MAX_RCV_BTU_SIZE=32767

PORT_TYPE=SATF

RETRY_LINK_ON_DISCONNECT=1

RETRY_LINK_ON_FAILED_START=1

RETRY_LINK_ON_FAILURE=1

PORT_LAN_SPECIFIC_DATA=(

ACK_DELAY=100

ACK_TIMEOUT=3000

ADAPTER_NUMBER=9999

BUSY_STATE_TIMEOUT=60

IDLE_STATE_TIMEOUT=30

LOCAL_SAP=04

MAX_RETRY=10

OUTSTANDING_TRANSMITS=16

POLL_TIMEOUT=3000

POOL_SIZE=16

REJECT_RESPONSE_TIMEOUT=30

TEST_RETRY_INTERVAL=8

TEST_RETRY_LIMIT=5

XID_RETRY_INTERVAL=8

XID_RETRY_LIMIT=5

)

)

LINK_STATION=(

LS_NAME=LINK0000

ACTIVATE_AT_STARTUP=1

ACTIVATION_DELAY_TIMER=-1

ADJACENT_NODE_TYPE=LEARN

AUTO_ACTIVATE_SUPPORT=0

CP_CP_SESS_SUPPORT=1

DEFAULT_NN_SERVER=0

DELAY_APPLICATION_RETRIES=0

DEST_ADDRESS=42000000006604

DISABLE_REMOTE_ACT=0

DSPU_SERVICES=NONE

ETHERNET_FORMAT=1

HPR_LINK_LVL_ERROR=0

HPR_SUPPORT=0

INHERIT_PORT_RETRY_PARMS=1

LIMITED_RESOURCE=NO

LINK_DEACT_TIMER=0

LINK_STATION_ROLE=USE_ADAPTER_DEFAULTS

MAX_ACTIVATION_ATTEMPTS=-1

MAX_IFRM_RCVD=0

MAX_SEND_BTU_SIZE=32767

NODE_ID=05D00000

PORT_NAME=LANX_04

RETRY_LINK_ON_DISCONNECT=0

RETRY_LINK_ON_FAILED_START=0

RETRY_LINK_ON_FAILURE=0

SOLICIT_SSCP_SESSION=0

TG_NUMBER=0

USE_DEFAULT_TG_CHARS=1

)

DLUR_DEFAULTS=(

DEFAULT_PU_NAME=SHMUELNT

DLUS_RETRY_LIMIT=65535

DLUS_RETRY_TIMEOUT=5

)

MODE=(

MODE_NAME=BLANK

AUTO_ACT=0

COMPRESSION=PROHIBITED

COS_NAME=#CONNECT

DEFAULT_RU_SIZE=1

MAX_NEGOTIABLE_SESSION_LIMIT=256

MAX_RU_SIZE_UPPER_BOUND=1024

MIN_CONWINNERS_SOURCE=128

PLU_MODE_SESSION_LIMIT=256

RECEIVE_PACING_WINDOW=3

)

MODE=(

MODE_NAME=#BATCH

AUTO_ACT=0

COMPRESSION=PROHIBITED

COS_NAME=#BATCH

DEFAULT_RU_SIZE=0

MAX_NEGOTIABLE_SESSION_LIMIT=256

MAX_RU_SIZE_UPPER_BOUND=2048

MIN_CONWINNERS_SOURCE=128

PLU_MODE_SESSION_LIMIT=256

RECEIVE_PACING_WINDOW=20

)

MODE=(

MODE_NAME=#BATCHSC

AUTO_ACT=0

COMPRESSION=PROHIBITED

COS_NAME=#BATCHSC

DEFAULT_RU_SIZE=1

MAX_NEGOTIABLE_SESSION_LIMIT=256

MAX_RU_SIZE_UPPER_BOUND=2048

MIN_CONWINNERS_SOURCE=128

PLU_MODE_SESSION_LIMIT=256

RECEIVE_PACING_WINDOW=3

)

MODE=(

MODE_NAME=#INTER

AUTO_ACT=0

COMPRESSION=PROHIBITED

COS_NAME=#INTER

DEFAULT_RU_SIZE=1

MAX_NEGOTIABLE_SESSION_LIMIT=256

MAX_RU_SIZE_UPPER_BOUND=4096

MIN_CONWINNERS_SOURCE=128

PLU_MODE_SESSION_LIMIT=256

RECEIVE_PACING_WINDOW=20

)

MODE=(

MODE_NAME=#INTERSC

AUTO_ACT=0

COMPRESSION=PROHIBITED

COS_NAME=#INTERSC

DEFAULT_RU_SIZE=1

MAX_NEGOTIABLE_SESSION_LIMIT=256

MAX_RU_SIZE_UPPER_BOUND=2048

MIN_CONWINNERS_SOURCE=128

PLU_MODE_SESSION_LIMIT=256

RECEIVE_PACING_WINDOW=7

)

MODE=(

MODE_NAME=APPCMODE

AUTO_ACT=0

COMPRESSION=PROHIBITED

COS_NAME=#CONNECT

DEFAULT_RU_SIZE=1

MAX_NEGOTIABLE_SESSION_LIMIT=128

MAX_RU_SIZE_UPPER_BOUND=4096

MIN_CONWINNERS_SOURCE=16

PLU_MODE_SESSION_LIMIT=32

RECEIVE_PACING_WINDOW=1

)

MODE=(

MODE_NAME=QPCSUPP

AUTO_ACT=0

COMPRESSION=PROHIBITED

COS_NAME=#CONNECT

DEFAULT_RU_SIZE=1

MAX_NEGOTIABLE_SESSION_LIMIT=52

MAX_RU_SIZE_UPPER_BOUND=1024

MIN_CONWINNERS_SOURCE=26

PLU_MODE_SESSION_LIMIT=52

RECEIVE_PACING_WINDOW=2

)

MODE=(

MODE_NAME=QSERVER

AUTO_ACT=0

COMPRESSION=PROHIBITED

COS_NAME=#CONNECT

DEFAULT_RU_SIZE=1

MAX_NEGOTIABLE_SESSION_LIMIT=64

MAX_RU_SIZE_UPPER_BOUND=1024

MIN_CONWINNERS_SOURCE=0

PLU_MODE_SESSION_LIMIT=64

RECEIVE_PACING_WINDOW=7

)

MODE=(

MODE_NAME=SNASVCMG

AUTO_ACT=0

COMPRESSION=PROHIBITED

COS_NAME=SNASVCMG

DEFAULT_RU_SIZE=0

MAX_NEGOTIABLE_SESSION_LIMIT=2

MAX_RU_SIZE_UPPER_BOUND=512

MIN_CONWINNERS_SOURCE=1

PLU_MODE_SESSION_LIMIT=2

RECEIVE_PACING_WINDOW=1

)

PARTNER_LU=(

FQ_PLU_NAME=P390.A06CICS2

ADJACENT_CP_NAME=P390.P390SSCP

CONV_SECURITY_VERIFICATION=1

MAX_MC_LL_SEND_SIZE=32767

PARALLEL_SESSION_SUPPORT=1

PARTNER_LU_ALIAS=A06CICS2

PREFERENCE=USE_DEFAULT_PREFERENCE

)

CPIC_SIDE_INFO=(

SYM_DEST_NAME=SRVX

CONVERSATION_SECURITY_TYPE=NONE

MODE_NAME=APPCMODE

PARTNER_LU_NAME=P390.A06CICS2

TP_NAME=SRVX

TP_NAME_TYPE=APPLICATION_TP

)

ADJACENT_NODE=(

FQ_CP_NAME=P390.P390SSCP

LU_ENTRY=(

FQ_LU_NAME=P390.A06CICS2

)

)

SHARED_FOLDERS=(

CACHE_SIZE=256

)

VERIFY=(

CFG_MODIFICATION_LEVEL=13

CFG_VERSION_LEVEL=1

)


To Initialize the SNA/APPC Protocol Stack in Windows NT

  1. Select Start > Programs > IBM Personal Communications > Administrative and PD Aids > SNA Node Operations.

  2. Select Operations > Start Node.

    The Personal Communications Node Operations window appears.

  3. Select Operations > CNOS Initialize.



Uninstalling the iAS Enterprise Connector for CICS from Windows NT

This procedure is used to uninstall iPlanet Application Server Enterprise Connector for CICS from Windows NT.


To Uninstall the Enterprise Connector for CICS from Windows NT

  1. Select Start > Programs - iPlanet Application Server 6.0 > Uninstaller.

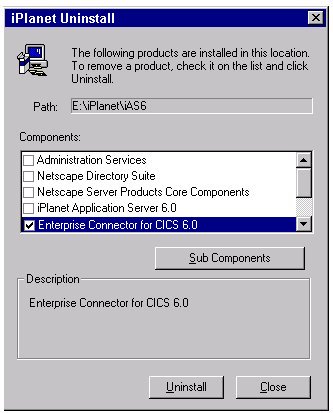

    The iPlanet Uninstall window appears. See Figure 2-10.

Figure 2-10    iPlanet Uninstall

  1. Deselect all components for iAS except Enterprise Connector for CICS 6.0.

  2. Click Sub Components.

    The uninstaller checks for dependencies between subcomponents and the main component. If you try to deselect a component and its subcomponent are toggled on, a warning message appears.


Deselecting the Enterprise Connector for CICS

Deselect items in the following order:

  1. Deselect Netscape Server Product Core components.

  2. Deselect Administration Services and Netscape Directory Suite.

  3. Deselect iAS 6.0.


To Deselect the iPlanet Application Server

  1. Deselect Application Server 6.0 core binaries.

  2. Deselect Web Connector Plug-in component.

  3. Deselect Administrator's component.

  4. Deselect Deployment Manager component.

  5. Deselect core Server component.


    Caution

    If you do not follow the above mentioned order of deselections, alert messages will be displayed and you may not be able to deselect the desired option.


    Click the Continue button to return to the main uninstall menu.

  6. Click Uninstall.

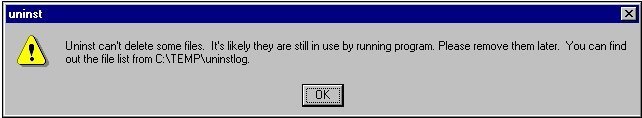

    The Uninstall message is displayed. See Figure 2-11.

Figure 2-11    Uninstall

  1. Click OK to complete the uninstallation procedure.

    The Enterprise Connector for CICS 6.0 has been uninstalled. Some files may remain. Check for these files at the location listed and manually remove them.



Installing the iAS Enterprise Connector for CICS on Solaris

The following is the installation process for the iPlanet Application Server Enterprise Connector for CICS on a Solaris operating system.

To ensure that you have everything necessary to complete the installation, review this section before starting the installation.


Pre-installation

  1. Insert the iAS Enterprise Connector for CICS Install CD-ROM into the CD-ROM drive.

  2. Mount the CD-ROM, for example, /cdrom/cdrom0.

  3. Read the README.txt file on the CD-ROM.


To Install the CICS Connector on Solaris

  1. Copy the Solaris/inscics.tar file from the CD-ROM into a temporary local directory.

  2. Untar the inscics.tar file.

    For example: tar -xvf inscics.tar

  3. Run the ./setup command from the inscics directory

    Follow the instructions of the installation program. During installation, press the following key sequences for:

    CTRL+B to back up to the previous screen.

    CTRL+C to cancel the installation program. This results in an incomplete installation. To install again, rerun the installation program from the beginning.

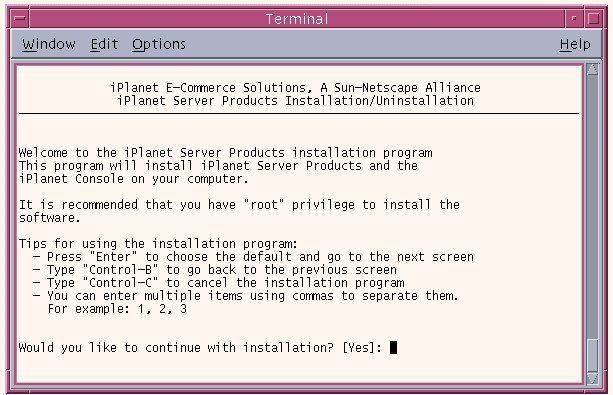

  4. Figure 2-12 is displayed. Either press enter or type Yes to continue.

Figure 2-12    Welcome

  1. Enter Yes and the License message appears. See Figure 2-13.

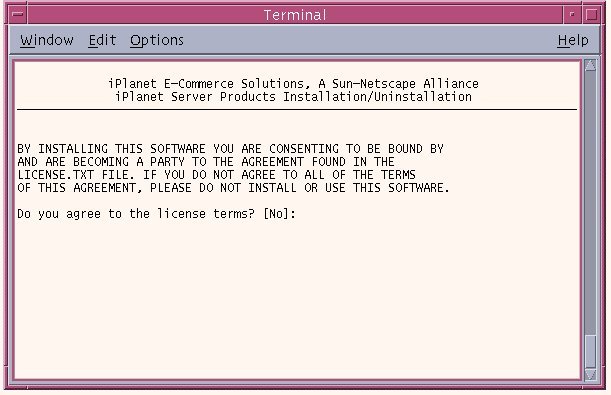

Figure 2-13    License

  1. Thoroughly read and understand the licensing information before installing and then enter Yes.

    The Selection message appears. See Figure 2-14.

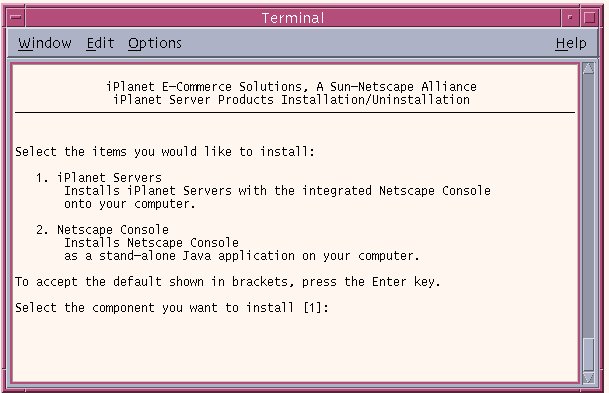

Figure 2-14    Selection

  1. Press Enter.
    Note

    The iAS must already be resident on your system. You must perform this step to proceed with the connector installation.


    The Location message appears. See Figure 2-15.

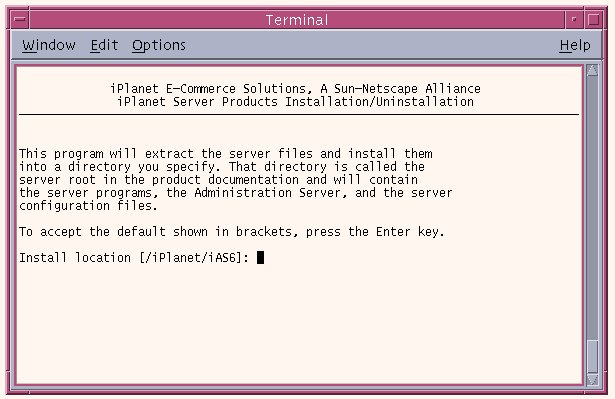

Figure 2-15    Location

  1. To accept the default shown in the brackets, press Enter.

    Otherwise, enter in the iPlanet Application Server installation directory, and then press Enter.

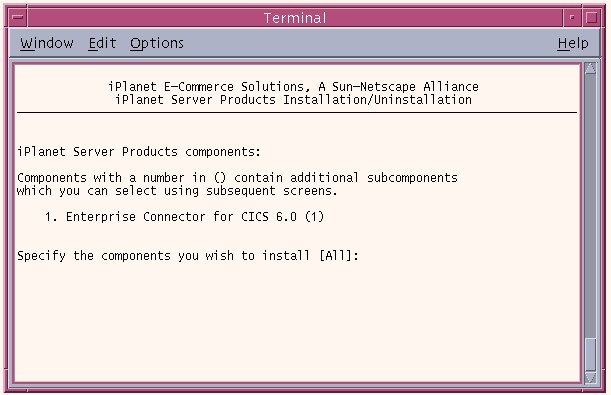

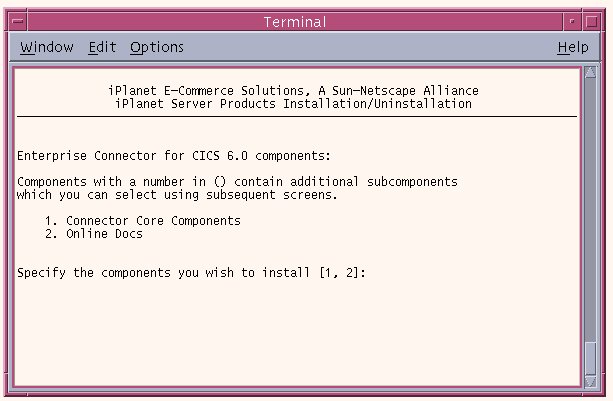

    The Components message appears. See Figure 2-16.

Figure 2-16    Components

  1. Press Enter.

    The Subcomponents message appears. See Figure 2-17.

Figure 2-17    Subcomponents

  1. Press Enter.

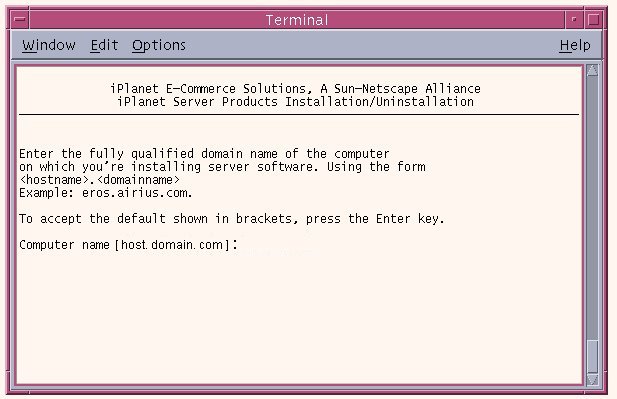

    The Domain Name message appears. See Figure 2-18.

Figure 2-18    Domain Name

  1. Click Enter to accept the default or enter another name <host.domain.com>.

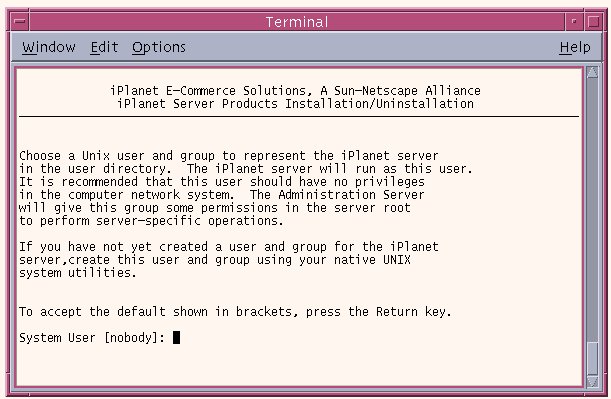

    The System User message appears. See Figure 2-19.

Figure 2-19    System User

  1. Enter in a System User, or accept the default shown in brackets, and press Enter.

    The System Group message appears. See Figure 2-20.

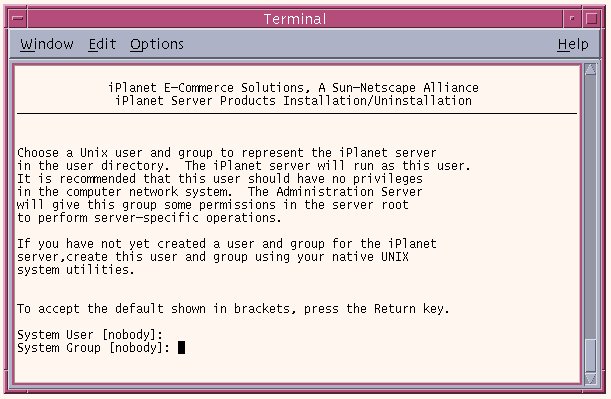

Figure 2-20    System Group

  1. Enter in a System Group, or accept the default shown in brackets, and press Enter.

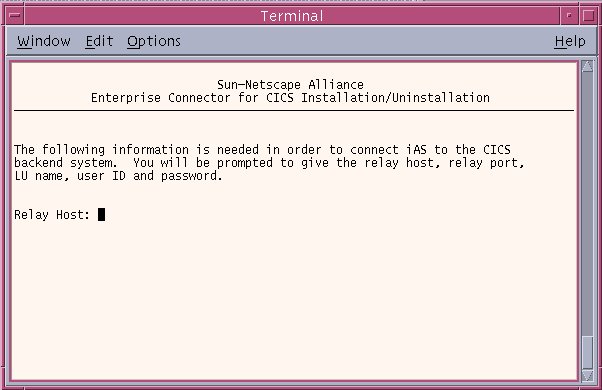

    The Relay Host message appears. See Figure 2-21.

Figure 2-21    Relay Host


Note

The following steps are concerned with information from the mainframe.


  1. Type in the Mainframe TCP/IP Host name and press Enter.

    The Relay Port message appears. See Figure 2-22.

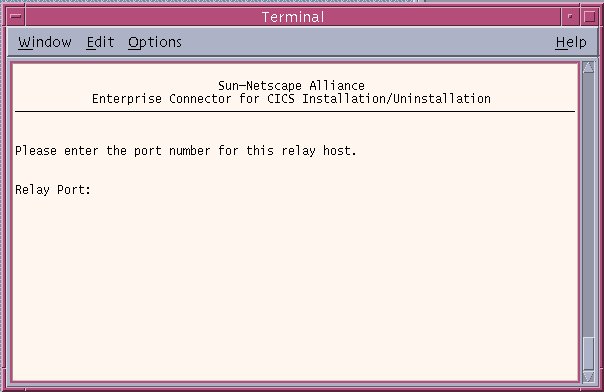

Figure 2-22    Relay Port

  1. Type in the Relay Port, and press Enter.


    Note The Relay Port number is the same as the Port number in Table 3-8.

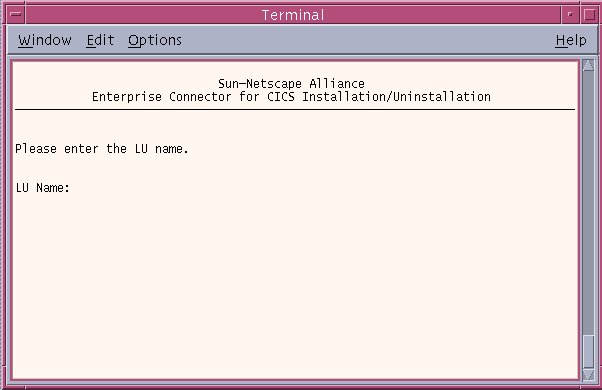

    The LU (logical unit) message appears. See Figure 2-23.

Figure 2-23    Logical Unit

  1. Enter the LU name and press Enter.

    The LU name is the VTAM application LU name for CICS. The LU name must be upper case.

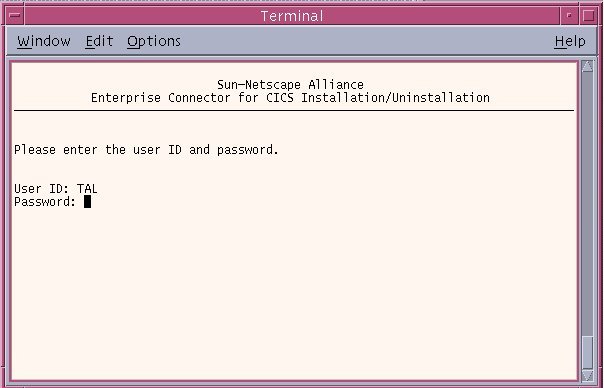

    The User ID and Password screen appears. See Figure 2-24.

Figure 2-24    User ID and Password

  1. Type in the User ID and Password, and press Enter.

    This must be a valid User ID and Password pair as defined in the CICS backend and both names must be upper case.

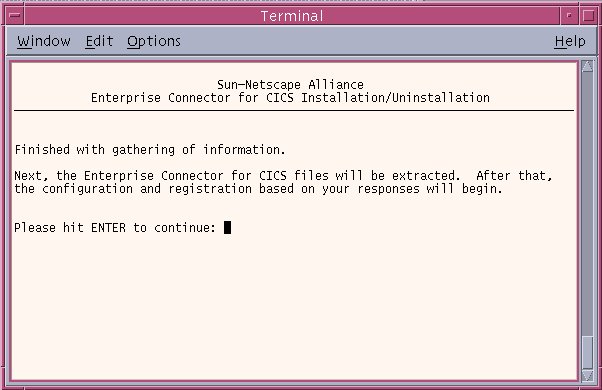

    The final installation screen appears. See Figure 2-25.

Figure 2-25    Final Installation Screen

  1. Press Enter to continue.

    A Work-in-Progress screen will appear as the connector and related files are installed. When finished, you will be instructed to restart all iAS engines before running any sample application.


Caution

To complete the setup for the iPlanet Application Server Enterprise Connector for CICS, you must install the ICU libraries. Before proceeding to copy the ICU libraries, you must read and accept the ICU license agreement present in the ibm_icu_license.html file on the ICU CD.


"> ICU libraries

Caution

To complete the setup for the iPlanet Application Server Enterprise Connector for CICS, you must install the ICU libraries. Before proceeding to copy the ICU libraries, you must read and accept the ICU license agreement present in the ibm_icu_license.html file on the ICU CD.





To install ICU:

Uncompress the icu-SOLARIS.tar under the <iAS installDir>/ias/APPS/bin directory.

This places the following files/directories under the <iAS installDir>/ias/APPS/bin directory:

  • libicu-i18n.so

  • libicu-cu.so

  • icu (directory)


Post-installation

You must restart iAS engines.


To restart the iAS engines execute the following script:

<instdir>/ias/bin/KIVAes.sh stop

<instdir>/ias/bin/KIVAes.sh start

Continue with Chapter 3 "Installing the Mainframe Component".



Uninstalling the CICS Connector from Solaris


This procedure is used to uninstall iPlanet Application Server Enterprise Connector for CICS from Solaris.


To Uninstall the CICS Connector from Solaris

  1. Go to the installation directory /user/iplanet/ias6 and enter the following command:

    ./uninstall

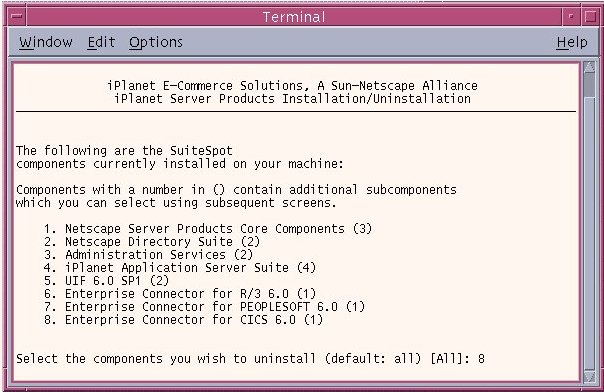

    A list of uninstall component options appears. See Figure 2-26.

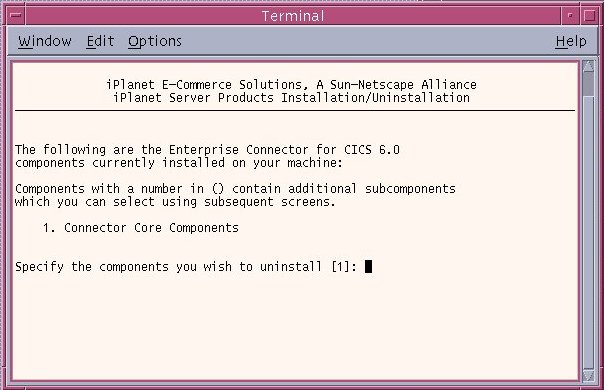

Figure 2-26    Uninstall Component Options

  1. Select the specific product components you want to uninstall and click Enter.

    The Uninstall Subcomponents message appears. See Figure 2-27.

Figure 2-27    Uninstall Subcomponents

  1. Press Enter.

    The Uninstalling message appears. See Figure 2-28.

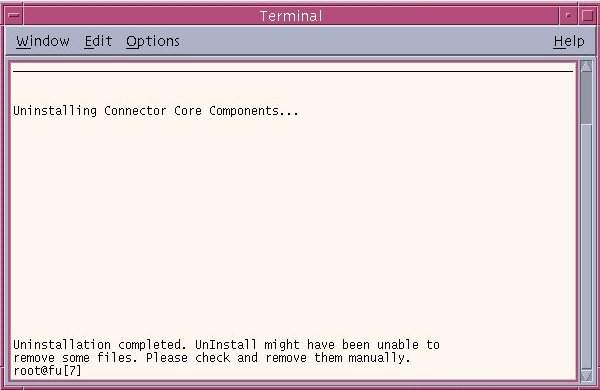

Figure 2-28    Uninstalling

The Enterprise Connector for CICS 6.1 has been uninstalled. Some files may remain. Check for these files and manually remove them.



Upgrading or Re-installing Issues

If upgrading an earlier version or reinstalling the current version of the iAS Enterprise Connector for CICS, the installation procedure overwrites the currently installed files. Uninstalling the current version is not required.


Multi-connector Installation

The Uninstaller removes common files in multi-connector installation.When uninstalling one of several connectors, such as R/3, PeopleSoft, or CICS, the common directories /ias/APPS/console and /ias/APPS/ecu may be deleted. You must copy these directories back to APPS directory from /ias/APPS/UIFbackup for the CICS connector to function correctly. Installation of multiple enterprise connectors for multiple EISs (R/3, Tuxedo, and PeopleSoft) on the same iPlanet Application Server is allowed.


Note

To avoid problems with overwriting files in use, stop the iPlanet Application Server before installing any new software. Always backup the current files prior to installation including the UIF Repository content.



To Uninstall a Connector on Windows NT

If you want to uninstall a connector from a Windows NT machine that has more than one connector installed, perform the following tasks.

  1. Uninstall the connector. Refer to Chapter 2 in the Administrator's Guide.

    During the uninstallation procedure the connector files shown in the right pane, see Figure 2-29, are removed from the iPlanet/iAS6/ias directory and moved to the UIFbackup/console directory. The connector files need to be copied back to their original location.

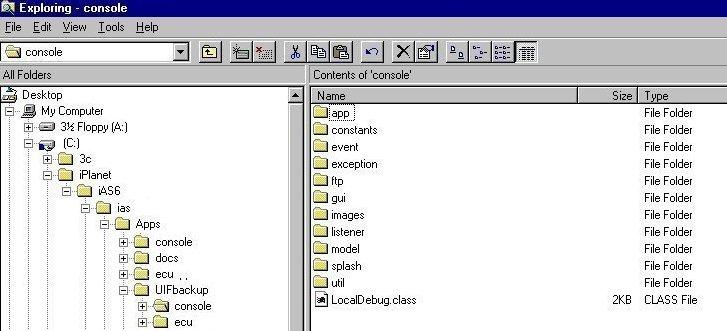

Figure 2-29    Uninstalling Connector

  1. Copy the console specific directories, the top level directory and the connector specific directories to the ias/Apps/console for the following folders:

    • constants

    • exceptions

    • ftp

    • gui

    • model

  2. All the other directories, with all their included files, and the LocalDebug.class should be copied back.

  3. Copy the following connector files to the console directory:

    • Appltab

    • ldobuffer.dll.


To Uninstall a Connector on Solaris

If you want to uninstall a connector from a Solaris machine that has more than one connector installed, perform the following tasks.

  1. Uninstall the connector. Refer to Chapter 2 in the Administrator's Guide.

    During the uninstallation procedure the connector files are removed from the iPlanet/iAS6/ias directory and moved to the UIFbackup/console directory. The connector files need to be copied back to their original location.

  2. Copy the console specific directories, the top level directory and the connector specific directories to the ias/APPS/console for the following folders:

    • constants

    • exceptions

    • ftp

    • gui

    • model

  3. All the other directories, with all their included files, and the LocalDebug.class should be copied back.



Post-installation Issues

The following issues are described:


Activating the Samples through NT or Solaris

After installing the iAS enterprise Connector for CICS you can verify that your installation succeeded and run the CICS samples provided.

For more information on how to activate and run CICS samples, see Chapter 4 of the iAS Enterprise Connector for CICS Developer's Guide.


Copying Files in Webless Installation

In a webless installation, the web server and iPlanet Application Server reside on separate machine. In this configuration mode, the iAS Enterprise Connector for CICS installation procedure will not automatically copy the index.html file pertaining to connector samples to web server document root directory.

To run the samples shipped with the iAS Enterprise Connector for CICS, an index.html file must be copied manually from the iPlanet Application Server instance to web server instance.


To Copy Files to Run the Program Samples

  1. Create the cicsSamples directory under the web server document root directory.

    For example, <iWS installdir>/docs/cicsSamples.

  2. Copy the index.html file from <iASrootdir>/ias/APPS/adapters/htmldocs/cics/cicsSamples directory to <iWS installdir>/docs/cicsSamples directory on web server machine.


Previous     Contents     Index     DocHome     Next
Copyright © 2001 Sun Microsystems, Inc. Some preexisting portions Copyright © 2001 Netscape Communications Corp. All rights reserved.

Last Updated September 13, 2001
