Chapter 3 Installing the Mainframe Component

After you install the iPlanet Application Server Enterprise Connector for CICS you need to install the mainframe component.
This chapter describes the following topics:

Overview

Installing and Configuring CICS

Installing and Configuring the Relay

Installing the PhoneBook Sample Application

Overview

You can connect the CICS Connector to the IBM mainframe in either of these ways:

via TCP/IP: either using IBM or CA (TCPaccess)

The TCP/IP must be one of the versions currently supported by either IBM or CA.

Note TCPaccess is the current name of Interlink.

The iPlanet Application Server can be installed on Windows NT or Solaris and is connected via TCP/IP to a Relay component on OS/390 (MVS). The Relay communicates over the APPC with CICS. See Figure 3-1.

Figure 3-1    Installing the Connector via TCP/IP

via Direct APPC/SNA

The iPlanet Application Server can be installed on Windows NT and is connected via direct APPC connection to CICS on OS/390 (MVS). See Figure 3-2.

Figure 3-2    Installing the Connector via Direct APPC Using SNA

When you complete the installation, either via TCP/IP or via direct APPC using SNA installation, the PhoneBook sample application is available for end-to-end installation verification of the iPlanet Application Server Enterprise Connector for CICS. See "Installing the PhoneBook Sample Application".

Installing and Configuring CICS

The CICS components are supplied as downloaded PC files on the iPlanet Application Server Enterprise Connector for CICS installation media. You must upload the required Partitioned Data Sets (PDS) to MVS as part of the mainframe installation using either FTP or a 3270 emulator file-transfer utility. If TCP/IP is not installed, follow the instructions in "Uploading MVS Library Files Using 3270 File Transfer".

Uploading MVS Library Files via TCP/IP

If you have TCP/IP configured on your mainframe you can use the installation program mfinst that is described in the following sections.
Make sure that the FTP on the mainframe allocate data sets structured as follows: lrecl=80 blksize=3120 recfm=fb.
If the allocated data sets are not structured as described above allocate four (or five) data sets on MVS with 1recl=80, blksize=3120, recfm=fb.

For example:

IAS.CICS.LOAD.XMIT

IAS.CICS.INSTALL.XMIT

IAS.RELAY.INSTALL.XMIT

IAS.RELAY.LOAD.XMIT

IAS.CICS.DBRM.XMIT (Only needed for running the TELCO sample described in Appendix A "Operating the TELCO Sample")

To Upload the Library Files on Windows NT

Run the mfinst.bat installation utility from the following directory:

\iPlanet\iAS6\APPS\adapters\cics\backend

To Upload the Library Files on Solaris

Run the file mfinst.sh installation utility from the following directory:

<instdir>/iAS6/ias/APPS/adapters/cics/backend

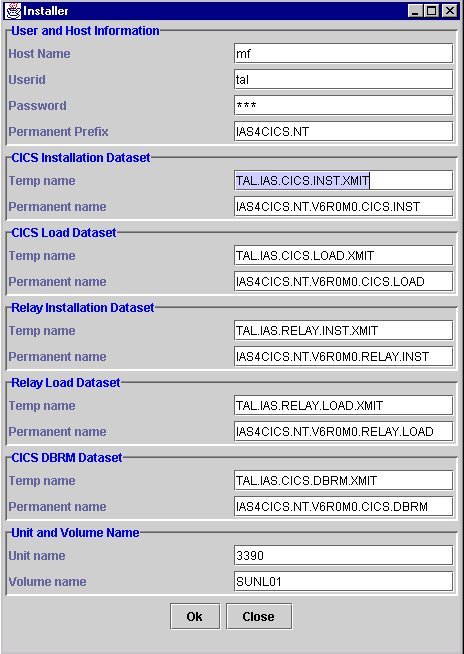

The Installer Dialog Box appears. See Figure 3-3.

Figure 3-3    Installer Dialog Box

The Installer Dialog Box contains information about the following fields:

User and Host Information, see Table 3-1

CICS Installation Dataset, see Table 3-2

CICS Load Dataset, see Table 3-3

Relay Installation Dataset, see Table 3-4

Relay Load Dataset, see Table 3-5

CICS DBRM, see Table 3-6

Unit and Volume Name, see Table 3-7

User and Host Information

Table 3-1 lists names and IDs used to connect to the CICS system.

Table 3-1    User and Host Information

Variable

Definition

Host Name

Host name of the mainframe.

Userid

The administrator's ID on the mainframe.

Password

Password of administrator's ID

Permanent Prefix

The dataset prefix for the installation libraries. This prefix affects the permanent names of the CICS Installation Dataset, the CICS Load Dataset, the Relay Installation Datataset, the Relay Load Dataset, and the CICS DBRM dataset.

Note All fields except Unit and Volume Name will be automatically filled in after you enter the Permanent Prefix and press Return.

CICS Installation Dataset

The CICS Installation Dataset contains jobs for the CICS installation. Table 3-2 lists variables and definitions for the CICS Installation Dataset.

Table 3-2    CICS Installation Dataset

Variable

Definition

Temp Name

The temporary name assigned to the installation dataset during upload.

Permanent name

The permanent name assigned to the installation dataset. The prefix of this name will be the Permanent prefix defined in the User and Host information.

CICS Load Dataset

The CICS Load Dataset contains modules for the CICS connector. Table 3-3 lists variables and definitions for the CICS Load Dataset parameters

Table 3-3    CICS Load Dataset

Variable

Definition

Temp Name

The temporary name assigned to the CICS Load dataset during upload.

Permanent name

The permanent name assigned to the CICS Load dataset.

.

Relay Installation Dataset

The Relay Installation Dataset contains jobs for the Relay installation. Table 3-4 lists and defines parameters for the Relay Installation Dataset

Table 3-4    Relay Installation Dataset

Variable

Definition

Temp Name

The temporary name assigned to the Relay Installation dataset during upload.

Permanent name

The permanent name assigned to the Relay Installation dataset.

.

Relay Load Dataset

The Relay Load Dataset contains modules for the component. Table 3-5 lists and defines parameters for the Relay Load Dataset

Table 3-5    Relay Load Dataset

Variable

Definition

Temp Name

The temporary name assigned to the Relay Load dataset during upload

Permanent name

The permanent name assigned to the Relay Load dataset.

.

CICS DBRM

The CICS DBRM is the Data Base Request Module library. Table 3-6 lists and defines parameters for the CICS DBRM.

Table 3-6    CICS DBRM

Variable

Definition

Temp Name

The temporary name assigned to the CICS DBRM dataset during upload.

Permanent name

The permanent name assigned to the CICS DBRM dataset.

.

Unit and Volume Name

The Unit and Volume Name lists the assigned names for the Unit and Volume used

Table 3-7    Unit and Volume Name

Variable

Definition

Unit name

The unit of the volume; i.e. 3390.

Volume name

The disk where the libraries are installed.

.
Figure 3-4 shows an example of a completed installer dialog box.
Figure 3-4    Completed Installer Dialog Box.

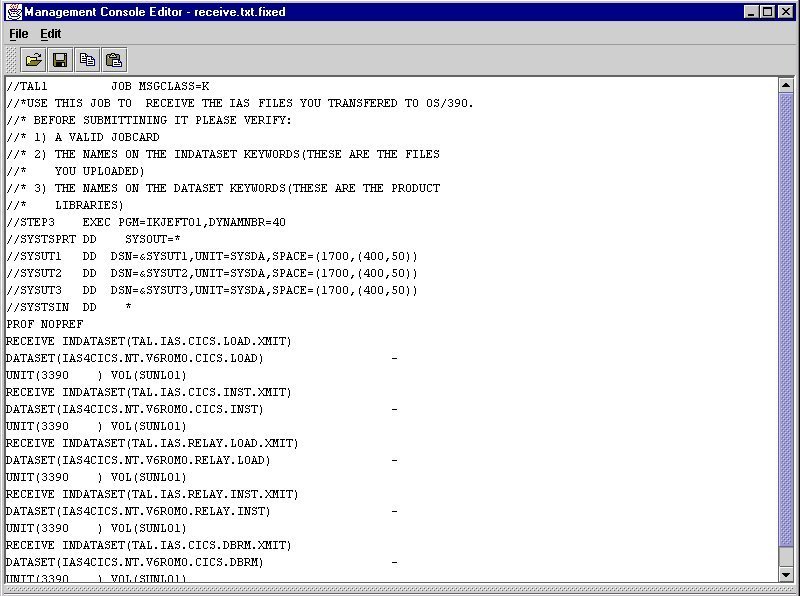

Press OK to continue. Figure 3-5 displays the generated JCL file.
Figure 3-5

Management Console Editor - Generated JCL

The JCL editor modifies the JCL to fit your mainframe environment according to the instructions as viewed in the screen capture above. All of the JCL file can be changed, except for the job name. To apply the changes, choose File and then Save before submitting the job.

To Submit JCL for Execution

Select File>Exit from the menu bar.

The utility will begin to FTP the files to the mainframe, and submit the JCL file to extract the files into permanent libraries.

Once a job (JCL) finishes, outputs from the job are displayed as shown in Figure 3-6.

Figure 3-6    Management Console Editor: Outputs from job (JCL)

Review the job output.

Select File>Exit to close the window.

Click close to close the installation dialog box.

Go to Configuring CICS on the Mainframe.

Uploading MVS Library Files Using 3270 File Transfer

The following procedure applies to users that use a 3270 emulation software and its file transfer capability.

To Transfer Libraries to MVS

Allocate four data sets on MVS with 1recl=80, blksize=3120, recfm=fb.

For example:

IAS.CICS.LOAD.XMIT

IAS.CICS.INSTALL.XMIT

IAS.RELAY.INSTALL.XMIT

IAS.RELAY.LOAD.XMIT

Use the 3270 emulation program to transfer the following files to the respective MVS data sets. Use the MVS/TSO binary transfer type and fixed-file option.

LOAD.XMT

INSTALL.XMT

RELINST.XMT

RELLOAD.XMT

These files are found in

<instdir>\IAS\APPS\adapters\cics\backend

on Windows NT.

Issue the following TSO command:

RECEIVE INDATASET(IAS.CICS.LOAD.XMIT)

At the prompt, enter the following:

DATASET(IAS4CICS.V6R0M0.CICS.LOAD)

where IAS4CICS.V6R0M0.CICS.LOAD is the name of the product load library.

Issue the following TSO command:

RECEIVE INDATASET(IAS.CICS.INSTALL.XMIT)

At the prompt, enter the following:

DATASET(IAS4CICS.V6R0M0.CICS.INST)

where IAS4CICS.V6R0M0.CICS.INST is the name of the installation library.

Issue the following TSO command:

RECEIVE INDATASET(IAS.RELAY.INSTALL.XMIT)

At the prompt, enter the following:

DATASET(IAS4CICS.V6R0M0.RELAY.INST)

where IAS4CICS.V6R0M0.RELAY.INST is the name of the installation library for the RELAY component.

Issue the following TSO command:

RECEIVE INDATASET(IAS.RELAY.LOAD.XMIT)

At the prompt, enter the following:

DATASET(IAS4CICS.V6R0M0.RELAY.LOAD)

where IAS4CICS.V6R0M0.RELAY.LOAD is the name of the load library for the Relay component.

Configuring CICS on the Mainframe

You need to configure the components to install the connection to the mainframe computer.

To Configure the CICS Components

Ensure APPC Logmode Entry is Present.

Verify CICS Applid Definitions.

Define a Remote PU for each NT Server Platform Connected Directly to CICS via APPC

Note Direct APPC only.

Changing Installation Parameters' Default Names (Optional)

Update the CICS Resource Definitions by Running the Supplied CICSDEF.

Install a Resource Group for the APPC Connection.

Add the Product Load Library to CICS DFHRPL List.

Note If you do not have special logmode needs you can use the IBM supplied logmode APPCSNA and go directly to "Verify CICS Applid Definitions".

"> Ensure APPC Logmode Entry is Present

Note If you do not have special logmode needs you can use the IBM supplied logmode APPCSNA and go directly to "Verify CICS Applid Definitions".

Code Example 3-1 displays a MODE entry in the MODE TABLE. The same Logmode must be associated with the CICS VTAM definition.
If you perform the CICS command: cemt I mode(appcmode) you should get a positive result. If NOT FOUND is displayed, see "Update the CICS Resource Definitions by Running the Supplied CICSDEF" for the logmode that must be added to the CICS. Code Example 3-1    Creating the VTAM mode table MTAPPC

//MODETAB JOB

//* ANY SITE PROCEDURE FOR ASSEMBLY AND LINK CAN BE USED

//* THIS SAMPLE IS USING HIGH LEVEL ASSEMBLER

//* IN LATEST OS/390 VERSIONS, IEWL WILL INVOKE THE DFSMS BINDER

//ASM EXEC PGM=ASMA90,REGION=5048K,

// PARM='OBJECT,NODECK,LIST,XREF(SHORT)'

//SYSLIB DD DSN=SYS1.SISTMAC1,DISP=SHR

//SYSUT1 DD UNIT=SYSDA,SPACE=(CYL,(10,5))

//SYSIN DD *

MTAPPC MODETAB

APPCMODE MODEENT LOGMODE=APPCMODE, *

FMPROF=X'13', *

TSPROF=X'07', *

PRIPROT=X'B0', *

SECPROT=X'B0', *

COMPROT=X'D0B1', *

RUSIZES=X'8585', *

PSERVIC=X'060200000000000000000300'

MODEEND

END

//SYSLIN DD DSN=&&LOADME,DISP=(,PASS),UNIT=SYSDA,

// SPACE=(TRK,(30,10),RLSE)

//SYSPRINT DD SYSOUT=*

//LKED EXEC PGM=IEWL,PARM='MAP,LET,LIST',REGION=912K,

// COND=(8,LT,ASM)

//SYSLIB DD DSN=SYS1.MACLIB,DISP=SHR

//SYSLMOD DD DISP=SHR,DSN=SYS1.VTAMLIB

//SYSUT1 DD UNIT=SYSDA,SPACE=(CYL,(3,2)),DSN=&SYSUT1

//SYSPRINT DD SYSOUT=*

//SYSLIN DD DSN=&&LOADME,DISP=(OLD,DELETE)

// DD *

NAME MTAPPC(R)

Verify CICS Applid Definitions

Code Example 3-2 is a sample VTAM definition for CICS. In most cases, CICS is already defined and running. Code Example 3-2    Sample VTAM major node for CICS

SUNCICS2 VBUILD TYPE=APPL APPLICATION MAJOR NODE

A06CICS2 APPL EAS=160, ESTIMATED CONCURRENT SESSIONS *

ACBNAME=A06CICS2, APPLID FOR ACB *

MODETAB=MTAPPC, *

PARSESS=YES, *

SONSCIP=YES, *

AUTH=(ACQ,VPACE,PASS) CICS CAN ACQUIRE & PASS TMLS

Note Do not add APPC=YES to the CICS VTAM definition.

If you choose to use logmode APPCSNA, MODETAB is not required.

Define a Remote PU for each NT Server Platform Connected Directly to CICS via APPC

If your application server is connected directly to CICS (using APPC connections), define the remote PU (the application server machine) to VTAM and CICS.
Refer to Code Example 3-3. Code Example 3-3    Sample PU and LU6.2 Definition for Windows NT

*/*

SWSHMUEL VBUILD TYPE=SWNET

PUSHMUEL PU PUTYPE=2,ADDR=C1,MAXDATA=1456, *

CPNAME=SHMUELNT

SHMUELNT LU LOCADDR=0

Changing Installation Parameters' Default Names (Optional)

The default names of the installation parameter may be changed but it is not recommended.

To Change the CICS Installation Parameters

Run the INST REXX located in the CICS installation library.

The REXX prompts you for the library name.

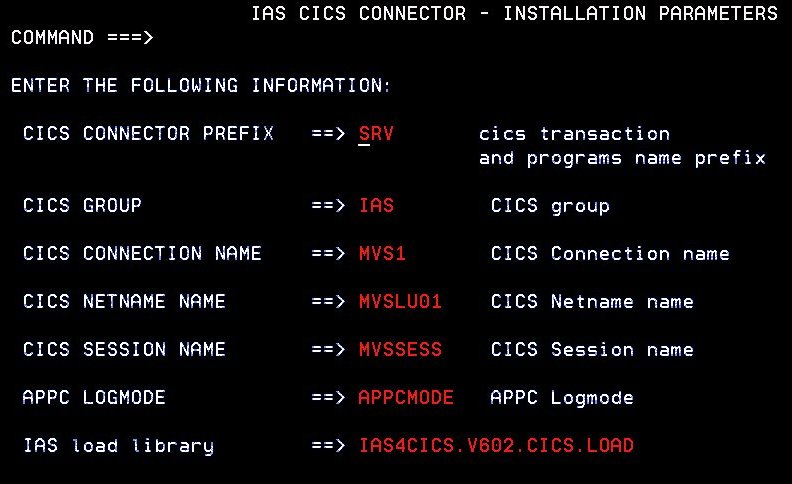

Type in the library name, without quotes, and press enter. Figure 3-7 is displayed.
Figure 3-7    Installation Parameters

If you change "CICS CONNECTOR PREFIX" from SRV then you must also change "IAS LOAD LIBRARY" to your CICS load library. It must be the same as the "CICS LOAD DATASET PERMANENT NAME" shown in Figure 3-4.

This is the library of the CICS modules that you want to change.

You will get the following job.
Code Example 3-4    ZAP job for Mainframe

//IASJOB JOB (PLEASE EDIT JOB CARD)

//ZAP1 EXEC PGM=AMASPZAP,REGION=4M

//SYSPRINT DD SYSOUT=*

//SYSLIB DD DISP=SHR,DSN=IAS62.V6R2M0.CICS.LOAD

//SYSIN DD *

NAME SRVXLINK SRVXLINK

VER 0700 E2D9E5

REP 0700 D2D2D2

//ZAP2 EXEC PGM=AMASPZAP,REGION=4M

//SYSPRINT DD SYSOUT=*

//SYSLIB DD DISP=SHR,DSN=IAS62.V6R2M0.CICS.LOAD

//SYSIN DD *

NAME SRVRSRPC SRVSEC

VER 01A0 E2D9E5

REP 01A0 D2D2D2

//TSO EXEC PGM=IKJEFT01,DYNAMNBR=30,REGION=4M,COND=(0,NE)

//SYSPRINT DD SYSOUT=*

//SYSTSPRT DD SYSOUT=*

//SYSTSIN DD *

PROFILE NOPREFIX WTPMSG MSGID

RENAME IAS62.V6R2M0.CICS.LOAD(SRVXLINK) +

IAS62.V6R2M0.CICS.LOAD(KKKXLINK)

RENAME IAS62.V6R2M0.CICS.LOAD(SRVRSRPC) +

IAS62.V6R2M0.CICS.LOAD(KKKRSRPC)

RENAME IAS62.V6R2M0.CICS.LOAD(SRVSCURE) +

IAS62.V6R2M0.CICS.LOAD(KKKSCURE)

Edit the job card.

Submit the job.

Verify that the job executed successfully.

Update the CICS Resource Definitions by Running the Supplied CICSDEF

Update the CICS resource definitions by running the supplied CICSDEF from the CICS installation library.
Refer to Code Example 3-5.
When using direct APPC connection from Windows NT, refer to Code Example 3-6 as a definition for CICS connection and sessions. Code Example 3-5    CICSDEF to Define CICS Components

//CICSDEF JOB CLASS=A,MSGCLASS=K

//*

//* SAMPLE JOB TO DEFINE THE IAS FOR CICS COMPONENTS TO CICS

//* CHECK THE DSN= PARAMETERS FOR THE STEPLIB AND DFHCSD DD CARDS

//* CHANGE 'CICSLIST' TO THE CICS STARTUP LIST NAME

//* SEE NOTES FOR EACH SECTION BELOW (FILES, PROGRAMS, ETC.)

//*

//CSDUP EXEC PGM=DFHCSDUP

//STEPLIB DD DSN=CICS.CICS.SDFHAUTH,DISP=SHR

//DFHCSD DD DSN=CICS.DFHCSD,DISP=SHR

//SYSPRINT DD SYSOUT=*

//SYSIN DD *

***

***

*** DEFINITIONS FOR TRANSACTIONS

***

DEFINE TRANSACTION(SRVX) GROUP(IAS) PROGRAM(SRVXLINK)

DESCRIPTION(IAS X-LINK UNIT)

***

*** DEFINITIONS FOR PROGRAMS

***

DEFINE PROGRAM(SRVRQRPC) GROUP(IAS) LANGUAGE(ASSEMBLER)

DEFINE PROGRAM(SRVSCURE) GROUP(IAS) LANGUAGE(ASSEMBLER)

DEFINE PROGRAM(SRVXLINK) GROUP(IAS) LANGUAGE(ASSEMBLER)

DESCRIPTION(IAS X-LINK UNIT)

***

*** DEFINITIONS FOR APPC CONNECTIONS AND SESSIONS

***

*** NOTE THAT CICS SUPPORTS AUTOINSTALL FOR LU6.2. IF YOUR

*** SYSTEM IS CONFIGURED TO DO SO, THESE DEFINITIONS MAY

*** NOT BE REQUIRED.

***

*** THIS IS A SAMPLE DEFINITION, DEFINING THE CONNECTION

*** AND SESSIONS TO APPC/MVS. IT ASSUMES THE SAME NAMES

*** AS IN THE SUPPLIED (ABOVE) SAMPLES. IF ANY WERE

*** MODIFIED, THESE MUST BE REFLECTED BELOW.

***

*** THE CONNECTION AND SESSIONS FOR APPC/MVS ARE USED IN CASE IAS

*** IS CONNECTED OVER TCP/IP TO RELAY, AND RELAY USES APPC/MVS

*** TO CONNECT TO CICS.

*** IF YOU ARE CONNECTING IAS ON NT USING DIRECT APPC CONNECTION

*** TO CICS REFER TO SAMPLE MEMBER CICSDEF3 IN THIS LIBRARY.

***

DEFINE CONNECTION(MVS1) GROUP(IAS)

NETNAME(MVSLU01) ACCESSMETHOD(VTAM) PROTOCOL(APPC)

SINGLESESS(NO) INSERVICE(YES) AUTOCONNECT(YES)

DESCRIPTION(SAMPLE CONNECTION, TO APPC/MVS)

DEFINE SESSION(MVS1SESS) GROUP(IAS)

CONNECTION(MVS1) MODENAME(APPCMODE) PROTOCOL(APPC)

MAXIMUM(10,5) AUTOCONNECT(YES)

DESCRIPTION(SAMPLE CONNECTION, TO APPC/MVS)

***

*** ADD THE IAS GROUP, WITH THE DEFINITIONS, TO THE CICS STARTUP LIST

*** OR INSTALL GROUP(IAS) TO PUT DEFINITIONS IN EFFECT

***

ADD GROUP(IAS) LIST(CICSLIST)

/*

//

Note
The session definition contains the MODENAME which is also present in mode tables associated with APPC/MVS and the CICS definitions in VTAM. The same mode name should be used in all three instances.

Install a Resource Group for the APPC Connection">

Note
The session definition contains the MODENAME which is also present in mode tables associated with APPC/MVS and the CICS definitions in VTAM. The same mode name should be used in all three instances.

Install a Resource Group for the APPC Connection

Code 3-6 can be used for a direct APPC connection from Windows NT, and demonstrates definitions for CONNECTION and SESSIONS parameters in CICS. Code Example 3-6    CICSDEF3

//CICSDEF3 JOB

//*

//CSDUP EXEC PGM=DFHCSDUP

//STEPLIB DD DSN=CICS.CICS.SDFHAUTH,DISP=SHR

//DFHCSD DD DSN=CICS.DFHCSD,DISP=SHR

//SYSPRINT DD SYSOUT=*

//SYSIN DD *

***

*** DEFINITIONS FOR IAS/NT USING DIRECT APPC.

*** THESE DEFINITIONS MUST BE INSTALLED IN CICS RESOURCE DEFINITION

*** IN ADDITION TO, OR INSTEAD OF, CONNECTION AND SESSIONS FOR APPC/MVS

*** ENLISTED IN CICSDEF SAMPLE.

***

DEFINE CONNECTION(SKNT) GROUP(IASDAPPC)

NETNAME(SHMUELNT) ACCESSMETHOD(VTAM) PROTOCOL(APPC)

SINGLESESS(NO) INSERVICE(YES) AUTOCONNECT(YES)

DESCRIPTION(SAMPLE DIRECT/APPC CONNECTION TO IAS/NT)

DEFINE SESSIONS(SKNTAPPC) GROUP(IASDAPPC)

CONNECTION(SKNT) MODENAME(APPCMODE) PROTOCOL(APPC)

MAXIMUM(10,5) AUTOCONNECT(YES)

DESCRIPTION(SAMPLE DIRECT CONNECTION TO IAS/NT)

***

*** DEFINITIONS ARE PUT IN EFFECT BY ADDING TO CICS STARTUP LIST AS

*** DEMONSTRATED HERE, OR BY INSTALLING GROUP CONTAINING THESE DEFS

***

ADD GROUP(IASDAPPC) LIST(CICSLIST)

/*

//

Add the Product Load Library to CICS DFHRPL List

Add the product load library to the CICS DFHRPL list in the CICS startup JCL. Code Example 3-7    Sample VTAM Major Node for CICS

Startup/JCL   //DFHRPL       DD   DSN=

         DD   DSN='

......

......

DD   DSN='IAS4CICS.V6R0M0.CICS.LOAD'.DISP=SHR*

Installing and Configuring the Relay

Installing and configuring the Relay is only necessary when you use TCP/IP to connect to the mainframe.
When using the Relay, configure the environment for the following:

VTAM

TCP/IP

APPC/MVS

Security
Proceed in the following order:

Create an Application Table Dataset for the Relay Component

Configure APPC/MVS

Create a TCP/IP Listener Started Task

Verify the Security Server Definition

Operate the Listener

Create an Application Table Dataset for the Relay Component

You must create an application dataset for the Relay component.

To Create an Application Table Dataset for the Relay Component

Run the DEFFILES REXX located in the Relay installation library.

The REXX prompts you for the entries. See Step 2 through Step 5, below.

Enter the application table name without quotes.

Specify a name for the relay's application table. For example:

IAS.APPLTAB.RELAY

Enter the VOLSER (Volume Serial Name).

Specify the name of the DASD on which this file should be created.

Enter unit type, or press Enter for 3390.

Specify the unit type.

Enter MVS/APPC logmode.

Enter the logmode that should be used to access CICS. The supplied name is APPCMODE.

The message "Application Table Created Successfully" appears when the table is created.

Configure APPC/MVS

This procedure is required only if APPC/MVS is not already configured on your system. If it is configured on the system, it is recommended that you read through these instructions and compare them to the existing configuration on your system. You can use either one of the samples provide with the iAS Enterprise Connector for CICS to configure APPC/MVS.

To Configure APPC/MVS

If APPC/MVS is not installed on your system, you can adapt and use the sample code given in Code Example 3-8 or the sample definition for APPC/MVS base LU given in Code Example 3-9.

The member APPC/MVS in the Relay Installation library contains VTAM definitions for the base APPC/MVS LU. Code Example 3-8    Library Member APPCMVS

*

* SAMPLE MAJOR NODE FOR APPC/MVS

*

APPCMVS VBUILD TYPE=APPL

MVSLU01 APPL ACBNAME=MVSLU01, *

APPC=YES, *

AUTOSES=10, *

DDRAINL=NALLOW, *

DMINWNL=20, *

DMINWNR=20, *

DRESPL=NALLOW, *

DSESLIM=40, *

EAS=509, *

MODETAB=MTAPPC, *

SECACPT=CONV, *

SRBEXIT=YES, *

VERIFY=NONE, *

VPACING=2

Note
The iPlanet Application Server Enterprise Connector for CICS does not require ASCH.

Code Example 3-9    APPCPM00 Member

/* LIB: SYS1.PARMLIB(APPCPM00) */

LUADD ACBNAME(MVSLU01) BASE NOSCHED

Activate the APPC/MVS major node by using the following command:

V NET,ID=APPCMVS,ACT

Using the MVS commands, start APPC/MVS by using the following command:

S APPC,SUB=MSTR,APPC=00

Create a TCP/IP Listener Started Task

The Listener listens to a TCP/IP port. The following sections describe both the prerequisites and the procedure for configuring and operating the Listener.

Note
Because the Listener and the Relay reside in the same address space, when referring to the Listener and Relay, the reference is to the same component.

The TCP/IP Listener can be executed as an MVS Started Task, or as a batch job. It is recommended to run it as an MVS Started Task.

To Create and Configure the Listener

Copy the member LISTEN, (the sample procedure in Relay installation library), into a system procedure library, for example,

SYS1.PROCLIB.

Update the following PROC statement parameters:

Table 3-8    PROC Statement Parameters

TCPIP

Name of the TCP/IP address space. TCPIP is the default.

PORT

The same (Relay) port specified in Table 2-1.

MAXTASK

Maximum number of concurrent tasks. 20 tasks is the default.

PROGRAM

Name of the program to activate for incoming requests must be `SRVRLNS'.

Ensure that the STEPLIB points to the load library.

The load library must be APF authorized.

Place an entry for the load library in your paramfile library member IEAAPFxx or PROGxx, depending on your site's standards.

Ensure that the SRVAPLF DD card points to the application table.

Verify the SYSOUT class on the CPEOUT, CPEOUTRS, CPEOUTRO DD cards.

Refer to Code Example 3-10. Code Example 3-10    Listen PROC

//LISTEN PROC TCPIP=TCPIP,PORT=47000,MAXTASK=20,PROGRAM=SRVRLNS

//*********************************************************************

//* THIS PROCEDURE CAN BE USED FOR A TCP/IP LISTNER.

//* MOST COMMONLY, IT IS USED AS A RELAY BETWEEN TCP/IP AND APPC.

//* IT CAN BE RUN AS A STARTED TASK OR A JOB.

//*

//* BEFORE USING IT PLEASE PERFORM THE FOLLOWING CHANGES:

//* 1. CHECK THE NAME OF THE STEPLIB. NOTE THAT THIS LIBRARY HAS TO BE

//* AUTHORIZED.

//* 2. CHECK THE NAME OF THE APPLICATION TABLE ON SRVAPLF

//* 3. CHECK THE SYSOUT CLASS ON CPEOUT AND SYSUDUMP.

//* 4. UPDATE THE PARAMETERS ON THE PROC STATEMENT :

//* TCPIP = THE NAME OF THE TCP/IP ADDRESS SPACE (DEFAULTS TO TCPIP)

//* PORT = AN AVAILABLE PORT NUMBER (DEFAULS TO 47000)

//* MAXTASK = THE MAXIMUM NUMBER OF CONCURRENT TASKS (DEFAULTS TO 20)

//* PROGRAM = THE NAME OF THE PROGRAM TO ACTIVATE ON INCOMING REQUEST

//* - LEAVE BLANK TO PICK UP THE NAME IN THE APPLICATION TABLE

//* - CODE 'SRVRLTA' FOR A RELAY

//LISTEN EXEC PGM=SRVLISPR,PARM='&TCPIP,&PORT,&MAXTASK,&PROGRAM',

// REGION=0M

//STEPLIB DD DSN=IAS4CICS.V6R0M0.RELAY.LOAD,DISP=SHR

//CPEOUT DD SYSOUT=X,HOLD=YES

//CPEOUTRQ DD SYSOUT=X,HOLD=YES

//CPEOUTRS DD SYSOUT=X,HOLD=YES

//CPESNAP DD SYSOUT=X,HOLD=YES

//SYSUDUMP DD SYSOUT=X,HOLD=YES

//SRVAPLF DD DSN=IAS.APPLTAB.RELAY,DISP=SHR

//SRVTCPI DD DUMMY

// PEND

Verify the Security Server Definition

Verify that the user ID assigned to the Listener has an OMVS segment.
Example: To add the listener, that is assigned to user-ID LISTEN, the OMVS segment should be added by issuing the following RACF command:
ADDUSER LISTEN OMVS(UID(1234...))

Operate the Listener

The following description of how to start the Listener assumes that LISTEN is the name of the started task.
Use the following procedures to start, stop, and restart the Listener, and to determine and free the connection port.

To Start the Listener

Issue the MVS command: S LISTEN

Note
LISTEN can be included in the TCP/IP automatic startup list (AUTOLOG).

To Stop the Listener

Issue the MVS command: P LISTEN

To Stop the Listener After a Fixed Amount of Time

Issue the MVS command: F LISTEN,SHUTDOWN nnn

where nnn is the number of seconds (default is 10 seconds) and allows open conversations to end.

In early releases of TCP/IP, even though the Listener was stopped, its port may not be freed. In such cases, determine the connection identification and free the port.

To Determine the Connection Identification

Issue the following command:

NETSTAT ALLCONN (PORT xxxxx)

where xxxxx is the port assigned to the Listener (Relay). Note the connection identification.

To Free the Port

Issue the following command which requires the issuing user to have the proper security authorization:

NETSTAT DROP yyyyy

where yyyyy is the connection identification obtained in the preceding NETSTAT command.

Installing the PhoneBook Sample Application

The PhoneBook Sample installation is intended to verify that the iPlanet Application Server Enterprise Connector for CICS has been properly installed.

Note
The TELCO sample application including its installation is described in the appendix. The TELCO sample requires DB2 for OS/390 and is not part of installation verification.

To Install the Sample PhoneBook Application on CICS

Edit the PBINIT member located in the CICS installation library according to the instructions in the member.

Submit the PBINIT member.

Refer to Code Example 3-11. Code Example 3-11    PhoneBook Sample in the CICS Environment

//PBINIT JOB MSGCLASS=K

//*=================================================================*

//*

//* THIS JOB CREATES THE VSAM FILE FOR THE IAS PHONEBOOK

//* DEMO. IT CREATES, INITIALIZES THE VSAM PHONEBOOK DATASET, AND

//* DEFINES IT TO CICS USING THE BATCH CSD UPDATE UTILITY.

//*

//*=================================================================*

//* 1. DEFINE VSAM FILE

//*

//* CHECK THE NAME OF THE LIBRARY IN THE SYSEXEC CARD, IT SHOULD BE

//* THIS LIBRARY

//* CHECK THE VSAM DATASET NAME(S) IN THE SYSTSIN LINE 1 AND 3

//* CHANGE THE VOLSER (VVVVVV) IN SYSTSIN LINE 4

//*=================================================================*

//STEP3 EXEC PGM=IKJEFT01,DYNAMNBR=40

//SYSTSPRT DD SYSOUT=*

//SYSUT1 DD DSN=&SYSUT1,UNIT=SYSDA,SPACE=(1700,(400,50))

//SYSUT2 DD DSN=&SYSUT2,UNIT=SYSDA,SPACE=(1700,(400,50))

//SYSUT3 DD DSN=&SYSUT3,UNIT=SYSDA,SPACE=(1700,(400,50))

//SYSEXEC DD DSN=IAS4CICS.V6R0M0.CICS.INST,DISP=SHR

//INPUT DD *

ARIE NOA 262 12324

FLINT ORIT 260 4377

GALIL MOTI 1234 12345

GALMIDI MOTI 123 1234

GOLD KEREN 258 52960

GRYNBAUM TAL 251 52960

MICHEAL SHATZ 234 43456

REICH SHANY 123 1234

SHANI RAKEFET 252 1234

SHIMON RICKY 259 43788

SHORKEND MIKE 123 1234

/*

//SYSTSIN DD *

DEL 'IAS.PHONBOOK.CICS'

PBLOAD

IAS.PHONBOOK.CICS

VVVVVV

3390

/*

//*=================================================================*

//* 2. UPDATE CICS DEFINITIONS WITH PHONEBOOK APPLICATION DATA

//*

//* CHECK THE DSN= PARAMETERS FOR THE STEPLIB AND DFHCSD DD CARDS

//* CHANGE 'CICSLIST' TO THE CICS STARTUP LIST NAME

//* SEE NOTES FOR EACH SECTION BELOW (FILES, PROGRAMS, ETC.)

//*

//*=================================================================*

//CSDUP EXEC PGM=DFHCSDUP

//STEPLIB DD DSN=CICS.CICS.SDFHLOAD,DISP=SHR

//DFHCSD DD DSN=CICS.DFHCSD,DISP=SHR

//SYSPRINT DD SYSOUT=*

//SYSIN DD *

***

*** DEFINITIONS FOR PHONEBOOK FILES

***

DEFINE FILE(PBVSAM) GROUP(IASPHB)

DSNAME(IAS.PHONBOOK.CICS) DISPOSITION(SHARE)

ADD(YES) BROWSE(YES) DELETE(YES) READ(YES) UPDATE(YES)

RECORDFORMAT(F) STATUS(ENABLED) OPENTIME(FIRSTREF)

JOURNAL(01) STRINGS(10) DATABUFFERS(11)

DESCRIPTION(IAS PHONEBOOK APPLICATION TABLE)

***

*** DEFINITIONS FOR TRANSACTIONS

***

*** THE TRANSID VALUES MAY BE CHANGED.

***

DEFINE TRANSACTION(PHBK) GROUP(IASPHB) PROGRAM(PHONBOOK)

DESCRIPTION(IAS PHONEBOOK APPLICATION)

***

*** DEFINITIONS FOR PROGRAMS

***

DEFINE PROGRAM(PHONBOOK) GROUP(IASPHB) LANGUAGE(ASSEMBLER)

DEFINE PROGRAM(PHONBOOX) GROUP(IASPHB) LANGUAGE(ASSEMBLER)

***

*** ADD THE IAS GROUP, WITH THE DEFINITIONS, TO THE STARTUP LIST

*** IF NEEDED (NOT DONE BEFORE

***

ADD GROUP(IASPHB) LIST(CICSLIST)

/*

To Operate the Sample PhoneBook Application on NT

Select Start>Programs>iPlanet Application Server 6.0.

Select CICS Connector 6.0 - Sample Applications.

To Operate the PhoneBook Sample Application on Solaris

Run Netscape or Microsoft browser with the following URL:

http://<webserver instance name>/cicsSamples

Variable	Definition
Host Name	Host name of the mainframe.
Userid	The administrator's ID on the mainframe.
Password	Password of administrator's ID
Permanent Prefix	The dataset prefix for the installation libraries. This prefix affects the permanent names of the CICS Installation Dataset, the CICS Load Dataset, the Relay Installation Datataset, the Relay Load Dataset, and the CICS DBRM dataset.

Variable	Definition
Temp Name	The temporary name assigned to the installation dataset during upload.
Permanent name	The permanent name assigned to the installation dataset. The prefix of this name will be the Permanent prefix defined in the User and Host information.

Variable	Definition
Temp Name	The temporary name assigned to the CICS Load dataset during upload.
Permanent name	The permanent name assigned to the CICS Load dataset.

Variable	Definition
Temp Name	The temporary name assigned to the Relay Installation dataset during upload.
Permanent name	The permanent name assigned to the Relay Installation dataset.

Variable	Definition
Temp Name	The temporary name assigned to the Relay Load dataset during upload
Permanent name	The permanent name assigned to the Relay Load dataset.

Variable	Definition
Temp Name	The temporary name assigned to the CICS DBRM dataset during upload.
Permanent name	The permanent name assigned to the CICS DBRM dataset.

Variable	Definition
Unit name	The unit of the volume; i.e. 3390.
Volume name	The disk where the libraries are installed.


//MODETAB JOB
//* ANY SITE PROCEDURE FOR ASSEMBLY AND LINK CAN BE USED
//* THIS SAMPLE IS USING HIGH LEVEL ASSEMBLER
//* IN LATEST OS/390 VERSIONS, IEWL WILL INVOKE THE DFSMS BINDER
//ASM EXEC PGM=ASMA90,REGION=5048K,
// PARM='OBJECT,NODECK,LIST,XREF(SHORT)'
//SYSLIB DD DSN=SYS1.SISTMAC1,DISP=SHR
//SYSUT1 DD UNIT=SYSDA,SPACE=(CYL,(10,5))
//SYSIN DD *
MTAPPC MODETAB
APPCMODE MODEENT LOGMODE=APPCMODE, *
FMPROF=X'13', *
TSPROF=X'07', *
PRIPROT=X'B0', *
SECPROT=X'B0', *
COMPROT=X'D0B1', *
RUSIZES=X'8585', *
PSERVIC=X'060200000000000000000300'
MODEEND
END
//SYSLIN DD DSN=&&LOADME,DISP=(,PASS),UNIT=SYSDA,
// SPACE=(TRK,(30,10),RLSE)
//SYSPRINT DD SYSOUT=*
//LKED EXEC PGM=IEWL,PARM='MAP,LET,LIST',REGION=912K,
// COND=(8,LT,ASM)
//SYSLIB DD DSN=SYS1.MACLIB,DISP=SHR
//SYSLMOD DD DISP=SHR,DSN=SYS1.VTAMLIB
//SYSUT1 DD UNIT=SYSDA,SPACE=(CYL,(3,2)),DSN=&SYSUT1
//SYSPRINT DD SYSOUT=*
//SYSLIN DD DSN=&&LOADME,DISP=(OLD,DELETE)
// DD *
NAME MTAPPC(R)


SUNCICS2 VBUILD TYPE=APPL APPLICATION MAJOR NODE
A06CICS2 APPL EAS=160, ESTIMATED CONCURRENT SESSIONS *
ACBNAME=A06CICS2, APPLID FOR ACB *
MODETAB=MTAPPC, *
PARSESS=YES, *
SONSCIP=YES, *
AUTH=(ACQ,VPACE,PASS) CICS CAN ACQUIRE & PASS TMLS


/
SWSHMUEL VBUILD TYPE=SWNET
PUSHMUEL PU PUTYPE=2,ADDR=C1,MAXDATA=1456, *
CPNAME=SHMUELNT
SHMUELNT LU LOCADDR=0

//IASJOB JOB (PLEASE EDIT JOB CARD)
//ZAP1 EXEC PGM=AMASPZAP,REGION=4M
//SYSPRINT DD SYSOUT=*
//SYSLIB DD DISP=SHR,DSN=IAS62.V6R2M0.CICS.LOAD
//SYSIN DD *
NAME SRVXLINK SRVXLINK
VER 0700 E2D9E5
REP 0700 D2D2D2
//ZAP2 EXEC PGM=AMASPZAP,REGION=4M
//SYSPRINT DD SYSOUT=*
//SYSLIB DD DISP=SHR,DSN=IAS62.V6R2M0.CICS.LOAD
//SYSIN DD *
NAME SRVRSRPC SRVSEC
VER 01A0 E2D9E5
REP 01A0 D2D2D2
//TSO EXEC PGM=IKJEFT01,DYNAMNBR=30,REGION=4M,COND=(0,NE)
//SYSPRINT DD SYSOUT=*
//SYSTSPRT DD SYSOUT=*
//SYSTSIN DD *
PROFILE NOPREFIX WTPMSG MSGID
RENAME IAS62.V6R2M0.CICS.LOAD(SRVXLINK) +
IAS62.V6R2M0.CICS.LOAD(KKKXLINK)
RENAME IAS62.V6R2M0.CICS.LOAD(SRVRSRPC) +
IAS62.V6R2M0.CICS.LOAD(KKKRSRPC)
RENAME IAS62.V6R2M0.CICS.LOAD(SRVSCURE) +
IAS62.V6R2M0.CICS.LOAD(KKKSCURE)


//CICSDEF JOB CLASS=A,MSGCLASS=K
//*
//* SAMPLE JOB TO DEFINE THE IAS FOR CICS COMPONENTS TO CICS
//* CHECK THE DSN= PARAMETERS FOR THE STEPLIB AND DFHCSD DD CARDS
//* CHANGE 'CICSLIST' TO THE CICS STARTUP LIST NAME
//* SEE NOTES FOR EACH SECTION BELOW (FILES, PROGRAMS, ETC.)
//*
//CSDUP EXEC PGM=DFHCSDUP
//STEPLIB DD DSN=CICS.CICS.SDFHAUTH,DISP=SHR
//DFHCSD DD DSN=CICS.DFHCSD,DISP=SHR
//SYSPRINT DD SYSOUT=*
//SYSIN DD *
***
***
*** DEFINITIONS FOR TRANSACTIONS
***
DEFINE TRANSACTION(SRVX) GROUP(IAS) PROGRAM(SRVXLINK)
DESCRIPTION(IAS X-LINK UNIT)
***
*** DEFINITIONS FOR PROGRAMS
***
DEFINE PROGRAM(SRVRQRPC) GROUP(IAS) LANGUAGE(ASSEMBLER)
DEFINE PROGRAM(SRVSCURE) GROUP(IAS) LANGUAGE(ASSEMBLER)
DEFINE PROGRAM(SRVXLINK) GROUP(IAS) LANGUAGE(ASSEMBLER)
DESCRIPTION(IAS X-LINK UNIT)
***
*** DEFINITIONS FOR APPC CONNECTIONS AND SESSIONS
***
*** NOTE THAT CICS SUPPORTS AUTOINSTALL FOR LU6.2. IF YOUR
*** SYSTEM IS CONFIGURED TO DO SO, THESE DEFINITIONS MAY
*** NOT BE REQUIRED.
***
*** THIS IS A SAMPLE DEFINITION, DEFINING THE CONNECTION
*** AND SESSIONS TO APPC/MVS. IT ASSUMES THE SAME NAMES
*** AS IN THE SUPPLIED (ABOVE) SAMPLES. IF ANY WERE
*** MODIFIED, THESE MUST BE REFLECTED BELOW.
***
*** THE CONNECTION AND SESSIONS FOR APPC/MVS ARE USED IN CASE IAS
*** IS CONNECTED OVER TCP/IP TO RELAY, AND RELAY USES APPC/MVS
*** TO CONNECT TO CICS.
*** IF YOU ARE CONNECTING IAS ON NT USING DIRECT APPC CONNECTION
*** TO CICS REFER TO SAMPLE MEMBER CICSDEF3 IN THIS LIBRARY.
***
DEFINE CONNECTION(MVS1) GROUP(IAS)
NETNAME(MVSLU01) ACCESSMETHOD(VTAM) PROTOCOL(APPC)
SINGLESESS(NO) INSERVICE(YES) AUTOCONNECT(YES)
DESCRIPTION(SAMPLE CONNECTION, TO APPC/MVS)
DEFINE SESSION(MVS1SESS) GROUP(IAS)
CONNECTION(MVS1) MODENAME(APPCMODE) PROTOCOL(APPC)
MAXIMUM(10,5) AUTOCONNECT(YES)
DESCRIPTION(SAMPLE CONNECTION, TO APPC/MVS)
***
*** ADD THE IAS GROUP, WITH THE DEFINITIONS, TO THE CICS STARTUP LIST
*** OR INSTALL GROUP(IAS) TO PUT DEFINITIONS IN EFFECT
***
ADD GROUP(IAS) LIST(CICSLIST)
/*
//

//CICSDEF3 JOB
//*
//CSDUP EXEC PGM=DFHCSDUP
//STEPLIB DD DSN=CICS.CICS.SDFHAUTH,DISP=SHR
//DFHCSD DD DSN=CICS.DFHCSD,DISP=SHR
//SYSPRINT DD SYSOUT=*
//SYSIN DD *
***
*** DEFINITIONS FOR IAS/NT USING DIRECT APPC.
*** THESE DEFINITIONS MUST BE INSTALLED IN CICS RESOURCE DEFINITION
*** IN ADDITION TO, OR INSTEAD OF, CONNECTION AND SESSIONS FOR APPC/MVS
*** ENLISTED IN CICSDEF SAMPLE.
***
DEFINE CONNECTION(SKNT) GROUP(IASDAPPC)
NETNAME(SHMUELNT) ACCESSMETHOD(VTAM) PROTOCOL(APPC)
SINGLESESS(NO) INSERVICE(YES) AUTOCONNECT(YES)
DESCRIPTION(SAMPLE DIRECT/APPC CONNECTION TO IAS/NT)
DEFINE SESSIONS(SKNTAPPC) GROUP(IASDAPPC)
CONNECTION(SKNT) MODENAME(APPCMODE) PROTOCOL(APPC)
MAXIMUM(10,5) AUTOCONNECT(YES)
DESCRIPTION(SAMPLE DIRECT CONNECTION TO IAS/NT)
***
*** DEFINITIONS ARE PUT IN EFFECT BY ADDING TO CICS STARTUP LIST AS
*** DEMONSTRATED HERE, OR BY INSTALLING GROUP CONTAINING THESE DEFS
***
ADD GROUP(IASDAPPC) LIST(CICSLIST)
/*
//

Startup/JCL //DFHRPL DD DSN=
DD DSN='
......
......
DD DSN='IAS4CICS.V6R0M0.CICS.LOAD'.DISP=SHR*


*
* SAMPLE MAJOR NODE FOR APPC/MVS
*
APPCMVS VBUILD TYPE=APPL
MVSLU01 APPL ACBNAME=MVSLU01, *
APPC=YES, *
AUTOSES=10, *
DDRAINL=NALLOW, *
DMINWNL=20, *
DMINWNR=20, *
DRESPL=NALLOW, *
DSESLIM=40, *
EAS=509, *
MODETAB=MTAPPC, *
SECACPT=CONV, *
SRBEXIT=YES, *
VERIFY=NONE, *
VPACING=2


/* LIB: SYS1.PARMLIB(APPCPM00) */
LUADD ACBNAME(MVSLU01) BASE NOSCHED

TCPIP	Name of the TCP/IP address space. TCPIP is the default.
PORT	The same (Relay) port specified in Table 2-1.
MAXTASK	Maximum number of concurrent tasks. 20 tasks is the default.
PROGRAM	Name of the program to activate for incoming requests must be `SRVRLNS'.

//LISTEN PROC TCPIP=TCPIP,PORT=47000,MAXTASK=20,PROGRAM=SRVRLNS

//*********************************************************************
//* THIS PROCEDURE CAN BE USED FOR A TCP/IP LISTNER.
//* MOST COMMONLY, IT IS USED AS A RELAY BETWEEN TCP/IP AND APPC.
//* IT CAN BE RUN AS A STARTED TASK OR A JOB.
//*
//* BEFORE USING IT PLEASE PERFORM THE FOLLOWING CHANGES:
//* 1. CHECK THE NAME OF THE STEPLIB. NOTE THAT THIS LIBRARY HAS TO BE
//* AUTHORIZED.
//* 2. CHECK THE NAME OF THE APPLICATION TABLE ON SRVAPLF
//* 3. CHECK THE SYSOUT CLASS ON CPEOUT AND SYSUDUMP.
//* 4. UPDATE THE PARAMETERS ON THE PROC STATEMENT :
//* TCPIP = THE NAME OF THE TCP/IP ADDRESS SPACE (DEFAULTS TO TCPIP)
//* PORT = AN AVAILABLE PORT NUMBER (DEFAULS TO 47000)

//* MAXTASK = THE MAXIMUM NUMBER OF CONCURRENT TASKS (DEFAULTS TO 20)
//* PROGRAM = THE NAME OF THE PROGRAM TO ACTIVATE ON INCOMING REQUEST
//* - LEAVE BLANK TO PICK UP THE NAME IN THE APPLICATION TABLE
//* - CODE 'SRVRLTA' FOR A RELAY
//LISTEN EXEC PGM=SRVLISPR,PARM='&TCPIP,&PORT,&MAXTASK,&PROGRAM',
// REGION=0M
//STEPLIB DD DSN=IAS4CICS.V6R0M0.RELAY.LOAD,DISP=SHR
//CPEOUT DD SYSOUT=X,HOLD=YES
//CPEOUTRQ DD SYSOUT=X,HOLD=YES
//CPEOUTRS DD SYSOUT=X,HOLD=YES
//CPESNAP DD SYSOUT=X,HOLD=YES
//SYSUDUMP DD SYSOUT=X,HOLD=YES
//SRVAPLF DD DSN=IAS.APPLTAB.RELAY,DISP=SHR
//SRVTCPI DD DUMMY
// PEND



//PBINIT JOB MSGCLASS=K
//=================================================================
//*
//* THIS JOB CREATES THE VSAM FILE FOR THE IAS PHONEBOOK
//* DEMO. IT CREATES, INITIALIZES THE VSAM PHONEBOOK DATASET, AND
//* DEFINES IT TO CICS USING THE BATCH CSD UPDATE UTILITY.
//*
//=================================================================
//* 1. DEFINE VSAM FILE
//*
//* CHECK THE NAME OF THE LIBRARY IN THE SYSEXEC CARD, IT SHOULD BE
//* THIS LIBRARY
//* CHECK THE VSAM DATASET NAME(S) IN THE SYSTSIN LINE 1 AND 3
//* CHANGE THE VOLSER (VVVVVV) IN SYSTSIN LINE 4
//=================================================================
//STEP3 EXEC PGM=IKJEFT01,DYNAMNBR=40
//SYSTSPRT DD SYSOUT=*
//SYSUT1 DD DSN=&SYSUT1,UNIT=SYSDA,SPACE=(1700,(400,50))
//SYSUT2 DD DSN=&SYSUT2,UNIT=SYSDA,SPACE=(1700,(400,50))
//SYSUT3 DD DSN=&SYSUT3,UNIT=SYSDA,SPACE=(1700,(400,50))
//SYSEXEC DD DSN=IAS4CICS.V6R0M0.CICS.INST,DISP=SHR
//INPUT DD *
ARIE NOA 262 12324
FLINT ORIT 260 4377
GALIL MOTI 1234 12345
GALMIDI MOTI 123 1234
GOLD KEREN 258 52960
GRYNBAUM TAL 251 52960
MICHEAL SHATZ 234 43456
REICH SHANY 123 1234
SHANI RAKEFET 252 1234
SHIMON RICKY 259 43788
SHORKEND MIKE 123 1234
/*
//SYSTSIN DD *
DEL 'IAS.PHONBOOK.CICS'
PBLOAD
IAS.PHONBOOK.CICS
VVVVVV
3390
/*
//=================================================================
//* 2. UPDATE CICS DEFINITIONS WITH PHONEBOOK APPLICATION DATA
//*
//* CHECK THE DSN= PARAMETERS FOR THE STEPLIB AND DFHCSD DD CARDS
//* CHANGE 'CICSLIST' TO THE CICS STARTUP LIST NAME
//* SEE NOTES FOR EACH SECTION BELOW (FILES, PROGRAMS, ETC.)
//*
//=================================================================
//CSDUP EXEC PGM=DFHCSDUP
//STEPLIB DD DSN=CICS.CICS.SDFHLOAD,DISP=SHR
//DFHCSD DD DSN=CICS.DFHCSD,DISP=SHR
//SYSPRINT DD SYSOUT=*
//SYSIN DD *
***
*** DEFINITIONS FOR PHONEBOOK FILES
***
DEFINE FILE(PBVSAM) GROUP(IASPHB)
DSNAME(IAS.PHONBOOK.CICS) DISPOSITION(SHARE)
ADD(YES) BROWSE(YES) DELETE(YES) READ(YES) UPDATE(YES)
RECORDFORMAT(F) STATUS(ENABLED) OPENTIME(FIRSTREF)
JOURNAL(01) STRINGS(10) DATABUFFERS(11)
DESCRIPTION(IAS PHONEBOOK APPLICATION TABLE)
***
*** DEFINITIONS FOR TRANSACTIONS
***
*** THE TRANSID VALUES MAY BE CHANGED.
***
DEFINE TRANSACTION(PHBK) GROUP(IASPHB) PROGRAM(PHONBOOK)
DESCRIPTION(IAS PHONEBOOK APPLICATION)
***
*** DEFINITIONS FOR PROGRAMS
***
DEFINE PROGRAM(PHONBOOK) GROUP(IASPHB) LANGUAGE(ASSEMBLER)
DEFINE PROGRAM(PHONBOOX) GROUP(IASPHB) LANGUAGE(ASSEMBLER)
***
*** ADD THE IAS GROUP, WITH THE DEFINITIONS, TO THE STARTUP LIST
*** IF NEEDED (NOT DONE BEFORE
***
ADD GROUP(IASPHB) LIST(CICSLIST)
/*

Previous Contents Index DocHome Next
Copyright © 2001 Sun Microsystems, Inc. Some preexisting portions Copyright © 2001 Netscape Communications Corp. All rights reserved.

Last Updated September 13, 2001
