C H A P T E R 4 |
Blade Support Chip Test (bsctest) |
Caution - The bsctestexercises the Blade Support Chip and supporting hardware used in Sun FireB100 blade systems. This includes the OpenBootPROM and Time of Day (ToD) PROM chips. |
Caution - If the LED subtest is selected, LEDs on the blade will change. The LEDs will return to their correct state when the test is completed. |

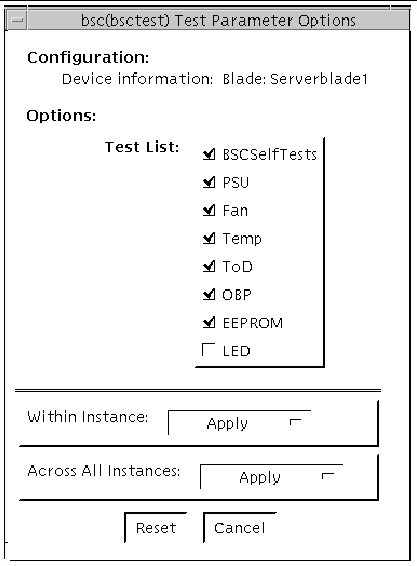

To reach the following dialog box, right-click on the test name in the System Map and select Test Parameter Options. If you do not see this test in the System Map, you might need to expand the collapsed groups, or your system might not include the device appropriate to this test. Refer to the SunVTS User's Guide for more details.
Performs all tests except BSCSelfTests and LED Flashing test. |
/opt/SUNWvts/bin/bsctest standard_arguments [-o dev=device_name test=test_list]]
test-list is the list of subtests, for example, BSCSelfTests, PSU, Fan, Temp, ToD, OBP, EEPROM, LED. |
