A Sample Dictionary Definitions

This section describes sample or practice dictionary definitions in Oracle Thesaurus Management System (TMS) that correspond to the sample load scripts you can download from My Oracle Support from Sample Maintenance Scripts for MedDRA, MedDRA Primary Path, MedDRA SMQ, WHO-Drug, and SNOMED (article ID 258975.1) and TMS CLASS Dictionary Loading Scripts (article ID 428204.1); see "Searching by Article ID".

• Practice Dictionary CLS

• Sample Medical Dictionary

• Sample Medical Dictionary with a Primary Path

• Sample Medical SMQ Dictionary

• Sample Drug Dictionary

Note:

The short names of the dictionary levels and of the dictionary itself must be exactly the same in the load script and in the dictionary definition in the TMS user interface.

Practice Dictionary CLS

The dictionary definition and loading process is complex, and varies depending on the dictionary and the needs of the company. You can use CLS as a practice dictionary. All the control, data, and SQL files you need are provided in a zip file on the My Oracle Support Web site. You can use these files as examples when you create your own dictionaries.

• CLS Structure Diagram

• CLS Level Definitions

• CLS Level Relations Definitions

CLS Structure Diagram

The CLS structure diagram in Figure A-1 corresponds to the Level Definitions in "CLS Level Definitions" and Level Relations Definitions in "CLS Level Relations Definitions".

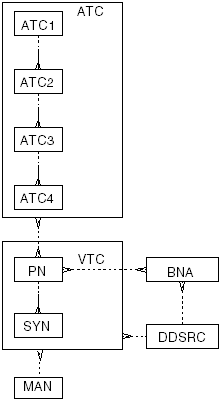

Figure A-1 CLS Structure Diagram

Description of "Figure A-1 CLS Structure Diagram"

CLS Level Definitions

Table A-1 provides the Level Definitions for the CLS practice dictionary. See "Defining the Dictionary Levels" for instructions on defining dictionary levels using the Define Dictionaries window in TMS.

Table A-1 CLS Level Definitions

Short Name	Name	Classification Level?	Report Value?	Level Order	Level Type	Term Unique?	Group Short Name
ATC	Anatomical-Therapeutic- Chemical Classification Group				Group Level
ATC1	ATC 1		X		Level		ATC
ATC2	ATC 2		X		Level		ATC
ATC3	ATC 3		X		Level		ATC
ATC4	ATC 4		X		Level		ATC
VTC	Verbatim Term Classification Group	X			Group Level	X
PN	Preferred Name		X		Level		VTC
SYN	Synonym		X	1	Level		VTC
BNA	Drug Constituents			2	Level
DDSRC	Source of Drug			1	Level
MAN	Manufacturers			2	Level

CLS Level Relations Definitions

Table A-2 provides the Level Relations Definitions for the CLS practice dictionary. See "Defining Relations Between Levels (Strong Dictionaries Only)" for instructions on defining Level Relations in the Define Dictionaries window.

Table A-2 CLS Level Relation Definitions

Setting	Parent Level	Child Level
Level Name	Anatomical-Therapeutic-Chemical- Classification Group	ATC 1
Relation Type: Top Sublevel
Short Name	ATC	ATC1
Mandatory?
Many Cardinality?
Primary Link?		n/a
Derivable?		n/a
Level Name	ATC 1	ATC 2
Relation Type: Level
Short Name	ATC1	ATC2
Mandatory?		X
Many Cardinality?		X
Primary Link?		n/a
Derivable?	X	n/a
Level Name	ATC 2	ATC 3
Relation Type: Level
Short Name	ATC2	ATC3
Mandatory?		X
Many Cardinality?		X
Primary Link?		n/a
Derivable?	X	n/a
Level Name	ATC 3	ATC 4
Relation Type: Level
Short Name	ATC3	ATC4
Mandatory?		X
Many Cardinality?		X
Primary Link?		n/a
Derivable?	X	n/a
Level Name	Anat.-Therap.-Chem.-Classification Group	Preferred Name
Relation Type: Level
Short Name	ATC	PN
Mandatory?
Many Cardinality?	X	X
Primary Link?	X	n/a
Derivable?	X	n/a
Level Name	Preferred Name	Synonym
Relation Type: Level
Short Name	PN	SYN
Mandatory?		X
Many Cardinality?		X
Primary Link?		n/a
Derivable?	X	n/a
Level Name	Preferred Name	Drug Constituents
Relation Type: Level
Short Name	PN	BNA
Mandatory?
Many Cardinality?	X	X
Primary Link?		n/a
Derivable?		n/a
Level Name	Drug Constituents	Source of Drug
Relation Type: Level
Short Name	BNA	DDSRC
Mandatory?
Many Cardinality?	X
Primary Link?		n/a
Derivable?		n/a
Level Name	Verbatim Term Classification Group	Preferred Name
Relation Type: Top Sublevel
Short Name	VTC	PN
Mandatory?
Many Cardinality?
Primary Link?		n/a
Derivable?		n/a
Level Name	Verbatim Term Classification Group	Manufacturers
Relation Type: Level
Short Name	VTC	MAN
Mandatory?
Many Cardinality?	X
Primary Link?		n/a
Derivable?		n/a
Level Name	Verbatim Term Classification Group	Source of Drug
Relation Type: Level
Short Name	VTC	DDSRC
Mandatory?
Many Cardinality?	X
Primary Link?		n/a
Derivable?		n/a

Sample Medical Dictionary

This section provides a structure diagram of the sample medical dictionary, and the dictionary level and level relations definitions that are required to create a dictionary with this structure.

• Sample Medical Dictionary Structure

• Sample Medical Dictionary Level Definitions

• Sample Medical Dictionary Level Relations Definitions

Sample Medical Dictionary Structure

The sample medical dictionary structure in Figure A-2 corresponds to the definitions provided in "Sample Medical Dictionary Level Definitions" and "Sample Medical Dictionary Level Relations Definitions".

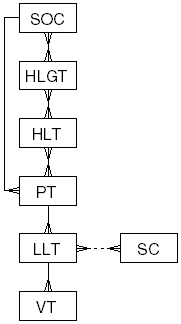

Figure A-2 Sample Medical Dictionary Structure

Description of "Figure A-2 Sample Medical Dictionary Structure"

Sample Medical Dictionary Level Definitions

Table A-3 provides the Level Definitions for the sample medical dictionary. See "Defining the Dictionary Levels" for instructions on defining dictionary levels using the Define Dictionaries window in TMS.

Table A-3 Sample Medical Dictionary Level Definitions

Short Name	Name	Classifica-tion Level?	Report Value	Level Order	Level Type	Term Unique?	Group Short Name
SOC	System Organ Class		X		Level
HLGT	High Level Group Term				Level
HLT	High Level Term				Level
PT	Preferred Term		X		Level
LLT	Lowest Level Term	X	X	1	Level
SC	Special Category			2	Level

Sample Medical Dictionary Level Relations Definitions

Table A-4 provides the Level Relations Definitions for the sample medical dictionary. See "Defining Relations Between Levels (Strong Dictionaries Only)" for instructions on defining Level Relations in the Define Dictionaries window.

Table A-4 Sample Medical Dictionary Level Relations Definitions

Setting	Parent Level	Child Level
Level Name	System Organ Class	High Level Group Term
Relation Type: Level
Short Name	SOC	HLGT
Mandatory?	X	X
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	High Level Group Term	High Level Term
Relation Type: Level
Short Name	HLGT	HLT
Mandatory?	X	X
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	High Level Term	Preferred Term
Relation Type: Level
Short Name	HLT	PT
Mandatory?	X	X
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	Preferred Term	Lowest Level Term
Relation Type: Level
Short Name	PT	LLT
Mandatory?	X	X
Many Cardinality?		X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?	X	n/a
Level Name	System Organ Class	Preferred Term
Relation Type: Level
Short Name	SOC	PT
Mandatory?	X	X
Many Cardinality?		X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?	X	n/a
Level Name	Preferred Term	Special Category
Relation Type: Level
Short Name	PT	SC
Mandatory?
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a

Sample Medical Dictionary with a Primary Path

This section provides a structure diagram of the sample medical dictionary with a primary path, and the dictionary level and level relations definitions that are required to create a dictionary with this structure.

• Sample Medical Dictionary with a Primary Path Structure

• Sample Medical Dictionary with a Primary Path Dictionary Level Definitions

• Sample Medical Dictionary with a Primary Path Level Relations Definitions

Sample Medical Dictionary with a Primary Path Structure

The sample medical dictionary structure in Figure A-3 corresponds to the definitions provided in "Sample Medical Dictionary with a Primary Path Dictionary Level Definitions" and "Sample Medical Dictionary with a Primary Path Level Relations Definitions".

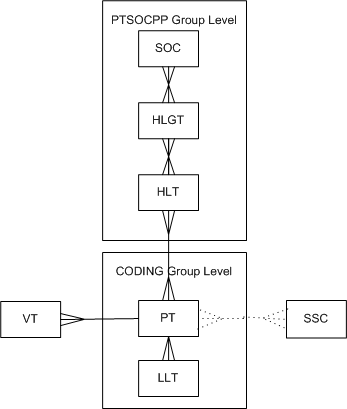

Figure A-3 Sample Medical Dictionary with Primary Path Structure

Description of "Figure A-3 Sample Medical Dictionary with Primary Path Structure"

Sample Medical Dictionary with a Primary Path Dictionary Level Definitions

Table A-5 provides the Level Definitions for the sample medical dictionary with a primary path. See "Defining the Dictionary Levels" for instructions on defining dictionary levels using the Define Dictionaries window in TMS.

Table A-5 Sample Medical Dictionary with a Primary Path Level Definitions

Short Name	Name	Classifica-tion Level?	Report Value	Level Order	Level Type	Term Unique?	Group Short Name
PTSOCPP	Primary Path PT->SOC			0	Group Level	None
SOC	System Organ Classes		X	0	Level	Level	PTSOCPP
HLGT	High Level Group Terms		X	0	Level	Level	PTSOCPP
HLT	High Level Terms		X	0	Level	Level	PTSOCPP
CODING	Coding Group	X		0	Group Level	Level
PT	Preferred Terms		X	100	Level	None	CODING
LLT	Lowest Level Terms		X	0	Level	Non	CODING
SC	Special Search Categories			1	Level	Level
VT	Verbatim Term			500	Verbatim Level	Level

Sample Medical Dictionary with a Primary Path Level Relations Definitions

Table A-6 provides the Level Relations Definitions for the sample medical dictionary with a primary path. See "Defining Relations Between Levels (Strong Dictionaries Only)" for instructions on defining Level Relations in the Define Dictionaries window.

Table A-6 Sample Medical Dictionary with a Primary Path Level Relations Definitions

Setting	Parent Level	Child Level
Level Name	Primary Path PT->SOC	System Organ Class
Relation Type: Level
Short Name	PTSOCPP	SOC
Mandatory?
Many Cardinality?
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	System Organ Class	High Level Group Term
Relation Type: Level
Short Name	SOC	HLGT
Mandatory?	X	X
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	High Level Group Term	High Level Term
Relation Type: Level
Short Name	HLGT	HLT
Mandatory?	X	X
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	High Level Term	Preferred Term
Relation Type: Level
Short Name	HLT	PT
Mandatory?	X	X
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	Preferred Term	Lowest Level Term
Relation Type: Level
Short Name	PT	LLT
Mandatory?	X	X
Many Cardinality?		X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?	X	n/a
Level Name	Primary Path PT->SOC	Preferred Terms
Relation Type: Level
Short Name	PTSOCPP	PT
Mandatory?	X	X
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?	X	n/a
Derivable?	X	n/a
Level Name	System Organ Class	Preferred Terms
Relation Type: Level
Short Name	SOC	PT
Mandatory?	X	X
Many Cardinality?		X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?	X	n/a
Level Name	Preferred Terms	Special Categories
Relation Type: Level
Short Name	PT	SC
Mandatory?
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	Coding Group	Preferred Terms
Relation Type: Level
Short Name	CODING	PT
Mandatory?
Many Cardinality?
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	Coding Group	Verbatim Term
Relation Type: Verbatim Level
Short Name	CODING	SC
Mandatory?		X
Many Cardinality?		X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?	X	n/a

Sample Medical SMQ Dictionary

This section provides a structure diagram of the sample medical SMQ dictionary, and the dictionary level and level relations definitions that are required to create a dictionary with this structure.

• Sample Medical SMQ Dictionary Structure

• Sample Medical SMQ Dictionary Level Definitions

• Sample Medical SMQ Dictionary Level Relation Definitions

Sample Medical SMQ Dictionary Structure

The sample medical dictionary structure in Figure A-4 corresponds to the definitions provided in "Sample Medical SMQ Dictionary Level Definitions" and "Sample Medical SMQ Dictionary Level Relation Definitions".

Figure A-4 Sample Medical SMQ Dictionary Structure

Description of "Figure A-4 Sample Medical SMQ Dictionary Structure"

Sample Medical SMQ Dictionary Level Definitions

Table A-7 provides the Level Definitions for the sample medical SMQ dictionary. See "Defining the Dictionary Levels" for instructions on defining dictionary levels using the Define Dictionaries window in TMS.

Table A-7 Sample Medical SMQ Dictionary Level Definitions

Short Name	Name	Classifica-tion Level?	Report Value	Level Order	Level Type	Term Unique?	Group Short Name
SMQ1	SMQ I			0	Level	None
SMQ2	SMQ II			0	Level	Level
SMQ3	SMQ III			0	Level	Level
SMQ4	SMQ IV			0	Level	Level
SMQ5	SMQ V			0	Level	Level

Sample Medical SMQ Dictionary Level Relation Definitions

Table A-8 provides the Level Relations Definitions for the sample medical SMQ dictionary. See "Defining Relations Between Levels (Strong Dictionaries Only)" for instructions on defining Level Relations in the Define Dictionaries window.

Table A-8 Sample Medical SMQ Dictionary Level Relations Definitions

Setting	Parent Level	Child Level
Level Name	SMQ I	SMQ II
Relation Type: Level
Short Name	SMQ1	SMQ2
Mandatory?
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	SMQ II	SMQ III
Relation Type: Level
Short Name	SMQ2	SMQ3
Mandatory?
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	SMQ III	SMQ IV
Relation Type: Level
Short Name	SMQ3	SMQ4
Mandatory?
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	SMQ IV	SMQ V
Relation Type: Level
Short Name	SMQ4	SMQ5
Mandatory?
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a

Sample Drug Dictionary

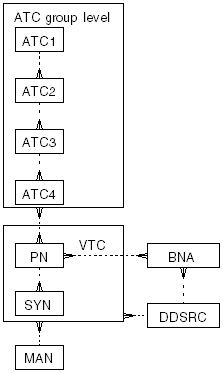

This section provides a structural diagram of the sample drug dictionary, and the dictionary level and Level Relations Definitions that are required to create a dictionary with this structure.

This dictionary is the same as CLS except that no Primary Link is defined between the ATC Group level and the Preferred Name level, and therefore you cannot derive terms from any of the sublevels within the ATC Group.

• Sample Drug Dictionary Structure

• Sample Drug Dictionary Level Definitions

• Sample Drug Dictionary Level Relations Definitions

Sample Drug Dictionary Structure

The sample drug dictionary structure in Figure A-5 corresponds to the definitions provided in "Sample Drug Dictionary Level Definitions" and "Sample Drug Dictionary Level Relations Definitions".

Figure A-5 Sample Drug Dictionary Structure

Description of "Figure A-5 Sample Drug Dictionary Structure"

Sample Drug Dictionary Level Definitions

Table A-9 provides the Level Definitions for the sample drug dictionary. See "Defining the Dictionary Levels" for instructions on defining dictionary levels using the Define Dictionaries window in TMS.

Table A-9 Sample Drug Dictionary Level Definitions

Short Name	Name	Classifica-tion Level?	Report Value?	Level Order	Level Type	Term Unique?	Group Short Name
ATC	Anatomical-Therapeutic-Chemical Classification Group				Group Level
ATC1	ATC 1				Level		ATC
ATC2	ATC 2				Level		ATC
ATC3	ATC 3				Level		ATC
ATC4	ATC 4				Level		ATC
VTC	Verbatim Term Classification Group	X			Group Level	X
PN	Preferred Name		X		Level		VTC
SYN	Synonym		X	1	Level		VTC
BNA	Drug Constituents			2	Level
DDSRC	Source of Drug			1	Level
MAN	Manufacturers			2	Level

Sample Drug Dictionary Level Relations Definitions

Table A-10 provides the Level Relations Definitions for the sample drug dictionary. See "Defining Relations Between Levels (Strong Dictionaries Only)" for instructions on defining Level Relations in the Define Dictionaries window.

Table A-10 Sample Drug Dictionary Level Relations Definitions

Setting	Parent Level	Child Level
Level Name	Anatomical-Therapeutic-Chemical- Classification Group	ATC 1
Relation Type: Top Sublevel
Short Name	ATC	ATC1
Mandatory?
Many Cardinality?
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	ATC 1	ATC 2
Relation Type: Level
Short Name	ATC1	ATC2
Mandatory?		X
Many Cardinality?		X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	ATC 2	ATC 3
Relation Type: Level
Short Name	ATC2	ATC3
Mandatory?		X
Many Cardinality?		X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	ATC 3	ATC 4
Relation Type: Level
Short Name	ATC3	ATC4
Mandatory?		X
Many Cardinality?		X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	Anat.-Therap.-Chem.-Classification Group	Preferred Name
Relation Type: Level
Short Name	ATC	PN
Mandatory?
Many Cardinality?	X	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	Preferred Name	Synonym
Relation Type: Level
Short Name	PN	SYN
Mandatory?		X
Many Cardinality?		X
Primary Link?		n/a
Derivable?	X	n/a
Level Name	Preferred Name	Drug Constituents
Relation Type: Level
Short Name	PN	BNA
Mandatory?
Many Cardinality?	X	X
Primary Link?		n/a
Derivable?		n/a
Primary Path Link?		n/a
Level Name	Drug Constituents	Source of Drug
Relation Type: Level
Short Name	BNA	DDSRC
Mandatory?
Many Cardinality?	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	Verbatim Term Classification Group	Preferred Name
Relation Type: Top Sublevel
Short Name	VTC	PN
Mandatory?
Many Cardinality?
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	Verbatim Term Classification Group	Manufacturers
Relation Type: Level
Short Name	VTC	MAN
Mandatory?
Many Cardinality?	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
Level Name	Verbatim Term Classification Group	Source of Drug
Relation Type: Level
Short Name	VTC	DDSRC
Mandatory?
Many Cardinality?	X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a

Sample SNOMED Dictionary

This section provides a structural diagram of the sample SNOMED dictionary, and the dictionary level and Level Relations Definitions that are required to create a dictionary with this structure.

• Sample SNOMED Dictionary Structure

• Sample SNOMED Dictionary Level Definitions

• Sample SNOMED Dictionary Level Relations

Sample SNOMED Dictionary Structure

The sample SNOMED dictionary structure in Figure A-6 corresponds to the definitions provided in "Sample SNOMED Dictionary Level Definitions" and "Sample SNOMED Dictionary Level Relations".

Figure A-6 Sample SNOMED Dictionary Structure

Description of "Figure A-6 Sample SNOMED Dictionary Structure"

Sample SNOMED Dictionary Level Definitions

Table A-11 provides the Level Definitions for the sample SNOMED dictionary. See "Defining the Dictionary Levels" for instructions on defining dictionary levels using the Define Dictionaries window in TMS.

Table A-11 Sample SNOMED Dictionary Level Definitions

Short Name	Name	Classifica-tion Level?	Report Value?	Level Order	Level Type	Term Unique?	Group Short Name
CONCEPT	Concept			0	Level	None
DESC	Description			0	Level	None

Sample SNOMED Dictionary Level Relations

Table A-12 provides the Level Relations Definitions for the sample SNOMED dictionary. See "Defining Relations Between Levels (Strong Dictionaries Only)" for instructions on defining Level Relations in the Define Dictionaries window.

Table A-12 Sample SNOMED Dictionary Level Relations Definitions

Setting	Parent Level	Child Level
Level Name	Concept	Description
Relation Type: Level
Short Name	CONCEPT	DESC
Mandatory?	X	X
Many Cardinality?		X
Primary Link?		n/a
Primary Path Link?		n/a
Derivable?		n/a
