Managing Counter Instances in Oracle Installed Base

This chapter covers the following topics:

Introduction

This chapter consists of the following topics:

Overview of Counter Instances

The setup of counter groups and counter templates, and their associations with contract or trackable items, is to enable counter instances to be created automatically when instances of the associated items are created. These automatic creations of counter instances are performed during the execution of transactions in various Oracle applications.

You can also create counter instances explicitly in Oracle Installed Base. In doing so, you must associate already created trackable item instances or service contract lines with each counter instance.

You can perform readings for counter instances, and view and update additional counter reading information, such as counter properties, adjustments, and resets.

This section consists of the following main topic groups:

Managing Counter Instances

You can use Oracle Installed Base to manage all counter instances, whether they are created automatically or manually.

This section consists of the following topics:

See Also

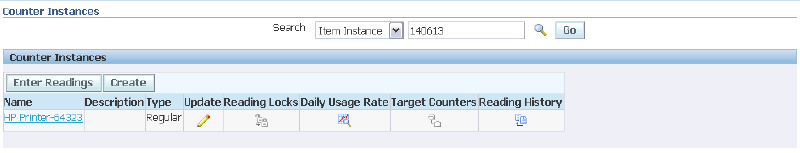

Searching for Counter Instances

In the Counter Instances Search page, the main operation you perform is to search for existing counter instances. You can then view or update the details of existing counter instances, as well as any associated target counters, reading history, and reading locks.

In this page, you can also:

Prerequisites

Oracle Installed Base Agent User > Counters > Counter Instances

Steps (to perform a search)

  1. Select the type of search that you wan to perform - Item Instance, Counter Name, or Service Line.

  2. Click the search icon to search through the list of values that appears. Select the appropriate item or counter instance, or service contract line.

  3. Click Go.

    The results area displays a list of the found counter instances.

    the picture is described in the document text

Comments

In the results area, you can perform the following operations

For each counter instance, you can also click the appropriate enabled icon to view the Reading Locks, Daily Usage, Target Counters, and Reading History. You can also disable counter readings in the reading history page.

See Also

Creating Counter Instances

The process of manually creating counter instances is similar to the process of creating counter templates. The major difference is that for counter instance creation, you must associate either existing item instances, or active service contract lines, to the counter instance.

You can create the same types of counter instance as counter template: Standard Regular, Time-Based Regular, Formula, Average, Count or Sum.

You can create a target counter instance, by specifying its source counter instance.

For details, see Creating Counters.

See Also

Viewing and Updating Counter Instances

The View Counter page displays the details of a counter instance; you cannot update any of the fields.

For more information about the counter instance fields, see Creating Counters.

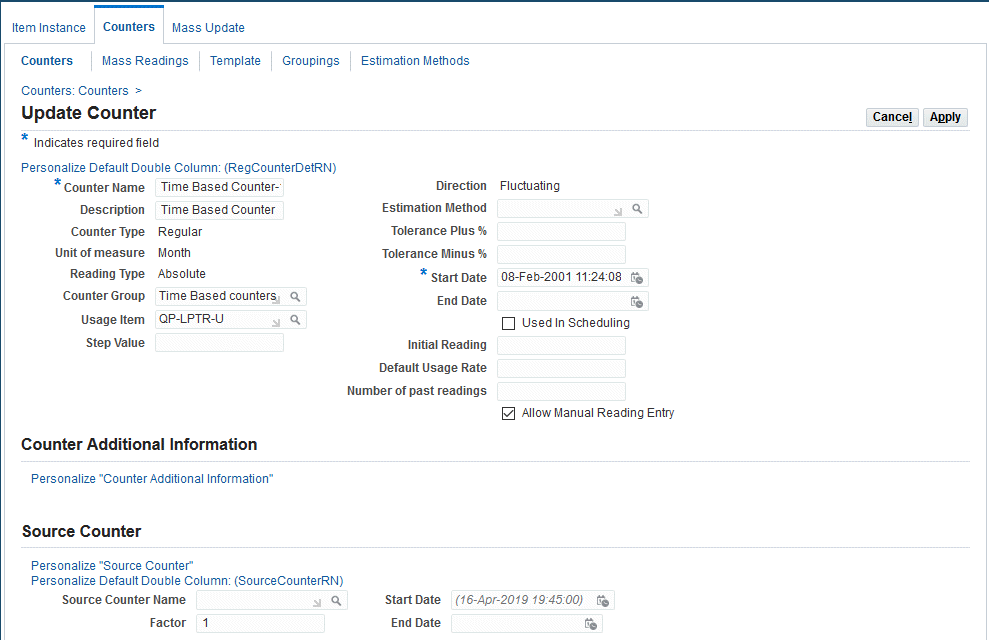

Updating Counter Instances

The Update Counter page to update a counter instance.

  1. Navigate to the Update Counter page (Oracle Installed Base Agent User > Counters < [search for counter instance] > Update button).

    The Update Counter page appears.

    the picture is described in the document text

    You can change the values in the available fields.

    You cannot change the following read-only fields:

    • For all counter types: Counter Type and Unit of measure.

    • For standard regular counters: Reading Type and Direction.

    • For formula counters based on formula text: Formula Text.

    • For average, count, and sum counters: Group Function, Derived Counter.

  2. Select the Allow Manual Reading Entry checkbox to enable the ability to manually enter time-based counter readings.

See Also

Managing Readings for Counter Instances

You can capture counter readings for counter instances in Oracle Installed Base. You can also view and update additional data about counter readings, such as counter property readings including the source of the counter reading, adjustments, resets, and target counter readings.

This section consists of the following topic groups:

See Also

Entering Counter Readings in Oracle Installed Base

You can enter counter readings for counter instances. The default time recorded for the reading is the current date and time, but you can record an earlier date and time for the reading.

In addition, you can view and update additional information about the counter reading, such as counter property values.

General Counter Reading Process

The standard enter counter reading process is as follows:

  1. In the Counter Instances page, search for one or more counter instances.

  2. Click Enter Readings.

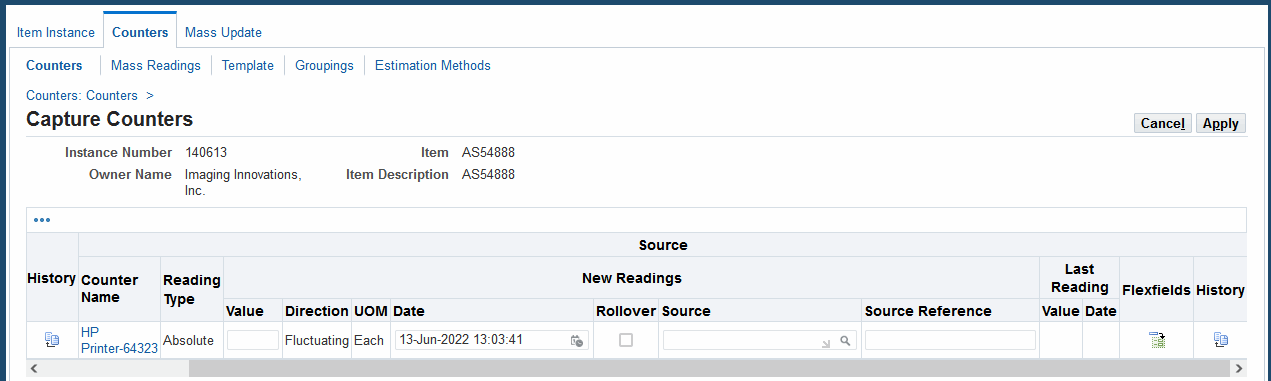

  3. The Capture Counters page appears with all the counter instances from the Counter Instances results for which you may enter readings.

    Note: You can only enter readings for standard regular counters, that are not target counters.

    the picture is described in the document text

  4. You can enter reading data for each displayed counter.

    You can view or edit information such as:

    • Counter Name

    • History

    • Reading Type

    • Direction

    • UOM

    • Date

    • Rollover

    • Source: Click the drop-down to select a value for the source of the counter reading. The values come from the CSI_CTR_READING_SOURCE lookup.

      See Set Up Source Lookup Codes for Counters, Oracle Installed Base Implementation Guide.

    • Source Reference

    • Last Reading information

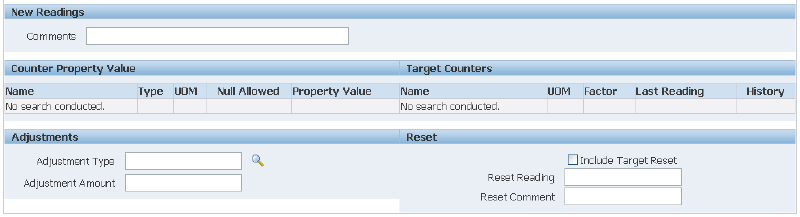

  5. To enter additional counter reading data, click Show for a counter.

    the picture is described in the document text

  6. The Counter Property Readings area shows all the counter properties associated with the counter. You must enter values for the mandatory counter properties. The Target Counters area is read-only. You may enter Adjustments and Reset data as required.

For more details of the capture reading options, see the following topics:

See Also

Entering Counter Readings (Detailed Steps)

Prerequisites

Oracle Installed Base Agent User > Counters > Counter Instances > Enter Readings button

Steps

Perform steps 1 to 8 for each counter reading.

  1. Enter the value for the reading.

  2. By default, the date of the new reading is set to the current date and time

  3. Optionally, change the date of the reading.

    You can enter a date and time prior to the default date.

  4. Select the Rollover check box if you want the reading to rollover.

  5. Optionally, enter any Comments about the reading.

  6. Optionally, click Flexfields.

  7. Optionally, click History.

    In the History page, you can disable the reading.

  8. Optionally, click Show.

    You can view and enter additional counter reading data, such as counter property reading values.

    Completing the Process

  9. After you have entered one or more counter readings and additional counter reading data, click Apply to save your changes.

See Also

Disabling Counter Reset Meter Readings

You can allow disabling the counter reset meter readings even though there are subsequent meter readings. This action enables the ability to reset prior meter readings.

Note: You can use this feature in Oracle Forms or Self-Service (OAF) UIs.

To disable counter reset meter readings

  1. Navigate to the Counter Instances page (Installed Base Agent User > Counters > Counter Instances).

  2. Search for a counter, and click Counter Reading History.

  3. Click Disable for the specific row.

  4. Click Go.

    The system recalculates the meter readings. The subsequent meter readings are not changed.

  5. The following table contains the conditions under which this disabling can occur:

    Meter Type Value Change Disable action with Counter Reading after Reset Reading
    Absolute Ascending Allows disabling of reset meter reading if reading after reset is in ascending order
    Absolute Descending Allows disabling of reset meter reading if reading after reset is in descending order
    Absolute Fluctuating Allows in all directions
    Change Ascending Updates automatically with reference to previous reading
    Change Descending Updates automatically with reference to previous reading
    Change Fluctuating Allows in all directions

    Messages

    • If there are errors during the disable process, the following message appears:

      Cannot disable the Counter reading that was reset. The Next (Counter or Net) Reading is violating the direction. Retry after disabling the next reading.

    • If there are warnings during the disable process, the following message appears:

      Disabling the reset reading will not disable the next reading (if any exists) and counter reading direction will be validated. Do you want to proceed?

Viewing and Entering Additional Counter Reading Data

When you click Show on a counter reading line, you can view and enter additional counter reading data, such as counter property values.

This section consists of the following topics:

Entering Counter Property Readings

All the counter properties associated with the counter appear. You must enter values for the mandatory column properties.

Entering Adjustments and Reset Amounts

You cannot explicitly update existing counter readings, but you can make adjustments to and reset the current counter reading. All the changes you make are recorded, and are visible in the reading history for the counter instance.

For adjustments, select an Adjustment Type and enter the Adjustment Amount.

The effect of adjustments on the current reading depends on the direction of the counter:

For resetting, you can enter any value for Reset Current, that will replace the current counter reading. You can, optionally, check Include Target Reset to reset the derived target counter reading.

Both adjustments and resets alter the current reading. In addition, adjustments alter the Net and Life to Date reading values. You can view the values in the counter reading history.

When Adjustments and Resets are Not Allowed

If a reading lock is defined on the counter reading, you cannot make reading adjustments or resets prior to the reading lock date.

If a source counter is locked, then you cannot make counter reading adjustments or resets prior to the reading lock date on the source counters.

Viewing Target Counter Readings

If your current counter instance is the source for any target counter instances, you can view the readings for the target counter instances.

See Also

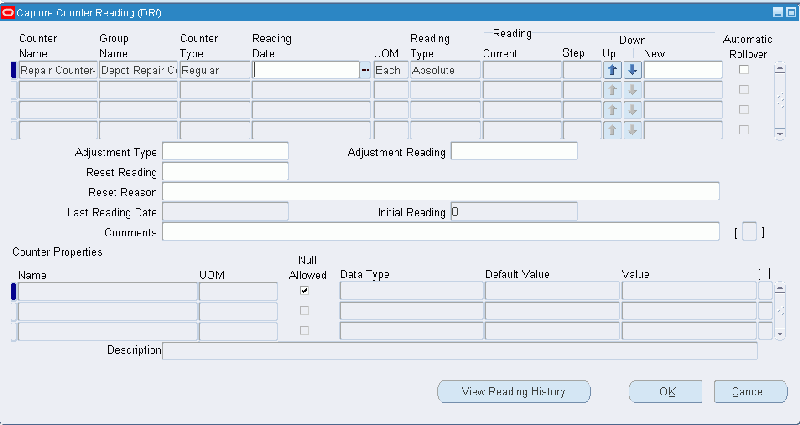

Entering Counter Readings from Other Oracle Applications

The Capture Counter Reading window is used to update a new counter reading for an item, service, or contract line that is associated with a counter group or counters. The window is accessible from the toolbar of Depot Repair, Field Service, Customer Care, Customer Support, and Service Contracts.

the picture is described in the document text

Prerequisites

Counters must be associated with an item, service, or contract line in order to access the Capture Counter Reading window to perform updates.

Steps

  1. From the toolbar of the calling application, choose Tools > Counter Capture or Action > Counter Capture.

    The Capture Counter Reading window appears.

  2. Enter the new reading for each defined counter into the New field.

  3. From the toolbar, click the Save icon to update and save the record.

Associating a Counter Property Value

  1. Select the Name of the property type.

  2. Click the Value LOV button to display the list of property types.

  3. From the toolbar, click the Save icon to update and save the record.

See Also

Viewing Target Counter Instances

If the current counter instance is a source counter for one or more target counters, you can view the target counter instances in this page.

Prerequisites

Click the Target Counters icon for a counter instance in a counter instance search results list.

See Also

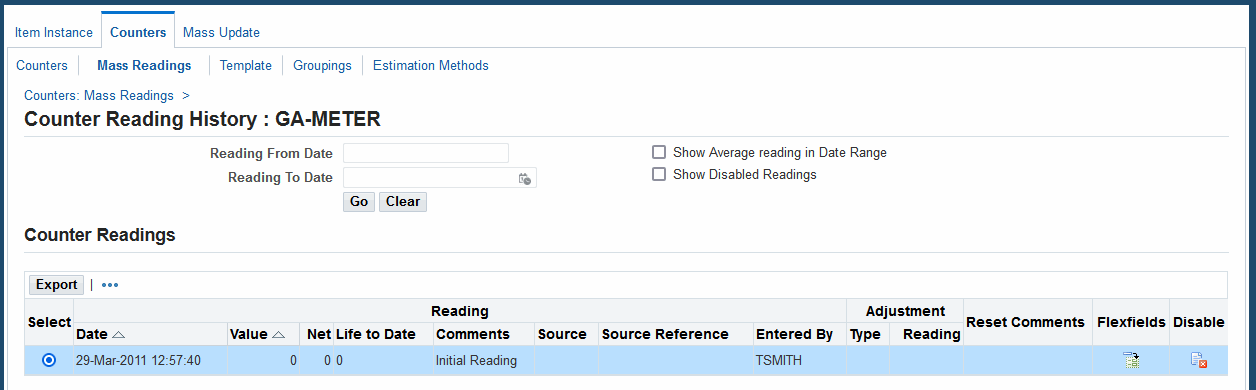

Viewing Reading History for Counter Instances

When you view the reading history for a counter instance, the only special operation you can perform is to disable a counter reading. You can only disable a counter reading if it is not locked. You cannot disable counter readings for target counters.

The Counter Reading History page by default displays all the existing active counter readings for the current counter instance.

You can explicitly select a counter reading in the counter readings area to show the counter property readings associated with that counter reading.

In this page, you can view different sets of counter reading data as follows:

Prerequisites

Click the History or Reading History icon for a counter instance in either a counter instance search results list, a Capture Counters page, or a Mass Readings page. You can view information such as the comments, source, and source reference.

the picture is described in the document text

See Also

Performing Mass Readings

You can perform mass readings on item instances and counter instances.

For item instance mass reading, you can view and update existing counter instance readings associated with item instances, and you can add counter instances to an item instance.

For counter instance mass reading, you can update the existing counter instance readings.

For both item instance and counter instance mass reading, you can enter data for many counter instances from the search results list.

Overview

You can perform a mass search for item and counter instances by a various of search criteria. For example, you can search for all the counter instances associated with an item instance, or an owner, or a contract. Most of the search parameters are for item instances searches; Counter Name is used for counter instance searches.

You can select to view the search results either by item instance or by counter instance name.

The following describes the operations you can perform for a single counter instance. After performing the search, you can use the search results list as a base "operations area" for performing the same types of operation for many counter instances.

Select a counter instance, so that you can enter a counter reading for the counter instance. For each counter reading, you can also perform additional operations, such as entering counter property readings, entering adjustments and reset information.

After making all your changes, click Save to commit them to the database.

For details of each of the mass reading operations you can perform, select the appropriate topic:

The operations you can perform to enter counter readings and other counter reading data are the same as when you capture individual counter readings. For details, see the following topics:

Entering Search Parameters

Enter one or more of the following search parameters:

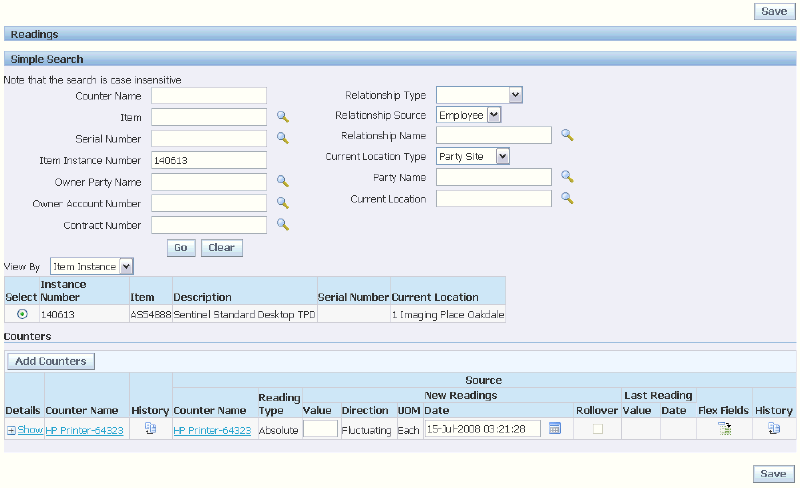

Searching and Viewing by Item Instance

In the search results, select an instance number to display its counters in the Counters area. You can enter a counter reading directly in the counter row, or click Show to view and update extra information about the counter reading.

Note: You can also select an item instance and add one or more counter instances to that item instance.

the picture is described in the document text

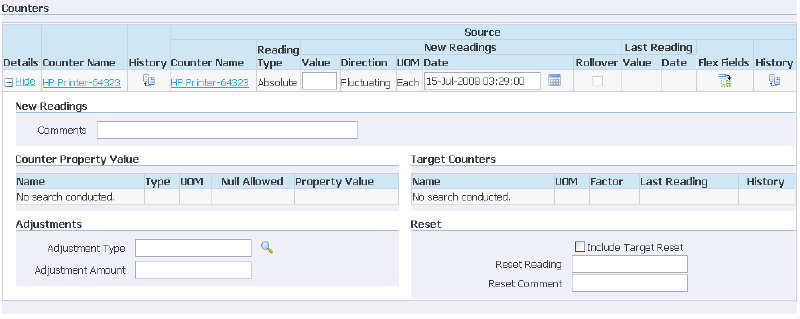

Searching and Viewing by Counter

The search results display the counter instances in the Counters area. You can enter a counter reading directly in any counter row, or click Show to view and update extra information about the counter reading.

the picture is described in the document text

See Also

Viewing Reading Locks on Counter Instances

In the Reading Locks page, you can view any reading locks placed on a counter instance by an Oracle application.

These locks are placed on counter readings to protect the reading against update.

Prerequisites

Click the Reading Locks icon for a counter instance in a counter instance search results list.

See Also

Managing Daily Usage for Counter Instances

This page is used for informational value only.

Prerequisites

You must click the Daily Usage icon for a counter instance in a counter instance search results list.

See Also
