16 Managing the Instant Messaging and Presence Service

This chapter describes how to configure and manage the Instant Messaging and Presence (IMP) service for your WebCenter Portal application.

Always use Fusion Middleware Control or WLST command-line tool to review and configure back-end services for WebCenter Portal applications. Any changes that you make to your applications, post deployment, are stored in MDS metatdata store as customizations. See Section 1.3.5, "WebCenter Portal Configuration Considerations."

Note:

Configuration changes for the Instant Messaging and Presence service, through Fusion Middleware Control or using WLST, are not dynamic so you must restart the managed server on which your application is deployed for changes to take effect. See Section 8.2, "Starting and Stopping Managed Servers for WebCenter Portal Application Deployments."

This chapter includes the following sections:

Audience

The content of this chapter is intended for Fusion Middleware administrators (users granted the Admin or Operator role through the Oracle WebLogic Server Administration Console). See also, Section 1.8, "Understanding Administrative Operations, Roles, and Tools."

16.1 What You Should Know About Instant Messaging and Presence Connections

The IMP service enables you to observe the presence status of other authenticated application users (online, offline, busy, or away) and provides instant access to interaction options, such as instant messages (IM) and mails.

A single connection to a back-end presence server is required. WebCenter Portal is certified with Microsoft Office Live Communications Server (LCS) 2005, Microsoft Office Communications Server (OCS) 2007, and Microsoft Lync 2010.

Notes:

Oracle Beehive Server connections are not supported in this release.

You can register the presence server connection for your application through the Fusion Middleware Control Console or using WLST. You must mark a connection as active for the service to work. You can register additional presence server connections, but only one connection is active at a time.

16.2 Instant Messaging and Presence Server Prerequisites

This section includes the following subsections:

16.2.1 Microsoft Live Communications Server (LCS) Prerequisites

This section describes the Microsoft Live Communications Server 2005 (LCS) prerequisites as the presence server for the Instant Messaging and Presence service.

This section includes the following subsections:

16.2.1.1 Microsoft LCS - Installation

Refer to the Microsoft Live Communications Server 2005 documentation for installation information.

16.2.1.2 Microsoft LCS - Configuration

To use Microsoft Live Communications Server 2005 as the presence server for the Instant Messaging and Presence service, you must install and configure the Microsoft RTC API v1.3, and you must install the Oracle RTC Web service for Microsoft LCS 2005.

  1. To install the Microsoft RTC API v1.3, download the RTC SDK from Microsoft RTC Client API SDK 1.3, and run the installer. The installer provides the necessary installation components. If you choose the default options, the following two installers are available at C:\Program Files\RTC Client API v1.3 SDK\INSTALLATION:

    • RtcApiSetup.msi

    • RtcSxSPolicies.msi

    Run the RtcApiSetup.msi installer first, then the side-by-side policy switcher installer (RtcSxSPolicies.msi), and restart the system.

  2. To install the Oracle RTC Web service for Microsoft Live Communications Server 2005, extract the owc_lcs.zip file from the Oracle Fusion Middleware companion CD. It is located in the directory /Disk1/WebCenter/services/imp/NT. The zip file contains the following:

    /Bin

    /images

    ApplicationConfigurationService.asmx

    BlafPlus.css

    ExtAppLogin.aspx

    ExtAppLogin.aspx.cs

    Global.asax

    Log4Net.config

    RTCService.asmx

    Web.Config

    WebcenterTemplate.master

  3. Open the Internet Information Services (IIS) Manager.

  4. Expand the server node and then Web Sites in the IIS Manager window.

  5. Right-click Default Web Site, select New, and then select Virtual Directory to create a site for the Oracle RTC Web service, as shown in Figure 16-1. The Virtual Directory Creation Wizard displays.

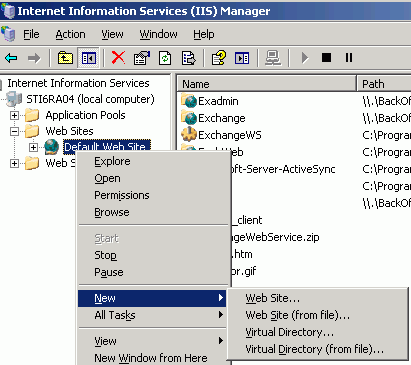

    Figure 16-1 Creating a Virtual Directory

    Creating a virtual directory using IIS

  6. Click Next.

  7. Enter an alias for the virtual directory in the Alias field, for example RTC.

  8. Enter the path to the directory where you extracted the owc_lcs.zip file. Alternatively, use the Browse button to navigate to that directory.

  9. Click Next.

  10. Ensure that the virtual directory has the Read, Execute, and Browse privileges. (Figure 16-2)

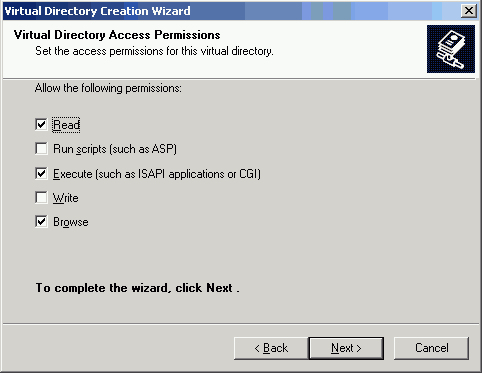

    Figure 16-2 Virtual Directory Properties

    Virtual Directory Properties

  11. Click Next.

  12. Click Finish. The newly created virtual directory appears under Default Web Site in the Internet Information Services (IIS) Manager window (Figure 16-3).

    Figure 16-3 Adding a Virtual Directory

    Adding a Virtual Directory

  13. Right-click the newly created virtual directory for the Oracle RTC Web service, and then select Properties to open the Properties dialog.

  14. In the Virtual Directory tab, under Application settings, click Create. Notice that the button label changes to Remove, and the name of your newly created virtual directory appears in the Application name field.

  15. Select Scripts and Executables from the Execute permissions dropdown list (Figure 16-4).

    Figure 16-4 Virtual Directory Properties

    Virtual Directory Properties

  16. Under the ASP.NET tab, select the ASP.NET version as 2.0 or higher from the ASP.NET version dropdown list. IIS should be configured to consume ASP.NET 2.0 applications.

  17. Click OK.

  18. Ensure that the LSC pool name in the LCS connection has been set.

  19. Test the Web service by accessing the Web site from the following URL format:

    http://localhost/default_website/ApplicationConfigurationService.asmx

    Where default_website refers to the virtual directory that you created for the Oracle RTC Web service.

    For example:

    http://localhost/RTC/ApplicationConfigurationService.asmx

16.2.1.3 Microsoft LCS - Security Considerations

You must configure an external application for Microsoft Live Communications Server connections so that users can supply credentials to authenticate themselves on the LCS server.

With a secured application, users get presence status. With LCS, if security is required, then LCS should be on a private trusted network.

LCS provides an option for changing external credentials, which works as an alternative to using an external application. A logged-in user can click any Presence tag and select Change Credentials from the menu.

For more information, see Section 16.3.1, "Registering Instant Messaging and Presence Servers Using Fusion Middleware Control."

16.2.2 Microsoft Office Communications Server (OCS) Prerequisites

This section describes the Microsoft Office Communications Server 2007 (OCS) prerequisites as the presence server for the Instant Messaging and Presence service.

This section includes the following subsections:

16.2.2.1 Microsoft OCS - Installation

Refer to the Microsoft Office Communications Server 2007 documentation for installation information.

16.2.2.2 Microsoft OCS - Configuration

To use Microsoft OCS 2007 as the presence server for the IMP service, you must deploy WebCenter Portal's Proxy application for Microsoft OCS 2007 in one of two topologies:

16.2.2.2.1 Simple Deployment

In this topology, WebCenter Portal's Proxy application is deployed in the Internet Information Services (IIS) server hosted on the OCS box.

  1. Install Microsoft Unified Communications Managed API (UCMA) 2.0 on the OCS box.

    For detailed information, see Section 16.2.2.2.6, "Installing UCMA v2.0."

  2. Deploy WebCenter Portal's Proxy application on the IIS server. This proxy application provides web services for interacting with the OCS server and sending/receiving information. WebCenter Portal talks to these web services and presents the data.

    For detailed information, see Section 16.2.2.2.7, "Installing WebCenter Portal's Proxy Application."

16.2.2.2.2 Remote Deployment

In this topology, WebCenter Portal's Proxy application is deployed on an IIS server remote to the OCS box. That is, the IIS server and the OCS server are hosted on separate machines.

Because this proxy application is hosted on a remote box, you must set up a trust between the application and the OCS server. This is known as provisioning an application. Provisioning is done through the Application Provisioner utility shipped with Microsoft UCMA v2.0. For more details, see http://msdn.microsoft.com/en-us/library/dd253360%28office.13%29.aspx.

Figure 16-5 provides an overview of the steps (including installing UCMA v2.0) to be performed on different deployment entities.

Figure 16-5 Microsoft OCS Configuration - Remote Deployment

Description of Figure 16-5 follows
Description of "Figure 16-5 Microsoft OCS Configuration - Remote Deployment"

The details of these steps are described in the following sections.

16.2.2.2.3 Building Application Provisioner

This section lists the steps Microsoft provides for provisioning other IIS servers to access OCS.

  1. Install Visual Studio 2008 on any developer box (not necessarily IIS/OCS).

  2. Install UCMA version 2.0 on the same box following the steps in Section 16.2.2.2.6, "Installing UCMA v2.0." The Application Provisioner application comes with the UCMA SDK.

  3. Go to the directory Sample Applications\Collaboration\ApplicationProvisioner under the location where you installed UCMA Core (for example, C:\Program Files\Microsoft Office Communications Server 2007 R2\UCMA SDK 2.0\UCMACore\Sample Applications\Collaboration\ApplicationProvisioner).

  4. The directory contains the Application Provisioner application. Build the application using Visual Studio 2008. This generates the ApplicationProvisioner.exe file.

  5. Copy the executable file to the OCS box.

16.2.2.2.4 Provisioning WebCenter Portal's Proxy Application on OCS Server

  1. Install UCMA v2.0 core libraries on the OCS box. Follow the same steps in Section 16.2.2.2.6, "Installing UCMA v2.0," except that after installing Visual C++ 2008 Redistributable, run OCSCore.msi. This installs the WMI classes required to provision an application.

  2. Run the ApplicationProvisioner.exe file, generated in the previous section. This launches the Application Provisioner dialog.

  3. In the Application Provisioner dialog, enter WebCenterProxyApplication as the name of your application for the Application name, and then click Find or Create.

  4. In the Create Application Pool dialog, select the Office Communications Server pool for your application in the OCS Pool Fqdn list. For Listening port, enter the listening port for your application (for example, 6001). For Application server Fqdn, enter the fully qualified domain name (FQDN) of the computer on which the application is deployed. (This is the IIS box.)

    If the application is deployed on two or more computers, then select the Load balanced application check box, and for Load balancer Fqdn, enter the FQDN of the load balancer.

  5. The application pool now appears in the Application Provisioner dialog. Double-click the server entry. The View Server dialog appears. Note the information shown there; that is, Server FQDN, port, and GRUU.

  6. Create a certificate on the OCS server with the subject name as the Server FQDN noted in the previous step using the Office Communications Server Certificate Wizard. This certificate is used to authorize the requests coming from the IIS server.

  7. After the certificate is created, view the certificate. On the Details tab click Copy to File. This launches the Certificate Export Wizard. Export the certificate with the private key to a file. This creates a .pfx (Personal Information Exchange) file with the certificate name.

16.2.2.2.5 IIS Server Configuration

Because the IIS server hosts WebCenter Portal's Proxy application in the remote deployment scenario, use the information from the previous section to make it a trusted authority.

  1. Install the certificate issued by the OCS server with the private key: Copy the .pfx file generated in step 7 under section "Provisioning WebCenter Portal's Proxy Application on OCS Server" to the IIS box, and double-click it. This launches the Certificate Import wizard. Import the certificate in Personal Folder under LOCAL_MACHINE.

  2. Give permission to IIS_WPG user for reading the certificate. This is required so that the IIS server has appropriate read access on the certificate. This could be done using a utility provided by Microsoft called Windows HTTP Services Certificate Configuration Tool (http://www.microsoft.com/downloads/details.aspx?familyid=c42e27ac-3409-40e9-8667-c748e422833f&displaylang=en). Download the utility and install it. This creates an executable called winhttpcertcfg.exe. Go to the install location and run the following command to grant permission:

    winhttpcertcfg.exe -g -c LOCAL_MACHINE\MY -s "<certificate-name>" -a "IIS_WPG"

  3. Make an entry in C:/WINDOWS/system32/drivers/etc/hosts for the pool name of the OCS server as follows:

    <ip-address-of-ocs-box> <poolname-of-ocs-box>

    For example:

    10.177.252.146 pool01.example.com

  4. Because the IIS server hosts WebCenter Portal's Proxy application, install Microsoft UCMA v2.0 on it.

    For detailed information, see Section 16.2.2.2.6, "Installing UCMA v2.0."

  5. After UCMA is installed, deploy the proxy application on the IIS server. WebCenter Portal's Proxy application provides web services for interacting with OCS server and sending/receiving information. WebCenter Portal talks to these web services and presents the data.

    For detailed information, see Section 16.2.2.2.7, "Installing WebCenter Portal's Proxy Application."

  6. Go to the location where WebCenter Portal's Proxy application was extracted. Open Web.config and edit the appSettings XML node to add the values noted in Step 7 in previous section. Ensure to set value for RemoteDeployment to true.

    For example, the appsettings XML node should look somewhat like this.

    <appSettings>
  <add key="ApplicationName" value="WebCenterProxyApplication"/>
  <add key="RemoteDeployment" value="true"/>
  <add key="ApplicationFQDN" value="iis.server.com"/>
  <add key="ApplicationGRUU" value="sip:iis.server.com@EXAMPLE.COM;gruu;opaque=srvr:WebCenterProxyApplication:7mhSo94PlUK-5Q2bKPLyMAAA"/>
  <add key="ApplicationPort" value="6001"/>
</appSettings>

The trust is established, and WebCenter Portal's Proxy application can talk to OCS.

16.2.2.2.6 Installing UCMA v2.0

Microsoft Unified Communications Managed API v2.0 (UCMA) is an endpoint API that allows advanced developers to build server applications that can interact with the OCS environment.

In a simple deployment, the UCMA is installed on the same box as OCS. In a remote deployment, the OCS core libraries are installed on the OCS box, and the UCMA is installed on the IIS (proxy) box.

  1. Download UCMA v2.0 from the following location:

  2. Go to the directory (where the files from the previous step were extracted) and run vcredist_x86.exe. This installs run-time components of Visual C++ Libraries required for UCMA APIs. Go to directory called Setup and run UcmaRedist.msi. This installs the UCMA 2.0 assemblies in the GAC.

16.2.2.2.7 Installing WebCenter Portal's Proxy Application

  1. Extract owc_ocs2007.zip from the companion CD. This creates a directory named OCSWebServices.

  2. Open the Internet Information Services (IIS) Manager.

  3. Expand the server node and then Web Sites in the Internet Information Services (IIS) Manager.

  4. Right-click Default Web Site, select New, and then select Virtual Directory to create a site for the Oracle RTC Web service. The Virtual Directory Creation Wizard displays. Click Next.

  5. Enter an alias for the virtual directory in the Alias field, for example RTC.

  6. Enter the path to the directory extracted from owc_ocs2007.zip file. If you had extracted the zip file in C:\, then the path supplied should be C:\OCSWebServices. Alternatively, use the Browse button to navigate to that directory. Click Next.

  7. Ensure that the virtual directory has the Read, Execute, and Browse privileges. Click Next.

  8. Click Finish. The newly created virtual directory appears under Default Web Site in the Internet Information Services (IIS) Manager window.

  9. Right-click the newly created virtual directory for the Oracle RTC Web service, and then select Properties to open the Properties dialog.

  10. In the Virtual Directory tab, under Application settings, click Create. Notice that the button label changes to Remove, and the name of your newly created virtual directory appears in the Application name field.

  11. Select Scripts and Executables from the Execute permissions dropdown list.

  12. Under the ASP.NET tab, select the ASP.NET version as 2.0 or higher from the ASP.NET version dropdown list. IIS should be configured to consume ASP.NET 2.0 applications. Click OK.

  13. Test the Web service by accessing the Web site from the following URL format: http://localhost/default_website/OCSWebService.asmx.

    where default_website is the virtual directory you created for the Oracle RTC Web service

    For example:

    http://localhost/RTC/OCSWebService.asmx

16.2.2.3 Microsoft OCS - Security Considerations

You must configure an external application for Microsoft Office Communications Server connections so that users can supply credentials to authenticate themselves on the OCS server.

With a secured application, users get presence status. With OCS, if security is required, then OCS should be on a private trusted network.

OCS provides an option for changing external credentials, which works as an alternative to using an external application. A logged-in user can click any Presence tag and select Change Credentials from the menu.

For more information, see Section 16.3.1, "Registering Instant Messaging and Presence Servers Using Fusion Middleware Control."

16.2.3 Microsoft Lync Prerequisites

This section describes the Microsoft Lync 2010 prerequisites as the presence server for the Instant Messaging and Presence service.

This section includes the following subsections:

16.2.3.1 Microsoft Lync - Installation

Refer to the Microsoft Lync 2010 documentation for installation information.

16.2.3.2 Microsoft Lync - Configuration

Configuration for Microsoft Lync is similar to configuration for Microsoft OCS.

To use Microsoft Lync 2010 as the presence server for the IMP service, you must deploy WebCenter Portal's Proxy application for Microsoft Lync 2010 in one of two topologies:

16.2.3.2.1 Simple Deployment

In this topology, WebCenter Portal's Proxy application is deployed in the Internet Information Services (IIS) server hosted on the Lync box.

  1. Install Microsoft Unified Communications Managed API (UCMA) 2.0 on the Lync box.

    For detailed information, see Section 16.2.3.2.8, "Installing UCMA v2.0."

  2. Deploy WebCenter Portal's Proxy application on the IIS server. This proxy application provides web services for interacting with the Lync server and sending/receiving information. WebCenter Portal talks to these web services and presents the data.

    For detailed information, see Section 16.2.3.2.9, "Installing WebCenter Portal's Proxy Application."

16.2.3.2.2 Remote Deployment

In this topology, WebCenter Portal's Proxy application is deployed on an IIS server remote to the Lync box. That is, the IIS server and the Lync server are hosted on separate machines.

Because this proxy application is hosted on a remote box, you must set up a trust between the application and the Lync server. This is known as provisioning an application. Provisioning is done through the Application Provisioner utility shipped with Microsoft UCMA v2.0.

See Also:

http://msdn.microsoft.com/en-us/library/dd253360%28office.13%29.aspx

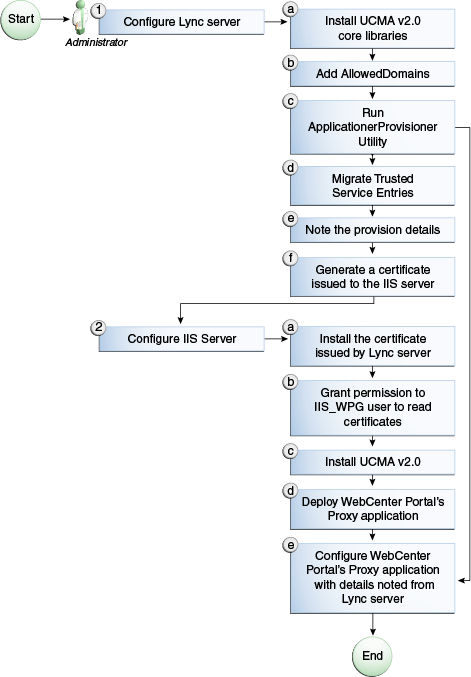

Figure 16-6 provides an overview of the steps (including installing UCMA v2.0) to be performed on different deployment entities.

Figure 16-6 Microsoft Lync Configuration - Remote Deployment

Description of Figure 16-6 follows
Description of "Figure 16-6 Microsoft Lync Configuration - Remote Deployment"

The details of these steps are described in the following sections.

16.2.3.2.3 Building Application Provisioner

This section lists the steps Microsoft provides for provisioning other IIS servers to access Lync.

  1. Install Visual Studio 2008 on any developer box (not necessarily IIS/Lync).

  2. Install UCMA version 2.0 on the same box following the steps in Section 16.2.3.2.8, "Installing UCMA v2.0." The Application Provisioner application comes with the UCMA SDK.

  3. Go to the directory Sample Applications\Collaboration\ApplicationProvisioner under the location where you installed UCMA Core (for example, C:\Program Files\Microsoft Lync 2010 R2\UCMA SDK 2.0\UCMACore\Sample Applications\Collaboration\ApplicationProvisioner).

  4. Open the application in Visual Studio 2008 and edit the Application.cs file as per http://msdn.microsoft.com/en-us/library/gg448038.aspx.

  5. Build the application using Visual Studio 2008. This generates the ApplicationProvisioner.exe file.

  6. Copy the executable file to the Lync box.

16.2.3.2.4 Provisioning WebCenter Portal's Proxy Application on Lync Server

  1. Run the OCSWMIBC.msi file that comes with the Lync setup package.

  2. When a UCMA 2.0 application is deployed directly against Lync Server 2010, the SIP domains used in the Lync Server 2010 environment must be added to the Office Communications Server 2007 R2 SIP domain list before you run the Merge-CsLegacyTopology cmdlet. The application is deployed as if it were being deployed against OCS 2007 R2, then migrated to run against Lync Server 2010. To add the domains, see Section 16.2.3.2.5, "Adding AllowedDomains Using WBemTest."

  3. Run the ApplicationProvisioner.exe file, generated in the previous section. This launches the Application Provisioner dialog.

  4. In the Application Provisioner dialog, enter WebCenterProxyApplication as the name of your application for the Application name, and then click Find or Create.

  5. In the Create Application Pool dialog, select the pool for your application in the Lync Pool Fqdn list. For Listening port, enter the listening port for your application (for example, 6001). For Application server Fqdn, enter the fully qualified domain name (FQDN) of the computer on which the application is deployed. (This is the IIS box.)

    If the application is deployed on two or more computers, then select the Load balanced application check box, and for Load balancer Fqdn, enter the FQDN of the load balancer.

  6. The application pool now appears in the Application Provisioner dialog. Double-click the server entry. The View Server dialog appears. Note the information shown there; that is, Server FQDN, port, and GRUU.

  7. The newly-created trusted entry must be migrated to Lync Server 2010. See Section 16.2.3.2.6, "Migrating Trusted Service Entries Using Topology Builder or PowerShell Cmdlets."

  8. Create a certificate on the Lync server with the subject name as the Server FQDN noted in the previous step using the Lync Certificate Wizard. This certificate is used to authorize the requests coming from the IIS server.

  9. After the certificate is created, view the certificate. On the Details tab click Copy to File. This launches the Certificate Export Wizard. Export the certificate with the private key to a file. This creates a .pfx (Personal Information Exchange) file with the certificate name.

16.2.3.2.5 Adding AllowedDomains Using WBemTest

  1. To start WBemTest.exe, type WBemTest in a command prompt and click the Enter button.

  2. In the Windows Management Instrumentation Tester dialog box, click Connect.

  3. In the Connect dialog box, click Connect.

  4. In the Windows Management Instrumentation Tester dialog box, click Enum Classes.

  5. In the Superclass Info dialog box, click OK.

  6. In the Query Result dialog box, scroll down to MSFT_SIPDomainData(), and double-click this entry.

  7. In the Object editor for MSFT_SIPDomainData dialog box, click Instances. This causes the Query Result dialog box to open, displaying the InstanceIDs for any instances of the MSFT_SIPDomainData WMI class. These entries are the AllowedDomain entries.

  8. To add AllowedDomain entries, click Add.

  9. In the Instance of MSFT_SIPDomainData dialog box, in the Properties listbox, double-click Address.

  10. In the Property Editor dialog box, select the Not NULL radio button.

  11. In the Value text input pane, enter the Lync server domain; for example, contoso.com. Click Save Property.

  12. In the Instance of MSFT_SIPDomainData dialog box, in the Properties listbox, double-click Authoritative. The Authoritative property should not be Null and should be set to False. Click Save Property.

  13. In the Instance of MSFT_SIPDomainData dialog box, in the Properties listbox, double-click Default Domain. The Default Domain property should not be Null and should be set to True. Click Save Property.

  14. In the Instance of MSFT_SIPDomainData dialog box, click Save Object.

16.2.3.2.6 Migrating Trusted Service Entries Using Topology Builder or PowerShell Cmdlets

To migrate trusted service entries using Microsoft Lync Server 2010 Topology Builder:

  1. Launch Microsoft Lync Server 2010, Topology Builder.

  2. After the existing topology is loaded, under Action, select Merge 2007 or 2007 R2 Topology. This launches a wizard.

  3. Go through the wizard, keeping the default options. After the wizard has finished, check that it completed successfully. There should be no errors in the user interface.

  4. Select Publish Topology and complete the wizard, as in the previous step.

To migrate trusted service entries using Microsoft Lync Server 2010 PowerShell Cmdlets:

  1. From the Start menu, in the Microsoft Lync Server 2010 program group, open Lync Server Management Shell.

  2. Run the following PowerShell cmdlet:

    Merge-CsLegacyTopology -TopologyXmlFileName D:\output.xml

  3. Run the following PowerShell cmdlet:

    Publish-CsTopology -FileName D:\output.xml
16.2.3.2.7 IIS Server Configuration

Because the IIS server hosts WebCenter Portal's Proxy application in the remote deployment scenario, use the information from the previous section to make it a trusted authority.

  1. Install the certificate issued by the Lync server with the private key: Copy the .pfx file generated in step 7 under section "Provisioning WebCenter Portal's Proxy Application on Lync Server" to the IIS box, and double-click it. This launches the Certificate Import wizard. Import the certificate in Personal Folder under LOCAL_MACHINE.

  2. Make an entry in C:/WINDOWS/system32/drivers/etc/hosts for the pool name of the Lync server as follows:

    <ip-address-of-lync-box> <poolname-of-lync-box>

    For example:

    10.177.252.146 pool01.example.com

  3. Because the IIS server hosts WebCenter Portal's Proxy application, install Microsoft UCMA v2.0 on it.

    For detailed information, see Section 16.2.3.2.8, "Installing UCMA v2.0."

  4. After UCMA is installed, deploy this proxy application on the IIS server. WebCenter Portal's Proxy application provides web services for interacting with Lync and sending/receiving information. WebCenter Portal talks to these web services and presents the data.

    For detailed information, see Section 16.2.3.2.9, "Installing WebCenter Portal's Proxy Application."

  5. Go to the location where WebCenter Portal's Proxy application was extracted. Open Web.config and edit the appSettings XML node to add the values noted in Step 7 in previous section. Ensure to set value for RemoteDeployment to true.

    For example, the appsettings XML node should look somewhat like this.

    <appSettings>
  <add key="ApplicationName" value="WebCenterProxyApplication"/>
  <add key="RemoteDeployment" value="true"/>
  <add key="ApplicationFQDN" value="iis.server.com"/>
  <add key="ApplicationGRUU" value="sip:iis.server.com@EXAMPLE.COM;gruu;opaque=srvr:WebCenterProxyApplication:7mhSo94PlUK-5Q2bKPLyMAAA"/>
  <add key="ApplicationPort" value="6001"/>
</appSettings>

Note:

If you see the following exception in the log file:

ErrorCode = -2146893039
FailureReason = NoAuthenticatingAuthority
e.Message = "Unable to perform authentication of credentials."
base {Microsoft.Rtc.Signaling.FailureResponseException} = {"Unable to perform authentication of credentials."}
InnerException = {"NegotiateSecurityAssociation failed, error: \-2146893039"}

then add the following entry to Web.config:

<identity impersonate="true" userName="Administrator" password="MyPassword1*"/>

where username is the administrator's user name, and password is the administrator's password.

The trust is established, and WebCenter Portal's Proxy application can talk to the Lync server.

16.2.3.2.8 Installing UCMA v2.0

Microsoft Unified Communications Managed API v2.0 (UCMA) is an endpoint API that allows advanced developers to build server applications that can interact with the Lync environment.

In a simple deployment, the UCMA is installed on the same box as Lync. In a remote deployment, the Lync core libraries are installed on the Lync box, and the UCMA is installed on the IIS (proxy) box.

  1. Download UCMA v2.0 for OCS 2010 R2 installation from the following location: http://www.microsoft.com/downloads/details.aspx?FamilyID=b20967b1-6cf5-4a4b-b7ae-622653ac929f&displaylang=en

    Download and run the UcmaSDKWebDownload.msi file. This extracts set up files to the folder C:\Microsoft Unified Communications Managed API 2.0 SDK Installer package\amd64.

  2. Go to the directory (where the files from the previous step were extracted) and run vcredist_x86.exe. This installs run-time components of Visual C++ Libraries required for UCMA APIs. Go to directory called Setup and run UcmaRedist.msi. This installs the UCMA 2.0 assemblies in the GAC.

16.2.3.2.9 Installing WebCenter Portal's Proxy Application

  1. Extract owc_ocs2007.zip from the companion CD. This creates a directory named OCSWebServices.

  2. Open the Internet Information Services (IIS) Manager.

  3. Expand the server node and then Sites in the IIS Manager.

  4. Right-click Default Web Site, and then select Add Application. The Add Application wizard displays.

  5. Enter an alias for the virtual directory in the Alias field, for example RTC.

  6. Enter the path to the directory extracted from the owc_ocs2007.zip file. For example, if you extracted the zip file in C:\, then enter C:\OCSWebServices. Alternatively, use the Browse button to navigate to that directory. Click OK.

  7. Right-click the newly created application and select Edit Permissions to open the Properties dialog.

  8. In the Security tab, edit permissions to grant user Everyone read permission.

  9. Test the Web service by accessing the Web site from the following URL format: http://localhost/default_website/OCSWebService.asmx.

    where default_website is the virtual directory you created for the Oracle RTC Web service.

    For example:

    http://localhost/RTC/OCSWebService.asmx

16.2.3.3 Microsoft Lync - Security Considerations

You must configure an external application for Microsoft Lync connections so that users can supply credentials to authenticate themselves on the Lync server.

With a secured application, users get presence status. With Lync, if security is required, then Lync should be on a private trusted network.

Lync provides an option for changing external credentials, which works as an alternative to using an external application. A logged-in user can click any Presence tag and select Change Credentials from the menu.

For more information, see Section 16.3.1, "Registering Instant Messaging and Presence Servers Using Fusion Middleware Control."

16.3 Registering Instant Messaging and Presence Servers

You can register multiple presence server connections with a WebCenter Portal application, but only one of them is active at a time.

To start using the new (active) presence server you must restart the managed server on which the WebCenter Portal application is deployed.

This section includes the following subsections:

16.3.1 Registering Instant Messaging and Presence Servers Using Fusion Middleware Control

To register a presence server connection:

  1. Log in to Fusion Middleware Control and navigate to the home page for the WebCenter Portal application. For more information, see:

  2. Do one of the following:

    • For the Spaces application - From the WebCenter Portal menu, select Settings > Service Configuration.

    • For Framework applications - From the Application Deployment menu, select WebCenter Portal > Service Configuration.

  3. From the list of services on the WebCenter Portal Service Configuration page, select Instant Messaging and Presence.

  4. To connect to a new presence server, click Add (Figure 16-7).

    Figure 16-7 Configuring Instant Messaging and Presence Services

    Configuring Instant Messaging and Presence Services

  5. Enter a unique name for this connection, specify the presence server type, and indicate whether this connection is the active (or default) connection for the application (Table 16-1).

    Table 16-1 Instant Messaging and Presence Connection - Name

    Field Description

    Name

    Enter a unique name for the connection. The name must be unique (across all connection types) within the WebCenter Portal application.

    Connection Type

    Specify the type of presence server:

    • Microsoft Live Communications Server (LCS)

    • Microsoft Office Communications Server 2007 (OCS)

    Out-of-the-box, WebCenter Portal supports Microsoft LCS, OCS, and Lync.

    Note: Microsoft Lync connections use the Microsoft Office Communications Server 2010 connection type. (Oracle Beehive Server connections are not supported in this release.)

    Active Connection

    Select to use this connection in the WebCenter Portal application for instant messaging and presence services.

    While you can register multiple presence server connections for an application, only one connection is used by the IMP service—the default (or active) connection.

  6. Enter connection details for the server hosting instant messaging and presence services (Table 16-2).

    Table 16-2 Instant Messaging and Presence Connection - Connection Details

    Field Description

    Server URL

    Enter the URL of the server hosting instant messaging and presence services.

    For example: http://myocshost.com:8888

    User Domain

    (OCS/Lync Only) Enter the name of the Active Directory domain (on the Microsoft Office Communications Server) that is associated with this connection. The user domain is mandatory for OCS/Lync connections.

    Refer to Microsoft documentation for details on the user domain.

    Pool Name

    Enter the name of the pool that is associated with this connection. The pool name is mandatory.

    Refer to Microsoft documentation for details on the pool name.

    Associated External Application

    Associate the instant messaging and presence server with an external application. External application credential information is used to authenticate users against the instant messaging and presence server.

    An external application is mandatory.

    You can select an existing external application from the list, or click Create New to configure a new external application.

    The external application you configure for the Instant Messaging and Presence service must use the POST authentication method, and specify an additional field named Account (Name property) that is configured to Display to User (checked). For more information, see Chapter 26, "Managing External Applications."

    Connection Timeout (in seconds)

    Specify a suitable timeout for the connection.

    This is the length of time (in seconds) the WebCenter Portal application waits for a response from the presence server before issuing a connection timeout message.

    The default is -1 which means that the service default is used. The service default is 10 seconds.

  7. Sometimes, additional parameters are required to connect to the presence server.

    If additional parameters are required to connect to the presence server, expand Additional Properties and enter details as required (Table 16-3).

    Table 16-3 Instant Messaging and Presence Connection - Additional Properties

    Field Description

    Add

    Click Add to specify an additional connection parameter:

    • Name -Enter the name of the connection property.

    • Value - Enter the default value for the property.

    • Is Property Secured - Indicate whether encryption is required. When selected, the property value is stored securely using encryption.

      For example, select this option to secure the admin.password property where the value is the actual password.

    Delete

    Click Delete to remove a selected property.

    Select the correct row before clicking Delete.

    Note: Deleted rows appear disabled until you click OK.

  8. Click OK to save this connection.

  9. To start using the new (active) connection you must restart the managed server on which the WebCenter Portal application is deployed. For more information, see Section 8.2, "Starting and Stopping Managed Servers for WebCenter Portal Application Deployments."

16.3.2 Registering Instant Messaging and Presence Servers Using WLST

Use the WLST command createIMPConnection to create a presence server connection. For command syntax and examples, see the section, "createIMPConnection" in Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

For information on how to run WLST commands, see Section 1.13.3.1, "Running Oracle WebLogic Scripting Tool (WLST) Commands."

To configure the Instant Messaging and Presence service to actively use a new IMP connection, set default=true. For more information, see Section 16.4.2, "Choosing the Active Connection for Instant Messaging and Presence Using WLST."

Note:

To start using the new (active) connection you must restart the managed server on which the WebCenter Portal application is deployed. For more information, see the section, "Starting and Stopping WebLogic Managed Servers Using the Command Line" in Oracle Fusion Middleware Administrator's Guide.

16.4 Choosing the Active Connection for Instant Messaging and Presence

You can register multiple instant messaging and presence server connections with a WebCenter Portal application, but only one connection is active at a time. The active connection becomes the back-end presence server for the application.

This section includes the following subsections:

16.4.1 Choosing the Active Connection for Instant Messaging and Presence Using Fusion Middleware Control

To change the active connection:

  1. Log in to Fusion Middleware Control and navigate to the home page for the WebCenter Portal application. For more information, see:

  2. Do one of the following:

    • For the Spaces application - From the WebCenter Portal menu, select Settings > Service Configuration.

    • For Framework applications - From the Application Deployment menu, select WebCenter Portal > Service Configuration.

  3. From the list of services on the WebCenter Portal Services Configuration page, select Instant Messaging and Presence.

    The Manage Instant Messaging and Presence Connections table indicates the current active connection (if any).

  4. Select the connection you want to make the active (or default) connection, and then click Edit.

  5. Select the Active Connection check box.

  6. Click OK to update the connection.

  7. To start using the new (active) connection you must restart the managed server on which the WebCenter Portal application is deployed. See Section 8.2, "Starting and Stopping Managed Servers for WebCenter Portal Application Deployments."

16.4.2 Choosing the Active Connection for Instant Messaging and Presence Using WLST

Use the WLST command setIMPConnection with default=true to activate an existing presence server connection. For command syntax and examples, see the section, "setIMPConnection" in Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

To disable a presence server connection, either delete it, make another connection the 'active connection' or use the removeIMPServiceProperty command:

removeIMPServiceProperty('appName='webcenter', property='selected.connection')

Using this command, connection details are retained but the connection is no longer named as an active connection. For more information, see the section, "removeIMPServiceProperty" in Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

For information on how to run WLST commands, see Section 1.13.3.1, "Running Oracle WebLogic Scripting Tool (WLST) Commands."

Note:

To start using this active connection you must restart the managed server on which the WebCenter Portal application is deployed. For more information, see the section, "Starting and Stopping WebLogic Managed Servers Using the Command Line" in Oracle Fusion Middleware Administrator's Guide.

16.5 Modifying Instant Messaging and Presence Connection Details

You can modify instant messaging and presence server connection details at any time.

To start using an updated (active) connection you must restart the managed server on which the WebCenter Portal application is deployed.

This section includes the following subsections:

16.5.1 Modifying Instant Messaging and Presence Connections Details Using Fusion Middleware Control

To update connection details for an instant messaging and presence server:

  1. Log in to Fusion Middleware Control and navigate to the home page for the WebCenter Portal application. For more information, see:

  2. Do one of the following:

    • For the Spaces application - From the WebCenter Portal menu, select Settings > Service Configuration.

    • For Framework applications - From the Application Deployment menu, select WebCenter Portal > Service Configuration.

  3. From the list of services on the WebCenter Portal Service Configuration page, select Instant Messaging and Presence.

  4. Select the connection name, and click Edit.

  5. Edit connection details, as required. For detailed parameter information, see Table 16-2, "Instant Messaging and Presence Connection - Connection Details".

  6. Click OK to save your changes.

  7. To start using the updated (active) connection you must restart the managed server on which the WebCenter Portal application is deployed. For more information, see Section 8.2, "Starting and Stopping Managed Servers for WebCenter Portal Application Deployments."

16.5.2 Modifying Instant Messaging and Presence Connections Details Using WLST

Use the WLST command setIMPConnection to edit presence server connection details. For command syntax and examples, see the section, "setIMPConnection" in Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

If additional parameters are required to connect to your presence server, then use the setIMPConnectionProperty command. For more information, see the section, "setIMPConnectionProperty" in Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

For information on how to run WLST commands, see Section 1.13.3.1, "Running Oracle WebLogic Scripting Tool (WLST) Commands."

Note:

To start using the updated (active) connection you must restart the managed server on which the WebCenter Portal application is deployed. For more information, see the section, "Starting and Stopping WebLogic Managed Servers Using the Command Line" in Oracle Fusion Middleware Administrator's Guide.

16.6 Deleting Instant Messaging and Presence Connections

You can delete instant messaging and presence connections at any time but take care when deleting the active connection. When you delete the active connection, user presence options are not available, as these require a back-end instant messaging and presence server.

When you delete a connection, consider deleting the external application associated with the instant messaging and presence service if the application's sole purpose was to support this service. For more information, see Section 26.5, "Deleting External Application Connections."

This section includes the following subsections:

16.6.1 Deleting Instant Messaging and Presence Connections Using Fusion Middleware Control

To delete an instant messaging and presence server connection:

  1. Log in to Fusion Middleware Control and navigate to the home page for the WebCenter Portal application. For more information, see:

  2. Do one of the following:

    • For the Spaces application - From the WebCenter Portal menu, select Settings > Service Configuration.

    • For Framework applications - From the Application Deployment menu, select WebCenter Portal > Service Configuration.

  3. From the list of services on the WebCenter Portal Service Configuration page, select Instant Messaging and Presence.

  4. Select the connection name, and click Delete.

  5. To effect this change you must restart the managed server on which the WebCenter Portal application is deployed. For more information, see Section 8.2, "Starting and Stopping Managed Servers for WebCenter Portal Application Deployments."

    Note:

    Before restarting the managed server, mark another connection as active; otherwise, the service is disabled.

16.6.2 Deleting Instant Messaging and Presence Connections Using WLST

Use the WLST command deleteConnection to remove a presence server connection. For command syntax and examples, see the section, "deleteConnection" in Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

For information on how to run WLST commands, see Section 1.13.3.1, "Running Oracle WebLogic Scripting Tool (WLST) Commands."

16.7 Setting Up Instant Messaging and Presence Service Defaults

Use the WLST command setIMPServiceProperty to set defaults for the IMP service:

  • selected.connection: Connection used by the Instant Messaging and Presence service.

  • rtc.cache.time: Cache timeout for instant messaging and presence data.

  • resolve.display.name.from.user.profile: Determines what to display if user display names are missing. When set to 0, and display name information is unavailable, only the user name displays in the application. When set to 1, and display name information is unavailable, display names are read from user profile data. Setting this option to 1 impacts performance. The default setting is 0.

    Display names are not mandatory in presence data. If the WebCenter Portal application does not always provide display names by default and you consider this information important, set resolve.display.name.from.user.profile to 1 so that display names always display.

  • im.address.resolver.class: Resolver implementation used to map user names to IM addresses and IM addresses to user names. The default setting is oracle.webcenter.collab.rtc.IMPAddressResolverImpl. This implementation looks for IM addresses in the following places and order:

    • User Preferences

    • User Credentials

    • User Profiles

  • im.address.profile.attribute: User profile attribute used to determine a user's IM address. The default setting is BUSINESS_EMAIL. Users can change this default with im.address.profile.attribute.

For command syntax and detailed examples, see the section, "setIMPServiceProperty" in Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

For information on how to run WLST commands, see Section 1.13.3.1, "Running Oracle WebLogic Scripting Tool (WLST) Commands."

16.8 Testing Instant Messaging and Presence Connections

Web services expose a set of Web methods that you can invoke to test the validity. To verify a connection, try accessing the endpoint for the WebCenter Portal RTC Web services deployed on it. For example (assuming the application context path is /RTC):

  • protocol://host/RTC/ApplicationConfigurationService.asmx

  • protocol://host/RTC/RTCService.asmx

  • protocol://host/RTC/OCSWebService.asmx
