Configuring SNMP in the STA Application : Configuration Process : ▼ Verify the Library is Operational

▼

Verify the Library is Operational

Use this procedure to verify that a library is fully initialized and operational. You should use this procedure before performing either of the following procedures:

•
“Test the SNMP Connection to the Library”
•
“Get the Latest Configuration Data From the Library”

If the library is not fully initialized, then these procedures can be initiated but will likely fail because of the current library state.

Note – For SL500, SL3000, and SL8500 libraries, you perform this procedure from a PC or workstation on which either the Standalone SL Console or the Web‑based SL Console has been installed. For SL150 libraries, you use the browser-based user interface. See “Log In to the Library” for details.

▼

SL500 Libraries
1.
Log in to the library with the SL Console.
2.

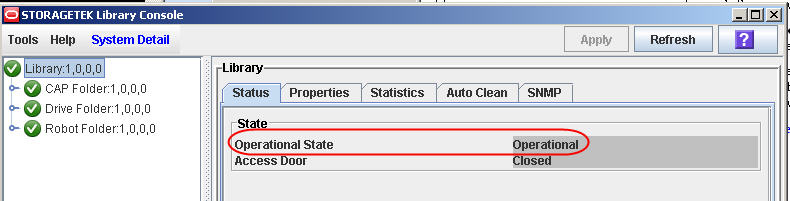

Select System Detail > Library > Status.
3.
Verify that the library state indicates “Operational”.

4.
Proceed to “Test the SNMP Connection to the Library”.

▼

SL3000 and SL8500 Libraries
1.
Log in to the library with the SL Console.
2.
Select System Detail > Library > Status > General.
3.
Verify that the Device State indicates “Ready”.

4.
Proceed to “Test the SNMP Connection to the Library”.

▼

SL150 Libraries
1.
Log in to the browser-based user interface.
2.
Verify that Health indicates “Operational”.
