StorageTek Tape Analytics Administration Reference Guide, Version 1.0.2
E28379-03
Table of Contents Previous Next Index


Logging : Collecting RDA Information With the User Interface : ▼ Take an RDA Snapshot

▼

Take an RDA Snapshot

To create a new log snapshot:

1.
Click the Create New Log Bundle icon located in the toolbar.

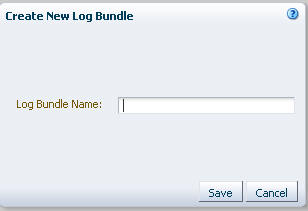

The Create New Log Bundle screen is displayed.
2.
Enter a snapshot name in the Log Bundle Name field.

Log name requirements are:

•
Up to 210 characters long
•
Illegal special characters are: . : $ / \ ____ (four consecutive underscores)

Any name beginning with the following uppercase characters is invalid:

•
COM
•
LPT
•
PRN
•
CON
•
AUX
•
NUL
3.
Click Save to produce a new RDA log, or click Cancel to exit.

You can check the progress of the log run by selecting the bundle row and then clicking the Refresh Table icon located in the toolbar. See “Monitor the Progress of the Snapshot”.

After the RDA log bundle has completed, you can also display textual output of the RDA run by clicking the Log Bundle Run Info icon located in the toolbar. See “Delete a Log Snapshot”.
