Area Charts

Area charts are used to compare percentage values for two or more resources over a period of time. An area chart is similar to a line graph, but in addition, the area under the line is filled in with a color or pattern. Each line represents a resource (drive or media) or other category of data, and the size of the area under the line represents the resource’s percentage of the total. Time is always displayed on the horizontal axis. Each point on the line represents an actual data value at a point in time.

Note – The default date range for most STA area charts (libraries, complexes, drives, and media) is the last 30 days. For exchanges, the default is one day—the current date.

User Action	Description

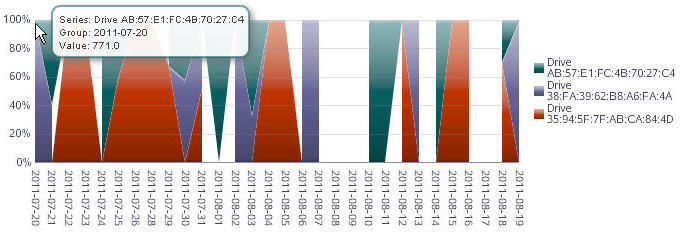

Display detailed values	Move the mouse over a point in time on a line to display the specific value in a tooltip. Other sections on the graph are dimmed.

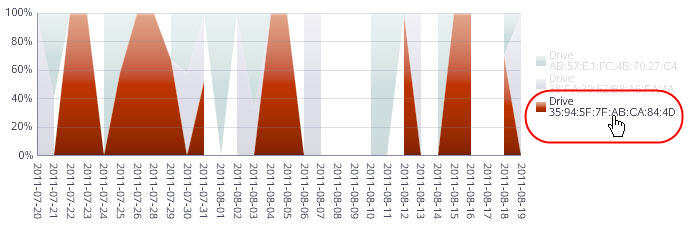

Highlight values	Move the mouse over an area of the legend to highlight that section on the graph. All other sections remain on the graph but are dimmed.
