Graph Displays : Types of Graphs : Bar Charts

Bar Charts

Bar charts are used to display actual values for one or more resources at a point in time. Each bar represents a resource (drive or media) or other category of data, and the size of the bar represents the resource’s actual value.

Action

Description

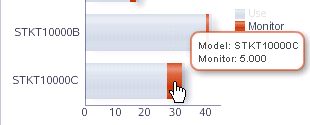

Display detailed values

Move the mouse over a bar to display the specific value in a tooltip. Other bars on the graph are dimmed.

Link to a detail screen

Note – This action is available from the Dashboard only.

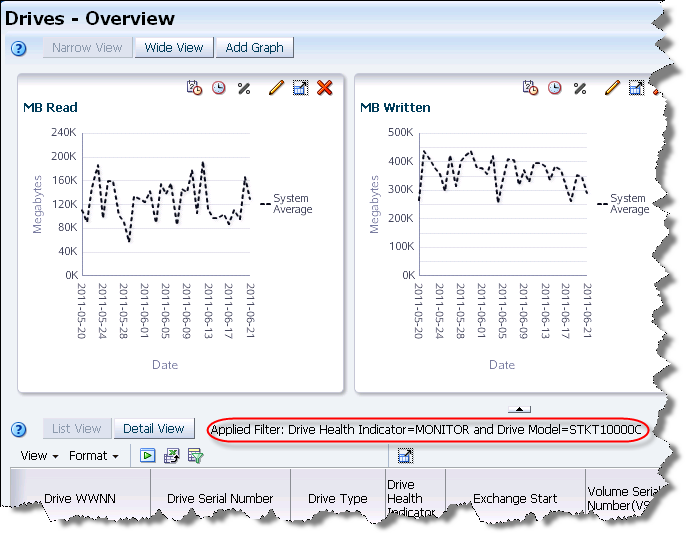

Click an area of the bar to link to the detail screen for that resource type; in this example, the link is to the Drives – Overview screen. The List View table on the screen indicates that a filter has been applied:

Highlight values

Move the mouse over an area of the legend to highlight that entry in the graph. All other entries remain on the graph but are dimmed.

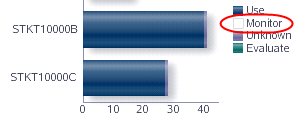

Hide values

Clear a legend key to remove that bar from the graph. In this example, the “Monitor” key on the legend is empty to indicate that the bar is hidden on the graph.

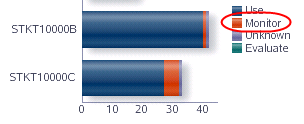

Restore hidden values

Select an empty legend key (“Monitor”, in this example) to restore the bar to the graph.
