Add Library Resources to Graphs

Note – This procedure applies to Overview screens only.

Use this procedure to add selected library resources—such as libraries, drives, media, etc.—to all graph panes on the screen. In the default view, graphs display only the system average for the graphed attribute.

1.

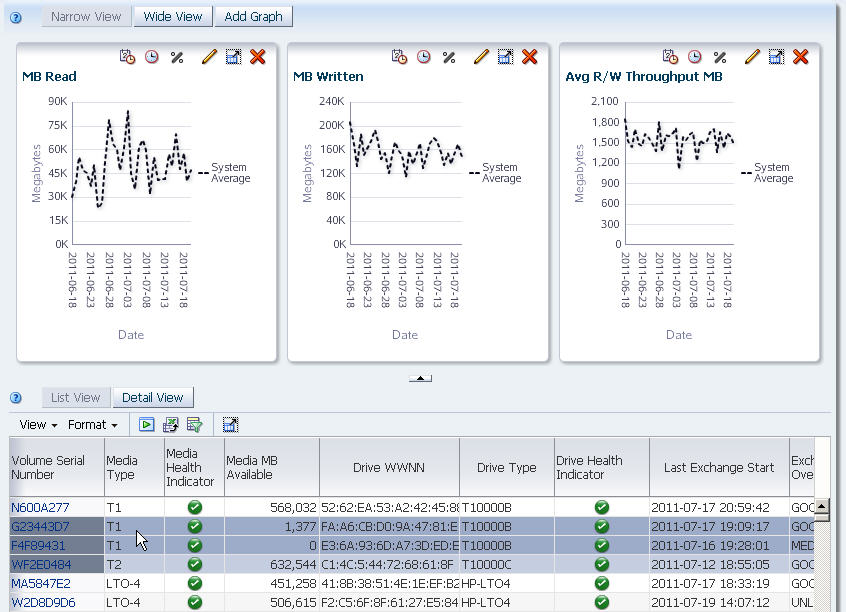

In the List View table, select one or more resources.

Note – You can use multi-select to select more than one resource; see “Multi-select” for details.

2.

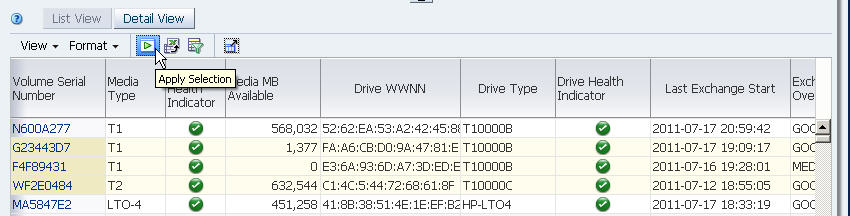

Click the Apply Selection icon on the List View Toolbar.

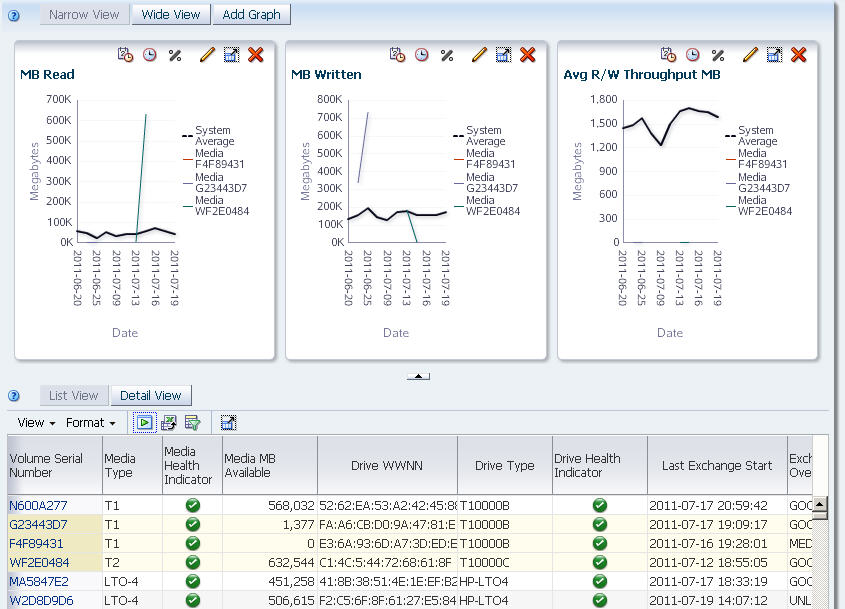

The selected resources are added to all graph panes on the screen.

Note – Depending on the data values for the selected resources, the scale of one or more graph panes may change. The scales of the horizontal and vertical axes automatically adjust to show a useful amount of detail for the selected resources.

3.
You can change the selected resources, as follows:
•
To remove these resources and add different ones, repeat Step 1 and Step 2, this time selecting different resources.
•
To remove all resources from the graphs and display just the System Average, deselect all the selected resources in the table and click the Apply Selection icon again.
