Move a Column

Use this procedure to reorder columns in a table.

Note – The column on the far-left is fixed and therefore cannot be moved. When you move the mouse over the header of this column, the cursor changes to the Select fixed column cursor.

By mouse

1.
Click in the heading of the column you want to move.

The entire column is highlighted, indicating it has been selected.

2.

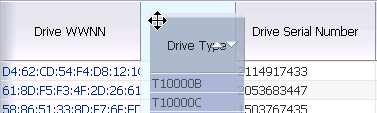

Click and drag the column heading; the cursor changes to the Move object cursor.

3.
Once the column is close to the position you want, release the cursor.

The column snaps into place. You do not need to position it exactly.

By menu

1.
In the Table Toolbar, select View > Reorder Columns.

The Reorder Columns dialog box appears. All revealed, moveable columns are listed in their current order on the screen. Fixed and hidden columns are not listed.

2.
In the list, select the columns you want to move. This dialog box supports Multi-select.

3.
Click one of the arrows on the right side of the screen to move the items.

  or

Move the selected item(s) up or down, one place at a time.

  or

Move the selected item(s) to the top or bottom of the list.

Moving items up the list causes the columns to be moved to the left in the table display; moving them down the list causes the columns to be moved to the right.

4.
Repeat this process until the Visible Columns list is arranged the way you want, and then click OK.

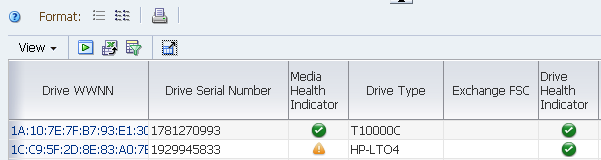

The columns are reordered according to your selections.
