Change the Width of a Column

Use this procedure to adjust the width of a table column.

By mouse

1.

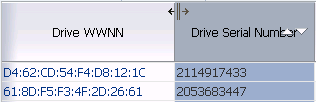

Move the mouse over the right-hand border of the column heading until the Resize column cursor appears.

Note – Columns are resized from the right side only.

Note – You cannot resize a column from the data rows area.

Note – In this example, the Drive WWNN column will be resized, and the width of the Drive Serial Number column will not change.

2.
Click and drag the border, as follows:
•
To make the column narrower, drag to the left.
•
To make the column wider, drag to the right.

A dotted vertical line appears to indicate the pending width. You can move the border back and forth as much as you want until you get the right width.

3.
When the column is the width you want, release the cursor.

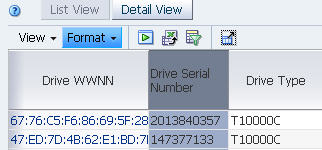

The column is resized. All other columns retain their original widths.

By menu

1.
Right‑click the heading of the column you want to resize, and select Resize Columns.

The Resize Column dialog box appears, displaying the current width of the column.

2.
Complete the dialog box in either absolute or relative units.
•
For absolute units, do the following:
i.
In the menu, select Pixels.
ii.
In the Width field, enter the number of pixels for the new width.

Note – You can also use the spinbox up‑arrow and down-arrow to increase or decrease the value in the Width field.

•
For relative units, do the following:
i.
In the menu, select Percent.
ii.
In the Width field, enter the percent change you want to make to the current column width.

Note – You can also use the spinbox up- and down-arrows to increase or decrease the value in the Width field.

This percentage will be multiplied by the current width to calculate the new width. For example: an entry of 200 doubles the current width; an entry of 25 reduces the current width to one-quarter of what it is now.

3.
Verify the settings are the way you want, and then click OK.

The column is resized. All other columns retain their original widths.
