STA Reference Guide, v1.0.2
E28382-03
Table of Contents Previous Next Index


Managing Library SNMP Connections : SNMP Connection Management Tasks : ▼ Change SNMP Settings for the STA Client

▼

Change SNMP Settings for the STA Client

Use this procedure to modify existing connection settings for STA, which in the SNMP model is the client or network management system (NMS). You can modify any of the following settings:

•
For SNMP v3 connections:
•
User name
•
Connection authorization password
•
Privacy password
•
For SNMP v2c connections:
•
User community name
•
Trap recipient name

Caution – These settings are also defined on each monitored library, and for the SNMP connection to be successful, the values specified in this procedure must match the ones on the library. See “Configuring the Libraries for STA” in the STA Configuration Guide for instructions on modifying these settings on the library.

Caution – After performing this procedure, you must test connections for all monitored libraries. Failure to do so could result in dropped library connections and lost SNMP traps. See “Test a Library SNMP Connection” for details.

1.
In the Navigation Bar, select Settings > SNMP Connections.

2.

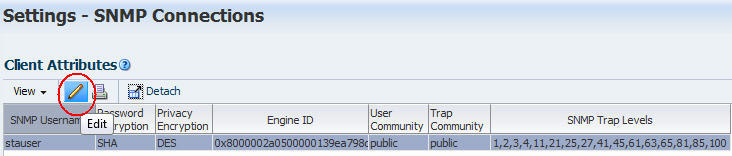

In the Client Attributes table, select the table row, and then click Edit.

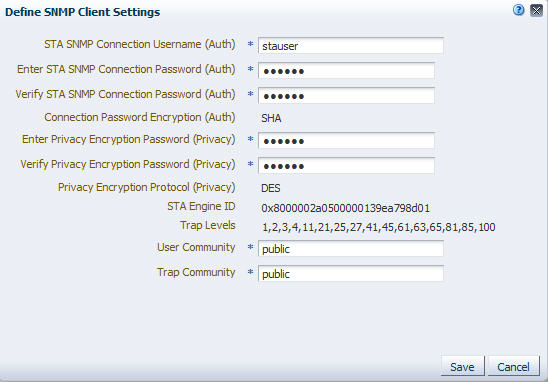

The Define SNMP Client Settings dialog box appears.

3.
Enter the changes you want to make, and click Save.

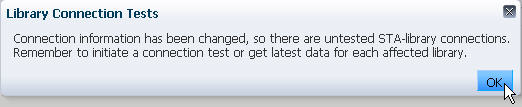

An information message appears, reminding you that a library connection test is required whenever you add or modify library connections.

4.
Click OK to dismiss the dialog box.

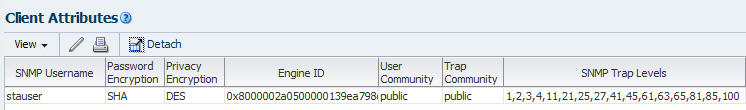

The Client Attributes table is updated with your changes.

5.
Proceed to “Test a Library SNMP Connection” to re-establish the SNMP handshake with each monitored library.
