Managing Library SNMP Connections : SNMP Connection Management Tasks : ▼ Test a Library SNMP Connection

▼

Test a Library SNMP Connection

Use this procedure to re-establish the SNMP handshake and test the connection between STA and a selected library. You can test only one library connection at a time.

See “When to Perform Connection Tests” for recommendations on when you should use this procedure.

1.
In the STA Navigation Bar, select Settings > SNMP Connections.

2.

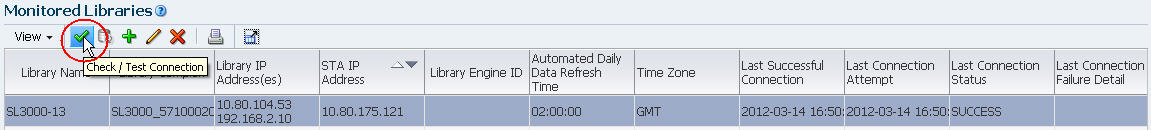

In the Monitored Libraries table, select the library you want to test, and then click Check/Test Connection.

The test is initiated immediately. Depending on the results, one of the following messages appears:

•
If the test is successful, an information message appears.

•
If the test is not successful, an error message appears.

3.
Click OK to dismiss the message.

The connection status fields in the Monitored Libraries table are updated with information about the test. See “Library Connection Status Information” for details.

•

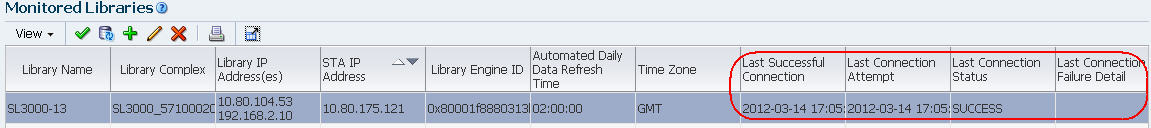

Example from a successful test.

•

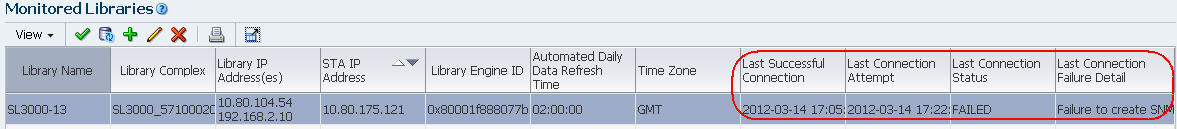

Example from an unsuccessful test.
