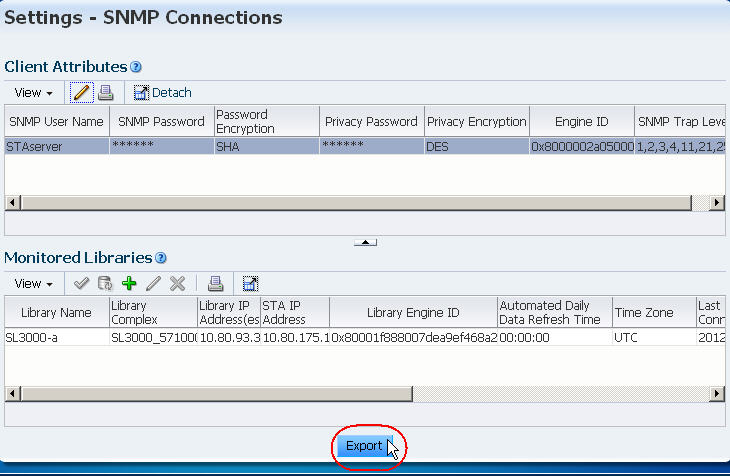

Use this procedure to export all the information that appears on the Settings – SNMP Connections screen to a text file. This file serves as a useful record in case you ever need to troubleshoot connection issues or re-enter connection information at some time.

Note – Passwords are not included in the file; they are masked with asterisks (*).

The file is downloaded to your computer according to your browser settings. See your browser documentation for details. The file will be saved as a text file with the name SnmpConfiguration.

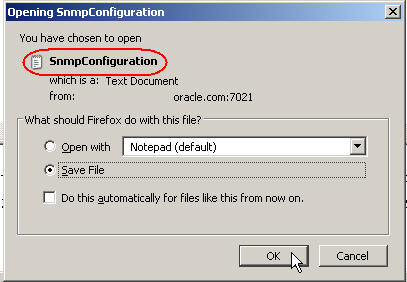

Following is an example of a dialog box from a Windows computer.

Following is a sample file.

Define SNMP Client Settings
---------------------------

Client Attributes
-----------------

STA Engine ID = 0x8000002a0500000139ea798d01
STA SNMP Connection Username (Auth) = stauser
STA SNMP Connection User Password (Auth) = ************
Connection Password Encryption (Auth) = SHA
Privacy Encryption Password (Privacy) = ************
Privacy Encryption Protocol (Privacy) = DES
TrapCommunity = public
UserCommunity = public
SNMP Trap Levels = 1,2,3,4,11,21,25,27,41,45,61,63,65,81,85,100
V2C Fallback = 0
V2cFallbackStr = No

Monitored Libraries
-------------------

STA IP Address = 10.80.175.1
Library Name = SL3000-a
Library Complex Name = SL3000_571000200073
Library Primiary IP = 10.80.93.3
Library  Secondary IP = Not Specified
Library Engine ID = 0x80001f888007dea9ef468a20303332
Request MIB Walk Time = 00:00:00
Library Serial Number = 571000200073
Time Zone = UTC
Last Connection Status = SUCCESS
Last Connection Failure Detail = Not Specified
Last Connection Attempt = 2012-09-30 18:33:01
Last Successful Connection = 2012-09-30 18:36:21
