1 Getting Started

Oracle Retail Assortment and Space Optimization (ASO) is used to determine the optimal selection and arrangement of products within stores by optimizing the product assortment and product placement on a virtual planogram. ASO uses information about available space, product dimensions, expected demand, replenishment schedules, merchandising rules, fixture space, and category goals in order to create a virtual planogram that optimizes total performance. The products and product assortments that are selected for the virtual planograms are the ones that ASO recommends for the finalized assortment. The recommended product level data is used inside Category Management, while the virtual planograms created in ASO are also then available to be used in space planning.

ASO supports real-time data integration with Category Management via the RPAS Hybrid Storage Architecture (HSA).

ASO supports the following fixture types:

Optimizations are run at either the Store level or at the Space Cluster level. Space Clusters are ad hoc groups of stores used for optimization. Each space cluster includes stores that are in the same assortment, have the same product list, and have the same current planogram length (or same POG length, height, and depth, if selected). Space clusters are typically a level between assortment cluster and store. ASO creates these groups by splitting stores from an assortment cluster into smaller groups of stores that have the same product list and the same current planogram length.

At a high level, ASO starts with an assortment that is ready for optimization. The assortment is mapped to one or more planograms and one or more optimization runs occur. Approved runs are then available for assortment analysis and can then be finalized and exported.

Installing and Configuring ASO

For information about the installation, configuration, and implementation of ASO, see Oracle Retail Advanced Science Engine Installation Guide and Oracle Retail Advanced Science Engine Implementation Guide.

Users and Roles

The following four user login roles are available:

  • Micro Space Optimization Analyst – main business user responsible for day-to-day micro-space optimization activities

  • Category Manager – product-assortment-centric user who is interested in viewing ASO results and in the translation of data between Category Management, Retail Analytics, and ASO

  • Administrator – responsible for general system setup and configuration tasks related to the business

  • Analytical Super User – responsible for analytical configuration, testing, and model diagnosis

Table 1-1 User Roles and Permissions

Privilege Data Access Micro ASO Analyst Category Manager Administrator Analytical Super User

Create new ASO run

All runs

X



X

Modify existing ASO run

Runs they created

X



X

Modify the name and description of an existing ASO run.

Runs they created





View existing ASO run

All runs

X

X

X

X

Submit or re-submit ASO run

Runs they created

X



X

Runs they created with technical failures





All runs with technical failures

X


X


Approve ASO runs

Runs they created





Delete saved ASO runs

Runs they created





All runs





View list of saved ASO runs

All runs





View mapping of products to POG sets

All assortments





Modify mapping of products to POG sets

All assortments





Toggle assortment status between Ready for ASO and POG Mapping Needs Review

All assortments





View rules for mapping products in POG sets

All assortments





Modify rules for mapping products to POG sets

All assortments





Analyze space-optimized assortments

All assortments





Finalize and export space-optimized assortments

All assortments





Roll back finalized and exported space-optimized assortments

All assortments





View list of space-optimized assortments

All assortments






Table 1-2 User Constraints

Role
Privilege
Object Status

Users

Cannot

Modify existing ASO run

When

Run is

Running, approved, or finalized

Users

Cannot

Submit or resubmit ASO runs

When

Run is

Running, approved, or finalized

Users

Cannot

Approve ASO runs

Unless

Run is

Complete

Users

Cannot

Delete saved ASO runs

When

Run is

Running, approved, or finalized

Administrator

Cannot

Delete saved ASO runs

When

Run is

Finalized

Users

Cannot

Modify mapping of products in POG sets

Unless

Assortment is

With status of POG Mapping Needs Review

Users

Cannot

Toggle assortment status between Ready for ASO and POG Mapping Needs Review

When

Assortment is

With status of POG Mapping Needs Review and also has mappings with errors (both conditions must be true)

Users

Cannot

Modify rules for mapping products to POG sets

When

Assortment is

Finalized or exported


Logging In

Once ASO is installed, you can access the application using the following URL:http://<SERVER>:<PORT>/so/faces/oracle/retail/rse/so/fe/view/page/SpaceOptimizationHome.jspx

To access the application standalone, use the following:

http://<SERVER>:<PORT>/so

Overview of the User Interface

The ASO user interface, at a high level, consists of

  • Task pane. Located on the left side of the application. Use this to navigate between the four main tabs.

  • The four tabs that you use to do the application work: Optimization List (described in Chapter 3, "Optimization List"), Assortment List (described in Chapter 2, "Assortment List"), Execute Space Optimization (described in Chapter 4, "Execute Space Optimization"), and Assortment Mapping (described in Chapter 5, "Assortment Mapping").

  • Contextual information. Located on the right side of the application. Use the various tabs to set up runs and to view graphical and tabular data that can help you as you interpret the optimization results. In addition, the tools can be used during the run setup to provide additional information about data involved in the run setup.

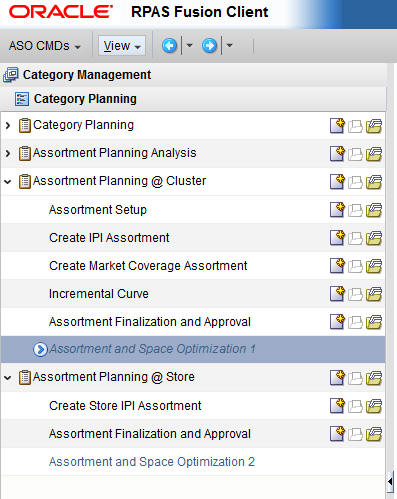

Figure 1-1 ASO User Interface

Surrounding text describes Figure 1-1 .

Figure 1-2 shows the command menu to access the four ASO tabs.

Figure 1-2 ASO Command Menu

Surrounding text describes Figure 1-2 .

Icons

The following icons are used in ASO. Certain icons have slightly different definitions, depending on the context.

Table 1-3 Icons

Icon Icon Description

add icon


Add. Add row.

compare to history icon


Compare to history.

copy a run icon


Copy a run. Add a planogram. On the Assortment Mappings screen, it is used to create a "like" planogram.

create a run icon


Create. Create a run.

detach icon


Detach.

delete icon


Delete. Delete a run. Delete planogram.

edit icon


Edit. Change status.

help icon


Embedded help.

export icon


Export to Excel. Export all.

freeze icon


Freeze.

go to top icon


Go to top.

go up icon


Go up.

move all icon


Move all items to other list.

move one icon


Move selected items to other list.

progress


Progress indicator. The indicator changes mode when the application is processing data.

query icon


Query by example.

re-map icon


Re-map.

refresh icon


Refresh.

remove all icon


Remove all items from list.

remve one icon


Remove selected items from list.

required icon


Required.

date icon


Select date.

show as top icon


Show as top.

view results icon


View configuration. View results.

wrap icon


Wrap.


Buttons

Buttons are used to perform certain actions and for navigation.

Table 1-4 Buttons

Button Button Description

Action

Provides access to the following actions: Submit, Re-Submit, Validate, Save As, and Approve.

Add All Stores

Within the Add Stores dialog box, used to add all stores instead of a sub-group of stores.

Apply

In Optimization Objectives, used with the Edit Objectives drop-down list.

Back

Used to return to the previous train stop.

Cancel

Used to close a dialog box without making a selection.

Choose Stores

In Optimization Setup, when creating a new run, provides access to a dialog box for adding stores.

Clear Selection

In Assortment Analysis, clears the Selected Runs list.

Details

Radio button that toggles the display between a detailed view and a summary view.

Edit Constraints

In Optimization Objectives, provides access to the Edit Constraints dialog box, which you use to edit settings.

Export

In Assortment Analysis, makes the selected finalized run available for use by other applications.

Finalize

In Assortment Analysis, finalizes the selected run.

Next

Moves to the next train stop.

No Template

Clears the template section.

Save

Saves the existing settings.

Summary

Radio button that toggles the display between a detailed view and a summary view.

Table View

Radio button that toggles the display between a table view of the data and a tree view of the data.

Tree View

Radio button that toggles the display between a table view of the data and a tree view of the data.

View Results

In Assortment Analysis, displays results for runs in the Selected Runs list.


Pull-Down Menus

The ASO user interface has three pull-down menus that provide access to a variety of functionality.

The Format pull-down menu and the View pull-down menu can be used to adjust how the display is organized. For example, you can resize the columns or detach a table from the interface.

The Actions pull-down menu provide functionality that you use to manipulate the application data. Some of the following functionality is also provided by the icons described in Table 1-3.

Table 1-5 Actions Pull-Down Menu Functionality

Action Name Description

Create Run

In Optimization List, takes user to Optimization Setup train stop.

Copy Run

In Optimization List, used to create a duplicate of an existing run.

Delete Run

In Optimization List, used to delete a run.

Export to Excel

Used to export to Excel.

Rollback

In Assortment List, used to revert the status of a run.

Re-Map

In Assortment Mapping, re-maps the planogram to product.

Add Planogram

In Assortment Mapping, provides access to the Select Planogram Nodes dialog box.

Delete Planogram

In Assortment Mapping, used to delete the selected planogram.

Add Row

Add a row to the display.

Mark for Optimization

In Fixture and Product Data, used to select a product for optimization (indicated with a check mark).

View Configuration

In Fixture and Product Data, displays an empty planogram for the selected product.

Compare to History

In Fixture and Product Data, and in Results and Analysis, displays historical planogram that is populated.

Add

In Objectives and Constraints - Product Groups, used to add data.

Edit

In Objectives and Constraints - Product Groups, used to edit data.

Delete

In Objectives and Constraints - Product Groups, used to delete data.

View Results

In Assortment Analysis, processes the selected run. Once the processing is complete, the results are displayed in the table.

Export All

In Results and Analysis, used to export all the results.

Create

In Fixture and Product Data,

Change Status

In Assortment Mapping, used to update the status.

Save As

Makes a copy of the run that currently open


Histograms

The stages have associated histograms available on the right-hand side of the display that can help you analyze the data presented in that stage. You can adjust the way the histogram presents the data by changing the number of bins that are used in the display. Once you change the number of bins, click the Refresh button to update the display.

Charts

Certain stage have associated charts available on the right-hand side of the display that list data in a tabular format.

Process Train

The process train displays the stages of Execute Space Optimization. The current stage is highlighted. You can also use the Back button and the Next button to move through the train.

Embedded Help

Embedded help, which you access by clicking the Question Mark icon, provides additional information about the type of details required by certain fields.

Process Indicator

At the top of the user interface, in the right-hand corner, is a process indicator that you can use to monitor the status of a user action such as clicking Next to go to the next stage.

Search

In certain cases, you can customize your search, using advanced search capabilities to specify the search criteria.

Workflow

ASO is used to optimize a category manager's assortment plan by creating optimal planograms. The category manager creates a preliminary assortment and wants to determine how well that list of products can fit in stores, given the available space, product sizes, and merchandising goals, constraints, and rules. The application creates virtual planograms that organize products onto fixtures in a way that best achieves the optimization objectives. Once the manager finalizes the optimization results, the product level data can be exported for use in planning applications.

Optimization

An optimization can be carried out at one of two location levels: Store or Space Cluster.

In a Store level optimization:

  • each store is optimized separately, based on the store's individual data

  • one planogram is produced for each store

  • store-specific results are produced

In a Space Cluster level optimization:

  • every space cluster is optimized separately, based on aggregate store data

  • one planogram is produced for each space cluster

  • space-cluster-specific results are produced

Space Cluster

A space cluster is an ad hoc group of stores used for optimization. Each space cluster includes stores that are in the same assortment, have the same product list, and have the same current planogram length. Space clusters are typically a level between assortment cluster and store. A fixture configuration can optionally be added to the clustering rules. ASO creates these groups by splitting stores from an assortment cluster into smaller groups of stores that have the same product list, the same current planogram length, and same fixture configuration if activated.

Run Templates

You can pick an existing run that was created for the same POG Set as a template. The system uses the settings for that run and applies them to a new run (which has a new group of products, locations, and data). This allows you to leverage the initial settings from the template run and use them across time, locations, planogram sets, and users.

Validation

Within each stage, you can perform a validation. This provides you with feedback concerning the settings you have configured. Validation can identify conflicts between settings. You see details in the validation report that can help you to resolve any issues. Note that the validation is the same, regardless of which stage you invoke it from.

The conflicts identified by validation include warnings and errors. Warnings occur when constraints can impact or limit the optimization process. Errors prevent the optimization process from producing a solution.

Planogram Mappings

ASO supports various planogram mappings, including the simple case in which a single product category is mapped to a single planogram as well as the case in which a product category's assortment is mapped to multiple planograms on many locations in a store.

Smart Start Process

If detailed shelving data is not available, a planogram cannot show the complete details about the shelving. In such cases, ASO creates fixtures details using a combination of default values and user selection in order to assign shelves to partial shelf fixture planograms. This process occurs automatically when optimization locations are generated. These fixture configurations are available in the Fixture and Product Data stage.

Fixture Types

ASO works with three types of fixtures: shelves, pegboards, and freezer chests. Freezer chests are not the containers in the frozen food section; rather, they are chests that shoppers reach down into in order to select a product. Planograms can support a mixture of shelves and pegboards.

Virtual Planogram

A virtual planogram (VPOG) is a planogram that is created by ASO and that does not contain images of products, only colored rectangles representing products, with supporting hover text for each product on the virtual planogram. A planogram in ASO is the layout of the product on shelves or pegboards with an underlying fixture assumption (for example, the number of shelves or the overall size).

A user can open multiple virtual planograms simultaneously in order to view images for different clusters or stores within the same run. However, only the first virtual planogram that a user opens can be edited, subject to the run status and the permission rules, until the open virtual planograms are closed. ASO only supports the opening of multiple simultaneous virtual planograms if the user is using the same browser session, browser tab, and ASO login session for the same optimization run. In other words, the user must open the multiple virtual planograms for a single run in a single run screen. All other combinations of browser sessions, browser tabs, and multiple ASO logins to open multiple simultaneous virtual planogram windows are not supported. Although some combinations may work in practice, consistent UI behavior is not guaranteed and data integrity issues may occur.

Planogram Set

Planogram set is an ASO concept that refers to a planogram node (which is the subcategory name) and concatenates it with the planogram season, with a hyphen between.

Assortment Finalization

The Assortment Finalization process handles the assortment summarization of the results at the assortment set level as well as the transformation of placeholder product names and IDs into final products. This process is initiated by the Assortment Planning and Optimization (APO) module of Category Management. ASO and APO use the RPAS Hybrid Storage Architecture (HSA) to exchange data. ASO loads and integrates the Assortment Finalization file with database objects. This triggers the following:

  • ASO generates aggregated results for all the exported assortments that have the same assortment set ID.

  • The only assortments that are aggregated are the ones that have been exported to APO.

  • All other assortments that have the same assortment set ID but that have a status other than exported are disabled so they can no longer be used in optimization or analysis.
