High-Level Architecture

At a high level, Assisted Selling consists of three parts that work together to provide remote communication between server and client:

  1. A server module (Store.Mobile.DCS

  2. An Objective-C REST client that communicates between web services and iOS clients

  3. An iOS application that uses both of these components to demonstrate how commerce business logic can be implemented on a mobile client

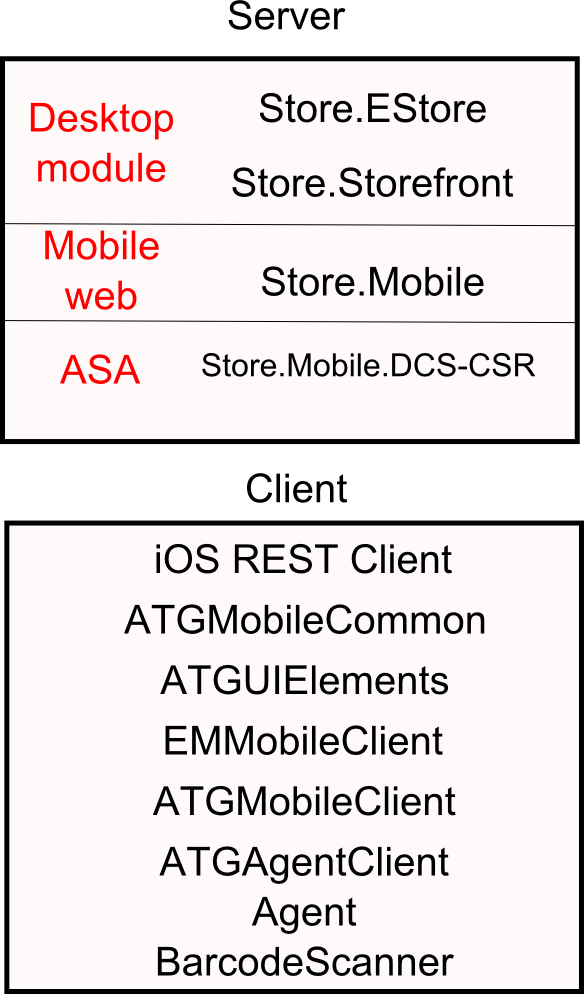

The following figure illustrates the components within the server and client in Assisted Selling.

This illustration is described in the preceding text. XE “Server and Client Composition”

Server and client structure

The use cases and user experience (UX) design of Assisted Selling are largely the same as those for CRS-M and CRS-IUA. This allows the reuse of much of the backend configuration. For example, the same custom mobile form handlers are used by Assisted Selling to provide the same address and credit card functionality.

The architecture discussion in this document assumes familiarity with concepts related to Apple’s iOS, including the Objective-C language.
