Replace a Pilot Battery

The lithium coin-cell battery in the Pilot maintains system time when the Pilot is powered off and a time server is unavailable. The battery also powers the CMOS BIOS system settings of the Oracle FS System. Replace the battery if the Pilot fails to maintain proper time or the battery gets discharged due to age.

Prerequisites:

Before handling a component, touch a grounded surface to discharge any static electricity.
Attach an electrostatic discharge (ESD) wrist strap to your wrist, and stand on an ESD mat while replacing components.
Ensure you have a screwdriver or any kind of sharp pointed object.

Each Pilot has a battery located on the Pilot motherboard. Batteries are customer replaceable units (CRUs) and are not hot-serviceable. Replacing the battery requires you to power off the Pilot. The following figure identifies the location of the battery inside the Pilot motherboard.

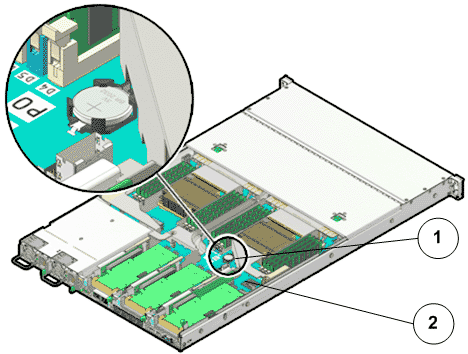

Figure 1: Pilot battery

Legend

1 Pilot battery

2 Pilot motherboard

Note: Ensure that all power is removed from the Pilot before removing or installing the battery. You must disconnect the power cords from the Pilot before performing these procedures.

Note: The battery can be accessed only after removing the cover over the Pilot chassis.

Procedure Overview
