3.6 Defining Unique Identifier

Defining a unique instance identifier for a model is mandatory. The identifier must be unique from all other instances. Only users with the role InsightBusinessUser/InsightModelCreator/InsightIntegrationArchitect/InsightAdmin can create/define identifier.

To define unique instance identifier for a model:

  1. Expand the milestone to which you want to associate the unique instance identifier.
  2. Perform step 3 or 4.
  3. Click the Unique Instance Identifier tile.

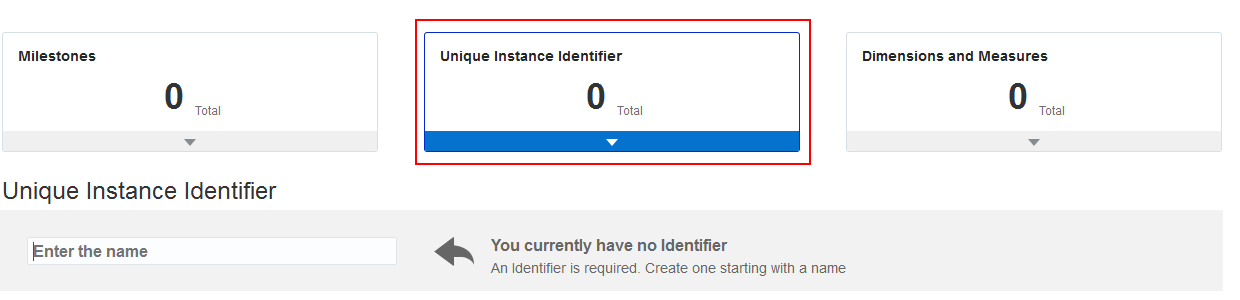

    Figure 3-12 Unique Instance Identifier Tile

    img/GUID-76642A32-9FF6-401D-A977-47D43B8B0533-default.png
  4. Click Create Indicator and select Identifier.
    img/GUID-AF4DE010-10AF-4B54-B74D-A72EEEBAFE07-default.png

    Note:

    If you perform the step 3 first, then the Identifier option in this step will be disabled, as you can define only one unique identifier.
  5. Enter the following in the Unique Instance Identifier area:
    1. Name
    2. Description
  6. Associate the identifier with a milestone. For more information, see Mapping Milestone to an Implementation.
  7. Define extraction criteria for the implementation mapping. For more information, see Defining Extraction Criteria.
A unique identifier is defined for the model. You can only create one unique identifier. Once you create the unique identifier, the Identifier option shown in step 2 will be disabled. You can add additional mappings for the identifier.

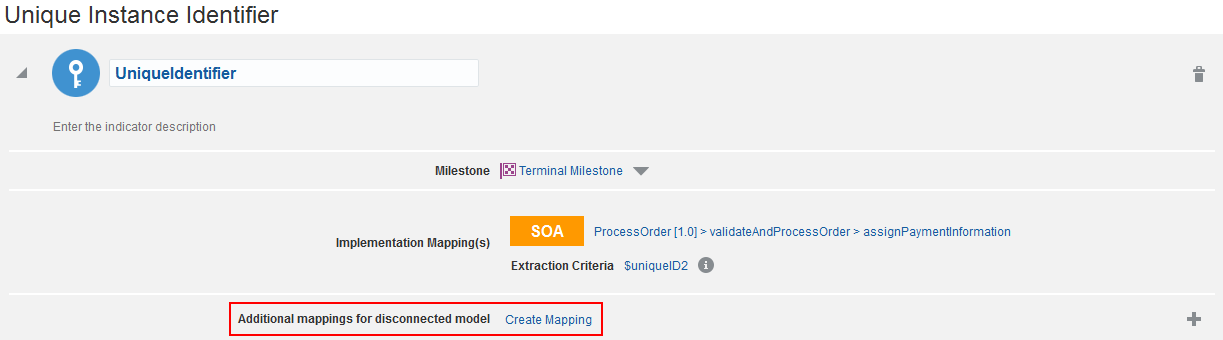

Figure 3-13 Unique Instance Identifier Defined

img/GUID-2E35ED5B-FA38-4149-8C1A-13D72D31041E-default.png
