How Siebel CRM Creates a Business Object

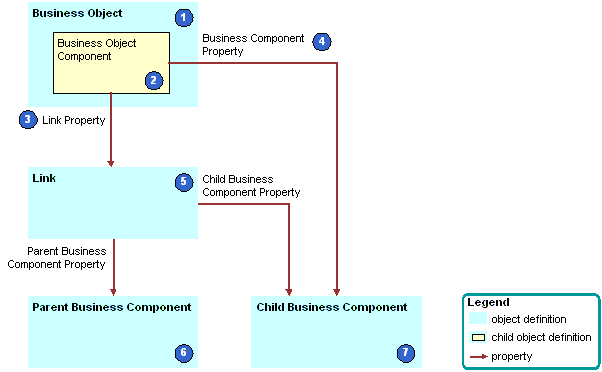

Figure 22 describes how Siebel CRM creates a business object.
Figure 22. How Siebel CRM Creates a Business Object
|
Explanation of Callouts
Siebel CRM uses the following objects and properties to create a business object:
- Business object. The parent for multiple business object components. Each business object component specifies a parent-child relationship. A view references the business object in the Business Object property of the view.
- Business object component. A child object of the business object. Typically, each business object component defines one parent-child relationship in the parent business object. The Link property and the Business Component property of the business object component create this relationship.
- Link property. Identifies the link.
- Business Component property. Identifies the child business component. You can use a business object component to reference a business component in the business object without using a link. To do this, you must make sure the value in the Link property of the business object component is empty. This configuration allows you to include a business component in the business object for use in a view that references the business object, even though the business component does not possess a one-to-many relationship with another business component in the context of that business object.
- Link. Each business object component references one link. This link specifies the parent-child relationship that the business object includes. For more information, see About Links.
- Parent business component. The one in the one-to-many relationship that the link defines. The Parent Business Component property of the link specifies the parent business component.
- Child business component. The many in the one-to-many relationship that the link defines. The following properties define the child business component:
- The Child Business Component property of the link
- The BusComp property of the business object component
|
