2 Installing the Argus Mart Application

This chapter explains how to use the installation wizard to install Argus Mart, including ODI Repository and the Schema Creation Tool.

The following figure depicts your progress in the complete installation process:

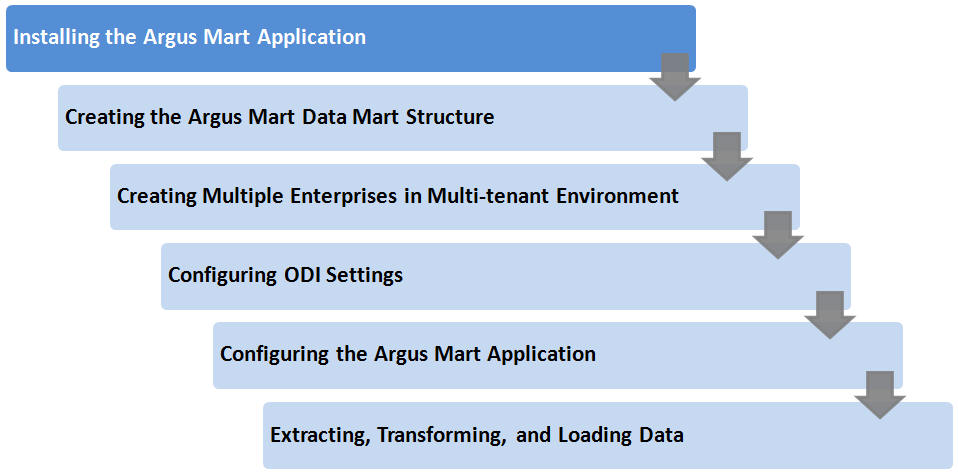

Figure 2-1 Installation Progress: Installing the AM Application

This chapter includes the following topics:

• Before You Install the Argus Mart Application

• Installing Argus Mart Components

2.1 Before You Install the Argus Mart Application

Before you begin to install the Argus Mart application:

• Verify that the Argus Mart database instance has been created and is running. In addition, verify that the database has been created using the character set of your Argus Safety database.

• You must install the required software components, as mentioned in the following table:

  Table 2-1 Argus Mart Software Requirements

  Specification	Oracle Data Integrator Server	Database	DBInstaller	Client
  Operating System	Microsoft Windows Server 2012 Standard Microsoft Windows Server 2012 R2 Standard Oracle Enterprise Linux 6.7 Oracle Enterprise Linux 7.1 Oracle Sun Solaris 10 (64 Bit) Oracle Sun Solaris 11 (64 Bit)	Microsoft Windows Server 2012 Standard Microsoft Windows Server 2012 R2 Standard Oracle Enterprise Linux 6.7 Oracle Enterprise Linux 7.1 Oracle Sun Solaris 10 (64 Bit) Oracle Sun Solaris 11 (64 Bit) (Supports both CDB-PDB/Non CDB)	Microsoft Windows Server 2012 Standard Microsoft Windows Server 2012 R2 Standard Windows 7 (English) (32 bit) Windows 8.1 (English) (32 bit)	Windows 7 (English) (32/64 bit)Windows 8.1 (English) (32/64 bit)
  Oracle Database		Oracle RAC Exadata 12c R1 (with 12.1.0.2) Oracle 12c R1 (12.1.0.2) (Standard/Enterprise) Note: Oracle database standard edition is supported for single tenant deployment only.
  Oracle Data Integrator (ODI)	12.2.1/12.1.3






  Note: Oracle Client Patch required for the Schema Creation Tool Download the patch 19720843: WINDOWS DB BUNDLE PATCH 12.1.0.2.1 from the Oracle Support. Install the patch, and apply the following workaround: a. Set the oracle_home as your client home location. For example: SET ORACLE_HOME=C:\app\client32\product\12.1.0\client_1 i. On the client machine, go to %oracle_home%\bin\ ii. From \p19720843_121020_WINNT\19720843\files\bin\, copy the file oranfsodm12.dll, and paste it under %oracle_home%\bin b. Run sqlldr help=y or sqlldr.exe.




• Make sure that you have installed the following software on the machine where Argus Mart is being installed:

  • Microsoft .NET 3.5 Framework

  • Oracle 32 bit client 12.1.0.2 (Administrator Installation type)

2.2 Installing Argus Mart Components

To run the installation wizard and install the Argus Mart components:

1. Log in to the Argus Mart Server as a user with administrator privileges.

2. Download the Argus Mart software from Oracle E-delivery and copy the software to the Argus Mart Server.

3. Click setup.exe.

   The Welcome screen of the installation wizard appears with the following options:

   1. About Oracle Universal Installer—Specifies information about the Oracle Universal Installer.

   2. Installed Products—Displays the list of installed products.

4. On the Welcome screen, click Next.

   The Specify Home Details screen appears.

5. In the Name field, enter the name for the product installation.

6. In the Path field, specify the location of the folder where the Argus Mart will be installed.

   • To install Argus Mart into the default folder, click Next.

   • To install Argus Mart into a different folder, click Browse, select another folder, and click Next.

   The Oracle Home Location screen appears.

7. Click Browse, and navigate to the location of Oracle Home that identifies the TNSNAMES.ORA file.

   Example: C:\app\product\11.2.0\client_1

8. Click Next.

   The Database Details screen appears.

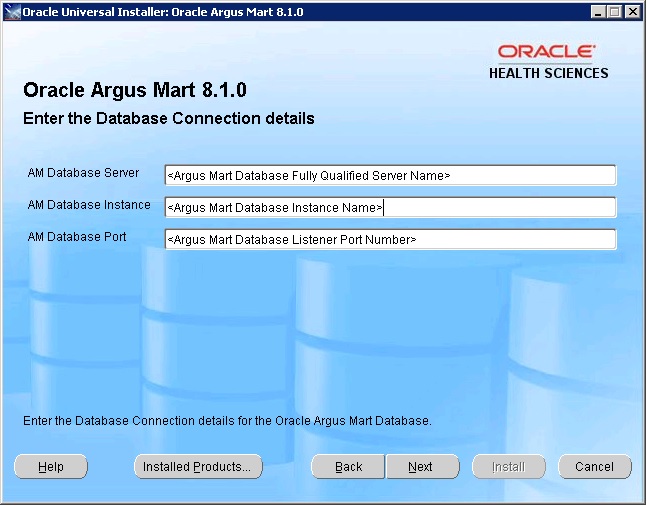

   Figure 2-2 Database Details Screen




9. Enter the following parameters:

   • In the AM Database Server field, enter name or IP address.

   • In the AM Database Instance field, enter the database instance name.

   • In the AM Database Port field, enter the database listener port number.

   When the Installation process is complete, you may validate these database inputs by navigating to the TNSNAMES.ORA file, saved at the following path:

   <ORACLE_HOME>\NETWORK\ADMIN

10. Click Next.

    The Summary screen appears.

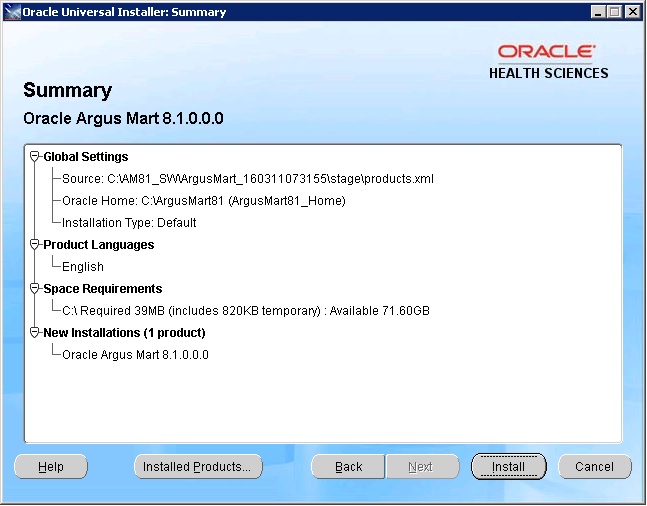

    Figure 2-3 Summary Screen




11. Click Install to start the installation.

    A message appears — Argus Mart is configuring your new software.

    When installation is complete, the End Of Installation screen appears.

12. To verify the successful installation of Argus Mart, click Installed Products.

    The Inventory screen appears.

13. Navigate to Contents > Independent Products.

    Oracle Argus Mart appears in the list of products.

14. Click Close.

15. Click Exit.

    A confirmation dialog box appears.

16. Click Yes to close the Installer wizard screen.
