Configuring Siebel Open UI > Application Programming Interface > Methods for Pop-Up Objects, Google Maps, and Property Sets > Method That Integrates Google MapsThis topic describes the method that Siebel Open UI uses to integrate with Google Maps. It includes the following topics:

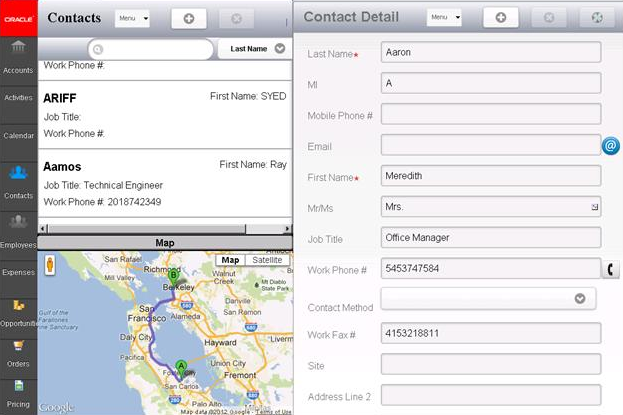

The Integration with Maps and Location service allows the user to view CRM data on a map and get driving directions and other information. If the user taps the postal code of the contact or account address, then Siebel Open UI displays a Google map that includes the address and step-by-step information that describes how to navigate from the current location to the location that the postal code identifies.
This service can get a list of accounts, contacts, or opportunity addresses from the record set that the list applet contains, and then display these addresses in a map. The list view displays distance information from the current location. The map view includes pins on the map that indicate the current location and location of all objects that fall within a radius from the geographic location where the user is currently situated. If the user clicks a pin, then Siebel Open UI does something depending on the following type of information that the pin represents:
Siebel Open UI uses the google-ui-map plug-in. It includes the following methods in the JQMMapCtrl class: The GetInlineRoute method does the following work:
It includes the DestValue argument. This argument identifies the postal code or address of an account, contact, or opportunity. Siebel Open UI calls the predefined GetInlineRoute method from a form applet, but you can customize it to use a list applet. The Integration with Maps and Location service creates a link that includes an image and a bind click event that references the control link that calls the GetInlineRoute method. It gets the postal code value from the record that the user chooses in the form applet, and then sends the value when it calls the GetInlineRoute method in the JQMMapCtrl class. Siebel Open UI must load the Google method before it calls the GetInlineRoute method. It includes the URL for the Google method when it loads the JQMMapCtrl class. The GetInlineRoute method uses the following flow:
Uses the getCurrentPosition method to get the current geocode of the client device. This method is available through the navigator.geolocation object. A geocode is an object that stores the geographic coordinates of a location expressed as latitude and longitude.
The ShowMapLocations method loads the Google map method, initializes the geocoder service to get the geocode of the address, and creates a marker for each location that the array contains. It uses the AcctArray method. This method gets the address or postal code of all account, contact, or opportunity addresses from the record set that the list applet displays. Siebel Open UI can call the ShowMapLocations method from a list applet. You can create a button or link control, and then bind a click event with the control so that this event calls the method. The ShowMapLocations method uses jqmListRenderert to do the following work:
You can bind the ShowMap button control in the Web template with the click event in jqmListRenderer, and then configure Siebel Open UI to use the account array to call the ShowMapLocations method in the JQMMapCtrl class. The ShowMapLocations method uses the following flow:
You can call methods that the Integration with Maps and Location method uses from a form applet or list applet in the following way:
Siebel Open UI uses the Google-ui-map plug-in to render the Google map. This plug-in requires a div id to display the map. This div element can reside in any container. The CCViewDetailMap_Mobile Web template supports list and map rendering. It contains the following code. It uses the jqmMapCtrl div id to render the Google map: <div od-if="Web Engine State Properties, IsMobileApplicationMode"> <div id="SiebelMapContainer" name="SiebelMapContainer" |
