SIS OM UpdateOrderItem Workflow

This workflow updates the status of order line items for complex products. Figure 27 shows this workflow.

The SIS OM Order Line Item Update Main workflow calls this workflow as a subprocess.

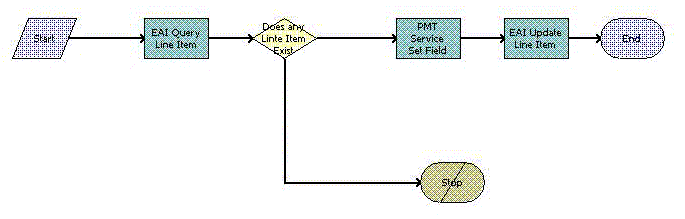

Figure 27. SIS OM UpdateOrderItem Workflow

Workflow Description. This workflow performs the following actions:

1. Finds the appropriate line item for the order.
2. If the line item exists, then updates the line item for the order.
3. If the line item does not exist, then stops the workflow and returns an error message.

Table 28 shows the steps in this workflow that call business service methods.
