Siebel Order Management Guide Addendum for Communications > Workflows for Employee Asset-Based Ordering > Workflows for Bulk Requests >

ABO Bulk Request - Edit Order Line Item Workflow

This workflow edits a line item for an order. Figure 69 shows this workflow.

A user initiates this workflow by clicking the Customize button in the Actions applet.

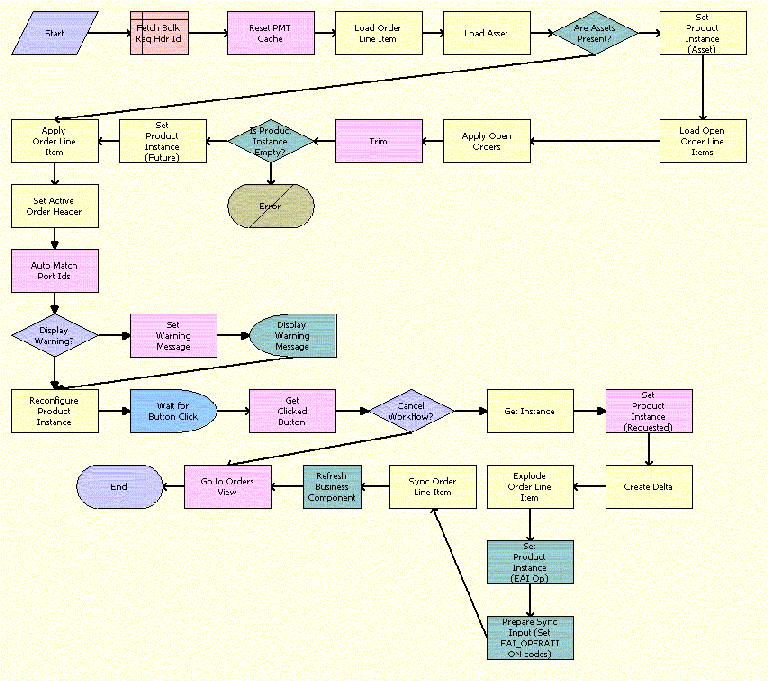

Figure 69. ABO Bulk Request - Edit Order Line Item Workflow

Workflow Description. This workflow performs the following actions:

1. Clears the business service cache.
2. Loads the current order line item into memory.
3. Loads assets into memory.
4. Checks whether an asset exists for the order line item. If an asset exists, then applies the order line item to the asset.
5. If an asset does not exist, then uses the current order line item to generate an asset.
6. Stores the order header with which to associate the edited line item.
7. Checks whether the port IDs for the edited instance match port IDs for the product definition.
8. Launches the Configurator run-time session to reconfigure the product instance.
9. Waits for the user to click a button to terminate the session.
10. Gets the details of the button that the user clicks.
11. Checks whether the user clicks the Cancel button.
12. If the user does not click the Cancel button, then gets the configured product instance from the Configurator session.
13. Stores the configured product instance.
14. Creates the Delta action codes.
15. Writes the order line item to the database.
16. Displays the Orders applet.

Table 59 shows the steps in this workflow that call business service methods.
