Siebel Order Management Guide Addendum for Communications > Workflows for Promotion Groups > Workflows That Validate Quotes and Orders >

ISS Promotion Group Validate (Quote) Workflow

This workflow validates the specific validation services of the promotion group, such as the ISS Promotion Group Member Distinct Value Checker Business Service and the ISS Promotion Group Member Common Value Checker Business Service. It can be called from the Quote Line item in a product promotion group.

Figure 164 show this workflow.

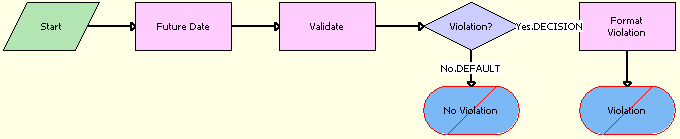

Figure 164. ISS Promotion Group Validate (Quote) Workflow

Workflow Description. This workflow performs the following actions:

1. Future Date. This step calculates the future date when the promotion group will be validated.
2. Validate. This step calls the Validate method of the Promotion Group validation service.
3. Violation? This step checks whether there are any rule violations.
4. No Violation. This step displays the valid compound product message and terminates the workflow.
5. Format Violation. This step concatenates the violation messages into a single string.
6. Violation. This step displays the violation messages and terminates the workflow.

Table 131 shows the steps in this workflow that call business service methods.
