On successful installation of FCC Studio, you must perform the following post-installation configurations.
Topics:
NOTE |
Before running the post-installation steps, an SSH connection to the Big Data server must be configured |
To verify the FCC Studio installation with OFSAA, check the log files in the <STUDIO_INSTALLATION_PATH>/logs directory. If all the servers are up and running, it indicates that the installation is complete.
WARNING |
If you notice any errors in the log files, do not proceed further. Contact My Oracle Support (MOS) and provide the applicable error code and log files. |
If the installation of FCC Studio is unsuccessful, you must reinstall the application after performing the cleanup tasks. For more information, see Reinstall FCC Studio.
To configure the SSH connection, run the following commands in the Windows command prompt:
a. Run ssh-keygen
Generating public/private rsa key pair
b. Enter file in which to save the key (<Linux_Home>/.ssh/id_rsa):[Press Enter]
c. Enter passphrase (empty for no passphrase): [Press Enter]
d. Enter same passphrase again: [Press Enter]
e. ssh-copy-id -i ~/.ssh/id_rsa.pub <BigData_Server>
f. ssh <BigData_Server>
To install the Python 3.6 libraries, follow these steps:
1. Navigate to the <Studio_Installation_Path>/python-packages/bin directory.
2. Execute the following command:
chmod 0755 *
3. Install the Python 3.6 library packages that are packaged with the FCC Studio Installer using the following command:
./install.sh
The Python 3.6 libraries that are packaged with the FCC Studio Installer are installed.
NOTE |
· Execute the ./remove.sh command to remove the Python 3.6 libraries that are already installed. · To install additional Python libraries, contact your Studio Administrator to install the same on the Processing Server (Studio Notebook Server). · To change the default Python version in the Interpreters, see the Changing Python Version in the fcc-python Interpreter section in the OFS Crime and Compliance Studio Administration Guide. |
Schema creation is a one- time activity that replicates the table structure from the Financial Crime Data Model (FCDM) Atomic schema to the Hive Atomic schema.
Topics:
· Configure the Schema Creation from the FCC Studio Server
· Configure the Schema Creation from the OFSAA Server
To configure Schema Creation from FCC Studio server, follow these steps:
1. Set FIC_DB_HOME path to <Studio_Installation_Path>/ficdb.
NOTE |
The $FIC_DB_HOME path can be set from the .profile file. |
2. Create a Hive Schema with the name mentioned in the HIVE_SCHEMA parameter in the config.sh file.
For information on the config.sh file, see Configure the config.sh File.
3. Execute the following shell script in the <Studio_Installation_Path>/ficdb/bin/ directory to create tables in Hive Schema:
FCCM_Studio_SchemaCreation.sh HIVE
4. Check the <Studio_Installaton_Path>/logs/batchservice.logs for more information.
To configure Schema Creation from OFSAA server, follow these steps:
1. Copy all the jar files from the <Studio_Installation_Path>/ficdb/lib directory and paste into the <OFSAA_FIC_HOME_PATH>/ficdb/lib directory .
2. Copy all the .sh files from the <Studio_Installation_Path>/ficdb/bin directory and paste into the <OFSAA_FIC_HOME_PATH>/ficdb/bin directory .
3. Create a Hive Schema with the name mentioned in the HIVE_SCHEMA parameter in the config.sh file.
For information on the config.sh file, see Configure the config.sh File.
4. Execute the following shell script in the <OFSAA_FIC_HOME_PATH>/ficdb/bin directory to create tables in Hive Schema:
FCCM_Studio_SchemaCreation.sh HIVE
5. Check the <Studio_Installaton_Path>/logs/batchservice.logs for more information.
If the atomic schema creation fails, login to the atmoic schema of BD/ECM and run the following query:
select * from fcc_orahive_datatypemapping;
The fcc_orahive_datatypemapping table must have only 5 rows. If there are more than 5 rows, run the following query to delete the additional rows:
select * from fcc_orahive_datatypemapping for update
If the studio schema creation fails, login as a studio user and run the following query:
select * from fcc_datastudio_schemaobjects
Run the following query to replace all Y values with '':
update fcc_datastudio_schemaobjects set SCHEMA_OBJ_GENERATED=''
After the schema creation is successful, the value of the SCHEMA_OBJ_GENERATED attribute changes to Y.
To configure the International Consortium of Investigative Journalists (ICIJ) data, you must configure the file path. To configure the file path, follow these steps:
NOTE |
The FCC Studio graph model is configured to include ICIJ watchlist files. |
1. Place the watchlist files in HDFS, that is accessible by the user.
2. Update the FILEPATH of the watch list files in the fcc_studio_etl_files table. The FILEPATH refers to the complete hdfs filepath of the csv file. For mapping between DF_NAME and FILEPATH, see the following image:
Figure 6: fcc_studio_etl_files Table
The following table provides the file path for the csv files:
Table 14: Required File Structure
DF_NAME |
File Path |
Panama_External_Ad dress |
panama_papers.nodes.address.csv |
Panama_External_Entity |
panama_papers.nodes.entity.csv |
Panama_External_Entity |
panama_papers.nodes.intermediary.csv |
Panama_External_Entity |
panama_papers.nodes.officer.csv |
Panama_edges_address_of |
panama_papers.edges.csv |
Panama_edges_is_related_to |
panama_papers.edges.csv |
Offshore_External_Address |
offshore_leaks.nodes.address.csv |
Offshore_External_Entity |
offshore_leaks.nodes.entity.csv |
Offshore_External_Entity |
offshore_leaks.nodes.intermediary.csv |
Offshore_External_Entity |
offshore_leaks.nodes.officer.csv |
Offshore_edges_address_of |
offshore_leaks.edges.csv |
Offshore_edges_is_related_to |
offshore_leaks.edges.csv |
Bahama_External_Address |
bahamas_leaks.nodes.address.csv |
Bahama_External_Entity |
bahamas_leaks.nodes.entity.csv |
Bahama_External_Entity |
bahamas_leaks.nodes.intermediary.csv |
Bahama_External_Entity |
bahamas_leaks.nodes.officer.csv |
Bahama_edges_address_of |
bahamas_leaks.edges.csv |
Bahama_edges_is_related_to |
bahamas_leaks.edges.csv |
Paradise_External_Address |
paradise_papers.nodes.address.csv |
Paradise_External_Entity |
paradise_papers.nodes.entity.csv |
Paradise_External_Entity |
paradise_papers.nodes.intermediary.csv |
Paradise_External_Entity |
paradise_papers.nodes.officer.csv |
Paradise_External_Entity |
paradise_papers.nodes.other.csv |
Paradise_edges_is_related_to |
paradise_papers.edges.csv |
Paradise_edges_address_of |
paradise_papers.edges.csv |
Paradise_edges_is_linked_to |
paradise_papers.edges.csv |
To access FCC Studio, follow these steps:
1. Enter the URL in the following format in the web browser:
https://<Host_Name>:<Port_Number>
Here <Port_Number> is 37008 for the FCC Studio application installed on-premise.
The FCC Studio application login page is displayed.

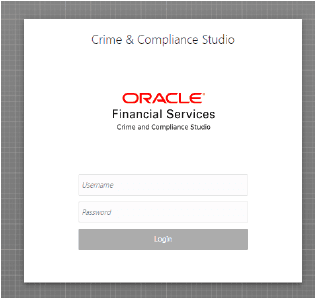

Figure 7: FCC Studio Application Login Page
2. Enter the Username and Password.
3. Click Login.
After you access the application, you can view the ready-to-use notebooks. To check if you have been assigned any roles, create a notebook. If you cannot create a notebook, contact My Oracle Support (MOS).
NOTE |
This configuration is not applicable for FCC Studio installed without OFSAA. |
To perform OFSAA configuration for batch execution, follow these steps:
1. Copy the files in the <Studio_Installation_Path>/ficdb/bin directory to the server where the BD or ECM pack is installed and to the $FIC_DB_HOME/bin directory of the OFSAA setup.
2. Execute the following command to grant Execute permission to the files:
chmod +x <filenames>
3. Copy all the files from the <Studio_Installation_Path>/ficdb/lib directory into the $FIC_DB_HOME/lib directory.
For information on running FCC Studio Batches, see Managing Studio Batches chapter in the Oracle Financial Services Crime and Compliance Studio Administration Guide.
NOTE |
This configuration is not applicable for FCC Studio installed without OFSAA. |
To perform the configuration required to run published notebooks, copy the required FCCM_Studio_NotebookExecution.sh file from the <Studio_Installation_Path>/ficdb/bin directory into the <FIC_HOME of OFSAA_Installed_Path>/ficdb/bin directory.
For information on running published notebooks, see the Executing Published Notebook section in the OFS Crime and Compliance Studio Administration Guide.
