Removing a GTT Set

Use this procedure to remove a GTT Set from the database using the dlt-gttset command.

The dlt-gttset command uses this parameter.

:gttsn – The GTT set name.

The GTT set name (gttsn) must be specified and match an existing GTT set. Use the rtrv-gttset command to view the GTT set names.

The GTT set name cannot be removed from the database if the name is referenced by any of these entities.

GTT Selectors - Use the rtrv-gttsel:gttsn=<GTT set name> command to view the GTT selectors using the specified GTT set name. If any GTT selectors are assigned to this GTT set name, perform the procedure Removing a GTT Selector to remove the selector from the database.
GTA entries - Use the rtrv-gta:gttsn=<GTT set name> command to view the global title address information using the specified GTT set name. If any GTAs are assigned to this GTT set name, perform the procedure Removing Global Title Address Information to remove the global title address information from the database.
The GTT set name cannot be shown in the rtrv-gsmsmsopts or rtrv-is41smsopts output as the BPARTYGTTSN value. Perform the procedure Configuring the GSM MO SMS B-Party Routing Options or the procedure Configuring the IS-41 MO SMS B-Party Routing Options to remove the GTT set name as the BPARTYGTTSN value.
The GTT set name cannot be shown in the rtrv-gsmsmsopts output as the IS41SMSCGTTSN value. Perform the procedures in IS41 GSM Migration User's Guide to remove the GTT set name as the IS41SMSCGTTSN value.

The examples in this procedure are used to remove the GTT set name t800 from the database.

Display the existing GTT sets in the database by entering this command.
rtrv-gttset:refcnt=yes

This is an example of the possible output.
```
rlghncxa03w 10-07-07 00:27:31 GMT EAGLE5 42.0.0

GTTSN      NETDOM  SETTYPE  REFCNT   NDGT
abcd1234   itu     CDGTA    3        12
dpc1       itu     DPC      0        -
gttset1    ansi    CDGTA    1        6
gttset2    ansi    CGGTA    5        10
gttset3    ansi    OPC      0        -
gttset4    ansi    CGPC     2        -
gttset5    itu     CGPC     2        -
imsi       itu     CDGTA    3        15
lidb       ansi    CDGTA    4        10
si000      itu     CDGTA    3        15
t800       ansi    CDGTA    13       10
gttset6    ansi    CDSSN    1        -
gttset7    itu     OPCODE   1        -

GTT-SET table is (13 of 2000) 1% full.
```
The SETTYPE column is not shown in the rtrv-gttset output if the Origin-Based SCCP Routing feature is not enabled or the Flexible Linkset Optional Based Routing or TCAP Opcode Based Routing features are not enabled or turned on.

If the Origin-Based SCCP Routing feature is not enabled, the values CGGTA, CGPC, CGSSN, and OPC are not shown in the rtrv-gttset output.

If the Flexible Linkset Optional Based Routing feature is not enabled and turned on, the values CDSSN or DPC are not shown in the rtrv-gttset output.

If the TCAP Opcode Based Routing feature is not enabled, the value OPCODE is not shown in the rtrv-gttset output.

If the reference count of the GTT set that is being removed is 0 (zero), continue the procedure with 7. The reference count of the GTT set shows the number of database entities that reference the GTT set. The reference count value is shown in the REFCNT column of the rtrv-gttset output.

If the reference count of the GTT set that is being removed is greater than 0 (zero), continue the procedure with 2.

Verify that no global title address information references the GTT set name being removed from the database.Use the rtrv-gta command with the gttsn parameter specifying the GTT set name being removed from the database. If the num parameter is specified with the rtrv-gta command, and the value of the num parameter is greater than 1000, the force=yes parameter must be specified with the rtrv-gta command. For this example, enter this command.

rtrv-gta:gttsn=t800

This is an example of the possible output.

rlghncxa03w 10-07-07 00:28:31 GMT EAGLE5 42.0.0
GTTSN      NETDOM  SETTYPE  NDGT
t800       ansi    CDGTA    10

GTA TABLE IS   1 % FULL  (17 of 269999)

START GTA  END GTA    XLAT   RI     PC
8005550000 8005551999 dpcssn ssn    001-254-255
     SSN=255 CCGT=no CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=---------
     ACTSN=--------- PPMEASREQD= NO
8005552000 8005553999 dpc    gt     001-254-255
     SSN=0   CCGT=no CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=---------
     ACTSN=--------- PPMEASREQD= NO
8005554000 8005555999 dpcngt gt     001-254-255
     SSN=--- CCGT=no CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=gttset3
     ACTSN=--------- PPMEASREQD= NO
8005556000 8005557999 dpcssn ssn    001-254-255
     SSN=255 CCGT=no CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=---------
     ACTSN=--------- PPMEASREQD= NO
8005558000 8005559999 dpcssn ssn    001-254-255
     SSN=255 CCGT=yes CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=---------
     ACTSN=--------- PPMEASREQD= NO
9195551212 9195551212 dpcssn ssn    008-001-001
     SSN=222 CCGT=no CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=---------
     ACTSN=--------- PPMEASREQD= NO
9194600000 9194600000 dpc    gt     001-255-252
     SSN=0  CCGT=no CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=---------
     ACTSN=--------- PPMEASREQD= NO
9194610000 9194680000 dpcssn ssn    001-255-252
     SSN=222 CCGT=no CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=---------
     ACTSN=--------- PPMEASREQD= NO
9762428487 9762428487 dpcssn ssn    001-254-255
     SSN=222 CCGT=no CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=---------
     ACTSN=--------- PPMEASREQD= NO
9766423277 9766423277 dpcssn ssn    001-254-255
     SSN=222 CCGT=no CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=---------
     ACTSN=--------- PPMEASREQD= NO
9769388928 9769388928 dpcssn ssn    001-254-255
     SSN=222 CCGT=no CGGTMOD=NO
     GTMODID=---------  TESTMODE=off
     OPTSN=--------- CGSELID=----- OPCSN=---------
     ACTSN=--------- PPMEASREQD= NO

Command Retrieved 11 Entries

If no global title address entries are shown in the rtrv-gta output, continue the procedure with 3.

If global title address entries are shown in the rtrv-gta output, perform Removing Global Title Address Information to remove any global title address entries that are shown in the rtrv-gta command output. Continue the procedure by performing one of these steps.

If all the references to the GTT set have been removed, continue the procedure with 7.
If all the references to the GTT set have not been removed, continue the procedure with 3.

Display the features that are enabled by entering the rtrv-ctrl-feat command.

The following is an example of the possible output.

rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0
The following features have been permanently enabled:

Feature Name              Partnum    Status  Quantity
Command Class Management  893005801  on      ----
LNP Short Message Service 893006601  on      ----
Intermed GTT Load Sharing 893006901  on      ----
HC-MIM SLK Capacity       893012707  on      64

The following features have been temporarily enabled:

Feature Name              Partnum    Status  Quantity     Trial Period Left
Zero entries found.

The following features have expired temporary keys:

Feature Name              Partnum
Zero entries found.

Display the GTT selectors in the database by entering the rtrv-gttsel command with the GTTSN value of the GTT set that is being removed.

To specify of the GTTSN value of the GTT set, the parameters shown in Table 4-5 must be specified with the rtrv-gttsel command. The parameters that can be specified are dependent on the features that are enabled, shown in 3.

Table 4-5 RTRV-GTTSEL Parameters

Feature that is Enabled	Parameter that must be Specified for the TTN Value
Neither the Origin Based SCCP Routing nor the Flexible Linkset Optional Based Routing, shown as `Flex Lset Optnl Based Rtg` in the `rtrv-ctrl-feat` output, is enabled.	`gttsn`
Origin Based SCCP Routing	`cdgtasn`, `cggtasn`
Flexible Linkset Optional Based Routing	`cdgttsn`, `cggttsn`

For this example, enter this command if the Origin-Based SCCP Routing feature is not enabled and the Flexible Linkset Optional Based Routing feature is not enabled or turned on.

rtrv-gttsel:gttsn=t800

This is an example of the possible output.

rlghncxa03w 07-05-07 00:29:31 GMT EAGLE5 37.0.0
GTIA  TT   NP       NAI   GTTSN
2     10   --       ---   t800

If the Origin-Based SCCP Routing feature is enabled for this example, enter this command.

rtrv-gttsel:cdgtasn=t800

This is an example of the possible output.

rlghncxa03w 09-05-07 00:29:31 GMT EAGLE5 41.0.0
GTI                   CG                   CDPA             CGPA
ANSI TT  NP      NAI  SSN SELID LSN        GTTSET           GTTSET
2    10  --      ---  --- none  any        t800     (cdgta) -----    (--- )

If the Flexible Linkset Optional Based Routing feature is enabled and turned on for this example, enter these commands.

rtrv-gttsel:cdgttsn=t800

This is an example of the possible output.

rlghncxa03w 09-05-07 00:29:31 GMT EAGLE5 41.0.0
GTI                   CG                   CDPA             CGPA
ANSI TT  NP      NAI  SSN SELID LSN        GTTSET           GTTSET
2    10  --      ---  any none  any        t800     (cdgta) -----    (--- )

rtrv-gttsel:cggttsn=t800

This is an example of the possible output.

rlghncxa03w 09-05-07 00:29:31 GMT EAGLE5 41.0.0
GTI                   CG                   CDPA             CGPA
ANSI TT  NP      NAI  SSN SELID LSN        GTTSET           GTTSET
2    11  --      ---  any none  any        -----    (--- )  t800    (cggta )

Continue the procedure by performing one of these steps.

If no GTT selectors are shown in this step, continue the procedure with 5.
If GTT selectors are shown in this step, perform Removing a GTT Selector to remove the GTT selectors that are shown in this step. After the GTT selectors have been removed, continue the procedure by performing one of these steps.
- If all the references to the GTT set have been removed, continue the procedure with 7.
- If all the references to the GTT set have not been removed, continue the procedure with 5.

Enter the rtrv-gsmsmsopts command.
The following is an example of the possible output.
```
rlghncxa03w 10-04-28 21:15:37 GMT EAGLE5 42.0.0
GSM SMS OPTIONS
--------------------------------------
BPARTYGTTSN  = NONE          MOSMSGTTDIG  = SCCPCDPA
MTSMSRLYGTTSN= NONE
IS41SMSCGTTSN= NONE
```
```
rlghncxa03w 09-07-28 21:15:37 GMT EAGLE5 41.1.0
GSM SMS OPTIONS
--------------------------------------
BPARTYGTTSN  = NONE          MOSMSGTTDIG  = SCCPCDPA
IS41SMSCGTTSN= NONE
```
Note:
The rtrv-gsmsmsopts command output contains other fields that are not used by this procedure. If you wish to see all the fields displayed by the rtrv-gsmsmsopts command, refer to the rtrv-gsmsmsopts command description in Commands User's Guide.

If the BPARTYGTTSN value contains a GTT set name, perform Configuring the GSM MO SMS B-Party Routing Options to change the BPARTYGTTSN value to NONE.

If the IS41SMSCGTTSN value contains a GTT set name, perform the procedures in IS41 GSM Migration User's Guide to change the IS41SMSCGTTSN value to NONE.
After the BPARTYGTTSN or IS41SMSCGTTSNvalues have been changed, or if the BPARTYGTTSN or IS41SMSCGTTSN values shown in the rtrv-gsmsmsopts output are NONE, continue the procedure by performing one of these steps.
- If all the references to the GTT set have been removed, continue the procedure with 7.
- If all the references to the GTT set have not been removed, continue the procedure with 6.
Enter the rtrv-is41smsopts command.
The following is an example of the possible output.
```
rlghncxa03w 09-09-28 21:15:37 GMT EAGLE5 41.1.0
IS41 SMS OPTIONS
-------------------------------------
BPARTYGTTSN      = NONE
MOSMSGTTDIG      = SCCPCDPA
```
Note:
The rtrv-is41smsopts command output contains other fields that are not used by this procedure. If you wish to see all the fields displayed by the rtrv-is41smsopts command, refer to the rtrv-is41smsopts command description in Commands User's Guide.

If the BPARTYGTTSN value contains a GTT set name, perform Configuring the IS-41 MO SMS B-Party Routing Options to change the BPARTYGTTSN value to NONE.

After the BPARTYGTTSN value has been changed, or if the BPARTYGTTSN value shown in the rtrv-is41smsopts output is NONE, continue the procedure with 7.
Remove the GTT set from the database using the dlt-gttset command with the gttsn parameter specifying the GTT set name being removed from the database.
For this example, enter this command.

dlt-gttset:gttsn=t800

When the command has successfully completed, this message should appear:
```
rlghncxa03w 09-07-07 00:29:31 GMT EAGLE5 41.1.0

GTT-SET table is (11 of 2000) 1% full.

DLT-GTTSET: MASP A - COMPLTD
```
Verify the changes using the rtrv-gttset command with the gttsn parameter and GTT set name specified in 7.
The following message is displayed.
```
E3561 Cmd Rej: GTT Set specified by GTT Set Name/index does not exist
```

Backup the new changes using the chg-db:action=backup:dest=fixed command.

These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.

BACKUP (FIXED) : MASP A - Backup starts on active MASP.
BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

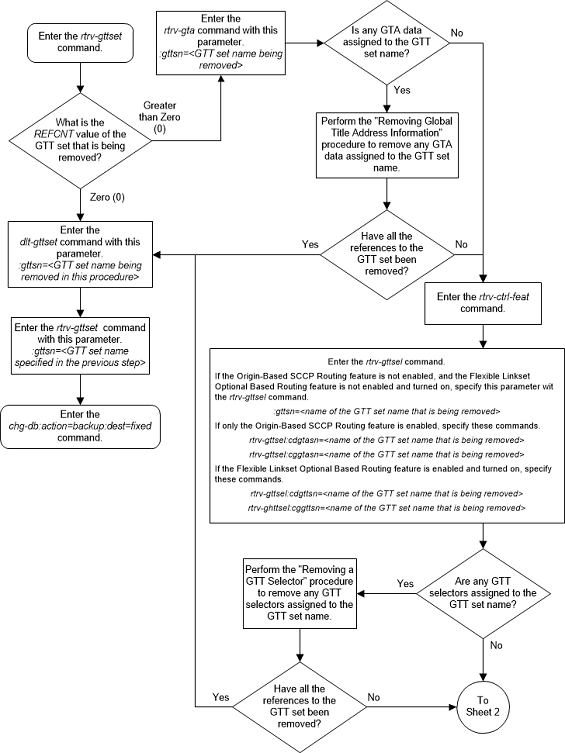

Figure 4-3 Remove a GTT Set - Sheet 1 of 2

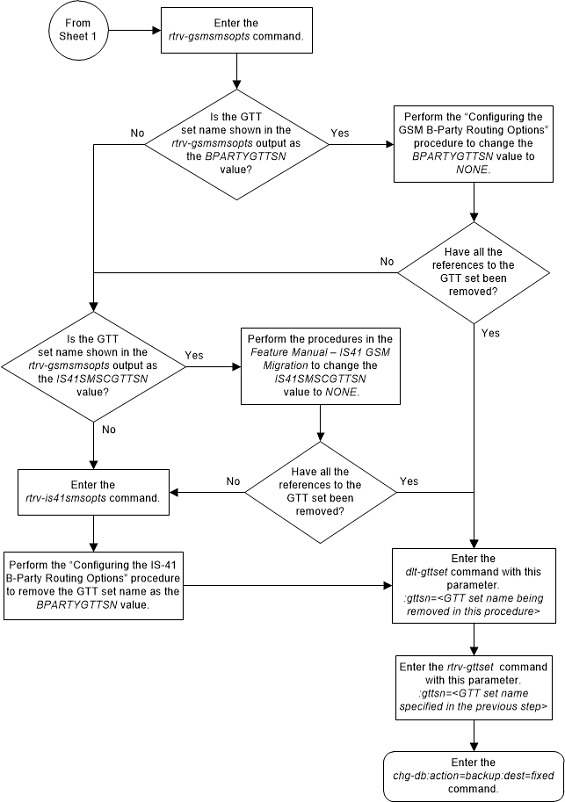

Figure 4-4 Remove a GTT Set - Sheet 2 of 2
