Adding a GTT Set

Use this procedure to add a global title translation (GTT) set to the database using the ent-gttset command. Subsequent global title selector (gttsel) or global title address (gta) commands may then be entered.

The ent-gttset command uses these parameters.

:gttsn – The GTT set name consisting of one alphabetic character and up to eight alphanumeric characters.

:netdom – The network domain of the global title translation set, either ANSI, ITU, or CROSS. The network domain CROSS can be specified only if the ANSI/ITU SCCP Conversion feature, part number 893012001, is enabled. The CROSS GTT set can be assigned to either an ANSI or ITU GTT selector.

Note:

The ITU domain does not distinguish between ITU-N (either ITU-N or ITU-N24) and ITU-I since the Enhanced Global Title Translation (EGTT) database does not yet distinguish ITU-National and ITU-International translations.

:ndgt – The number of digits contained in the global title translation.

:settype – The type of GTT set being added in this procedure shown in Table 4-1.

Table 4-1 GTT Set Types

SETTYPE Value Feature Requirements
CDGTA, CGGTA, CGPC, CGSSN, or OPC The Origin-Based SCCP Routing feature must be enabled.
CDSSN or DPC The Flexible Linkset Optional Based Routing feature must be enabled and turned on.
OPCODE The TCAP Opcode Based Routing feature must be enabled and turned on.

The Global Title Translation (GTT) and the Enhanced Global Title Translation (EGTT) features must be on before using this command. Use the rtrv-feat command to verify the settings. If the features are off, perform the Adding a Service Module procedure to turn these features on and to make sure that the correct hardware is installed to support these features.

Note:

Once the Global Title Translation (GTT) feature and the Enhanced Global Title Translation (EGTT) feature are turned on with the chg-feat command, they cannot be turned off.

The GTT feature and the EGTT feature must be purchased before you turn these features on. If you are not sure whether you have purchased the GTT feature and/or the EGTT feature, contact your Oracle Sales Representative or Account Representative.

The GTT set name (gttsn) may not already exist and must be specified with the domain. The GTT set table may not have more than 2000 entries.

If the Variable-length Global Title Translation Feature (VGTT) is on, shown by the entry VGTT = on in the rtrv-feat command output, or the Support for 16 GTT Lengths in VGTT feature is enabled and turned on, the ndgt parameter cannot be specified with the ent-gttset command. If the VGTT feature is on, a GTT set can contain a maximum of 10 different length global title addresses. If the Support for 16 GTT Lengths in VGTT feature is enabled and turned on, a GTT set can contain a maximum of 16 different length global title addresses. The length of the global title address is determined when the global title address is entered with the ent-gta command. For more information on the VGTT feature and the length of global title addresses, refer to the Variable-length Global Title Translation Feature section and the Adding Global Title Address Information procedure.

The VGTT functionality is supported only for CDPA GTT sets (settype=cdgta) and CGPA GTT sets (settype=cggta).

Table 4-2 GTT Set Parameter Combinations - Only the EGTT feature is on

SCCP Conversion Not Enabled VGTT=off SCCP Conversion Not Enabled VGTT=on or Support for 16 GTT Lengths for VGTT is Enabled and Turned On SCCP Conversion Enabled VGTT=off SCCP Conversion Enabled VGTT=on or Support for 16 GTT Lengths for VGTT is Enabled and Turned On
Mandatory Parameters
GTTSN GTTSN GTTSN GTTSN
NETDOM = ANSI, ITU NETDOM = ANSI, ITU NETDOM = CROSS, ANSI, ITU NETDOM = CROSS, ANSI, ITU
Optional Parameter
NDGT   NDGT

Notes:

SCCP Conversion refers to the ANSI/ITU SCCP Conversion feature - part number 893012001

VGTT refers to the Variable Global Title Translation feature

Parameter Values:

GTTSN = the GTT Set Name consisting of 1 to 9 alpha-numeric characters - the first character must be a letter, the remaining characters must be letters or numbers. The gttsn value cannot be the word none.

NDGT = the number of digits in the global title address - 1 to 21. The default value is 6.

Table 4-3 GTT Set Parameter Combinations - The OBSR Feature is Enabled, the FLOBR or the TOBR Features are Enabled or Turned On

SCCP Conversion Not Enabled VGTT=off SCCP Conversion Not Enabled VGTT=on or Support for 16 GTT Lengths for VGTT is Enabled and Turned On (See Note 3) SCCP Conversion Enabled VGTT=off SCCP Conversion Enabled VGTT=on or Support for 16 GTT Lengths for VGTT is Enabled and Turned On (See Note 3)
Mandatory Parameters
GTTSN GTTSN GTTSN GTTSN
NETDOM = ANSI, ITU NETDOM = ANSI, ITU NETDOM = CROSS, ANSI, ITU (See Note 2) NETDOM = CROSS, ANSI, ITU (See Note 2)
SETTYPE - the GTT set type shown in Table 4-1 (See Note 4) SETTYPE - the GTT set type shown in Table 4-1 (See Note 4) SETTYPE - the GTT set type shown in Table 4-1 (See Note 4) SETTYPE - the GTT set type shown in Table 4-1 (See Note 4)
Optional Parameter
NDGT (See Note 1)   NDGT (See Note 1)

Notes:

OBSR refers to the Origin-Based SCCP Routing feature

FLOBR refers to the Flexible Linkset Optional Based Routing feature

TOBR refers to the TCAP Opcode Based Routing feature

SCCP Conversion refers to the ANSI/ITU SCCP Conversion feature - part number 893012001

VGTT refers to the Variable Global Title Translation feature

Parameter Values:

GTTSN = the GTT Set Name consisting of 1 to 9 alpha-numeric characters - the first character must be a letter, the remaining characters must be letters or numbers. The gttsn value cannot be the word none.

NDGT = the number of digits in the global title address - 1 to 21.

1. The NDGT parameter can be specified only if the SETTYPE parameter value is either CDGTA or CGGTA. The default value is 6.

2. The NETDOM=CROSS parameter can be specified only if the SETTYPE parameter is CDGTA, and only if the ANSI/ITU SCCP Conversion feature is enabled.

3. VGTT functionality is supported only if the SETTYPE parameter value is either CDGTA or CGGTA.

4. If the GTT set name will be specified as the value for the BPARTYGTTSN parameter of either the chg-gsmsmsopts or chg-is41smsopts commands, the settype parameter value for this GTT set name must be cdgta.

  1. Display the GTT sets in the database by entering the rtrv-gttset command. This is an example of the possible output.
    rlghncxa03w 09-07-07 00:29:31 GMT EAGLE5 41.1.0

    GTTSN      NETDOM  SETTYPE  NDGT
    cdgtt1     ansi    CDGTA    6
    opcode1    ansi    OPCODE   -
    opcode2    ansi    OPCODE   -
    opcode3    ansi    OPCODE   -
    cdssn1     ansi    CDSSN    -
    cggta1     ansi    CGGTA    0
    cdgtt2     itu     CDGTA    0
    cgpc1      ansi    CGPC     -
    cgpc2      ansi    CGSSN    -
    cgssn2     ansi    CGSSN    -
    opc2       ansi    OPC      -
    opcode6    itu     OPCODE   -
    opcode7    itu     OPCODE   -
    cdssn6     itu     CDSSN    -
    cdssn7     itu     CDSSN    -

    GTT-SET table is (15 of 2000) 1% full.

    If GTT sets are shown in this step, or error message “E3557 Cmd Rej: EGTT must be ON before this command can be entered” is not displayed, continue the procedure with 2.

    If error message is displayed, “E3557 Cmd Rej: EGTT must be ON before this command can be entered,” the EGTT feature is not on. Perform the Adding a Service Module procedure to turn the EGTT feature on and to make sure that the correct hardware is installed and provisioned. After the Adding a Service Module procedure has been performed, continue the procedure with 2.

  2. To specify any of these parameters or values for the GTT set, the feature that corresponds to the parameter or value must be shown as enabled, and turned on if required, in the rtrv-ctrl-feat output.
    Perform the procedure, shown in this list, that corresponds to the parameters and values that you wish to specify for the GTT set.
    • settype - one of these features shown in Table 4-4 must be enabled, and turned on if necessary. If the SETTYPE column is not shown in the rtrv-gttset output and you wish to use the settype parameter, one of the features shown in Table 4-4 must be enabled and turned on, if necessary. If the settype column is shown in the rtrv-gttset output in 1, the settype parameter must be specified with the ent-gttset command.

      Table 4-4 SETTYPE Feature Requirements

      SETTYPE Value Feature Requirements Procedure to Verify the Feature’s Status and to Enable, and Turn On the Feature
      CDGTA, CGGTA, CDSSN, CGPC, or OPC Origin-Based SCCP Routing feature must be enabled. Activating the Origin-Based SCCP Routing Feature – See the Note.
      CDSSN or DPC The Flexible Link set Optional Based Routing feature must be enabled and turned on. Activating the Flexible Linkset Optional Based Routing Feature – See the Note.
      OPCODE TCAP Opcode Based Routing feature must be enabled and turned on. Activating the TCAP Opcode Based Routing Feature – See the Note.
      Note: If the desired SETTYPE value is shown in the rtrv-gttset output for any GTT set, the required feature is enabled, and turned on if required. The procedure for activating the feature does not need to be performed.
    • netdom=cross - the ANSI/ITUANSI/ITU SCCP Conversion feature must be enabled. Perform the Activating the ANSI/ITU SCCP Conversion Feature procedure to verify the status of the ANSI/ITU SCCP Conversion feature and to enable the ANSI/ITU SCCP Conversion feature if necessary. If the CROSS value is shown in the NETDOM column of the rtrv-gttset output for any GTT set, the Activating the ANSI/ITU SCCP Conversion Feature procedure does not need to be performed.
    • The Support for 16 GTT Lengths in VGTT feature must be enabled and turned on, if the GTT set will contain 11 to 16 different GTA lengths. Perform the Activating the Support for 16 GTT Lengths in VGTT Feature procedure to verify the status of the Support for 16 GTT Lengths in VGTT feature and to enable and turn on the Support for 16 GTT Lengths in VGTT feature if necessary. If GTT sets containing 11 to 16 different GTA lengths are shown in the rtrv-gttset, the Activating the Support for 16 GTT Lengths in VGTT Feature procedure does not need to be performed.
    Continue the procedure by performing one of these steps.
    • If the Support for 16 GTT Lengths in VGTT feature is enabled and turned on or the Activating the Support for 16 GTT Lengths in VGTT Feature procedure was performed in this step, continue the procedure with 5.
    • If the Support for 16 GTT Lengths in VGTT feature is not enabled or turned on and the Activating the Support for 16 GTT Lengths in VGTT Feature procedure was not performed in this step, continue the procedure by performing one of these steps.
      • If the GTT set will contain two to 10 different GTA lengths, the VGTT feature must be turned on. if GTA sets containing two to 10 different GTA lengths are shown in the rtrv-gttset output, the VGTT feature is turned on. Continue the procedure with 5.
      • If the GTT set will contain two to 10 different GTA lengths, and no GTT sets are shown in the rtrv-gttset output that contain two to 10 different GTA lengths, continue the procedure with 3.
      • If the GTT set will contain GTAs that have only one length, continue the procedure with 5.
  3. Verify that the VGTT feature is on by entering the rtrv-feat command. If the VGTT feature is on, the VGTT field should be set to on.

    Note:

    The rtrv-feat command output contains other fields that are not used by this procedure. If you wish to see all the fields displayed by the rtrv-feat command, see the rtrv-feat command description in Commands User's Guide.
    Continue the procedure by performing one of these steps.
    • If the VGTT feature is on, continue the procedure with 5.
    • If the VGTT feature is off, continue the procedure with Oracle.
  4. Turn the VGTT feature on by entering this command.

    chg-feat:vgtt=on

    Note:

    Once the Variable-length Global Title Translation (VGTT) feature is turned on with the chg-feat command, it cannot be turned off.

    The VGTT feature must be purchased before you turn this feature on. If you are not sure whether you have purchased the VGTT feature, contact your Oracle Sales Representative or Account Representative.

    When the chg-feat command has successfully completed, this message should appear.

    rlghncxa03w 09-05-07 00:28:31 GMT EAGLE5 41.0.0
    CHG-FEAT: MASP A - COMPLTD
  5. Add the GTT sets to the database using the ent-gttset command.

    Table 4-2 and Table 4-3 shows the parameter combinations that can be used with the ent-gttset command.

    If only the EGTT feature is on for this example, enter these commands.

    ent-gttset:gttsn=lidb:ndgt=10:netdom=ansi

    ent-gttset:gttsn=t800:netdom=ansi:ndgt=6

    ent-gttset:gttsn=si000:netdom=itu:ndgt=15

    If the Origin-Based SCCP routing feature is enabled for this example, enter these commands.

    ent-gttset:gttsn=cdgta1:ndgt=10:netdom=ansi:settype=cdgta

    ent-gttset:gttsn=cggta1:netdom=ansi:ndgt=6:settype=cggta

    ent-gttset:gttsn=cgpc1:netdom=itu:settype=cgpc

    If the Flexible Linkset Optional Based Routing feature is enabled and turned on for this example, enter these commands.

    ent-gttset:gttsn=cdssn1:netdom=ansi:settype=cdssn

    ent-gttset:gttsn=dpc1:netdom=itu:settype=dpc

    If the TCAP Opcode Based Routing feature is enabled and turned on for this example, enter these commands.

    ent-gttset:gttsn=opcode1:netdom=ansi:settype=opcode

    ent-gttset:gttsn=opcode2:netdom=itu:settype=opcode

    When each of these commands have successfully completed, this message should appear.

    rlghncxa03w 09-07-07 00:29:31 GMT EAGLE5 41.1.0

    GTT-SET table is (24 of 2000) 1% full.

    ENT-GTTSET: MASP A - COMPLTD
  6. Verify the changes using the rtrv-gttset command with the gttsn parameter and value specified in 5.

    For this example, enter these commands.

    1. rtrv-gttset:gttsn=lidb

      rlghncxa03w 09-07-07 00:30:31 GMT EAGLE5 41.1.0

      GTTSN     NETDOM  NDGT
      lidb      ansi    10

      GTT-SET table is (25 of 2000) 1% full.
    2. rtrv-gttset:gttsn=t800

      rlghncxa03w 09-07-07 00:30:31 GMT EAGLE5 41.1.0

      GTTSN     NETDOM  NDGT
      t800      ansi    6

      GTT-SET table is (25 of 2000) 1% full.
    3. rtrv-gttset:gttsn=si000

      rlghncxa03w 09-07-07 00:30:31 GMT EAGLE5 41.1.0

      GTTSN     NETDOM  NDGT
      si000     itu     15

      GTT-SET table is (25 of 2000) 1% full.

    4. rtrv-gttset:gttsn=cdgta1

      rlghncxa03w 09-07-07 00:30:31 GMT EAGLE5 41.1.0

      GTTSN     NETDOM  SETTYPE  NDGT
      cdgta1    ansi    CDGTA    10

      GTT-SET table is (25 of 2000) 1% full.
    5. rtrv-gttset:gttsn=cggta1

      rlghncxa03w 09-07-07 00:30:31 GMT EAGLE5 41.1.0

      GTTSN     NETDOM  SETTYPE  NDGT
      cggta1    ansi    CGGTA    6

      GTT-SET table is (25 of 2000) 1% full.
    6. rtrv-gttset:gttsn=cgpc1

      rlghncxa03w 09-07-07 00:30:31 GMT EAGLE5 41.1.0

      GTTSN     NETDOM  SETTYPE  NDGT
      cgpc1     itu     CGPC     -

      GTT-SET table is (25 of 2000) 1% full.
    7. rtrv-gttset:gttsn=cdssn1

      rlghncxa03w 09-07-07 00:30:31 GMT EAGLE5 41.1.0

      GTTSN     NETDOM  SETTYPE  NDGT
      cdssn1    ansi    CDSSN    -

      GTT-SET table is (25 of 2000) 1% full.
    8. rtrv-gttset:gttsn=dpc1

      rlghncxa03w 10-07-07 00:30:31 GMT EAGLE5 42.0.0

      GTTSN     NETDOM  SETTYPE  NDGT
      dpc1      itu     DPC      -

      GTT-SET table is (25 of 2000) 1% full.
    9. rtrv-gttset:gttsn=opcode1

      rlghncxa03w 09-07-07 00:30:31 GMT EAGLE5 41.1.0

      GTTSN     NETDOM  SETTYPE  NDGT
      opcode1   ansi    OPCODE   -

      GTT-SET table is (25 of 2000) 1% full.
    10. rtrv-gttset:gttsn=opcode2

      rlghncxa03w 09-07-07 00:30:31 GMT EAGLE5 41.1.0

      GTTSN     NETDOM  SETTYPE  NDGT
      opcode2   itu     OPCODE   -

      GTT-SET table is (25 of 2000) 1% full.

    Examples 1 through 3 are GTT sets that are provisioned when only the EGTT feature is on.

    Examples 4 through 6 are GTT sets that are provisioned when the Origin-Based SCCP Routing feature is enabled.

    Examples 7 and 8 are GTT sets that are provisioned when the Flexible Linkset Optional Based Routing feature is enabled and turned on.

    Examples 9 and 10 are GTT sets that are provisioned when the TCAP Opcode Based Routing feature is enabled and turned on.

  7. Backup the new changes using the chg-db:action=backup:dest=fixed command. These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.
    BACKUP (FIXED) : MASP A - Backup starts on active MASP.
    BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
    BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
    BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

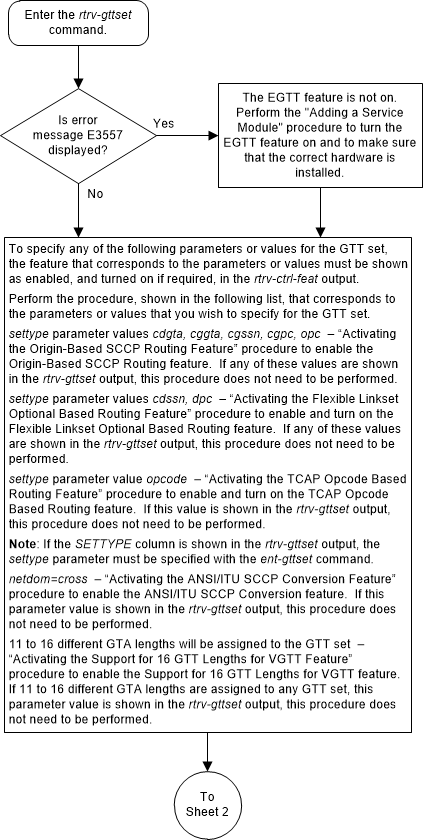

Figure 4-1 Add a GTT Set - Sheet 1 of 2

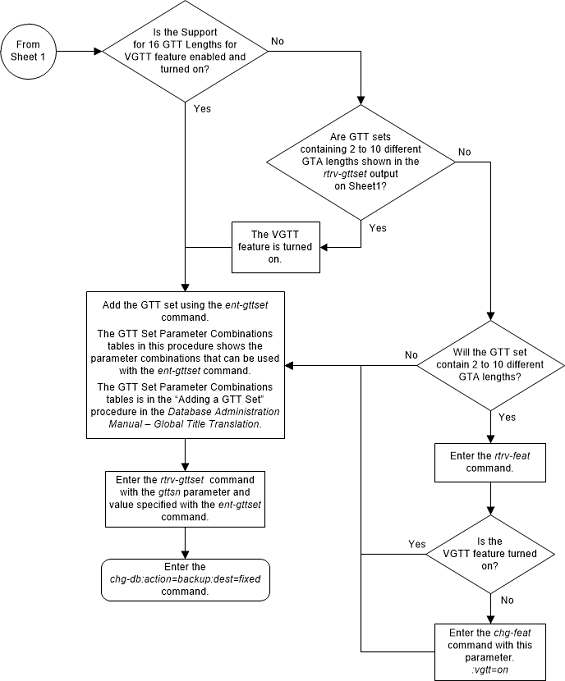

Figure 4-2 Add a GTT Set - Sheet 2 of 2
