Activating the MO SMS B-Party Routing Feature

This procedure is used to enable and turn on the MO SMS B-Party Routing feature using the feature’s part number.

The enable-ctrl-feat command enables the MO SMS B-Party Routing feature by inputting the feature’s access key and the feature’s part number with these parameters:

:fak – The feature access key provided. The feature access key contains 13 alphanumeric characters and is not case sensitive.

:partnum – The issued part number of the MO SMS B-Party Routing feature, 893024601.

The enable-ctrl-feat command requires that the database contain a valid serial number for the EAGLE, and that this serial number is locked. This can be verified with the rtrv-serial-num command. The EAGLE is shipped with a serial number in the database, but the serial number is not locked. The serial number can be changed, if necessary, and locked once the EAGLE is on-site, with the ent-serial-num command. The ent-serial-num command uses these parameters.

:serial – The serial number assigned to the EAGLE. The serial number is not case sensitive.

:lock – Specifies whether or not the serial number is locked. This parameter has only one value, yes, which locks the serial number. Once the serial number is locked, it cannot be changed.

Note:

To enter and lock the EAGLE’s serial number, the ent-serial-num command must be entered twice, once to add the correct serial number to the database with the serial parameter, then again with the serial and the lock=yes parameters to lock the serial number. You should verify that the serial number in the database is correct before locking the serial number. The serial number can be found on a label affixed to the control shelf (shelf 1100).

This feature cannot be temporarily enabled (with the temporary feature access key).

Once this feature is enabled, provisioning for this feature can be performed, but the feature will not work until the feature is turned on with the chg-ctrl-feat command. The chg-ctrl-feat command uses these parameters:

:partnum – The issued part number of the MO SMS B-Party Routing feature, 893024601.

:status=on – used to turn the MO SMS B-Party Routing feature on.

Once the MO SMS B-Party Routing feature has been turned on, it be can be turned off. For more information on turning the MO SMS B-Party Routing feature off, refer to the procedure Turning the MO SMS B-Party Routing Feature Off.

The status of the features in the EAGLE is shown with the rtrv-ctrl-feat command.

The MO SMS B-Party Routing feature requires that DSMs or SLIC cards are installed and provisioned in the EAGLE. DSM cards are shown by the entry dsm in the TYPE column and vsccp in the APPL column of the rtrv-card output. SLIC cards are shown as type=dsm (in the odd numbered card slots) or type=slic (in the even numbered card slots), and appl=vsccp.

The MO SMS B-Party Routing feature also requires that the Global Title Translation (GTT) and Enhanced Global Title Translation (EGTT) features are turned on. The status of the Global Title Translation and Enhanced Global Title Translation features are shown in the rtrv-feat output.

Display the status of the controlled features by entering the rtrv-ctrl-feat command. The following is an example of the possible output.

rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
The following features have been permanently enabled:

Feature Name              Partnum    Status  Quantity
Command Class Management  893005801  on      ----
LNP Short Message Service 893006601  on      ----
Intermed GTT Load Sharing 893006901  on      ----
XGTT Table Expansion      893006101  on      400000
XMAP Table Expansion      893007710  off     ----
Large System # Links      893005910  on      2000
Routesets                 893006401  on      6000
HC-MIM SLK Capacity       893012707  on      64

The following features have been temporarily enabled:

Feature Name              Partnum    Status  Quantity     Trial Period Left
Zero entries found.

The following features have expired temporary keys:

Feature Name              Partnum
Zero entries found.

If the MO SMS B-Party Routing feature is enabled and turned on, no further action is necessary. This procedure does not need to be performed.

If the MO SMS B-Party Routing is enabled and but not turned on, continue the procedure with 9.

If the MO SMS B-Party Routing is not enabled, continue the procedure with 2 .

Display the cards in the EAGLE using the rtrv-card command.
The MO SMS B-Party Routing feature requires that DSMs or SLIC cards running the VSCCP application are in the database. The following is an example of the possible output:
```
rlghncxa03w 09-05-25 09:58:31 GMT EAGLE5 41.0.0
CARD   TYPE      APPL      LSET NAME     PORT SLC LSET NAME     PORT SLC
1102   TSM       GLS
1113   E5MCAP    OAMHC
1114   E5TDM-A
1115   E5MCAP    OAMHC
1116   E5TDM-B
1117   E5MDAL
1201   LIMDS0    SS7ANSI   sp2           A    0   sp1           B    0
1203   LIMDS0    SS7ANSI   sp3           A    0
1204   LIMDS0    SS7ANSI   sp3           A    1
1206   LIMDS0    SS7ANSI   nsp3          A    1   nsp4          B    1
1216   DCM       STPLAN
1301   DSM       VSCCP
1303   DSM       VSCCP
1305   DSM       VSCCP
1308   LIMDS0    SS7ANSI   sp6           A    1   sp7           B    0
1314   LIMDS0    SS7ANSI   sp7           A    1   sp5           B    1
1317   DCM       STPLAN
```
There are two types of cards that run the VSCCP application: DSMs and SLIC.

DSM cards are shown by the entry dsm in the TYPE column and vsccp in the APPL column of the rtrv-card output. SLIC cards are shown as type=dsm (in the odd numbered card slots) or type=slic (in the even numbered card slots), and appl=vsccp.

If DSMs or SLIC cards running the VSCCP application are in the EAGLE, continue the procedure with 3.

If no service modules are shown in the rtrv-card output, perform Adding a Service Module to add DSMs cards to the EAGLE. Make sure to turn the EGTT feature on while performing Adding a Service Module . After Adding a Service Module has been performed, continue the procedure with 4.

Note:
If the rtrv-ctrl-feat output in 1 shows any controlled features, continue the procedure with EAGLE. If the rtrv-ctrl-feat output shows only the HC-MIM SLK Capacity feature with a quantity of 64, 4 through 7 must be performed.
The Enhanced Global Title Translation (EGTT) feature must be turned on to enable the MO SMS B-Party Routing feature. Verify the status of the EGTT feature by entering the rtrv-feat command.
If the EGTT feature is on, the EGTT field should be set to on.

Note:
The rtrv-feat command output contains other fields that are not used by this procedure. If you wish to see all the fields displayed by the rtrv-feat command, refer to the rtrv-feat command description in Commands User's Guide.

If the EGTT feature is on, shown by the entry EGTT = on in the rtrv-feat command output, continue the procedure with 4.

If the EGTT feature is off, shown by the entry EGTT = off in the rtrv-feat command output, turn the EGTT feature on by entering this command.

chg-feat:egtt=on

Note:
Once the Enhanced Global Title Translation (EGTT) feature is turned on with the chg-feat command, it cannot be turned off.
The EGTT feature must be purchased before turning it on. If you are not sure whether you have purchased the EGTT feature, contact your Sales Representative or Account Representative.

When the chg-feat has successfully completed, this message should appear.
```
rlghncxa03w 08-09-25 09:57:41 GMT EAGLE5 39.1.0
CHG-FEAT: MASP A - COMPLTD
```
After the EGTT feature has been turned on, continue the procedure with 4.

Note:
If the rtrv-ctrl-feat output in 1 shows any controlled features, continue the procedure with 8. If the rtrv-ctrl-feat output shows only the HC-MIM SLK Capacity feature with a quantity of 64, 4 through 7 must be performed.
Display the serial number in the database with the rtrv-serial-num command. This is an example of the possible output.
```
rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
System serial number = nt00001231

System serial number is not locked.

rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
Command Completed.
```
Note:
If the serial number is correct and locked, continue the procedure with 8. If the serial number is correct but not locked, continue the procedure with 7. If the serial number is not correct, but is locked, this feature cannot be enabled and the remainder of this procedure cannot be performed. Contact My Oracle Support to get an incorrect and locked serial number changed. Refer to My Oracle Support (MOS) for the contact information. The serial number can be found on a label affixed to the control shelf (shelf 1100).
Enter the correct serial number into the database using the ent-serial-num command with the serial parameter.
For this example, enter this command.

ent-serial-num:serial=<EAGLE’s correct serial number>

When this command has successfully completed, the following message should appear.
```
rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
ENT-SERIAL-NUM:  MASP A - COMPLTD
```
Verify that the serial number entered into 5 was entered correctly using the rtrv-serial-num command. This is an example of the possible output.
```
rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
System serial number = nt00001231

System serial number is not locked.

rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
Command Completed.
```
If the serial number was not entered correctly, repeat 5 and 6 and re-enter the correct serial number.
Lock the serial number in the database by entering the ent-serial-num command with the serial number shown in 4, if the serial number shown in 4 is correct, or with the serial number shown in 6, if the serial number was changed in 5, and with the lock=yes parameter.
For this example, enter this command.

ent-serial-num:serial=<EAGLE’s serial number>:lock=yes

When this command has successfully completed, the following message should appear.
```
rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
ENT-SERIAL-NUM:  MASP A - COMPLTD
```
Enable the MO SMS B-Party Routing feature with the enable-ctrl-feat command specifying the part number for the MO SMS B-Party Routing feature. Enter this command.
enable-ctrl-feat:partnum=893024601

Note:
The MO SMS B-Party Routing feature cannot be enabled with a temporary feature access key.

When the enable-crtl-feat command has successfully completed, this message should appear.
```
rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
ENABLE-CTRL-FEAT: MASP B - COMPLTD
```
Caution:
Once the MO SMS B-Party Routing feature is enabled, provisioning for MO SMS B-Party Routing feature can be performed, but the EAGLE will not perform global title translation on the MAP B-Party digits of any messages until the MO SMS B-Party Routing is turned on in 9.

If you wish to turn the MO SMS B-Party feature on at this time, continue the procedure with 9.

If you do not wish to turn the MO SMS B-Party feature on at this time, continue the procedure with 10.
Turn the MO SMS B-Party Routing feature on with the chg-ctrl-feat command specifying the part number for the MO SMS B-Party Routing feature and the status=on parameter. Enter this command.
chg-ctrl-feat:partnum=893024601:status=on

When this command has successfully completed, the following message should appear.
```
rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
CHG-CTRL-FEAT: MASP B - COMPLTD
```

Verify the changes by entering the rtrv-ctrl-feat command with the MO SMS B-Party Routing feature part number. Enter this command.

rtrv-ctrl-feat:partnum=893024601

The following is an example of the possible output.

rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
The following features have been permanently enabled:

Feature Name              Partnum    Status  Quantity
MO SMS B-Party Routing    893024601  on      ----

The following features have been temporarily enabled:

Feature Name              Partnum    Status  Quantity     Trial Period Left
Zero entries found.

The following features have expired temporary keys:

Feature Name              Partnum
Zero entries found.

Back up the new changes using the chg-db:action=backup:dest=fixed command. These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.

BACKUP (FIXED) : MASP A - Backup starts on active MASP.
BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

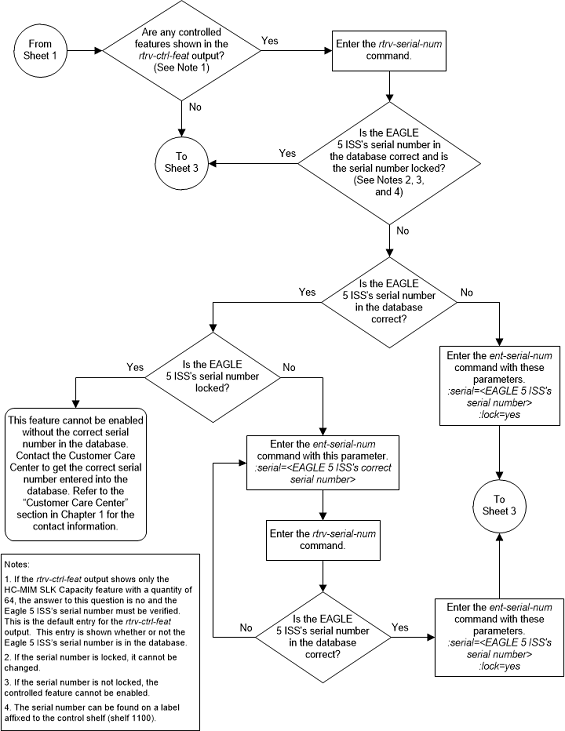

Figure A-1 Activate the MO SMS B-Party Routing Feature- Sheet 1 of 3

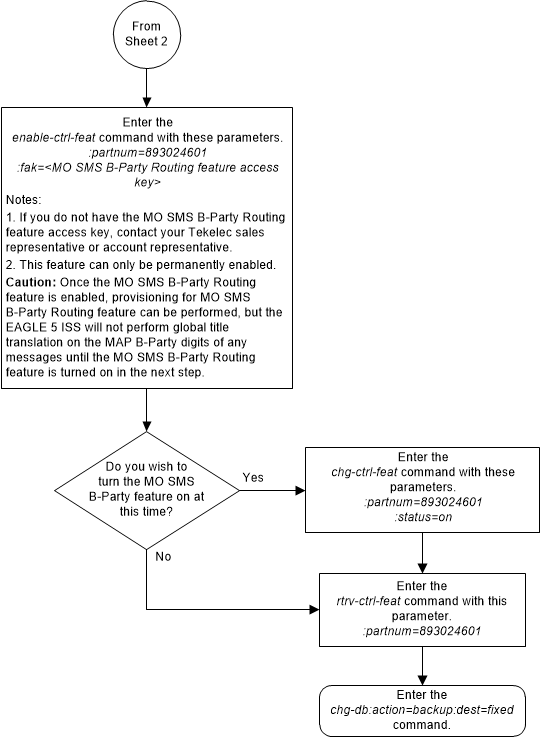

Figure A-2 Activate the MO SMS B-Party Routing Feature - Sheet 2 of 3

Figure A-3 Activate the MO SMS B-Party Routing Feature - Sheet 3 of 3
