Allowed Affected Destination Screening Actions

These network management messages are screened by the Allowed Affected Destination Field: TFP, TFA, TFR, TFC, UPU, and SRST (RSP, RSR). Any MSU that is not one of these network management message types, or does not contain a service indicator of 0 in the SIO field and reaches this screen in the gateway screening process automatically passes gateway screening and is allowed into the EAGLE.

Figure 7-1 through Figure 7-3 show the screening actions of the allowed affected destination field screen.

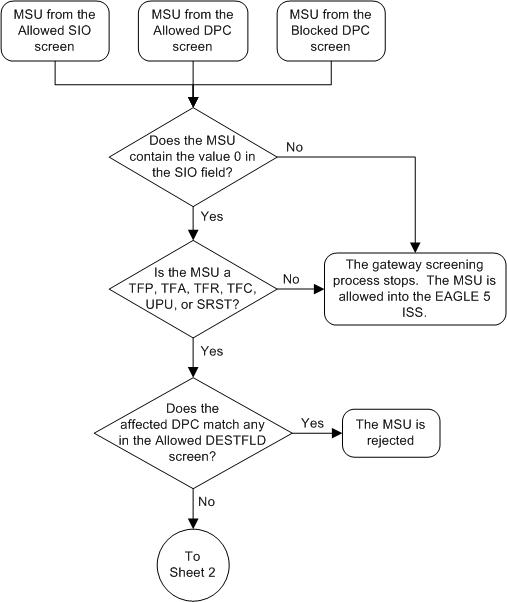

Figure 7-1 Allowed Affected Destination Screening Actions - Sheet 1 of 3


img/allowed_destfld_01_116768.jpg

Figure 7-2 Allowed Affected Destination Screening Actions - Sheet 2 of 3

img/gws_stop_actions_01_140964.jpg

Figure 7-3 Allowed Affected Destination Screening Actions - Sheet 3 of 3

img/gws_stop_actions_02_140964.jpg

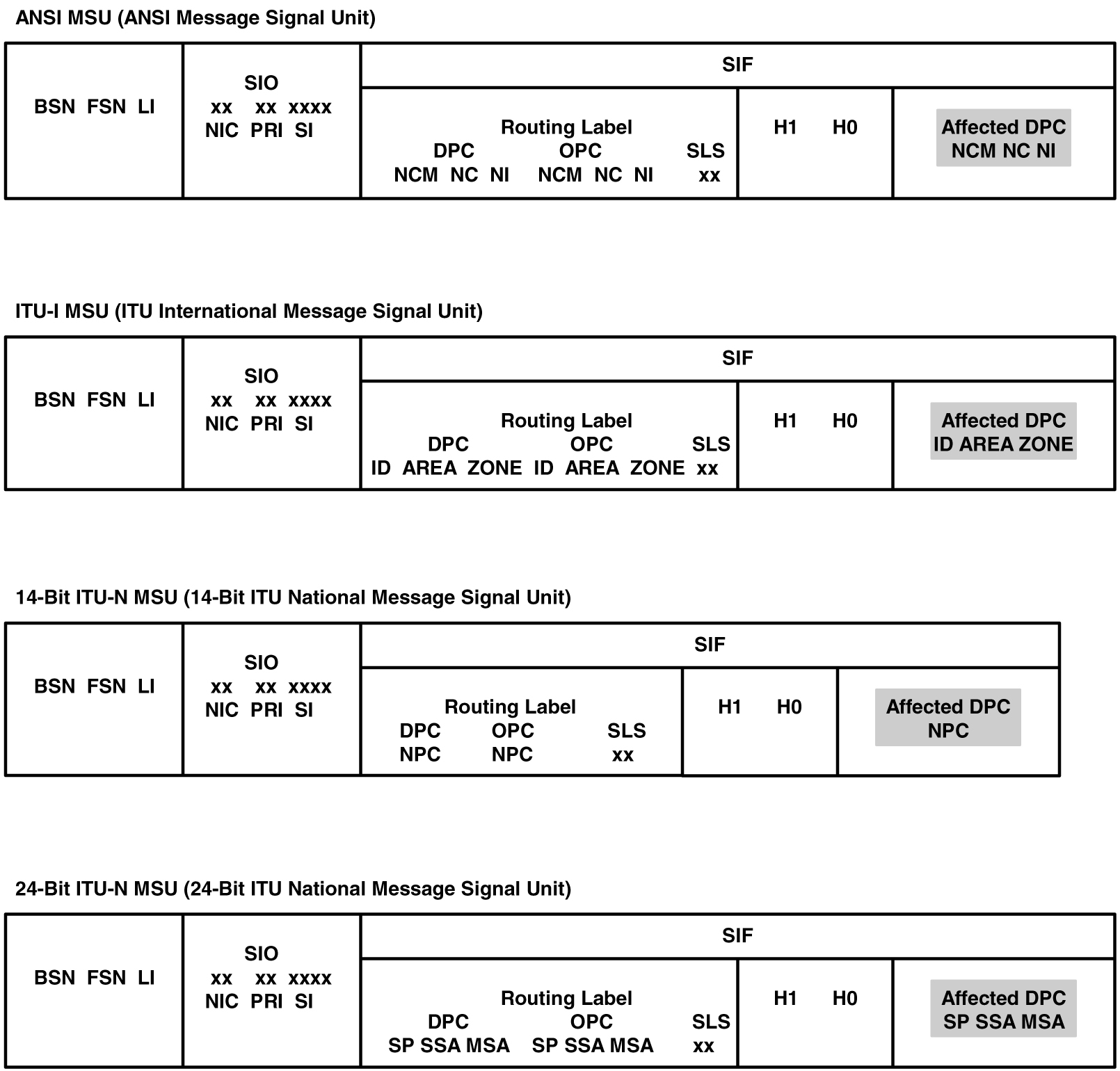

Figure 7-4 Allowed Affected Destination Field Screening Function

img/c_introduction_5_dbags-fig4.jpg
